3 Phase PDU Calculator Simplified for Beginners

Managing power distribution in systems with three-phase PDUs can feel overwhelming, especially for beginners. The 3 phase pdu calculator simplifies this process by breaking down complex calculations into manageable steps. It uses key inputs like voltage, current, and power factor to help you determine your power needs accurately. This tool ensures balanced power distribution, which reduces energy waste and extends equipment lifespan. In data centers and industrial applications, where efficiency and reliability are critical, this 3 phase pdu calculator becomes an indispensable resource for precise power planning.

Key Takeaways

• A 3-phase PDU calculator simplifies power distribution calculations by using key inputs like voltage, current, and power factor, making it accessible for beginners.
• Using a 3-phase PDU ensures balanced power distribution, which reduces energy waste and extends the lifespan of connected equipment.
• Accurate input measurements are crucial; always verify voltage, current, and power factor to avoid overloads and ensure reliable operations.
• The calculator provides outputs like total power capacity and load balancing results, helping you make informed decisions about your power setup.
• Choosing the right 3-phase PDU involves matching its capacity to your power needs and planning for future scalability to accommodate growth.
• NBYOSUN‘s smart PDUs offer advanced features like outlet-level monitoring and remote management, enhancing power management in high-demand environments.

Understanding 3-Phase PDUs

What is a 3-Phase PDU?

Definition and basic functionality of 3-phase PDUs.

A 3-phase PDU (Power Distribution Unit) is a device designed to distribute electrical power efficiently across multiple devices in high-demand environments. Unlike single-phase PDUs, which rely on a single alternating current (AC) waveform, 3-phase PDUs utilize three AC waveforms.

The primary function of a 3-phase PDU is to manage and distribute power to connected equipment while maintaining stability and efficiency.

Key differences between 3-phase and single-phase PDUs.

When comparing 3-phase PDUs to single-phase PDUs, the differences become clear:

• Power Capacity: 3-phase PDUs handle significantly higher power loads, making them suitable for environments with multiple high-power devices.
• Efficiency: The balanced load distribution in 3-phase systems reduces energy waste, unlike single-phase systems, which may experience uneven power usage.
• Voltage Support: 3-phase PDUs typically operate at higher voltages (208V or more), while single-phase PDUs usually support lower voltages (120V or 240V).
• Applications: Single-phase PDUs are common in residential or small office setups, whereas 3-phase PDUs are essential for large-scale operations like data centers and industrial facilities.

Why Choose a 3-Phase PDU?

Advantages of 3-phase PDUs, such as higher efficiency and capacity.

Choosing a 3-phase PDU offers several advantages that enhance power management:

1. Higher Efficiency: The balanced power distribution across three phases reduces energy loss and improves overall system performance.
2. Increased Capacity: With the ability to handle higher power loads, 3-phase PDUs support multiple devices simultaneously without compromising reliability.
3. Cost-Effectiveness: By minimizing energy waste and extending equipment lifespan, 3-phase PDUs lower operational costs over time.
4. Compact Design: Despite their high capacity, 3-phase PDUs often feature a space-saving design, making them easy to integrate into server racks or cabinets.

Common applications of 3-phase PDUs in industries and data centers.

3-phase PDUs are indispensable in various settings:

• Data Centers: They ensure uninterrupted power supply to servers, storage systems, and networking equipment, supporting critical operations.
• Industrial Facilities: These PDUs power heavy machinery and equipment, maintaining efficiency in production lines.
• Telecommunications: They provide stable power to communication infrastructure, ensuring seamless connectivity.
• High-Density Environments: In server rooms or IT setups, 3-phase PDUs manage power distribution for multiple devices, preventing overloads and downtime.

NBYOSUN’s 3 Phase 32A 38 C13 10 C19 0U Vertical PDU

Overview of the product’s features and specifications.

The NBYOSUN 3 Phase 32A 38 C13 10 C19 0U Vertical PDU is a high-performance solution tailored for demanding environments. This PDU features:

• 48 Outlets: A combination of 38 IEC60320 C13 and 10 locking IEC60320 C19 sockets, supporting multiple devices simultaneously.
• High Current Capacity: Operates at 32A with a maximum output of 24 kW, ensuring reliable power for high-demand setups.
• Durable Construction: Built with a robust aluminum alloy housing, offering excellent resistance to impact and wear.
• Overload Protection: Equipped with six 1P 16A circuit breakers, safeguarding your equipment from electrical faults.
• Customizable Options: Includes adjustable mounting ears and customizable shell colors or power cord lengths to meet specific needs.

How it supports efficient power distribution in high-demand environments.

This PDU excels in high-density environments like data centers and server rooms. Its balanced load distribution across three phases prevents power disruptions and ensures stable operations. The locking outlets secure connections, reducing the risk of accidental disconnections. Overload protection features safeguard your equipment from electrical anomalies, enhancing reliability and safety.

By integrating this PDU into your setup, you can optimize power management, reduce energy waste, and maintain uninterrupted operations. Its compact vertical design saves valuable rack space, making it a practical choice for modern IT infrastructures.

How a 3-Phase PDU Calculator Works

Key Inputs of the Calculator

Voltage, current, and power factor explained.

To use a 3 phase pdu calculator effectively, you need to understand its key inputs: voltage, current, and power factor.

• Voltage refers to the electrical potential difference between two points. In a three-phase system, this is typically measured as line-to-line voltage, often 208V or higher. It determines the amount of electrical energy available for distribution.
• Current represents the flow of electric charge through a conductor. It is measured in amperes (A) and indicates the load each phase carries.
• Power Factor is a ratio that measures how efficiently electrical power is converted into useful work output. It ranges from 0 to 1, with values closer to 1 indicating higher efficiency.

These inputs form the foundation of power distribution calculations. They help you assess the capacity of your PDU and ensure it can handle the connected devices without overloading.

How these inputs affect power distribution calculations.

The accuracy of power distribution relies heavily on these inputs. Voltage and current determine the total power capacity of your system, while the power factor adjusts for inefficiencies. For example:

• A higher power factor means less energy is wasted, allowing you to maximize the PDU’s capacity.
• Accurate current measurements prevent overloading by ensuring each phase carries an appropriate share of the load.
• Proper voltage input ensures compatibility with your equipment and avoids potential damage.

By entering these values into the calculator, you can achieve precise results that guide your power management strategy.

Outputs of the Calculator

Total power capacity and load balancing results.

The 3 phase pdu calculator provides two critical outputs: total power capacity and load balancing results.

• Total Power Capacity: This output shows the maximum amount of power your PDU can distribute across all connected devices. It helps you determine whether your current setup meets your power requirements or if upgrades are necessary.
• Load Balancing Results: These results indicate how evenly the load is distributed across the three phases. Balanced loads reduce the risk of overheating, improve energy efficiency, and extend the lifespan of your equipment.

For instance, if one phase carries a significantly higher load than the others, the calculator will highlight this imbalance. You can then redistribute devices to achieve stability.

How the outputs help in planning and decision-making.

These outputs simplify power planning by providing actionable insights. With total power capacity, you can avoid overloading your PDU and ensure reliable operations. Load balancing results guide you in arranging devices to optimize performance and prevent costly downtime. This data empowers you to make informed decisions, whether you’re setting up a new system or upgrading an existing one.

Benefits of Using the Calculator

Simplifying power planning for beginners.

The 3 phase pdu calculator eliminates the complexity of manual calculations. Instead of grappling with formulas and technical details, you simply input the required values and receive instant results. This user-friendly approach makes it accessible even if you’re new to power management. It saves time, reduces errors, and ensures accurate planning.

Ensuring balanced and efficient power distribution.

Balanced power distribution is crucial for maintaining system efficiency and reliability. The calculator helps you achieve this by analyzing the load on each phase and suggesting adjustments. This prevents overloading, minimizes energy waste, and enhances the overall performance of your setup. By using the calculator, you can confidently manage your power needs and avoid common pitfalls.

Step-by-Step Guide to Using a 3-Phase PDU Calculator

Preparing Your Inputs

Gathering necessary data like voltage, current, and power factor.

Before using the 3 phase pdu calculator, you need to collect three essential inputs: voltage, current, and power factor. These values form the foundation for accurate power distribution calculations.

1. Voltage: Identify the line-to-line voltage of your system. In most three-phase setups, this value typically ranges from 208V to 480V. Check your equipment specifications or consult your electrical system documentation to confirm the correct voltage.
2. Current: Measure the current flowing through each phase. Use a reliable clamp meter or multimeter to obtain precise readings. Ensure that the equipment connected to the PDU is operating under normal load conditions during measurement.
3. Power Factor: Determine the efficiency of your electrical system. The power factor is often provided in equipment manuals or can be measured using a power quality analyzer. A value closer to 1 indicates better efficiency.

Accurate data collection ensures that the calculator delivers reliable results. Double-check your measurements to avoid errors that could lead to imbalanced power distribution or equipment overload.

Tips for accurate input measurements.

To ensure precision when gathering inputs:

• Use calibrated tools like digital multimeters or clamp meters for voltage and current measurements.
• Measure during peak operational hours to capture realistic load conditions.
• Avoid estimating values. Instead, refer to equipment labels, manuals, or consult an electrician for assistance.
• Record your measurements systematically to avoid confusion or misinterpretation.

By following these tips, you can confidently input accurate data into the calculator, ensuring optimal power management.

Using the Calculator

Entering inputs into the calculator.

Once you have your data, input the values into the 3 phase pdu calculator. Most calculators feature a straightforward interface where you can enter voltage, current, and power factor for each phase. Follow these steps:

1. Locate the input fields for voltage, current, and power factor.
2. Enter the measured voltage value in the designated field.
3. Input the current readings for each phase (Phase A, Phase B, and Phase C).
4. Provide the power factor value, ensuring it matches the efficiency of your system.

After entering the data, review the inputs to confirm accuracy. Many calculators include validation features to alert you if any values seem inconsistent.

Interpreting the results with an example scenario.

Let’s consider an example. Suppose your system operates at 208V, with current readings of 30A, 28A, and 32A for Phases A, B, and C, respectively. The power factor is 0.95. After entering these values, the calculator might display:

• Total Power Capacity: 10,920 watts (calculated as Voltage × Current × Power Factor × √3).
• Load Balancing Results: Phase A: 33%, Phase B: 31%, Phase C: 36%.

These results indicate that Phase C carries a slightly higher load. To achieve better balance, you could redistribute devices connected to Phase C to Phases A or B.

Applying the Results

How to use the results to plan power distribution.

The outputs from the calculator provide actionable insights for power planning. Use the total power capacity to verify that your PDU can handle the connected devices. If the capacity exceeds your requirements, your setup is sufficient. If not, consider upgrading to a higher-capacity PDU.

For load balancing, aim for equal distribution across all three phases. This reduces the risk of overheating and improves energy efficiency. Adjust device connections based on the calculator’s recommendations to achieve a balanced load.

Avoiding common mistakes when using the calculator.

To maximize the benefits of the calculator, avoid these common pitfalls:

• Ignoring Load Imbalances: Uneven loads can lead to equipment failure and energy waste. Always address imbalances highlighted by the calculator.
• Using Incorrect Inputs: Double-check your voltage, current, and power factor values before entering them. Incorrect inputs lead to inaccurate results.
• Overlooking Future Growth: Consider potential increases in power demand. Plan for scalability by selecting a PDU with additional capacity.

By applying the results effectively, you can optimize your power distribution system, ensuring reliability and efficiency in your operations.

Choosing the Right 3-Phase PDU Product

Factors to Consider

Matching PDU capacity to your power needs.

Selecting the right 3-phase PDU starts with understanding your power requirements. You need to evaluate the total power demand of your connected devices and ensure the PDU can handle this load efficiently. Calculate the total power capacity by multiplying the voltage, current, and power factor of your system. For example, if your setup operates at 208V with a current of 30A and a power factor of 0.95, the total power capacity would be approximately 10,260 watts. This calculation ensures that your PDU can support all devices without overloading.

Additionally, consider the number and type of outlets required. Devices with IEC60320 C13 or C19 connectors may need specific outlet configurations. A PDU like the NBYOSUN 3 Phase 32A 38 C13 10 C19 0U Vertical PDU offers a mix of 38 C13 and 10 C19 outlets, making it suitable for high-density environments. Matching the PDU’s capacity and outlet configuration to your equipment ensures seamless integration and reliable performance.

Considering scalability and future growth.

Planning for future growth is essential when choosing a 3-phase PDU. As your business expands, your power needs may increase. Opt for a PDU with additional capacity to accommodate new devices without requiring frequent upgrades. For instance, a PDU with a higher current rating or more outlets can support future expansions, saving you time and costs in the long run.

Scalability also involves considering advanced features like remote monitoring and management. Smart PDUs, such as those offered by NBYOSUN, provide real-time insights into power usage, enabling you to optimize energy consumption as your infrastructure grows. By investing in a scalable solution, you ensure that your power distribution system remains efficient and adaptable to changing demands.

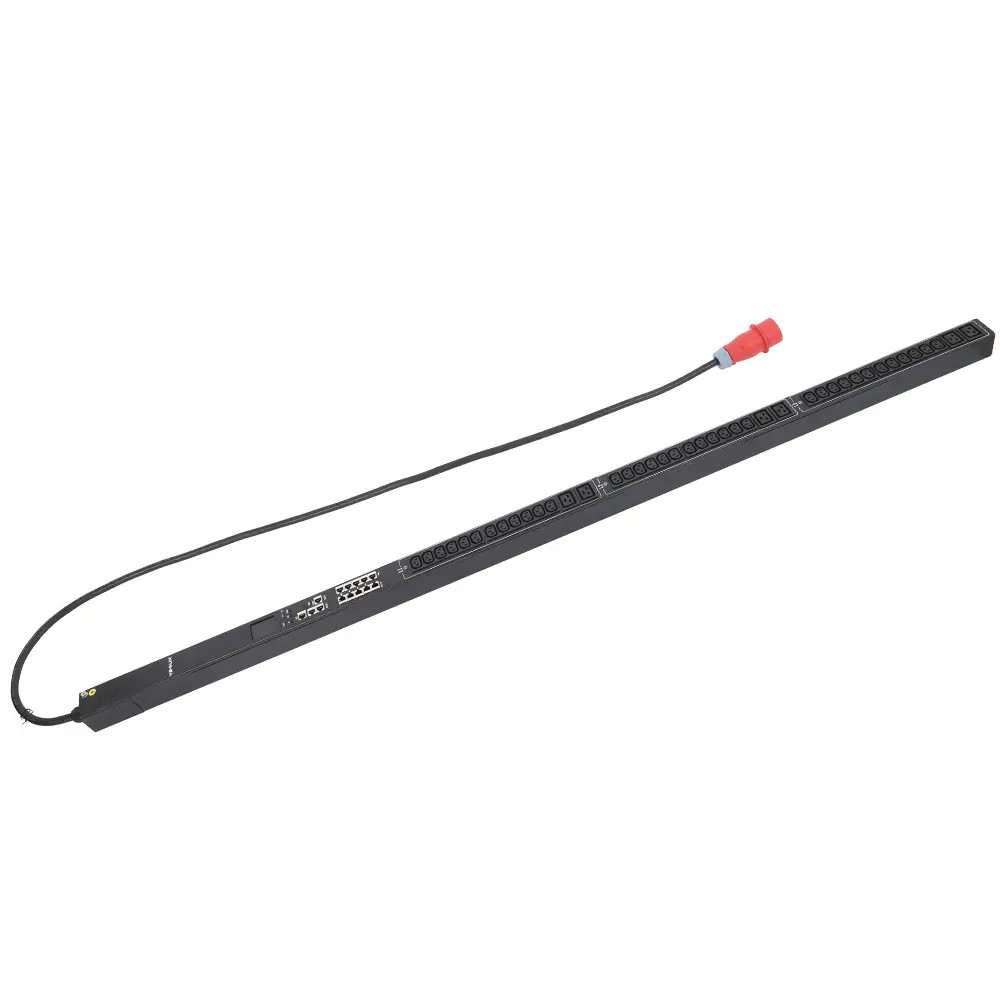

NBYOSUN’s Smart PDU Solutions

Overview of smart PDU features and capabilities.

NBYOSUN’s Smart PDU Solutions are designed to meet the demands of modern industries, particularly in high-density environments like data centers. These PDUs incorporate advanced features that enhance power management and operational efficiency:

• Outlet-Level Monitoring: Track power usage at each outlet to identify inefficiencies and redistribute loads effectively.
• Environmental Sensors: Monitor temperature and humidity levels to maintain optimal conditions for your equipment.
• Alarm Systems: Receive alerts for power usage thresholds, helping you prevent overloads and ensure system stability.
• Remote Management: Control power cycles and monitor energy consumption through network connectivity, enabling proactive management from anywhere.

These features empower you to make data-driven decisions, optimize energy use, and maintain reliable operations. For example, outlet-level monitoring allows you to detect underutilized equipment, while environmental sensors help prevent overheating, reducing the risk of downtime.

How NBYOSUN’s solutions optimize power management in data centers.

In data centers, efficient power management is critical to maintaining uptime and reducing operational costs. NBYOSUN’s Smart PDUs address these challenges by providing precise control and real-time insights into power distribution. With over 20 years of expertise, NBYOSUN has developed solutions tailored to the unique needs of data centers.

Smart PDUs enable balanced power distribution across all phases, reducing wear on equipment and minimizing energy waste. For instance, the data collected by a smart PDU can highlight voltage imbalances, which, if left unaddressed, could increase current by up to 30%. By redistributing loads based on this data, you can achieve optimal efficiency and extend the lifespan of your equipment.

Moreover, the remote management capabilities of NBYOSUN’s Smart PDUs allow you to monitor and control power usage without being physically present. This feature is particularly valuable in large-scale facilities, where manual monitoring can be time-consuming. By integrating these solutions into your data center, you can enhance energy efficiency, reduce costs, and ensure uninterrupted operations.

FAQ

1. What are the steps to use a 3-phase PDU calculator?

Using a 3-phase PDU calculator is simple and efficient. Follow these steps to ensure accurate results:

1. Input the Total Power: Enter the total power requirement of your system in watts. This value represents the combined power consumption of all connected devices.
2. Enter the Voltage: Provide the line-to-line voltage of your system, typically ranging from 208V to 480V in three-phase setups.
3. Provide the Power Factor: Input the power factor, which measures the efficiency of your electrical system. A value closer to 1 indicates better efficiency.
4. Calculate the Current: Use the calculator to determine the current for each phase. This step ensures that your PDU can handle the load without overloading.

By following these steps, you can achieve precise calculations and optimize your power distribution.

2. Why is using a 3-phase PDU calculator essential?

A 3-phase PDU calculator is a critical tool for managing power distribution effectively. Here’s why:

• Accurate Current Calculations: The calculator provides precise current measurements for each phase, ensuring that your system operates within safe limits.
• Efficiency in Power Distribution: It helps you balance the load across all three phases, reducing energy waste and improving overall efficiency.
• Safety Assurance: By identifying potential overloads, the calculator allows you to take corrective actions, preventing equipment damage and downtime.

“Using a 3-phase PDU calculator simplifies complex calculations, making power management accessible even for beginners.”

This tool is indispensable for maintaining a reliable and efficient power distribution system.

3. How can a 3-phase PDU calculator help prevent overloading?

Overloading can lead to equipment failure and operational disruptions. A 3-phase PDU calculator helps you avoid this by:

• Providing Precise Current Measurements: It calculates the current for each phase based on your inputs, such as voltage, power, and power factor.
• Highlighting Imbalances: The calculator identifies uneven loads across phases, allowing you to redistribute devices and achieve balance.
• Ensuring Compatibility: By comparing the calculated current with the PDU’s rated capacity, you can confirm that your setup meets safety standards.

For example, if one phase exceeds its rated capacity, the calculator alerts you to this issue. You can then adjust your power distribution to prevent overloading and ensure stable operations.

4. Can a 3-phase PDU calculator be used for future planning?

Yes, a 3-phase PDU calculator is an excellent tool for planning future expansions. It allows you to:

• Assess Capacity Needs: Calculate the total power capacity required for additional devices, ensuring that your PDU can handle future growth.
• Plan for Scalability: Evaluate whether your current PDU has enough outlets and capacity to support new equipment.
• Optimize Energy Usage: Use the calculator to maintain balanced loads as you add more devices, preventing inefficiencies and energy waste.

By incorporating this tool into your planning process, you can build a scalable and efficient power distribution system.

5. What should you do if the calculator shows an imbalance?

If the calculator highlights an imbalance in your power distribution, take these steps:

1. Redistribute Devices: Move devices from overloaded phases to underutilized ones to achieve balance.
2. Verify Inputs: Double-check your voltage, current, and power factor values to ensure accuracy.
3. Upgrade Your PDU: If balancing isn’t possible due to high demand, consider upgrading to a higher-capacity PDU, such as the NBYOSUN 3 Phase 32A 38 C13 10 C19 0U Vertical PDU.

Balancing your load improves efficiency, reduces wear on equipment, and ensures reliable operations.

6. Is a 3-phase PDU calculator suitable for beginners?

Absolutely! A 3-phase PDU calculator is designed to simplify power management for users of all experience levels. Its intuitive interface and straightforward process make it accessible even if you’re new to power distribution. By entering basic inputs like voltage, current, and power factor, you can quickly obtain actionable insights without needing advanced technical knowledge.

“This tool bridges the gap between complex calculations and practical application, empowering you to manage power distribution with confidence.”

Whether you’re a beginner or an experienced professional, the calculator is a valuable resource for optimizing your power system.

Efficient power management is essential for maintaining reliable operations in high-demand environments. 3-phase PDUs play a critical role in achieving this by ensuring balanced power distribution and reducing energy waste. The 3 phase pdu calculator simplifies the complexities of power planning, making it accessible for beginners and professionals alike. By integrating tools like this calculator with advanced solutions such as NBYOSUN’s smart PDUs, you can optimize power usage, lower energy costs, and support sustainable practices. Explore NBYOSUN’s innovative products to elevate your power management strategy and ensure long-term efficiency.

FAQ

1. What is the purpose of a 3-phase PDU calculator?

A 3-phase PDU calculator helps you determine your power distribution needs in systems using three-phase PDUs. It simplifies complex calculations by using inputs like voltage, current, and power factor to provide accurate results. This tool ensures balanced power distribution, prevents overloading, and optimizes energy efficiency. By using it, you can plan your power setup effectively and avoid costly mistakes.

“The calculator bridges the gap between technical calculations and practical application, making power management accessible for everyone.”

2. How do you calculate total power capacity with a 3-phase PDU calculator?

To calculate total power capacity, you need three key inputs: voltage, current, and power factor. The formula used is:

Total Power (Watts) = Voltage × Current × Power Factor × √3

For example, if your system operates at 208V with a current of 30A and a power factor of 0.95, the total power capacity would be:

208 × 30 × 0.95 × 1.732 = 10,260 Watts

This calculation ensures that your PDU can handle the connected devices without exceeding its capacity.

3. Why is load balancing important in a 3-phase PDU?

Load balancing ensures that the electrical load is evenly distributed across all three phases. Uneven loads can lead to overheating, energy waste, and equipment failure. A balanced load improves system efficiency, reduces wear on equipment, and extends its lifespan. The 3-phase PDU calculator highlights imbalances, allowing you to redistribute devices and maintain stability.

“Balanced power distribution is the cornerstone of efficient and reliable operations in high-demand environments.”

4. Can a 3-phase PDU calculator help with energy efficiency?

Yes, a 3-phase PDU calculator plays a crucial role in improving energy efficiency. By analyzing inputs like power factor and load distribution, it helps you identify inefficiencies in your system. For instance, a higher power factor indicates less energy waste. The calculator also ensures balanced loads, which reduces unnecessary energy consumption and optimizes overall performance.

5. What should you do if the calculator shows an overload?

If the calculator indicates an overload, take immediate action to prevent equipment damage. Follow these steps:

1. Redistribute Devices: Move some devices to underutilized phases to reduce the load on the overloaded phase.
2. Verify Inputs: Double-check your voltage, current, and power factor values to ensure accuracy.
3. Upgrade Your PDU: If redistribution doesn’t resolve the issue, consider upgrading to a higher-capacity PDU, such as the NBYOSUN 3 Phase 32A 38 C13 10 C19 0U Vertical PDU.

Addressing overloads promptly ensures the safety and reliability of your power distribution system.

6. How does a 3-phase PDU calculator simplify power planning?

The calculator eliminates the need for manual calculations, which can be time-consuming and prone to errors. You only need to input basic data like voltage, current, and power factor. The calculator then provides instant results, including total power capacity and load balancing insights. This streamlined process makes power planning straightforward, even for beginners.

7. Can you use a 3-phase PDU calculator for future expansions?

Yes, the calculator is an excellent tool for planning future expansions. It helps you assess whether your current PDU can handle additional devices. By calculating the total power capacity required for new equipment, you can determine if an upgrade is necessary. This proactive approach ensures that your power distribution system remains scalable and efficient.

8. What are the common mistakes to avoid when using a 3-phase PDU calculator?

To get accurate results, avoid these common mistakes:

• Using Incorrect Inputs: Always measure voltage, current, and power factor accurately. Use reliable tools and consult equipment manuals if needed.
• Ignoring Load Imbalances: Address any imbalances highlighted by the calculator to prevent inefficiencies and equipment damage.
• Overlooking Future Needs: Plan for scalability by considering potential increases in power demand.

By avoiding these errors, you can maximize the benefits of the calculator and ensure reliable power management.

9. How does the calculator help prevent downtime?

The calculator identifies potential issues like overloads and imbalances before they cause problems. By addressing these issues proactively, you can prevent equipment failures and operational disruptions. For example, if the calculator shows that one phase is overloaded, you can redistribute devices to avoid downtime. This predictive capability makes the calculator an invaluable tool for maintaining uninterrupted operations.

10. Is a 3-phase PDU calculator suitable for non-technical users?

Absolutely! The 3-phase PDU calculator is designed to be user-friendly, even for those without technical expertise. Its intuitive interface allows you to input basic data and receive actionable insights quickly. By simplifying complex calculations, the calculator empowers you to manage power distribution confidently, regardless of your experience level.

“This tool transforms technical challenges into manageable tasks, making power management accessible to everyone.”
