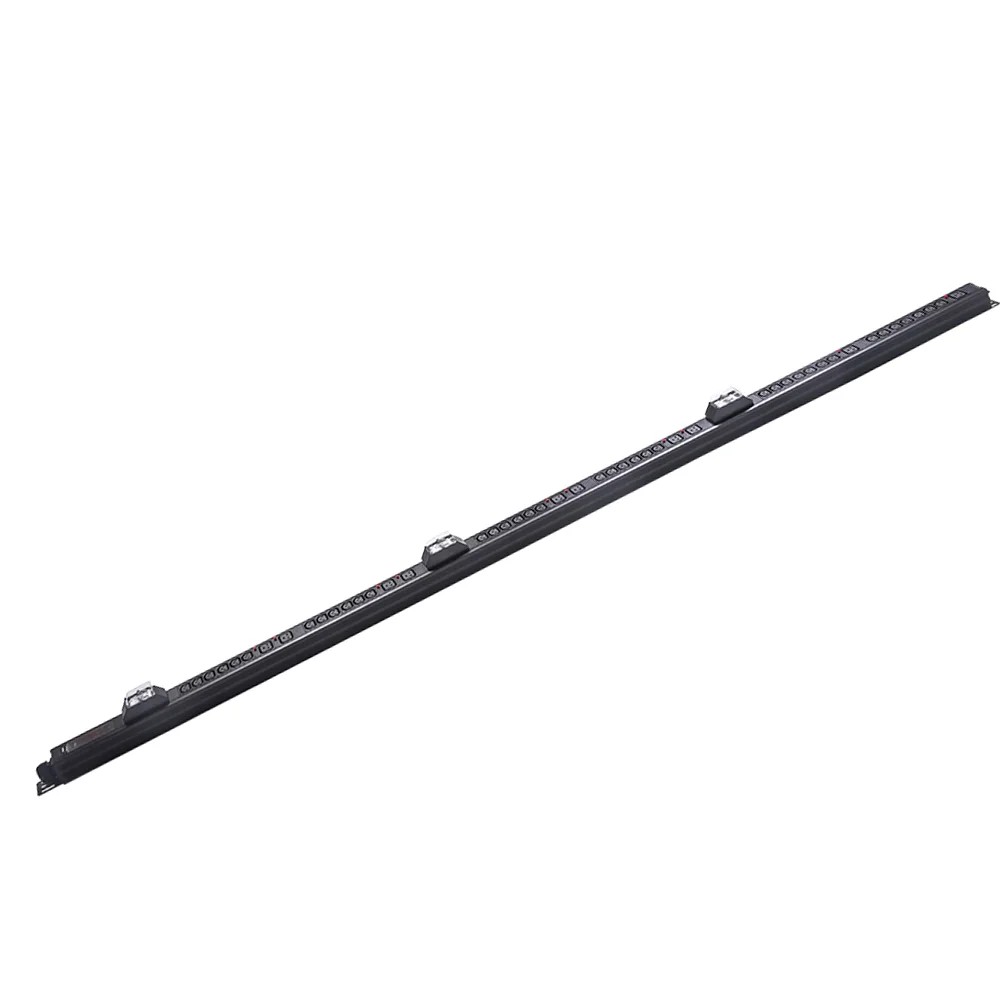

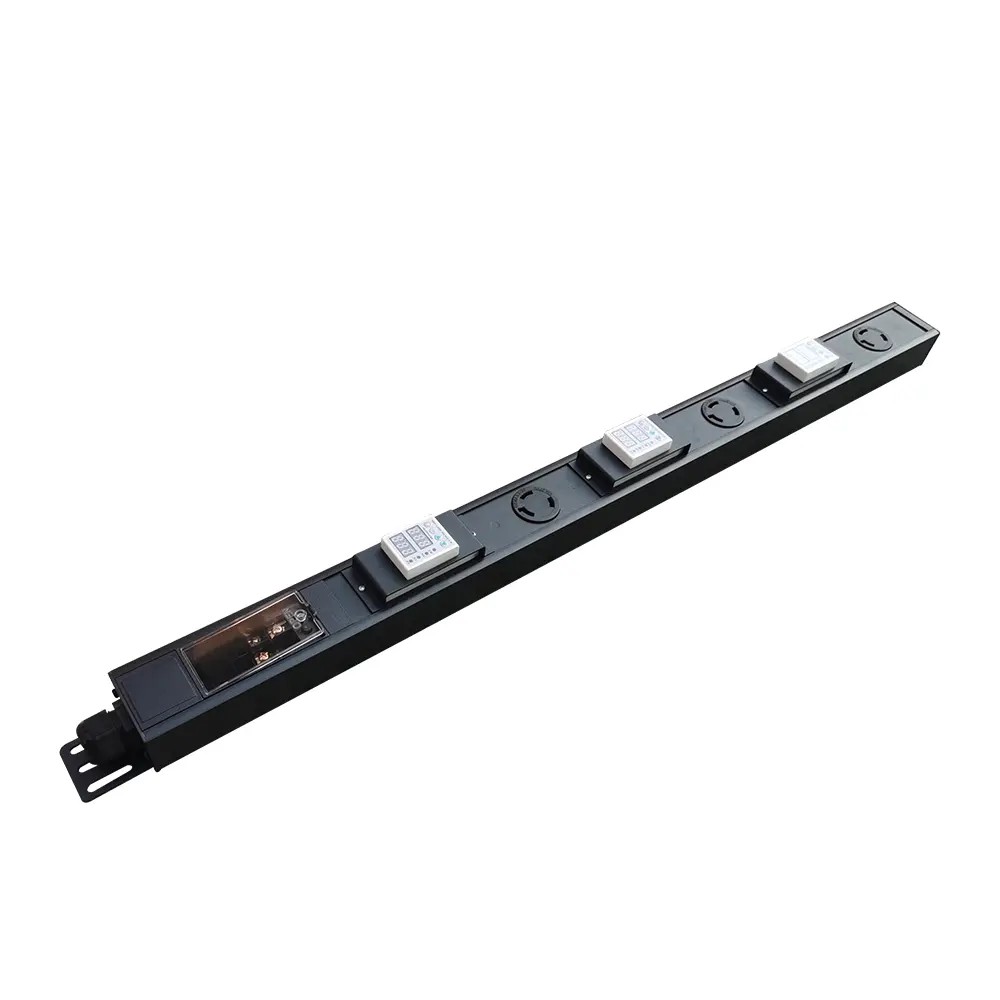

What is a vertical PDU?

A vertical PDU (Power Distribution Unit), also known as a zero-U PDU, is a power distribution device designed to mount vertically along the inner edges of a server rack. Unlike horizontal PDUs that occupy valuable rack space, vertical PDUs use otherwise unused vertical space, maximizing rack density and improving airflow.

Vertical PDUs are the most popular choice for modern data centers and high-density IT environments. The global vertical PDU market is projected to grow from USD 3.47 billion in 2024 to USD 5.4 billion by 2032, at a CAGR of 5.69%.

Key Takeaways

• Vertical PDUs mount along rack sides and consume zero standard rack units (U)
• They support up to 60 outlets, making them ideal for high-density server racks
• Improved airflow and cable management help reduce cooling costs
• Smart vertical PDUs offer remote monitoring, control and hot-swappable components
• YOSUN provides a complete range of vertical PDUs for data centers and industrial applications

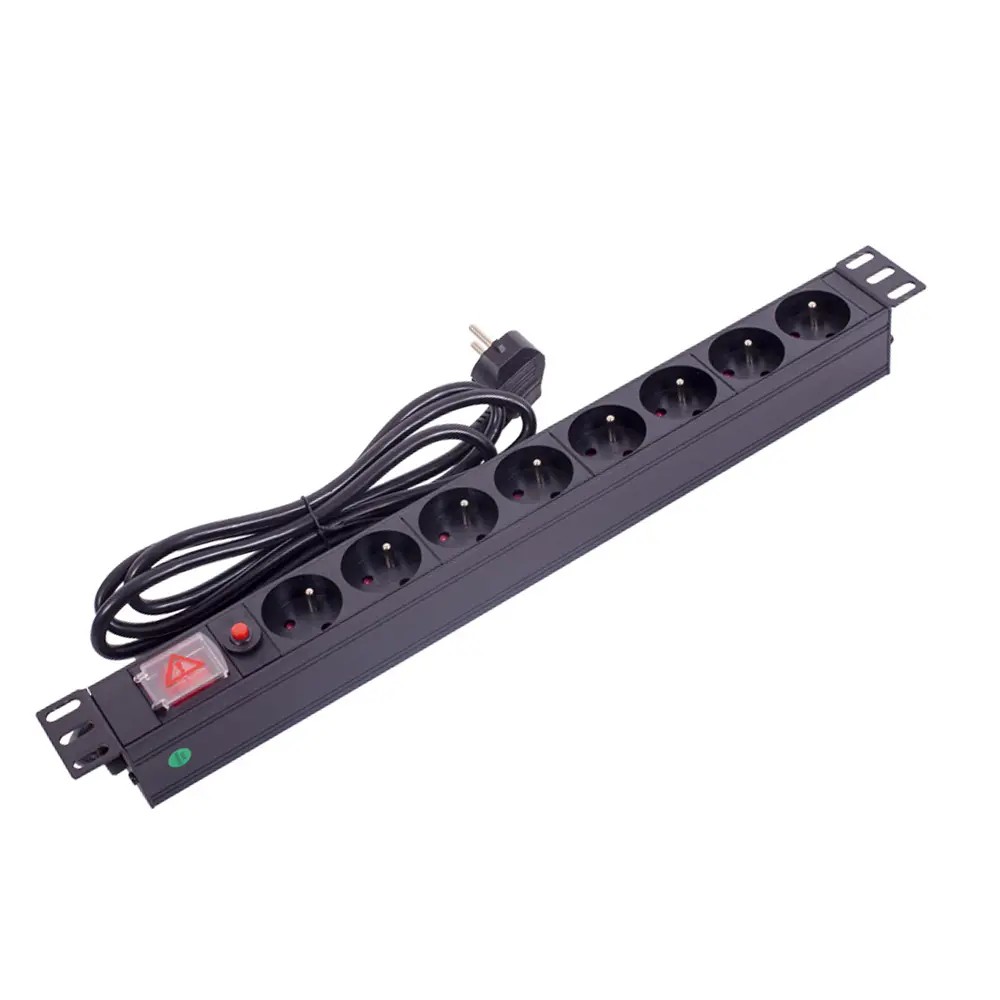

Vertical PDU vs Horizontal PDU

The main difference between vertical and horizontal PDUs is their installation orientation and space efficiency. The table below compares the two types:

Vertical PDUs are the clear choice for environments where rack space is at a premium. They allow you to fit more servers and network equipment in each rack, increasing overall data center efficiency.

How Vertical PDUs Work

A vertical PDU receives power from a main electrical supply and distributes it to multiple outlets for servers, switches and other IT equipment. High-quality vertical PDUs include several key features:

• Hydraulic-magnetic circuit breakers: Provide reliable overload protection
• Locking outlets: Prevent accidental disconnections
• Hot-swappable components: Allow maintenance without powering down equipment
• Daisy-chaining capability: Simplify installation and control

YOSUN vertical PDUs feature rugged aluminum alloy construction for durability in harsh data center environments. Smart models offer real-time power monitoring, remote outlet control and customizable configurations.

Core Benefits of Vertical PDUs

1. Maximum Rack Space Utilization

The biggest advantage of vertical PDUs is that they do not consume any horizontal rack space. This means every U of rack space can be used for servers and storage equipment. With up to 60 outlets per unit, vertical PDUs can power even the most densely packed racks.

2. Improved Airflow and Cooling

By mounting along the rack edges, vertical PDUs keep the front and rear of the rack clear, allowing unobstructed airflow. This helps reduce hot spots and lowers cooling costs by up to 15% in high-density environments.

3. Better Cable Management

Vertical PDUs allow cables to run neatly along the rack sides, reducing cable clutter. This not only improves airflow but also makes troubleshooting and maintenance faster and easier.

4. Scalability and Flexibility

Vertical PDUs are highly scalable. As your power needs grow, you can easily add additional units without reconfiguring your rack layout. They are compatible with all standard 19-inch server racks.

Common Applications of Vertical PDUs

Data Centers

Vertical PDUs are the standard in modern data centers, where maximizing rack density is critical. They provide reliable power to high-density server racks and support the latest cloud computing and AI infrastructure.

Server Rooms and Network Cabinets

Small to medium-sized server rooms and network cabinets also benefit from vertical PDUs. They help make the most of limited space and provide clean, organized power distribution.

Industrial and Edge Computing

Vertical PDUs are ideal for industrial environments and edge computing locations, where space is often limited and reliability is essential. Their rugged construction can withstand harsh operating conditions.

How to Choose the Right Vertical PDU

When selecting a vertical PDU, consider these key factors:

1. Power Requirements: Determine the total power load and select the appropriate input voltage (120V/208V/400V) and current rating (16A/32A/63A)
2. Outlet Configuration: Choose the right mix of C13 and C19 outlets based on your equipment
3. PDU Type:
   • Basic: Simple power distribution for non-critical loads
   • Metered: Real-time power monitoring for energy management
   • Switched: Remote outlet control for rebooting equipment
   • Smart: Advanced monitoring, alerting and energy management
4. Safety Features: Look for circuit breakers, surge protection and locking outlets
5. Certifications: Ensure the PDU meets UL, CE and TUV safety standards

Conclusion

Vertical PDUs are an essential component of modern data centers and IT infrastructure. They maximize rack space, improve airflow, and provide reliable power distribution for high-density environments.

For reliable, high-performance vertical PDUs, contact YOSUN today. As a PDU manufacturer, we focus on delivering practical, application-driven power distribution solutions tailored to different infrastructure needs.

FAQ

What is the main advantage of a vertical PDU?

The main advantage of a vertical PDU is that it saves valuable rack space by mounting along the sides of the rack. This allows you to fit more equipment in each rack and improves airflow for better cooling.

How many devices can a vertical PDU support?

Most vertical PDUs support between 24 and 60 devices, depending on the model. YOSUN offers vertical PDUs with up to 60 outlets for high-density applications.

Are vertical PDUs safe for critical equipment?

Yes, high-quality vertical PDUs are very safe for critical equipment. They feature hydraulic-magnetic circuit breakers, surge protection and locking outlets to prevent power outages and equipment damage.

Can vertical PDUs be monitored remotely?

Yes, smart vertical PDUs allow you to monitor power usage, control outlets and receive alerts remotely. This helps IT teams manage power more efficiently and respond to issues faster.
