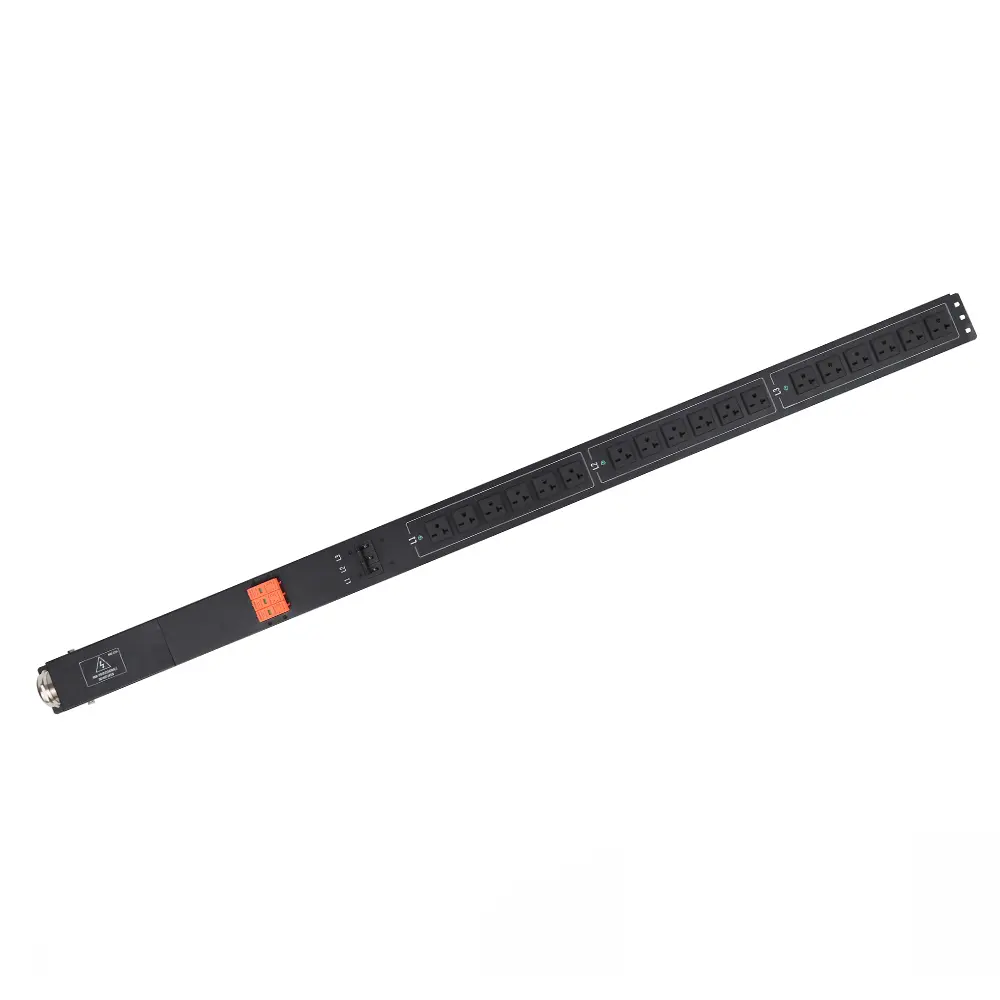

Single phase 32A 2x1P 16A MCB PDU 20 C13 4 C19 Power strip

Short Description:

These basic PDUs feature 2pcs 1 pole 16A circuit breaker with a heavy duty 24 way with 3X6mm2 , 3 meters power cord so you can easily plug this unit into hard to reach outlets. It has 24 grounded AC outlets to provide power to multiple electronic devices at once. YOSUN approved with a 1-year warranty .This power strip allows you to expand one outlet into 24 with overload protection. It is easy to use and allows you to power multiple electronic devices and utilize hard to reach outlets. Support Provides protection from high voltage, spikes and overload. This device is perfect for data centre, workshop, server room, mining farm, etc.

Model: YS11524-20C13-4C19-KG

Send email to us

Product Detail

Product Tags

Features

HEAVY DUTY METAL POWER STRIP: Made of rugged Aluminum shell that offers great impact resistant performance, high wear resistance heavy duty power cord protects circuits from fire, impact or rust, and prevents dents and scratches.

24 OUTLET PDU: Providing enough sockets for your data centre cabinet racks. Heavy duty power strip was connected with3M 5G6mm power cord, high current, Max.50Hz/250V/32Amp/24KW.

Detachable mounting ears, reversible ears faces front or back in PDU. Mounting flanges at rear of the PDU, which provide possibility of versatile installation.

OVERLOAD PROTECTOR: With overload protection, the reliable overload switch will trip off automatically to protect your devices when over-voltage, over-current, overload, high-temperature, short-circuiting.

IEC Outlets with locking system: YOSUN reliable locking IEC C13/C19 outlets ensure strong and firm power connection in usage to avoid inserted plugs coming off.

details

1)Size: 1294*44.8*45mm
2)Color: black
3)Outlets: 20* locking IEC60320C13+4* locking IEC60320 C19
4)Outlets Plastic Material: anti flaming PC module IEC
5)Housing material: 1U Aluminium alloy
6)Feature:2P 16A circuit breaker
7)Amps:32A/customized
8)voltage:230V
9)Plug: IEC60309 (32A 250VAC 2P+E) / IP44 /OEM
10)Cable spec: 3G6mm2,3M/ custom

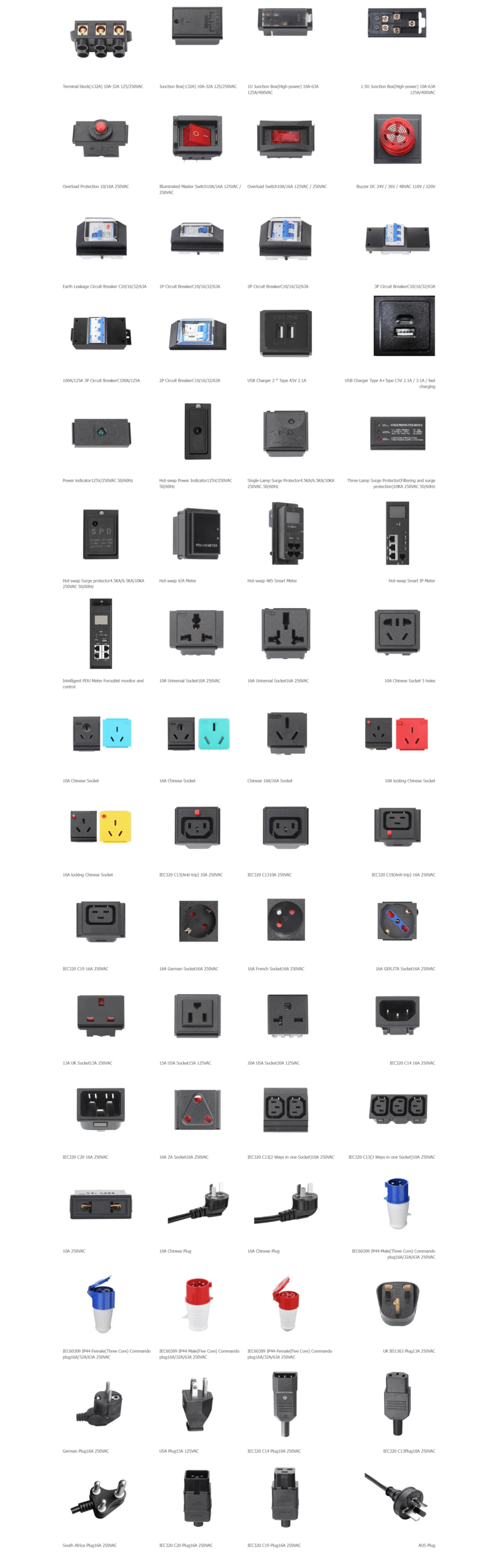

Support


Terminal block(≤32A) 10A-32A 125/250VAC	Junction Box(≤32A) 10A-32A 125/250VAC	1U Junction Box(High-power) 10A-63A 125A/400VAC	1.5U Junction Box(High-power) 10A-63A 125A/400VAC

Overload Protection 10/16A 250VAC	Illuminated Master Switch10A/16A 125VAC / 250VAC	Overload Switch10A/16A 125VAC / 250VAC	Buzzer DC 24V / 36V / 48VAC 110V / 220V

Earth Leakage Circuit Breaker C10/16/32/63A	1P Circuit BreakerC10/16/32/63A	2P Circuit BreakerC10/16/32/63A	3P Circuit BreakerC10/16/32/63A

100A/125A 3P Circuit BreakerC100A/125A	2P Circuit BreakerC10/16/32/63A	USB Charger 2 * Type A5V 2.1A	USB Charger Type A+Type C5V 2.1A / 3.1A / fast charging

Power indicator125V/250VAC 50/60Hz	Hot-swap Power Indicator125V/250VAC 50/60Hz	Single-Lamp Surge Protector4.5KA/6.5KA/10KA 250VAC 50/60Hz	Three-Lamp Surge Protector(Filtering and surge protection)10KA 250VAC 50/60Hz

Hot-swap Surge protector4.5KA/6.5KA/10KA 250VAC 50/60Hz	Hot-swap V/A Meter	Hot-swap 485 Smart Meter	Hot-swap Smart IP Meter

Intelligent PDU Meter Foroutlet monitor and control	10A Universal Socket10A 250VAC	16A Universal Socket16A 250VAC	10A Chinese Socket 5 holes

10A Chinese Socket	16A Chinese Socket	Chinese 10A/16A Socket	10A locking Chinese Socket

16A locking Chinese Socket	IEC320 C13(Anti-trip) 10A 250VAC	IEC320 C1310A 250VAC	IEC320 C19(Anti-trip) 16A 250VAC

IEC320 C19 16A 250VAC	16A German Socket16A 250VAC	16A French Socket16A 250VAC	16A GER.ITA Socket16A 250VAC

13A UK Socket13A 250VAC	15A USA Socket15A 125VAC	20A USA Socket20A 125VAC	IEC320 C14 16A 250VAC

IEC320 C20 16A 250VAC	16A ZA Socket16A 250VAC	IEC320 C13(2 Ways in one Socket)10A 250VAC	IEC320 C13(3 Ways in one Socket)10A 250VAC

10A 250VAC	10A Chinese Plug	16A Chinese Plug	IEC60309 IP44-Male(Three Core) Commando plug16A/32A/63A 250VAC

IEC60309 IP44-Female(Three Core) Commando plug16A/32A/63A 250VAC	IEC60309 IP44-Male(Five Core) Commando plug16A/32A/63A 250VAC	IEC60309 IP44-Female(Five Core) Commando plug16A/32A/63A 250VAC	UK BS1363 Plug13A 250VAC

German Plug16A 250VAC	USA Plug15A 125VAC	IEC320 C14 Plug10A 250VAC	IEC320 C13Plug10A 250VAC

South Africa Plug16A 250VAC	IEC320 C20 Plug16A 250VAC	IEC320 C19 Plug16A 250VAC	AUS Plug

Optional Toolless Installation

Customized shell colors available

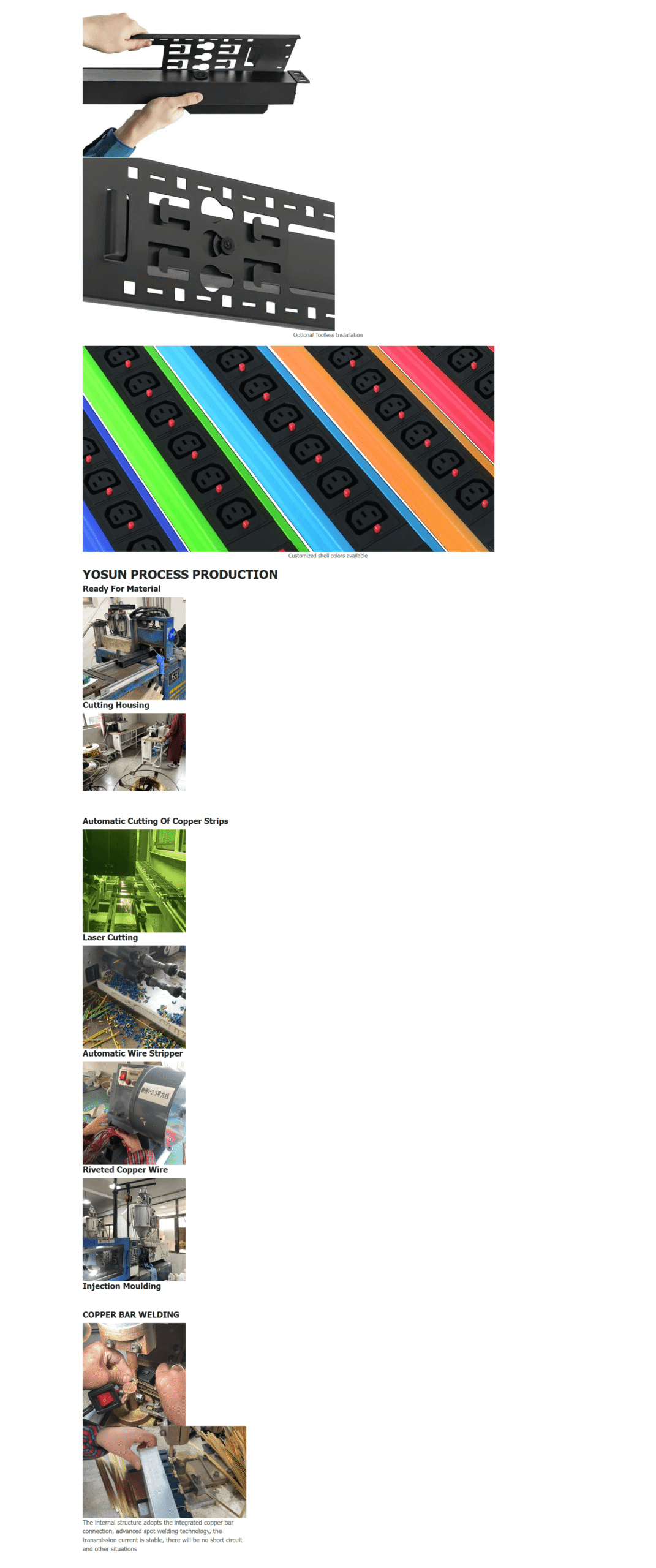

YOSUN PROCESS PRODUCTION

Ready For Material

Cutting Housing

Automatic cutting of copper strips

Laser Cutting

Automatic wire stripper

Riveted copper wire

Injection Moulding

COPPER BAR WELDING

The internal structure adopts the integrated copper bar connection, advanced spot welding technology, the transmission current is stable, there will be no short circuit and other situations
