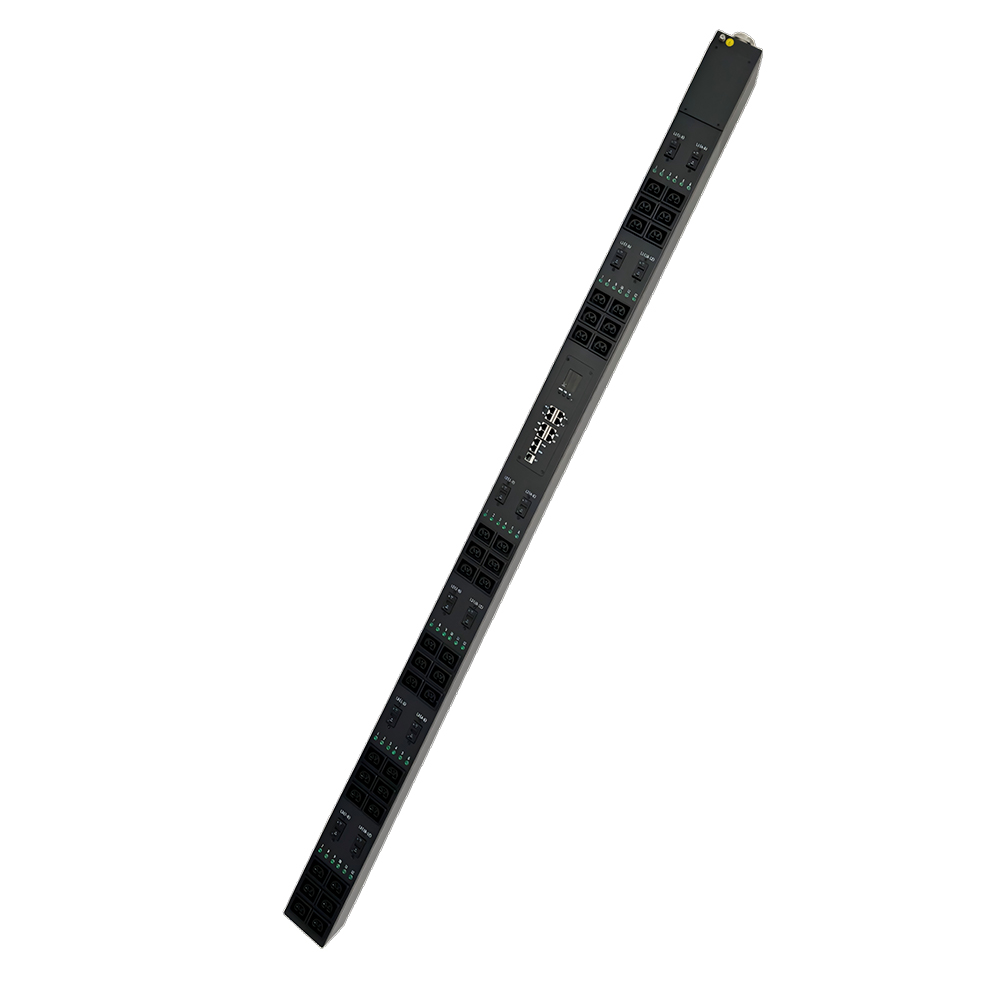

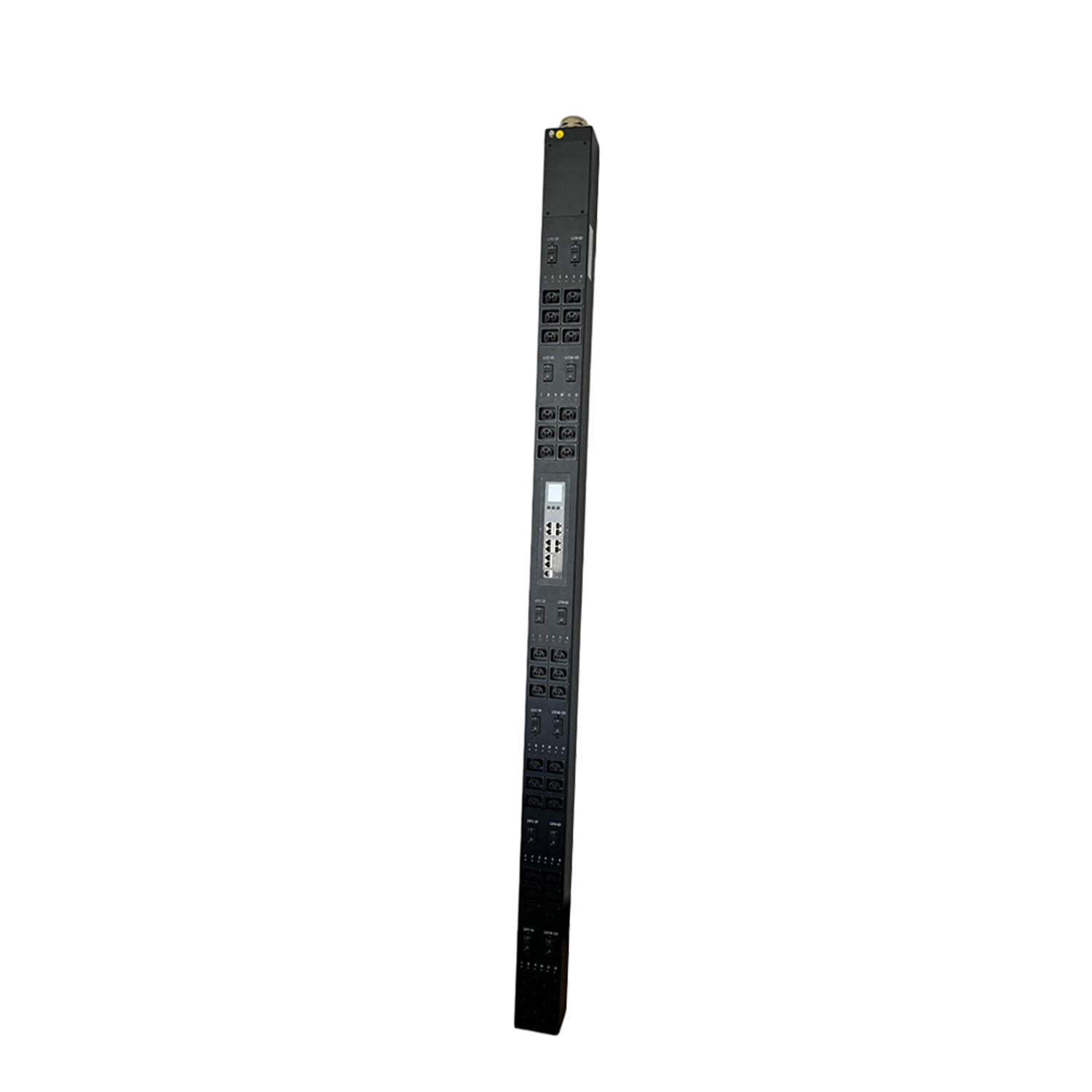

Features
1.125A HIGH-POWER INPU:Provides reliable power distribution with 380–415V AC input and 125A capacity, supporting up to 89.8kW for servers, network equipment, and other high-power applications.
2.36 C39 OUTLETS WITH 12×32A BREAKERS:Features 36 C39 outlets and 12 × 32A hydraulic electromagnetic breakers, with 4 breakers and 12 C39 outlets per phase for flexible power distribution and circuit protection.
3.HOT-SWAPPABLE SMART POWER MANAGEMENT:Built with a hot-swappable intelligent power management system for flexible maintenance and upgrades. Each outlet supports independent power monitoring, control, and management.
4.REMOTE MONITORING AND CONTROL:Supports remote monitoring and control of individual outlets, with energy consumption statistics, threshold settings, and over-limit alerts for efficient and proactive power management.
5.ENVIRONMENTAL MONITORING AND SENSOR SUPPORT:Supports environmental data collection for temperature, humidity, smoke, door status, water leakage, CO₂ concentration, and air pressure. Custom sensors can be integrated for specific monitoring needs.
6.MULTI-PROTOCOL NETWORK MANAGEMENT:Supports TCP/IP, SNMP V1/V2C/V3, HTTP/HTTPS, IPv4/IPv6, SMTP, and Modbus for network-based monitoring, management, and alarm communication.
7.TOOLLESS INSTALLATION AND UL-ORIENTED DESIGN

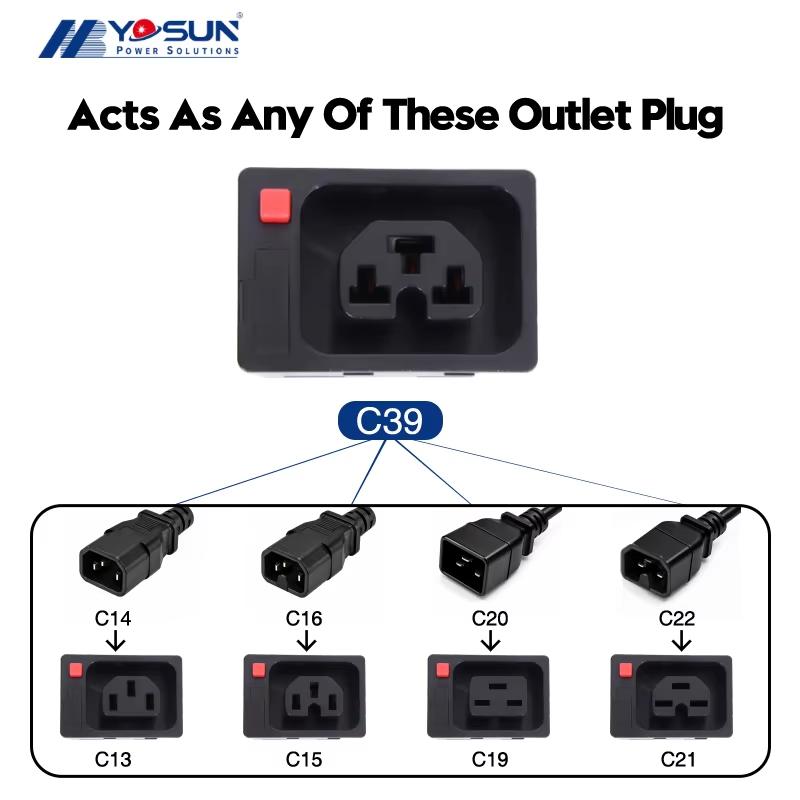

Advantages of C39 PDU
- Reliable equipment connectivity: C39 outlets provide secure power connections for servers, networking equipment, storage systems, and other IT devices.
- Rack-friendly design: The compact C39 module design supports efficient cable arrangement and organized rack layouts.
- Flexible configuration: C39 modules are available in customizable colors to meet different identification and deployment requirements.
Advantages of 36 Outlets PDU
- Centralized power distribution: 36 output positions allow multiple devices to be powered from a single PDU.
- Reduced PDU requirements: A high outlet count can help reduce the number of PDUs required in large rack deployments.
- Simplified power management: Centralizing multiple device connections makes rack power planning and maintenance more efficient.
Advantages of 12×32A Breakers
- Independent circuit control: Twelve 32A hydraulic electromagnetic breakers provide dedicated control for multiple power circuits, supporting organized power distribution.
- Flexible load management: Four breakers per phase help distribute connected loads across separate circuits for more balanced power management.
- Reliable circuit protection: The 32A breaker configuration helps control individual circuits and supports stable operation of connected equipment.
Advantages of 125A Energy Meter PDU
- High-power distribution: The 125A input supports high-power applications with a maximum rated power of up to 89.8kW.
- Real-time energy monitoring: Energy consumption statistics provide visibility into power usage for improved load planning and energy management.
- Threshold alerts: Configurable thresholds and over-limit alerts help users identify abnormal power conditions and respond quickly.
Advantages of Remote PDU
- Individual outlet control: Remote monitoring and control allow users to manage each outlet without being physically present at the rack.
- Smart power management: The hot-swappable intelligent power management system supports flexible maintenance and efficient PDU operation.
- Environmental monitoring: Supports temperature, humidity, smoke, door status, water leakage, CO2 concentration, and air pressure monitoring through customizable sensors.
- Network-based management: TCP/IP, SNMP, HTTP/HTTPS, IPv4/IPv6, SMTP, and Modbus support enable flexible remote monitoring and system integration.
Details
1)Installation: Top-entry, toolless installation
2)Input: Self-wiring terminal
3)Physical Switch: 12 x 32A hydraulic electromagnetic breakers
4)Output Modules: 36 x C39 modules, customizable colors
5)Function Module: Hot-swappable intelligent power management system
6)Control & Indicator: Remote monitoring/control and individual outlet management
7)Protection & Detection: Energy monitoring, threshold settings and over-limit alerts
8)Sensors: Temperature, humidity, smoke, door, water leakage, CO2 concentration and air pressure; custom sensors available
9)Protocol: TCP/IP, SNMP V1/V2C/V3, HTTP/HTTPS, IPv4/IPv6, SMTP, Modbus
10)API: Supported
11)IoT MQTT: Supported
12)Color: Black / Custom

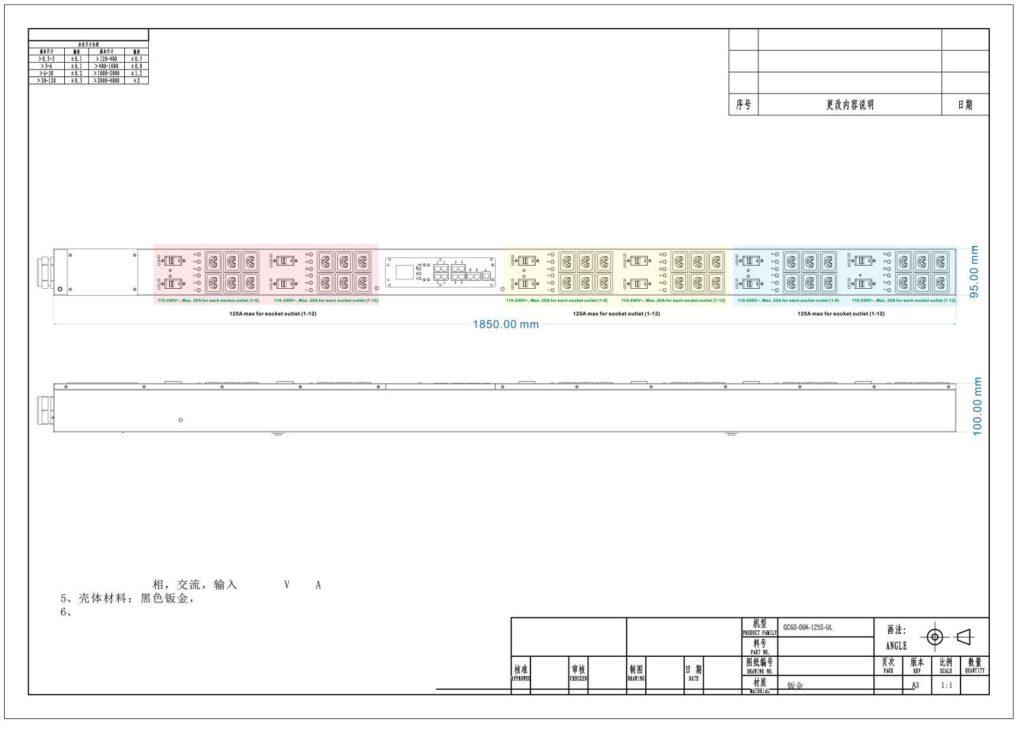

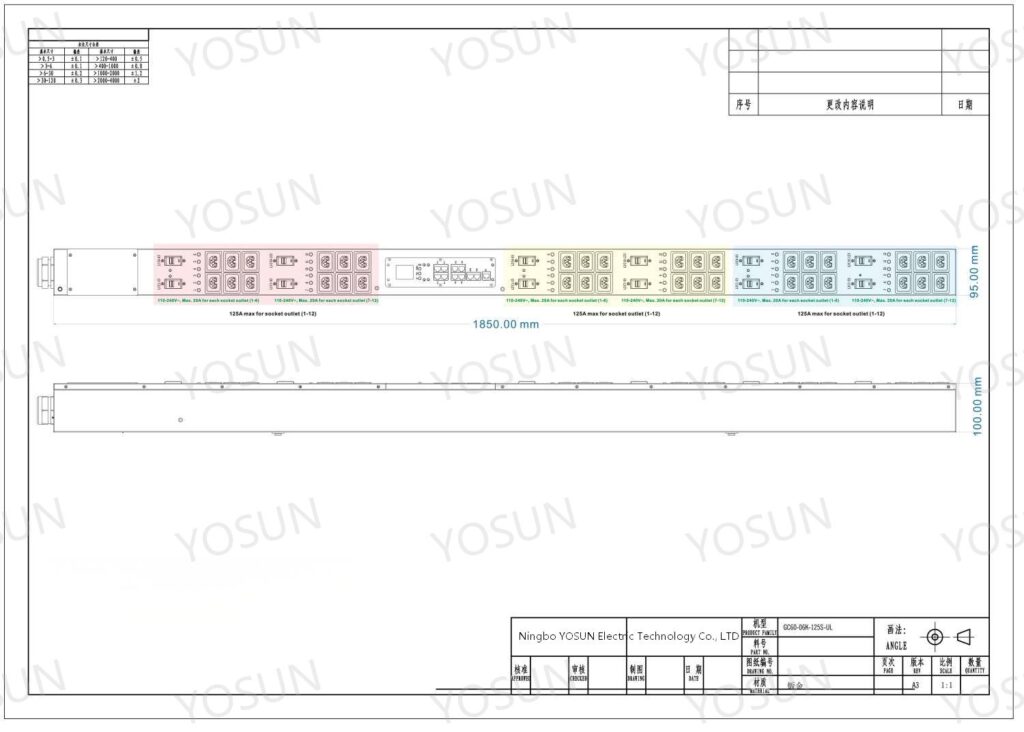

13)Size: 1850 x 95 x 100 mm
14)Voltage: 110-264V / 380-415V AC, 50-60Hz
15)Current: 125A
16)Maximum Power: 89.8kW
Optional Toolless Installation
Customized shell colors available
