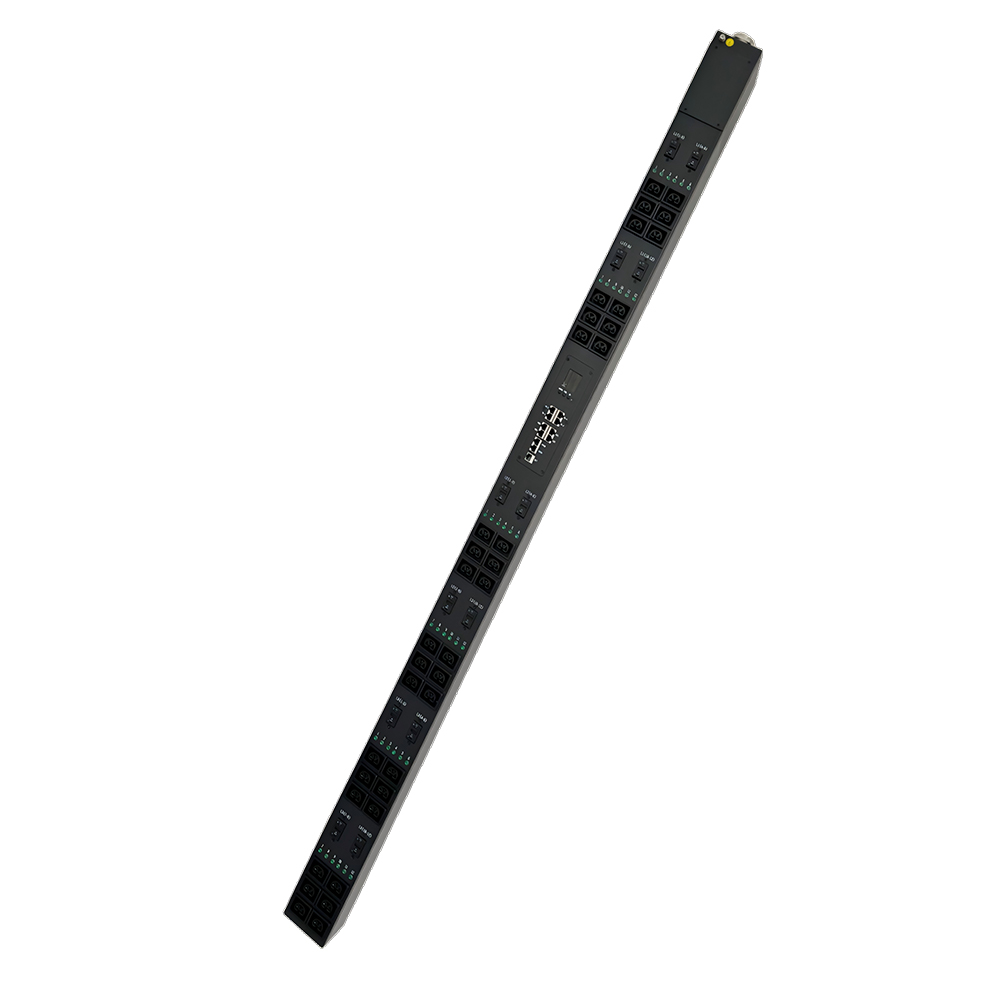

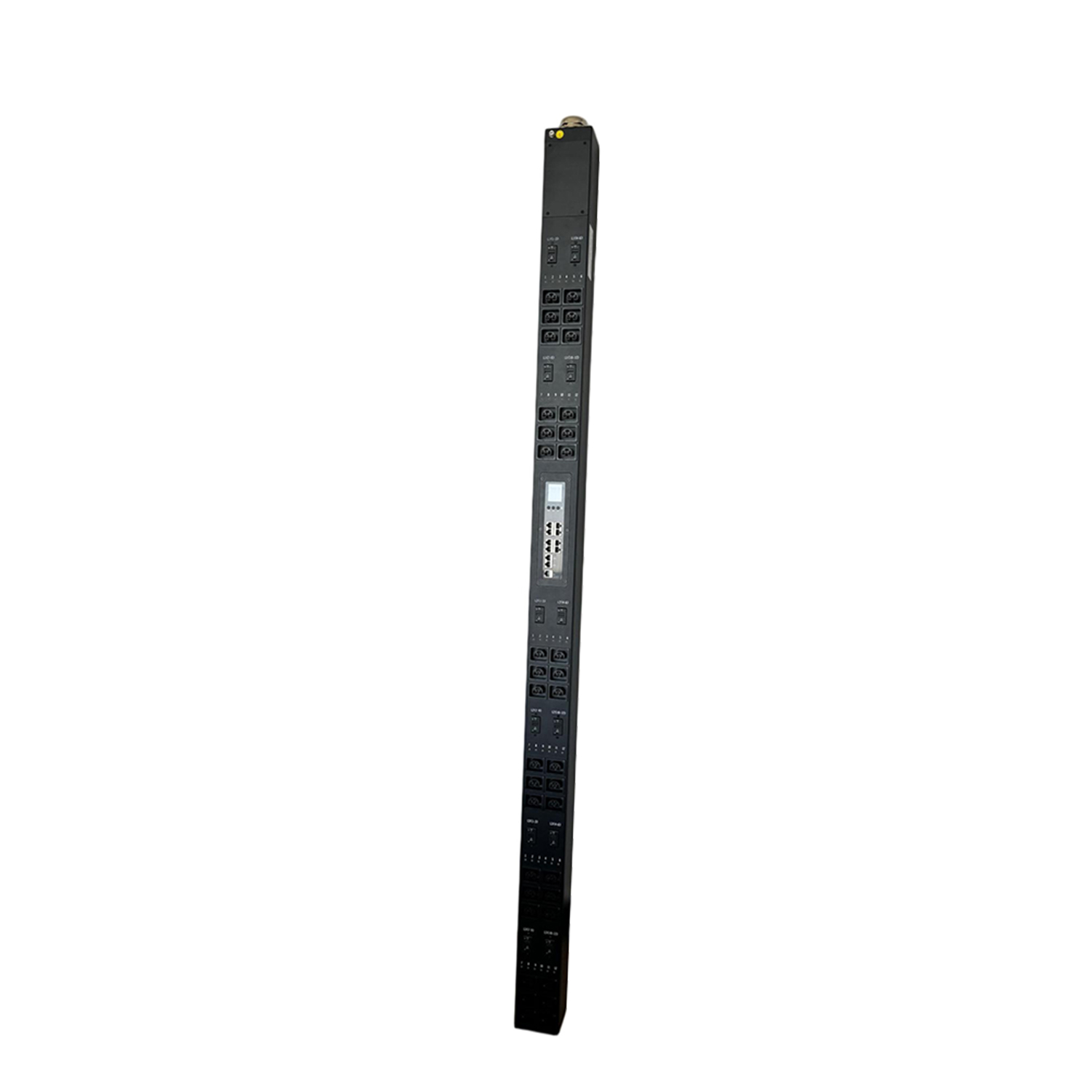

Features
1.80A POWER INPUT: Provides reliable power distribution with 380–415V AC input and an 80A rated current, supporting up to 57.5kW for servers, network equipment, and other high-power applications.
2.36 C39 OUTLETS WITH 12×20A BREAKERS: Features 36 C39 outlets and 12 × 20A 1P hydraulic electromagnetic breakers, with 4 breakers and 12 C39 outlets per phase for flexible power distribution and circuit protection.
3.HOT-SWAPPABLE SMART POWER MANAGEMENT: Built with a hot-swappable intelligent power management system for flexible maintenance and upgrades. Each outlet supports independent power monitoring, control, and management.
4.REMOTE MONITORING AND CONTROL: Supports remote monitoring, control, and management of individual outlets, with energy consumption statistics, threshold settings, and over-limit alerts for efficient power management.
5.ENVIRONMENTAL MONITORING AND SENSOR SUPPORT: Supports environmental data collection for temperature, humidity, smoke, door status, water leakage, CO₂ concentration, and air pressure. Custom sensors can be integrated for specific monitoring needs.
6.MULTI-PROTOCOL NETWORK MANAGEMENT: Supports TCP/IP, SNMP V1/V2C/V3, HTTP/HTTPS, IPv4/IPv6, SMTP, and Modbus for network-based monitoring, management, and alarm communication.
7.TOOLLESS INSTALLATION AND UL-ORIENTED DESIGN: Features toolless installation, self-wiring terminal blocks, top-feed configuration, power indicators for each outlet, and English labeling and interface. The black sheet-metal enclosure and materials are designed to meet UL-oriented requirements.
Advantages of C39 PDU
- Reliable equipment connectivity: 36 C39 outlets provide secure power connections for servers, networking equipment, storage systems, and other IT devices.
- Rack-friendly design: The C39 module configuration supports organized power connections and efficient cable management within rack environments.
- Flexible configuration: C39 modules are available in customizable colors to support different identification and deployment requirements.
Advantages of 36 Outlets PDU
- Centralized power distribution: 36 C39 output positions allow multiple devices to receive power from a single PDU.
- Efficient rack deployment: The high outlet count helps accommodate more connected devices while making better use of available rack space.
- Simplified power management: Centralizing multiple device connections makes rack power planning, monitoring, and maintenance more efficient.
Advantages of 12×20A Breakers
- Independent circuit protection: Twelve 20A 1P hydraulic electromagnetic breakers provide dedicated protection and control for multiple power circuits.
- Balanced phase distribution: Four breakers and 12 C39 outlets are configured per phase to support organized power distribution across connected loads.
- Reliable circuit control: The 20A breaker configuration helps manage individual circuits and provides protection for connected equipment.
Advantages of 80A PDU
- High-power distribution: The 80A input supports high-power applications with 380–415V AC input and a maximum rated power of up to 57.5kW.
- Power usage visibility: Energy consumption statistics provide useful visibility into connected equipment power usage for load planning and power management.
- Threshold alerts: Configurable thresholds and over-limit alerts help identify abnormal power conditions and support proactive power management.
Advantages of Remote PDU
- Individual outlet control: Remote monitoring and control allow users to manage each outlet independently without being physically present at the rack.
- Smart power management: The hot-swappable intelligent power management system supports flexible maintenance, upgrades, and efficient PDU operation.
- Environmental monitoring: Supports temperature, humidity, smoke, door status, water leakage, CO₂ concentration, and air pressure monitoring through customizable sensors.
- Network-based management: TCP/IP, SNMP V1/V2C/V3, HTTP/HTTPS, IPv4/IPv6, SMTP, and Modbus support flexible remote monitoring, management, and system integration.
Details
1)Installation: Top-entry, toolless installation
2)Input: Self-wiring terminal
3)Physical Switch: 12 x 20A 1P hydraulic electromagnetic breakers
4)Output Modules: 36 x C39 modules, customizable colors
5)Function Module: Hot-swappable intelligent power management system
6)Control & Indicator: Remote monitoring/control and individual outlet management
7)Protection & Detection: Energy monitoring, threshold settings and over-limit alerts
8)Sensors: Temperature, humidity, smoke, door, water leakage, CO2 concentration and air pressure; custom sensors available
9)Protocol: TCP/IP, SNMP V1/V2C/V3, HTTP/HTTPS, IPv4/IPv6, SMTP, Modbus
10)API: Supported
11)IoT MQTT: Supported
12)Color: Black / Custom
13)Size: 1850 x 95 x 100 mm
14)Voltage: 110-264V / 380-415V AC, 50-60Hz
15)Current: 80A
16)Maximum Power: 57.5kW
Optional Toolless Installation
Customized shell colors available
