A Power Distribution Unit (PDU) is a device that manages power distribution for equipment inside a server rack. Its main job is to take one power source and divide it into many outputs for servers and other hardware—whether you’re using a standard PDU, an intelligent PDU, a monitored power distribution, or an ATS PDU for automatic power switching. This function is vital for any data center.
Did You Know?
Power issues are a primary cause of downtime, responsible for up to 52% of all data center outages. A reliable PDU is the first line of defense against such failures.
The demand for effective power distribution solutions like rack and cabinet PDUs is growing. The market for the pdu data center is expanding rapidly, as shown by industry projections.
| Source | Projected Growth Rate (CAGR) | Forecast Period |
|---|---|---|
| Data Bridge Market Research | 11.40% | 2023-2030 |
| Grand View Research | 9.8% | 2023-2030 |
Choosing the right power distribution unit is a key decision for maintaining uptime and efficiency.

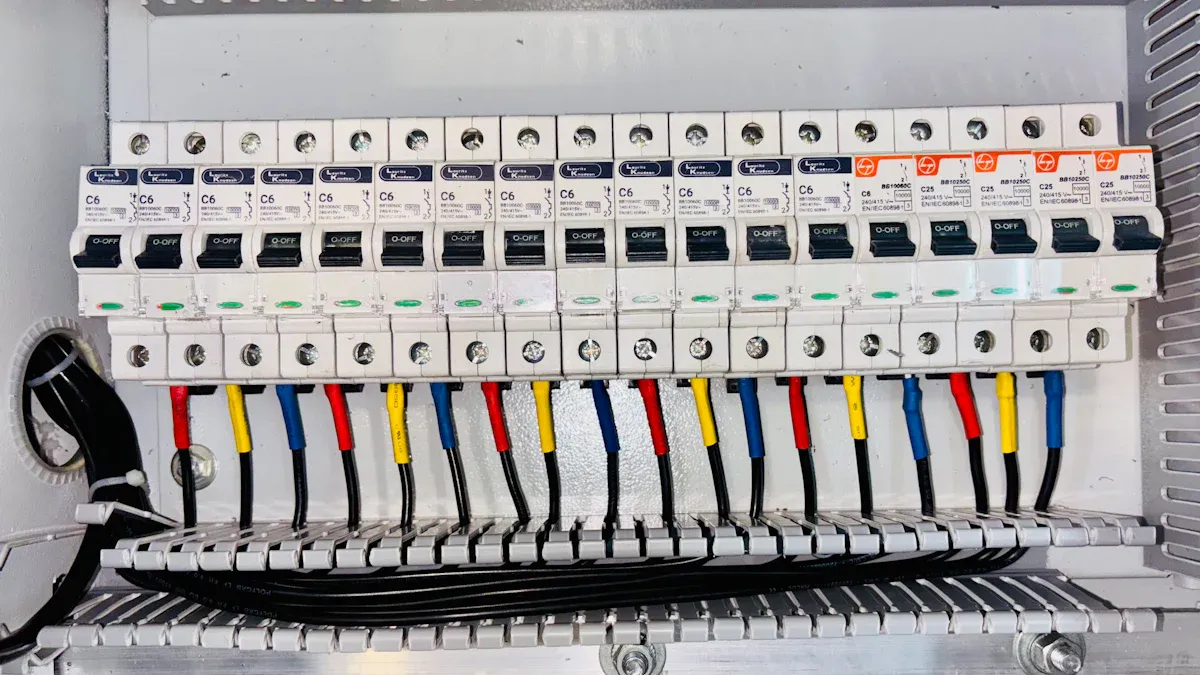

A Power Distribution Unit is more than just a power strip for a server rack. It performs several essential jobs that are fundamental to a data center’s operation. This device is the final link in the power chain, ensuring that electricity travels safely and efficiently from the source to the IT equipment. Understanding its core functions shows why a PDU is a non-negotiable component for modern infrastructure.
The primary role of a PDU is to manage power distribution. It takes a single, high-amperage power input and divides it into multiple, lower-amperage outputs. This process allows a large power source, like a UPS system, to safely energize numerous devices within a rack.
In a typical data center environment, this function is critical. For example, a facility might supply high-voltage power to the racks.
This efficient distribution prevents the need for multiple high-power connections to a single rack, simplifying the overall power architecture. The power distribution unit effectively translates bulk power into usable, device-level electricity.
Safety is a top priority in any data center. A PDU plays a key role in protecting both the equipment and the personnel. Each PDU contains built-in circuit breakers or fuses. These protective devices are designed to trip and cut off the electrical current if a connected device draws too much power.
Safety First: An overloaded circuit can cause equipment damage, create a fire hazard, or lead to a wider outage. The circuit breakers inside a PDU act as a crucial safety mechanism, isolating the problem before it can escalate.
For instance, a common PDU configuration might have three separate circuits. Each of these circuits is protected by its own 20A circuit breaker. If a server on one circuit malfunctions and pulls more than 20 amps, only that specific breaker will trip. This action shuts down power to its assigned outlets while allowing the other circuits on the PDU to continue running without interruption.
A server rack without proper power management quickly becomes a tangled mess of cables. This disorganization is not just messy; it is also dangerous and inefficient. A PDU brings order to rack-level power by providing a structured and centralized point for all power connections.
Modern PDUs often use features like color-coding to make management even easier. Assigning a different color to the outlets for each circuit provides immediate visual cues. This simple feature offers significant benefits:
This level of organization streamlines operations within the pdu data center, making it faster and safer to perform moves, adds, and changes. A well-organized PDU setup is a sign of a professionally managed data center.

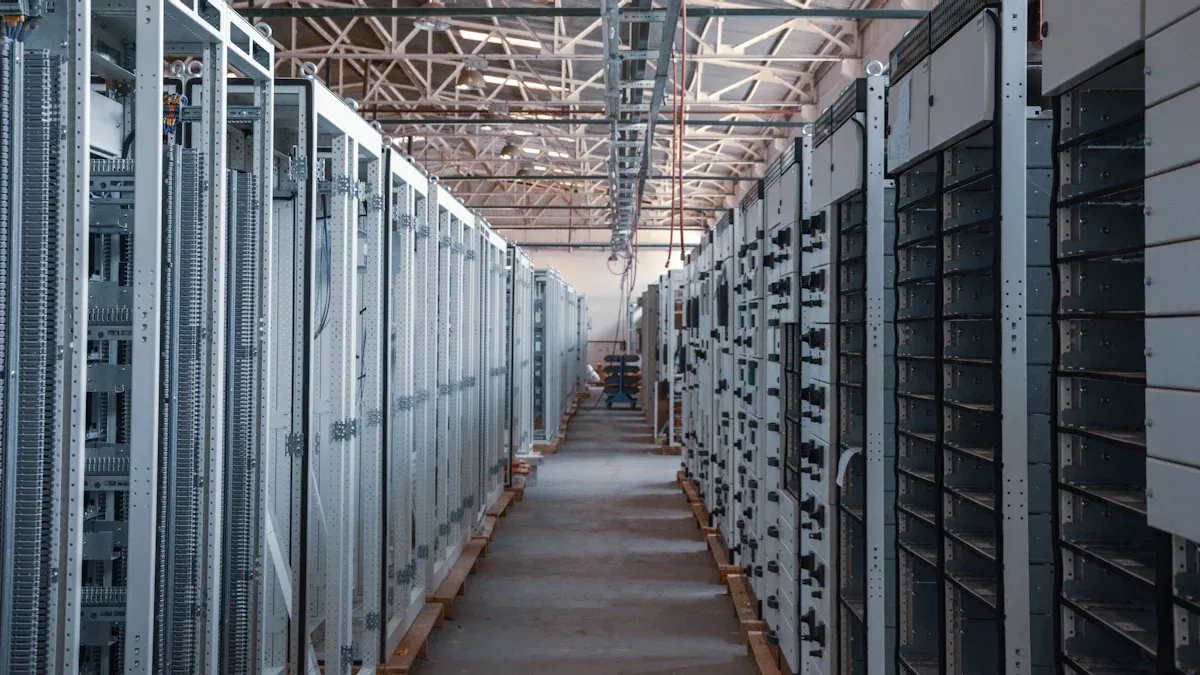

A Power Distribution Unit is much more than a simple accessory. It is a foundational component that directly impacts a data center’s performance, safety, and cost-effectiveness. The right PDU provides the stability and control needed to run modern IT infrastructure. It protects expensive equipment and ensures services remain online.
Uptime is the most important metric for any data center. A PDU plays a direct role in maintaining continuous operation. It serves as the last line of defense in the power chain before electricity reaches the servers. A high-quality PDU delivers clean, stable power, which prevents unexpected shutdowns and hardware failures.
For critical environments, redundancy is key. A dual-input PDU offers superior reliability by connecting to two separate power sources. If one power source fails, the PDU automatically switches to the secondary source. This feature ensures uninterrupted power for all connected equipment. Single-input models are simpler and connect to one power source, making them suitable for less critical applications.
The choice between a single-input and dual-input PDU depends entirely on the need for reliability.
| Feature | Dual Input PDU | Single Input PDU |
|---|---|---|
| Number of Power Inputs | Two | One |
| Redundant Power Supply | Yes | No |
| Reliability | High | Medium |
| Cost | Higher | Lower |
| Applicable Scenarios | Data centers, server rooms, critical equipment | Home office, general business environment |
This ability to provide redundant power makes the PDU an essential tool for achieving high availability and meeting service-level agreements (SLAs).
Energy costs are a major operational expense for any data center. Intelligent PDUs provide the tools needed to monitor and manage power consumption effectively. This helps managers improve Power Usage Effectiveness (PUE), a key metric for measuring facility efficiency.
Did you know? 💡
Some studies show that up to 30% of servers in a data center are “zombie” or “ghost” servers. These machines consume power but do no useful work.
An intelligent PDU helps identify these inefficiencies. It can measure power at the individual outlet level, providing granular data on energy use. Managers can use this information to:
By providing detailed data, a smart PDU turns power distribution from a passive function into an active management strategy. Switched PDUs take this a step further. They allow administrators to remotely turn individual outlets on or off. This capability is invaluable for rebooting unresponsive equipment in a remote facility, which saves time and reduces the need for on-site staff. This level of control is vital as rack densities increase and power requirements grow.
A safe and organized environment is essential for smooth operations. A PDU contributes to both by enforcing electrical standards and simplifying cable management. Manufacturers design and test every power distribution unit to meet strict safety certifications.
Adherence to these standards guarantees that the pdu data center equipment is protected from electrical hazards. PDUs also help facilities comply with the National Electrical Code (NEC). The NEC requires practices like using derated loads, which means circuits should not run at their maximum capacity. This practice prevents overloads and reduces fire risk. In high-density racks that generate significant heat, high-temperature-rated PDUs are crucial. These units can operate safely in temperatures up to 60°C (140°F), ensuring reliability even under extreme conditions.
A data center is a dynamic environment. It must adapt to new technologies and growing business demands. A Power Distribution Unit (pdu) is a critical tool that allows for this growth. It provides the flexibility needed to expand infrastructure without major disruptions. As an organization’s needs evolve, the right pdu ensures the power system can scale alongside it.
The ability to add new equipment is fundamental to scalability. A pdu simplifies this process significantly. Instead of performing complex electrical work for each new server, administrators can simply plug new hardware into available outlets on the existing pdu. This makes scaling a predictable and manageable task. This approach supports phased expansions and helps a data center integrate future technologies that may require higher power per rack.
Modular PDUs offer even greater flexibility for a growing data center. These systems are designed for easy expansion.
A modular pdu is a key component for modern infrastructure. It provides a scalable solution for managing power. By adapting to changing demands, it ensures uninterrupted operations in high-density environments.
This modular design means organizations can start with their current power requirements and expand later. This prevents the need to overbuild infrastructure from the beginning, which saves significant costs. Components within a modular pdu can be replaced or upgraded with minimal disruption. This extends the lifespan of the power distribution infrastructure and makes it a cost-effective choice for long-term growth. Choosing a scalable pdu is a strategic decision that prepares the power foundation for future challenges.
Power Distribution Units (PDUs) come in several types. Each type offers different levels of control and insight. Choosing the right pdu depends on the specific needs of the data center. The main categories range from simple devices to intelligent units with advanced monitoring capabilities.
A basic PDU has one primary job: reliable power distribution. It takes a single power input and divides it among multiple outlets for IT equipment. This type of pdu focuses solely on its core function without extra features. It is a dependable choice for environments where advanced monitoring is not a priority.
However, a basic pdu has significant limitations for a modern data center. It lacks real-time monitoring, remote access, and automated alerts. This makes it impossible to predict power problems or manage energy use effectively.
| Feature | Basic PDUs | Intelligent PDUs |
|---|---|---|
| Real-time Monitoring | No | Yes |
| Remote Access | No | Yes |
| Alerts for Issues | No | Yes |
| Ideal for Modern Data Centers | No | Yes |
Without these features, a basic pdu cannot help identify inefficiencies or environmental risks like high temperatures.
A metered PDU represents a step up from a basic unit. It includes a built-in digital display that shows the total power being drawn by all connected equipment. This feature provides data center managers with a clear view of power consumption at the rack level.
A metered pdu helps managers plan for future growth. By tracking power usage trends, they can make informed decisions about capacity and allocate resources more efficiently.
These units offer high precision. Many provide “billing-grade” accuracy, meaning the power measurement is correct within +/- 1%. This level of accuracy is crucial for managing energy costs and preventing circuit overloads across the entire pdu.
A monitored PDU offers the most granular level of insight. This intelligent pdu measures power consumption for each individual outlet. This detailed data allows administrators to see exactly how much energy each server or device is using. This capability is essential for optimizing a pdu data center environment.
Outlet-level monitoring provides several key benefits over aggregate monitoring. It helps managers identify “ghost servers” that consume power without doing useful work. It also enables precise load balancing across circuits to prevent overloads. This detailed information supports accurate billing in colocation facilities and maximizes the efficiency of the existing infrastructure. A monitored pdu turns power distribution into a strategic management tool.
A switched PDU provides the highest level of control over rack-level power. This intelligent pdu includes all the features of a monitored unit. It also adds the ability to remotely turn individual outlets on or off. This function is a game-changer for data center management, especially for facilities with remote or “lights-out” operations.
The primary benefit of a switched pdu is remote rebooting. IT administrators can cycle power to unresponsive equipment without being physically present. This capability is crucial for maintaining uptime and resolving issues quickly. A switched pdu with a built-in network interface allows users to regain control of frozen devices by remotely cycling their power.
For example, an administrator can reset a frozen point-of-sale system in a retail store from a central office. This makes the switched pdu an invaluable tool for distributed IT environments.
Security is Paramount
With great power comes great responsibility. A switched pdu offers advanced security features to prevent unauthorized access and protect critical infrastructure.
These security measures ensure that only authorized personnel can control the power. The outlet lockout feature restricts access to specific outlets, preventing accidental shutdowns or unauthorized connections. This type of pdu also uses secure management protocols to protect communications.
| Security Feature | Description |
|---|---|
| Role-Based Access Control | Assigns specific permissions to different users. |
| Secure Protocols (HTTPS, SSH) | Encrypts data transmitted between the user and the pdu. |
| Outlet Lockout | Prevents unauthorized users from using specific outlets. |
These features make the switched pdu a secure and powerful solution for any modern data center that requires granular control over its power distribution.
Selecting the correct Power Distribution Unit (pdu) is a critical step for any data center. Managers must evaluate several factors to ensure the chosen pdu meets the facility’s specific power requirements. This decision impacts reliability, safety, and scalability.
The first step is to match the pdu to the data center power source. Voltage standards differ by region. A pdu designed for one region will not work in another.
| Region | Phase-to-Phase Voltage | Phase-to-Neutral Voltage |
|---|---|---|
| North America | 208 V | 120 V |
| Europe | 415 V | 240 V |
Amperage is the amount of electrical current a pdu can handle. It is essential to calculate the total power draw of all rack equipment. This calculation prevents the pdu from becoming overloaded.
Safety Derating: The National Electrical Code (NEC) requires circuits to operate at only 80% of their maximum rating. For example, a 20A circuit should not exceed 16A. This rule prevents overheating and improves safety.
Choosing a pdu with the correct voltage and amperage ensures safe and efficient power distribution.
A pdu must have enough outlets for all the equipment in the rack. It is wise to choose a pdu with extra outlets to allow for future expansion. The outlets must also match the plug types of the IT hardware. Common outlet types include:
The input plug on the pdu must also match the receptacle provided by the facility’s power source. A common input plug type in North America is the NEMA locking plug.
PDUs come in two main physical shapes, or form factors. The choice affects rack space and cable management.
For most modern data center applications, a vertical pdu is the superior choice for efficient power distribution.
The intelligence of a pdu refers to its ability to monitor power and allow remote control. The right level of intelligence depends on the data center’s operational needs. A basic pdu simply distributes power. An intelligent pdu provides valuable data and control.
Choosing the correct pdu type is essential for effective management. The main types offer different capabilities.
| PDU Type | Key Features | Ideal Use Cases |
|---|---|---|
| Basic | Distributes power without remote access. | Small server rooms where staff is always nearby. |
| Metered | Includes a local display for power data. | Facilities needing to balance loads at the rack. |
| Monitored | Allows remote monitoring of power usage. | High-density environments needing real-time data. |
| Switched | Adds remote on/off control for each outlet. | Remote or “lights-out” sites needing to reboot gear. |
A switched pdu offers the most control. It allows administrators to remotely reboot unresponsive equipment. This feature saves time and reduces the need for on-site visits. A monitored pdu provides detailed insights for optimizing energy use.
Choosing a reputable manufacturer is just as important as selecting the right pdu type. A trusted brand ensures reliability, safety, and performance. NBYOSUN is a professional manufacturer specializing in Power Distribution Units. The company offers a wide range of products to meet various market requirements.
NBYOSUN provides high-quality pdu solutions with several key advantages:
Selecting a pdu from a dependable brand like NBYOSUN ensures the power foundation is secure, efficient, and ready for future growth.
A power distribution unit (PDU) is a fundamental component for any data center. This device acts as the final, critical link for power distribution to IT equipment. A modern PDU offers much more than a simple power strip. An intelligent PDU provides reliability, safety, and advanced control. It gives deep insights into power consumption. Choosing the right PDU is a strategic decision. The correct PDU directly impacts the reliability and efficiency of your pdu data center. This choice ensures your power distribution system can scale for future growth.
A PDU is a professional device for data centers. It offers better reliability, safety features, and higher power capacity. A power strip is a simpler device for home or office use. PDUs are built for continuous, high-demand operation in critical environments.
A 0U PDU mounts vertically in a server rack. This design saves valuable equipment space. It also improves airflow and makes cable management easier. This form factor is ideal for high-density racks where space is a top priority.
An intelligent PDU provides advanced features beyond basic power distribution. It allows users to monitor power usage remotely. Some models also let administrators turn individual outlets on or off over the network. This helps manage energy and reboot equipment from anywhere.
Yes, you can use a PDU in a home office. A basic PDU can provide reliable power for multiple devices. It offers better organization and circuit protection than a standard power strip, making it a good choice for complex home setups.
