What are the components of a Power Distribution Unit?

A power distribution unit has many important parts. These parts help control and send electricity to machines. Every part in a PDU is important. They keep devices safe and working well. People who work with data centers or IT need to know about these parts.

• Learning about PDU parts helps keep IT systems working.
• Good power distribution lowers the chance of downtime.
• Bad power management can stop service for many people.
• Downtime can cost companies up to $1 million each hour.

New PDU designs have simple and advanced features. These features make things safer and more efficient.

Key Takeaways

• Knowing PDU parts helps keep IT systems working. It also stops expensive downtime from happening.
• Picking the right outlets and setups can make power use better. It can also help your system last longer.
• New features like live monitoring and remote control make things work better. They also help save energy and money.
• Checking and updating PDUs often keeps power steady as data centers get bigger.
• Good safety rules and strong materials in PDUs keep equipment safe. They also help PDUs work well for a long time.

Main Components of a Power Distribution Unit

A power distribution unit has many important parts. These parts work together to give safe and steady electricity to devices. Knowing about each part helps people take care of equipment and keep things safe.

Input Power Connections

Input power connections are where electricity enters the PDU. They connect the PDU to the main power source. Data centers use single-phase or three-phase connections. Single-phase is used in most offices. Three-phase is for bigger places with lots of equipment.

International rules help keep these connections safe and working right. Here are some main standards:

YOSUN follows these rules and has certifications like UL, CE, and ISO 9001. This means their power distribution units are safe all over the world.

Circuit Breakers and Fuses

Circuit breakers and fuses keep the PDU and devices safe from electrical problems. Fuses protect the main wires and important machines. Circuit breakers help with smaller wires and can be reset if there is a problem.

Safety rules say power distribution units must have over-current protection. Designers pick the right protection to keep the system safe and working well. YOSUN uses good parts and checks every unit to meet these rules.

Outlets and Receptacles

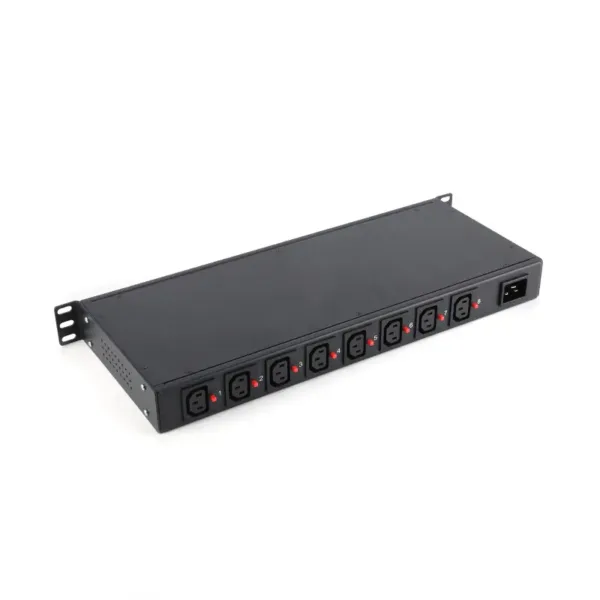

Outlets and receptacles send power from the PDU to devices. The number and kind of outlets matter for different IT needs. C13 outlets are for most servers. C19 outlets are for bigger machines. Hybrid setups can handle many types of equipment.

• C13: Used for most servers and network devices (rated capacity 10A/16A).
• C19: Used for high-power devices like big servers (rated capacity above 16A).
• Hybrid configuration: Works with different kinds of devices.

Having enough outlets helps manage power better. Experts say to have 20% to 30% more outlets for the future. YOSUN lets customers choose the outlet types and how many they need.

Chassis and Enclosure

The chassis and enclosure keep the inside parts of the PDU safe. They make the unit strong and safe to use. Makers use strong steel or aluminum to build them.

Safety rules help decide how enclosures are made. Here are some important rules:

YOSUN makes power distribution units with materials that follow these rules. Their products have GS and RoHS marks, showing they care about safety and quality.

Note: Every part is important in a power distribution system. Picking the right PDU keeps things running and protects your equipment.

Advanced Features in Power Distribution Units

Metering and Monitoring

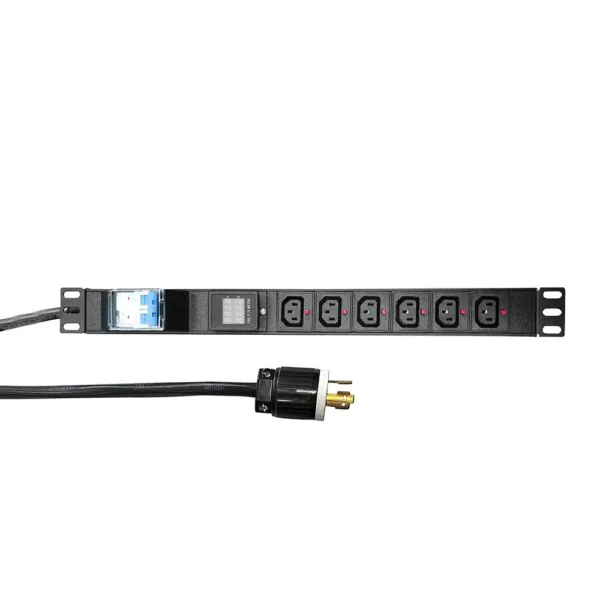

Modern power distribution units have metering and monitoring. These features help companies watch how much energy they use. They give real-time data about power use. This helps teams make smart choices to save energy. With these tools, people can see how much power each device uses. They can find ways to spend less money on power. Monitoring also helps check Power Usage Effectiveness (PUE). Teams can spot problems and use energy better. Real-time monitoring lets people see power use right away. This helps them manage and improve their equipment.

• Real-time data helps lower costs.
• Watching and managing power use saves energy.
• Teams can fix problems early and stop downtime.

Remote Control Connections

Remote control connections let IT managers control power from anywhere. They do not need to be at the site to manage power. Remote outlet control lets them turn outlets on or off. This helps stop wasted power and keeps equipment working well. Common protocols for remote control are SNMP and Modbus.

Control Board and Operation Panel

The control board and operation panel make it easy to check and manage the PDU. These parts give more ways to check problems and help with repairs. They do not take up much space and can add new features later. The control board helps teams find and fix problems fast. This makes the PDU work better and lowers repair costs.

EMI Filters

EMI filters protect important devices from electrical noise. They keep equipment running without stops by blocking high-frequency noise. Many fields, like healthcare and communications, use EMI filters to keep their systems safe. These filters also help meet world rules for electromagnetic safety.

• EMI filters lower repair costs.
• They protect devices from different kinds of electrical noise.

Isolation Transformer

An isolation transformer adds a safety wall in the PDU. It separates input and output wires, which helps stop electric shocks. This part also lowers voltage spikes and electrical noise. It is important for sensitive IT equipment. Isolation transformers make power better and protect against surges. They help keep voltage steady and stop ground loops. This helps keep important systems working well.

Note: Advanced features like automatic power input failover and monitoring make PDUs safer and more reliable for data centers and IT rooms.

Data Center Power Distribution Essentials

Rack PDUs

Rack PDUs are very important in data centers. They send power right to servers and network devices in racks. Each PDU type is made for different jobs in a data center. Some PDUs just give power. Others have smart features like monitoring and remote control. The table below lists the main rack PDU types and what they do best:

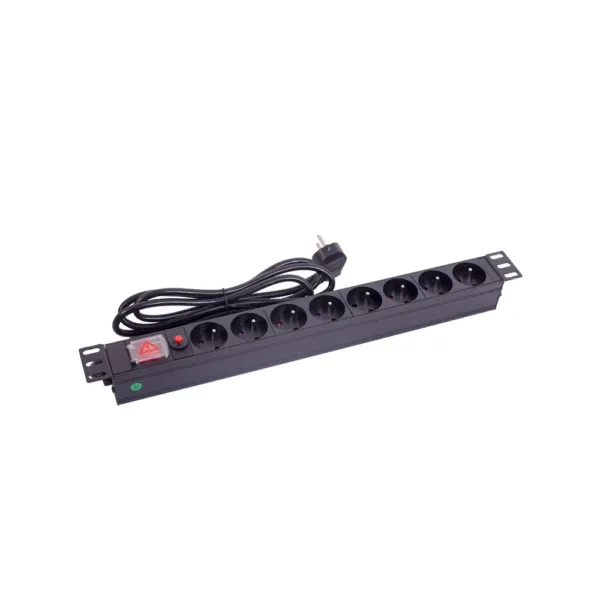

YOSUN has helped many telecom and IT customers with big projects. For example, the YS1516-1P16-12GER-4C13 model worked well in a German data center. It has a modular design and a strong aluminum case. This helps it handle heavy work. The mix of IEC and Schuko outlets makes it easy to plug in different devices and keep power on.

Customization and Scalability

Every data center needs PDUs that can change as new tech comes. Customization lets teams pick the right outlets, smart features, and tools for monitoring. Some choices are:

• Smart features for real-time monitoring and control at each outlet.
• Modular designs and hot-swappable parts for easy upgrades.
• Custom options for remote monitoring and sensors for the environment.

Teams can use C13 outlets for most servers. C19 outlets are for high-power machines. Hybrid PDUs work for mixed equipment. Some PDUs have two power and management modules for extra safety. This setup stops one problem from shutting everything down.

Scalability means a data center can add more power as it gets bigger. New PDUs let you add parts without big costs or stopping work. They also save space and help manage cables better. The table below shows how scalable PDUs help data centers:

YOSUN gives data centers managed PDUs that meet tough safety rules. Their products help clients get ready for the future and keep things running well.

Knowing about each part of a power distribution unit helps teams use power safely. It also keeps systems working without problems. Advanced features like real-time monitoring and remote control make things safer. They help data centers work better and faster. Intelligent PDUs show teams how much energy is used. They also help balance loads to stop issues early. When IT professionals understand power distribution units, they can pick the best PDU for their needs.

FAQ

What does a Power Distribution Unit do?

A Power Distribution Unit takes power from one place. It sends this power to many devices. The PDU keeps the power safe and steady. People use PDUs in server rooms, data centers, and offices.

How does a PDU protect equipment?

PDUs have circuit breakers and fuses. These parts stop too much power from going to devices. They help stop fires and damage.

Can a PDU save energy?

Yes. Smart PDUs watch how much power is used. Teams can see where energy is wasted. They can turn off outlets when not needed. This saves both money and power.

What makes YOSUN PDUs special?

YOSUN gives customers lots of choices and good help.
