Features
- High Accuracy Measurement – The industrial grade switched PDU adopts high-precision sampling circuit which can accurately measure voltage and amperage etc., the fault tolerance is ±1%.
- High power – The PDU provides 4 NEMA L6-20R outlets, each outlet output: 20A 250V, each outlet with separate 20A ABB circuit breaker. Total PDU output Max. 63A and equipped with 63A ABB circuit breaker. Different brands available, for example, ABB / Schneider / EATON / LEGRAND, etc.

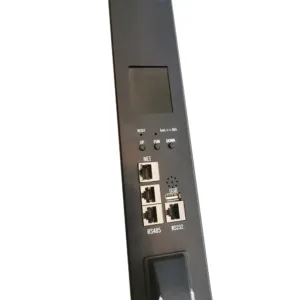

- Support Web Management – On the web page, you can view the content of OLED screen; the on/off status, voltage, current and power of individual outlets, temperature/humidity sensor data; input power, etc. You can also set threshold parameters.
- Custom Alarm – Amperage/Voltage/Temperature/Humidity over-limit threshold can be customized. Buzzer sounds, LCD backlight is always on, Automatic jump to alarm interface, Send E-mail to system administrator, SNMP sends Trap alarm status, Send SMS to users etc. alarm methods.
Advantages of a Single-Phase PDU
Single-phase PDUs are fundamentally simpler and more economical for lower-to-medium power density applications compared to three-phase units.
- Stable and straightforward power distribution:Single-phase power ensures consistent delivery suited for a wide range of equipment types.
- High compatibility:Works seamlessly with most commercial and industrial devices, making deployment simple and flexible.
- Lower installation complexity:Ideal for environments where easy setup, quick integration, and simplified wiring are preferred.
- Improved cable management:A 1U height allows cleaner cable routing and reduces airflow obstruction.
Advantages of an L6-50P IP PDU
The NEMA L6-50P plug is an integral component defining the unit’s power delivery capabilities.
- High-power inlet compatibility: The L6-50P plug supports substantial load capacity, ensuring safe operation for power-hungry devices.
- Enhanced connectivity through IP control: Enables remote on/off switching, scheduling, status checks, and fault response from any location.
- Improved operational oversight: Real-time power data and outlet control help users optimize performance and reduce downtime.
Advantages of a 63A PDU

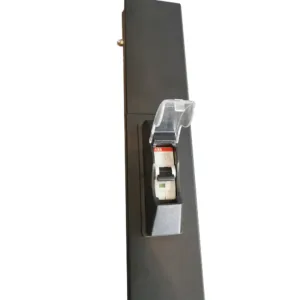

The main circuit breaker is a key safety and protection feature.
- Large current capacity: Built to handle heavier equipment groups, ideal for environments with peak load requirements.
- Integrated high-rating breaker protection: Offers reliable overload protection and enhances overall system safety.
- Stronger power stability under demanding loads: Ensures uninterrupted operation even when multiple high-wattage devices run simultaneously.
Details
1)Size: 1520*75*55mm
2)Color: black,mental material
3)Outlets:4 * NEMA L6-20R
4)Outlets Plastic: Material:antiflaming PC module
5)Housing material:black mental 1.5U housing
6)Feature:IP switched,5 circuit breaker,switched
7)Amps： 50A /customized
8)voltage：250V~
9)Plug:US L6-50P /OEM
10)Cable length:custom length
Support
Optional Toolless Installation
Customized shell colors available
