Advantages of a Alu housing switched PDU
As an Alu housing PDU manufacturer, YOSUN leverages aluminum alloy construction to deliver superior heat dissipation, ensuring consistent performance under continuous load. The aluminum enclosure enhances structural rigidity, protecting internal circuitry from impact, corrosion, and electromagnetic interference. Its lightweight yet robust build simplifies installation while maintaining long-term durability in dense rack environments. The premium Alu housing also improves thermal stability, supporting efficient airflow and extended equipment lifespan.
Advantages of a Switched Managed PDU
- The IEC switched PDU supplier design allows controlled power delivery for standardized global IEC devices.
- The switched managed PDU provider architecture enables remote monitoring and outlet-level switching for enhanced operational management.
Features
1.Hot-swap 485 Monitor, flexibly upgrade and maintain the equipment without affecting the
output power supply
2.Cascading data communication through standard MODBUS interface, batch network monitoring of data centers
3.Optional PDU data management software to achieve low-cost server room power data management
4.Provide entire PDU level reliable power metering
5.Support temperature and humidity, Smoke sensors
6.Support RS485 upgrade system, the latest software functions can be obtained
7.Supports Max.64 PDU devices cascade
8.Locking IEC outlet C13 C19 for reliable power supply, customized outlets available

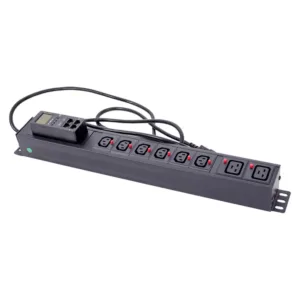

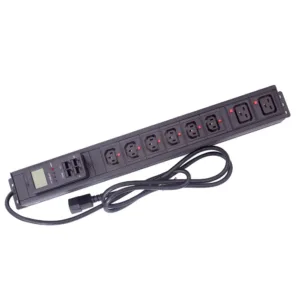

9.This model with 8 outlets (locking 6*C13+2*C19）also available customized outlets,cable length and plug.If you are interested in this pdu and want to design it contact us now !We have several types of smart pdu solution ,monitoring and remote control all support.
10.The YOSUN-PDU series is designed to provide power distribution and remote power control.Each PDU allows eight or more outlets to be independently switched on and off for reboot, energy management and security.The PDU has many features to make the management of power distribution simple and cost effective.
Details
1)Size: 547.5*62.3*55mm
2)Color: black
3)Outlets: 6*IEC60320 C13 + 2*IEC60320 C19
4)Outlets Plastic: Material:antiflaming PC

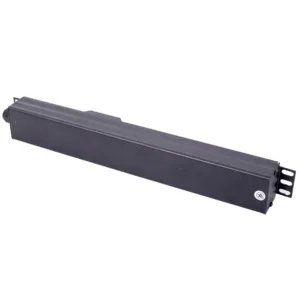

5)Housing material:black Aluminum 1.5U housing
6)Feature:SMART RS485 MONITOR
7)Amps： 16A /32A/customized
8)voltage：110-250V~ 50/60Hz
9)Plug: IEC C14 / customized
10)Cable spec: H05VV-F 3G1.5mm2 2M / custom
Support
Optional Toolless Installation
Customized shell colors available
