Features
Energy efficient fan：It adopts sine wave DC frequency conversion control technology, which makes it more energy efficient, quieter and more stable. Dual power supply, redundant function, fully meet the requirements of use.

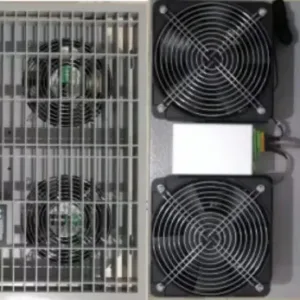

Ventilation grille：With the self-winding guide function, the ventilation rate is greater than 65%, and the uniform load is ≥1000kg.
Communication interface: With built-in RS485 communication interface. Provide MODBUS communication protocol. Group control and status inspection of equipment can be realized.
Temperature control: Adopt imported sensor chip.The accuracy of the temperature reached plus or minus 0.1 C. It can be configured temperature sensor.
advantage of 4 fans
As a 4 Fans design, it delivers balanced multi-point airflow that stabilizes cooling across uneven rack temperatures, reduces hotspots through synchronized fan performance, and maintains consistent air pressure for long-term equipment protection. This four-fan configuration also improves airflow redundancy, ensuring reliable cooling even under variable heat loads.
other advantages
The Air Booster in data center provides directional cooling that improves cold-aisle delivery and supports optimized HVAC performance. The YOSUN Air Booster integrates smoothly into cabinet power and cooling layouts for organized, scalable data-center infrastructures.

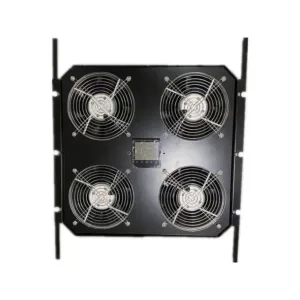

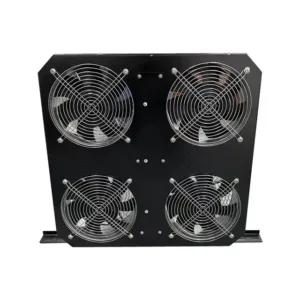

Details
(1)Dimension (W D H): 600*600*200mm
(2)Frame material: 2.0mm steel
(3)Air swing bar: manual control guide
(4)Number of fans: 4
(5)Capacity of air booster: Max power 280w(70w*4)
(6)Air flow: maximum air volume 4160m³/ hour (1040m³*4)
(7)Power source: 220V/50HZ, 0.6A
(8)Operating temperature: -20℃~+80℃
(9)Temperature sensor, automatic transfer when temperature change
(10)Remote Control
