Core Selling Points

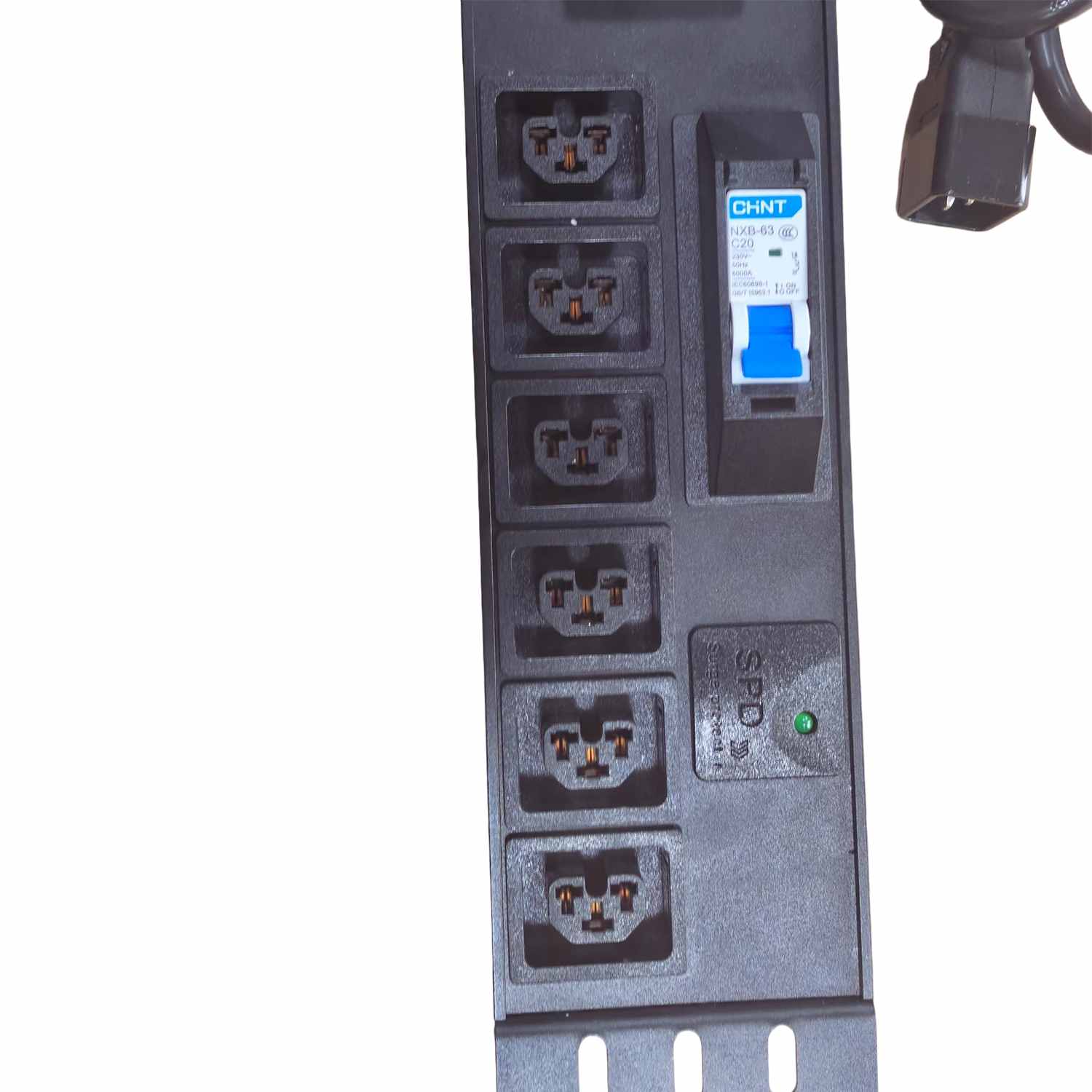

1. The Universal Port: 4-in-1 C39 Hybrid Sockets
- Feature: 6x C39 outlets that integrate the functionality of C13, C15, C19, and C21 sockets.
- Advantage: Unmatched plug compatibility. These ports natively accept C14, C15, C20, and C22 plugs without any adapters or PDU swaps.
- Benefit: Ultimate Future-Proofing. Whether you are deploying standard switches (C14) or high-temperature, high-power servers (C15/C22), this PDU handles it all. It simplifies inventory management and reduces total hardware investment.

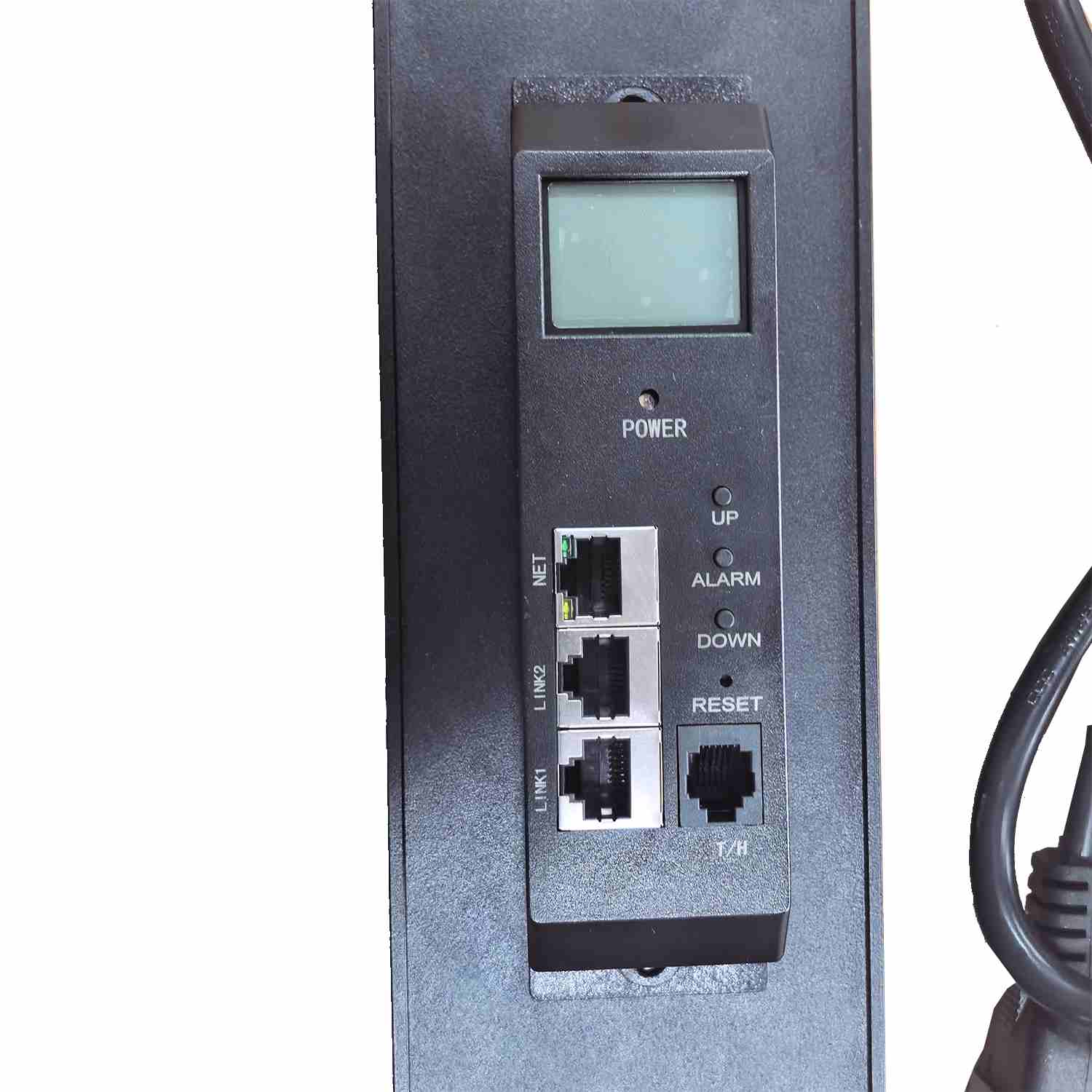

2. Zero-Downtime Maintenance: Hot-Swappable S1 Controller
- Feature: Equipped with the S1 (SMCIP) intelligent controller supporting hot-swapping.
- Advantage: Replace or upgrade the intelligence module while the PDU continues to deliver power to your critical loads.
- Benefit: Guarantees 99.999% uptime during maintenance, making it ideal for colocation and mission-critical labs.
3. Dual-Layer Industrial Protection
- Feature: Combined 1P 10A CHINT MCB and 4.5KA Surge Protection Device (SPD).
- Advantage: Provides a robust barrier against both current overloads and voltage spikes (e.g., from lightning or grid switching).
- Benefit: Shields high-value GPU clusters and network gear from electrical damage, significantly lowering O&M risks.
4. Advanced Energy Monitoring (Unit Level)
- Feature: Real-time auditing of Voltage, Current, Power, Energy (kWh), and Power Factor.
- Advantage: Access data via Web GUI, SNMP V1/V2C, or automated SMTP alerts.
- Benefit: Enables precise cost allocation and data-driven decisions to optimize PUE (Power Usage Effectiveness).
Technical Specifications
1)Nominal Input Voltage: 230V
2)PDU Type: Metered
3)Frequecy: 50Hz
4)Phase: 1 Phase
5)Plug Type: C14
6)Power Cord: 3*1.5mm2
7)Cable Length: 3M
8)Rated Current: 10A
9)Circuit Overload Protection: 1P 10A Chint Circuit Breaker
10)Input/Phase/Circuit Metering: Yes
11)Unit Level Monitored: Yes
12)Socket Level Monitored: No
13)Monitoring Parameter: Yes（Voltage, current, power, energy, power factor）
14)Breaker Status Monitoring: No
15)Socket Level Switching: No
16)Environmetal Monitoring: Yes
17)Environmetal Monitoring Parameter: Yes（Temperature and humidity）
18)Communication Port Protocol: Yes（TCP/IP, HTTP, SNMP V1 / V2C, SMTP）
19)Cascading: Yes (5 devices)
20)Rotatable LCD Display: Yes
21)USB/WEB Software upgrade: Yes (Web)
22)Hot Swap Intelligent Controller: Yes
23)Nominal Voltage: 230V
24)Max Output Current: 10A
25)Socket Type: 6*C39
26)Socket Locking: No
27)Socket Colour: Black
28)Colour: Black
29)Height: 483mm
30)Width: 89.8mm
31)Depth: 45mm
32)Housing Material: Aluminium
33)Mounting Position: Horizontal
34)Cable Position: Left
35)Operating Temperature: 0-55C
36)Storage Temperature: -25C to +65C
37)Operating Altitude: 0-3000m
38)Relative Humidty: 5-95%
39)Warranty: 1 Years repair or replace
40)Safety & Quality: CE Certified, Certified to EN IEC 62368-1 : 2020 + A11:2020
41)Electro-Magnetic Compability: Certified to EN 55032:2015/A11:2020, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3 : 2013 + A2:2021+AC:2022-01, EN 55035 : 2017/A11:2020
Why Choose This C39-Powered PDU?
- Simplify Rack Inventory: No need to stock different PDU models for C13 or C19 requirements.
- Handle High-Heat Gear: The C39 design supports C15/C22 plugs, standard for modern high-performance servers that run hotter than traditional equipment.
- Industrial Ruggedness: Powder-coated aluminum chassis provides superior EMI shielding and heat dissipation.
Support
Customized shell colors available
