Which Metered Rack PDU Should You Choose for Reliable Power Management

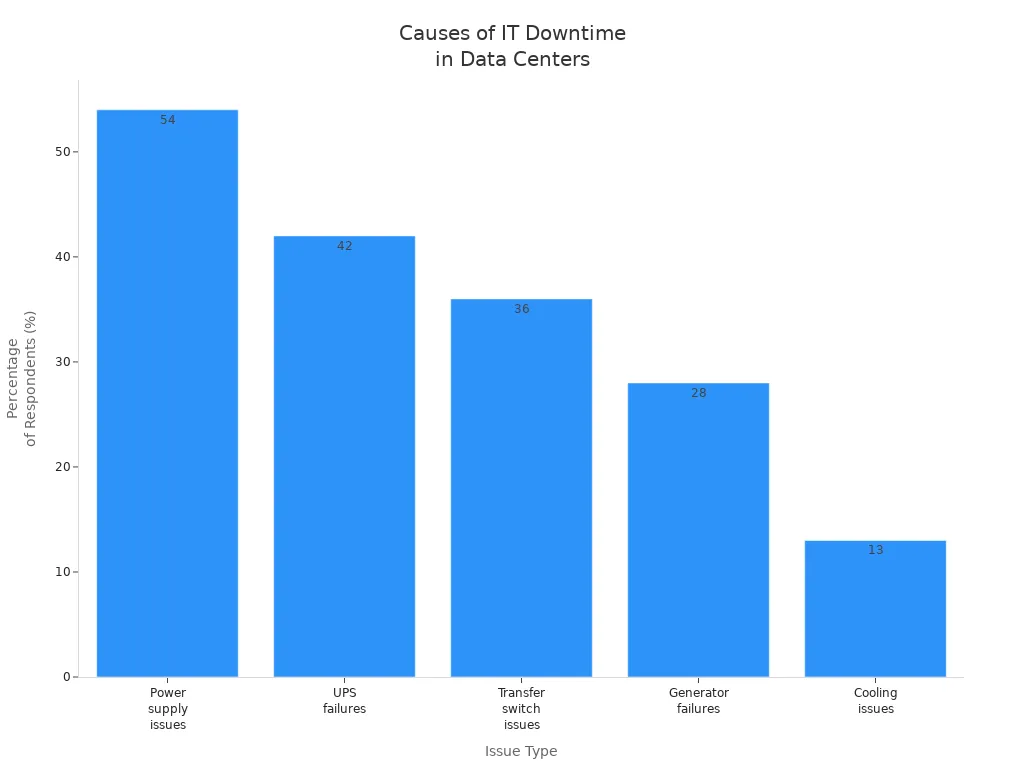

You need a reliable metered rack pdu to prevent power problems in your IT setup. Power management failures cause over half of IT downtime incidents, as shown below.

NBYOSUN’s metered pdu products, like the L730R digital meter vertical rack pdu, meet strict ISO9001, UL, and CE standards. These certifications match top industry requirements. You get safe, monitored rack power distribution unit options with advanced monitoring and metered features.

Power Needs

Choosing the right power distribution units starts with understanding your power requirements. You need to match the amperage, voltage, and total load to your equipment and infrastructure. This step helps you avoid overloads and downtime.

Amperage and Voltage

You should check the voltage and amperage ratings for your rack PDU. Most enterprise IT environments use the following standards:

You must select a PDU with voltage and amperage ratings that match your devices. If you exceed the amperage limit, you risk overheating and equipment failure. Metered rack PDUs give you real-time data on current, voltage, and power factor. This information helps you keep your infrastructure safe and reliable.

Load Planning

You need to plan your total load carefully. Follow these steps:

1. List all equipment in your rack and record both nameplate and actual power use.
2. Consider power supply efficiency, redundancy, and Power Usage Effectiveness (PUE).
3. Calculate loads for single-phase and three-phase PDUs, making sure to balance across phases.
4. Use intelligent PDUs to measure real-time current and power at each outlet.
5. Analyze power data with monitoring tools to spot trends and peaks.
6. Add a safety margin of 20-30% for surges and future changes.
7. Check your calculations with real measurements using monitoring devices.

Overloading a rack PDU can cause equipment damage, downtime, and even fire hazards. Always include a safety margin and use smart PDUs for ongoing monitoring.

Future Growth

Your infrastructure will likely grow as your needs change. Traditional fixed-capacity systems cannot keep up with rapid growth in IT environments. Scalable power distribution units let you add capacity as needed, reducing waste and cost. Leading metered rack PDUs offer flexible outlet configurations, voltage options, and high power capacities. Features like three-phase support and remote monitoring help you manage growing power requirements. NBYOSUN provides custom solutions, so you can choose PDUs that fit your current setup and scale up as your infrastructure expands.

Metered Rack PDU Features

Local Monitoring

You need to see your power data right at the rack. Metered rack PDUs give you this local monitoring. You can check current, voltage, and power factor on a digital display. This helps you spot problems before they cause downtime. High-precision measuring instruments with Class-1 accuracy make sure your readings are reliable. You can trust the numbers you see.

Many metered rack PDUs show power use at the inlet. This tells you how much power your rack uses and how much capacity you have left. Some models, like the L730R digital meter vertical rack PDU from NBYOSUN, go further. You get outlet-level control and monitoring. This means you can see how much power each device uses. You can balance loads and avoid overloads. You can also get alerts if something goes wrong.

Tip: Local monitoring helps you react fast. You do not need to wait for network updates. You see the numbers right on the rack.

Display Metrics

You need clear and accurate data to manage your power. Metered rack PDUs display important metrics such as current, voltage, and power factor. These numbers help you plan for new equipment and prevent overloads. The L730R digital meter vertical rack PDU uses a rotatable LCD screen. You can view all key metrics easily, even in tight spaces.

Here is how the L730R compares to other brands:

You can see that the L730R offers advanced monitoring, remote management, and flexible display options. This makes it a strong choice for data centers and server rooms that need detailed power management.

Most metered rack PDUs show real-time data on a local display. You can see if your rack is close to its limit. This helps you avoid overloads and plan for future changes. Some models also let you view data over secure networks, which is useful for remote monitoring.

Upgrade Options

You want your PDU to last as your needs grow. Metered rack PDUs now come with many upgrade options. You can start with basic metering and add more features later. For example, you can upgrade to a monitored rack PDU for remote monitoring and early issue detection. Some units let you add modules or outlets without shutting down your rack. This modular design saves you time and money.

Here are some common upgrade options:

• Modular and scalable designs let you add or replace modules as your needs change.
• Surge protection keeps your equipment safe from power spikes.
• Remote monitoring and management allow you to control outlets and get alerts from anywhere.
• Expandable outlet configurations help you add more devices without replacing the whole unit.
• Integration with environmental monitoring lets you track temperature and humidity.

The L730R digital meter vertical rack PDU supports many of these upgrades. You can choose features like smart EMI/RFI protection, surge protection, and custom cable lengths. You can also connect it to your network using RS485, SNMP, or HTTP protocols for advanced remote monitoring.

Note: Upgrading your metered rack PDU extends its lifespan and keeps your power management system ready for future demands.

NBYOSUN’s PDUs meet strict certifications like UL, CE, and RoHS. These certifications prove that your PDU is safe, reliable, and ready for use in many regions. You can trust that your equipment meets top safety and quality standards.

Specs Comparison

Input/Output Types

When you choose a metered rack pdu, you need to check both the input and output types. These details decide if your equipment will work safely and efficiently. Different brands offer different combinations, so you must match your devices and power sources.

You should always check the plug and outlet standards, voltage, and current ratings. This ensures your rack power distribution unit works with your data center or server room setup. If you choose the wrong type, your devices may not power up, or you could risk safety.

Outlets and Mounting

The number and type of outlets matter a lot. In enterprise environments, you often see power distribution units with a mix of IEC C13 and C19 outlets. For example, some models offer up to 18 outlets, with 12 of them being combination C13/C19. This design gives you flexibility. You can connect both standard and high-power devices without needing extra adapters.

You also need to think about how you mount your unit. You can pick horizontal or vertical mounting. Horizontal units take up rack space, usually 1U or 2U. This means you have less room for servers or switches. Vertical mounting, also called 0U, uses the side or back of the rack. This saves space and lets you power more devices. Some vertical units can hold up to 54 outlets, which is great for high-density racks.

Tip: Choose vertical mounting if you want to maximize space and outlet count in your rack.

Flexible mounting options help you install and maintain your equipment more easily. You can select the style that fits your rack and your needs. This makes your setup cleaner and more efficient.

Display and Safety

You need clear displays and strong safety features for reliable power distribution. The L730R digital meter vertical rack pdu gives you a real-time load level display. You can see current and voltage right on the unit. This helps you monitor power use and avoid overloads. The built-in LED screen shows data like current, voltage, and power factor. You do not need remote access to check your power status. This is helpful in secure areas where you cannot use network monitoring.

Other brands may offer basic displays or focus on remote control. The L730R stands out because you get immediate, precise information at the rack. This makes it easier to manage your power and plan for new equipment.

Safety features are just as important as displays. High-quality power distribution units include:

You should always look for these features. They keep your equipment safe and your operations running smoothly. The L730R uses flame-resistant materials and offers surge protection and anti-trip features. These details help you achieve reliable power distribution and reduce risks in your IT environment.

Environment Fit

Data Centers

You face unique power challenges in a data center. Power demands keep rising as you add more servers and AI workloads. High power density creates heat and cooling problems. You must avoid wasting energy and prevent stranded power. Metered rack PDUs help you solve these problems. They give you real-time, accurate power data at both the input and outlet levels. You can plan capacity, balance loads, and stop overloads before they happen. Smart PDUs also let you monitor and control power remotely. This helps you keep your center running smoothly and reduces downtime.

Data centers often deal with power quality issues. Dense hardware and special power supplies can cause harmonic distortion. Intelligent rack PDUs measure power quality and help you find problems fast. They work with DCIM systems, so you get a clear view of your whole center’s power use. This makes your infrastructure more reliable and helps you optimize energy use.

Server Rooms

You need a different approach in a server room. Server rooms usually have lower power density than a large data center. Most use single-phase power, which is simpler and easier to manage. You still need to match your PDU to your equipment. Smaller rooms often use basic or metered PDUs with fewer outlets. You can focus on local monitoring and simple load balancing.

You should always calculate your total power needs by multiplying amps by volts. This helps you pick the right PDU for your room. If your server room grows, you can upgrade to a more advanced PDU with more outlets or features.

Customization

Every center and industry has unique power needs. Customization lets you get the best fit for your infrastructure. NBYOSUN has over 20 years of experience working with major clients in telecom, IT, and more. You can choose outlet types, plug standards, and special features like surge protection or remote monitoring. Custom PDUs help you:

• Improve operational efficiency and safety.
• Scale your power system as your center grows.
• Protect critical equipment with advanced safety features.
• Save on energy costs with real-time monitoring.
• Meet strict industry standards and regulations.

Industries like healthcare, manufacturing, and mining also benefit from custom PDUs. You can address high-density power needs, harsh environments, or special compliance rules. Partnering with NBYOSUN ensures you get reliable, innovative solutions tailored to your center’s requirements.

Decision Guide

Checklist

Choosing the right metered rack PDU starts with a clear checklist. You want to make sure your PDU fits your needs and your environment. Here are the most important steps:

1. Count the number and type of outlets you need. Think about staggered configurations and circuit branches.
2. Look for color-coded outlets. These help you identify circuits and lower the risk of overload.
3. Check the PDU’s size and shape. Make sure it fits your rack, does not block airflow, and supports cable management.
4. Review the operating temperature rating. Your PDU should handle the heat inside your server cabinet.
5. Confirm metering capabilities. You need to monitor power at both the input and outlet levels.
6. Decide if you need switched outlets for remote power control.
7. Make sure the PDU works with your power cables and supports your region’s standards.
8. Verify your data center’s voltage and calculate your current and future power needs.
9. Assess circuits, phase, and amperage to select the right input and plug.
10. Consider extra features like environmental sensors, network connectivity, and outlet locking.

Tip: Always check your site’s layout, airflow, and power sources before installing a new PDU.

Model Match

You can use NBYOSUN’s selection tools to match a PDU to your exact needs. These tools let you pick outlet types, plug styles, and mounting options. You can also choose advanced features like remote monitoring, load balancing, and environmental sensors. NBYOSUN’s modular designs help you plan for future upgrades. You can adapt your PDU as your data center grows or as technology changes. This approach ensures your PDU fits your equipment and supports your long-term goals.

When to Consult

You should consult PDU experts in several situations:

• When you plan or install a new rack or data center.
• If you need a custom solution for unique power or space requirements.
• During upgrades or expansions to make sure your power system stays reliable.
• For regular maintenance, inspections, or repairs to keep your system efficient.
• When you want to use advanced features like remote monitoring or environmental sensing.

Expert advice helps you avoid mistakes, maximize uptime, and protect your equipment. NBYOSUN’s team can guide you from planning to installation, ensuring your power management system meets your needs now and in the future.

Choosing the right metered rack PDU means you match your power needs, features, and specs for reliable power management.

• Home energy systems show that aligning these factors leads to better efficiency, cost savings, and flexibility.
• Real-time monitoring and smart control help you prevent overloads and plan for growth.

NBYOSUN stands out with trusted certifications, high-quality products, and custom options. You can explore the L730R digital meter vertical rack PDU or use selection tools to find your best fit. For expert guidance, reach out to NBYOSUN’s team.

FAQ

What is a metered rack PDU?

A metered rack PDU is a power distribution unit that shows real-time power data. You can see current, voltage, and power use on a display. This helps you manage your equipment and avoid overloads.

How does the L730R digital meter vertical rack PDU help prevent overloads?

You get real-time load monitoring with the L730R. The digital display shows current and voltage. You can spot high loads early and take action. This feature helps you keep your equipment safe.

Can I use the L730R PDU in the United States?

Yes, you can use the L730R in the United States. It comes with an L730 plug and supports AC 100–250V input. The product meets UL and other safety standards for use in American data centers and server rooms.

What certifications do NBYOSUN PDUs have?

NBYOSUN PDUs meet strict certifications like UL, CE, and RoHS. These certifications show that your PDU is safe, reliable, and built to international standards. You can trust the quality and safety of your power distribution.

How do I choose the right PDU for my data center?

Start by listing your equipment and power needs. Check voltage, amperage, and outlet types. Use NBYOSUN’s selection tools for help. If you have special requirements, ask their experts for advice. This ensures you get the best fit for your setup.
