Managed Power Distribution Unit Basics for IT Professionals

A managed power distribution unit gives IT professionals the ability to control and monitor each outlet in a data center remotely. This network-enabled PDU delivers reliable power distribution to critical equipment. Managed PDUs help maintain uptime by providing real-time power monitoring and supporting predictive maintenance. Features like remote switching and analytics allow early detection of power issues. These solutions ensure stable and efficient power distribution, which is essential for reliable operation in data centers. Managed power distribution units play a key role in optimizing energy use and preventing downtime.

Key Takeaways

• Managed PDUs let IT teams control and monitor power remotely for each outlet, improving uptime and reducing site visits.
• Real-time power and environmental monitoring help prevent overloads, save energy, and protect critical equipment.
• Advanced security features keep power systems safe from unauthorized access and cyber threats.
• Managed PDUs support scalability and easy integration with management software for efficient data center operations.
• Following best practices like load balancing, redundancy, and regular updates ensures reliable and safe power distribution.

How Managed Power Distribution Units Work

Remote Power Control and Switching

A managed power distribution unit gives IT professionals the ability to control power remotely. This means they can turn devices on or off from any location. Unlike traditional power strips, which only have a simple on/off switch for all outlets, intelligent PDUs allow users to control each outlet separately. This feature is important in large data centers where equipment may be spread across many racks or even different buildings.

Managed PDUs use several key components and technologies to enable remote power control:

• Remote control connections give operators access to the power system from anywhere.
• Control boards let users reconfigure settings and view metering data.
• Relays switch power on and off for each device.
• Main circuit breakers manage the overall power source.
• EMI filters and GFI modules help keep power quality high and ensure safety.
• AC inlets and outlets distribute power to connected equipment.

With these features, authorized users can power controlled remotely, reboot unresponsive devices, and manage power distribution efficiently. This reduces downtime and supports quick troubleshooting.

Real-Time Power Monitoring and Reporting

Intelligent PDUs provide real-time monitoring of power usage. They measure important electrical data such as current, voltage, power factor, and actual power consumption. These devices often deliver billing-grade accuracy, sometimes within +/- 1%. This level of precision helps IT teams know exactly how much power each rack or device uses.

Intelligent PDUs support network and serial access, so users can view data through secure web interfaces or receive alerts by email. This monitoring helps with capacity planning and prevents overloads. Environmental sensors in some models also track temperature and humidity, giving a complete picture of the data center environment.

Tip: Real-time monitoring and accurate reporting help IT teams spot problems early and make better decisions about energy use.

Outlet-Level Management and Automation

Outlet-level management is a key feature of a managed power distribution unit. Intelligent PDUs allow users to control each outlet separately. This means they can turn off unused outlets, reboot specific devices, or group outlets for simultaneous actions. These features save time and reduce the need for physical site visits.

Some automation features at the outlet level include:

• Remote on/off switching for each outlet.
• Measurement of power consumption for every outlet.
• Remote rebooting of individual outlets.
• Turning off unused outlets to prevent unauthorized use.
• Grouped rebooting for multiple power supplies at once.
• Outlet metering for department or customer billing.
• Daisy-chaining up to eight PDUs to share one IP address, saving network resources.
• Secure outlet grips to prevent accidental disconnects.
• Integration with DCIM software for automated monitoring and control.

Intelligent PDUs also support power sequencing. This feature powers on outlets in a specific order, which helps prevent circuit breaker trips and protects equipment. By monitoring and controlling power at the outlet level, IT teams can optimize energy use, balance loads, and improve operational efficiency. Remote management reduces manual work and speeds up troubleshooting.

Note: Outlet-level automation in intelligent PDUs helps data centers run smoothly, lowers costs, and keeps equipment safe.

Network Connectivity and Security Features

Modern data centers rely on strong network connectivity and robust security to keep systems safe and running. Intelligent pdus play a key role in this environment. These devices connect to the network and allow IT teams to manage power, monitor usage, and control equipment from anywhere. Secure network protocols protect sensitive data and prevent unauthorized access.

Secure Network Protocols

Intelligent pdus support a wide range of secure network protocols. These protocols help ensure that all communication between the pdu and remote users stays private and protected. Common protocols include:

• HTTPS with TLS 1.2 and TLS 1.3, using AES 128/256-bit encryption for secure web access.
• SSH with public key authentication, which allows secure command-line management.
• SNMP version 3, which uses strong encryption algorithms like MD5, SHA1, SHA-224, SHA-256, SHA-384, and SHA-512, along with ciphers such as DES, AES-128, AES-192, and AES-256.
• StartTLS, which encrypts user credentials during transmission between the pdu and authentication servers.
• TLS, which secures communication with remote authentication servers like OpenLDAP and Active Directory.
• CHAP protocol, which provides secure RADIUS authentication.

These protocols help keep power management data safe from cyber threats. They also allow IT professionals to perform remote monitoring and control without risking data leaks.

Security Features for Access Control

Intelligent pdus use several security features to prevent unauthorized access and protect critical power infrastructure. Some pdus monitor physical access points, increasing cabinet security and protecting systems and data from physical tampering.

Key security features include:

1. Secure boot processes verify the pdu’s internal chips during startup, blocking malware from loading.
2. Terminal access control and strict password policies limit access to authorized users only.
3. Encryption protocols such as HTTPS and SSH protect data as it moves to and from the pdu.
4. Firewalls with IP-based and role-based access control stop unauthorized network connections.
5. X.509 digital certificates secure connections and defend against man-in-the-middle attacks.

Note: These security features work together to create a strong defense for intelligent pdus. They help ensure that only trusted users can access power controls and monitoring data.

Network Integration and Management

Intelligent pdus connect easily to existing IT networks. They support both wired and wireless connections, making deployment flexible. IT teams can use secure web interfaces, SNMP, or command-line tools to manage power and monitor usage. Integration with authentication servers like Active Directory allows centralized user management. This setup makes it easy to assign roles and permissions, so only approved staff can control critical power systems.

A typical networked pdu setup might look like this:

Intelligent pdus also support remote firmware updates. This feature lets IT teams patch security flaws and add new functions without visiting the site. Automated alerts notify staff of unusual power events or unauthorized access attempts, improving response times and reducing risks.

The Importance of Secure Power Management

Power is the backbone of every data center. Intelligent pdus provide secure, reliable, and flexible power distribution. Their advanced network connectivity and security features help IT teams maintain uptime, protect equipment, and ensure safe operations. With strong encryption, strict access controls, and real-time monitoring, these devices form a critical layer of defense in modern IT environments.

Comparing Power Distribution Units: Managed vs. Basic, Metered, Monitored, and Smart PDUs

Basic Power Distribution Units

A basic power distribution unit provides a simple way to deliver electricity to multiple devices in a rack. This type of PDU does not collect data or offer remote monitoring. It works like a high-capacity power strip, giving each device its own outlet. Many IT teams use basic PDUs to organize cables and reduce clutter in server rooms or network closets. These units help power servers, switches, and other equipment from a single source. Basic PDUs often include safety features such as circuit breakers and alarm indicators. They suit environments where cost savings and straightforward power delivery matter most.

Tip: Basic PDUs work best in small offices or setups that do not need advanced monitoring or control.

Metered Power Distribution Units

A metered power distribution unit adds local monitoring to the basic design. It uses built-in meters to measure current, voltage, and power consumption. Operators can see real-time data on a digital display right on the PDU. This helps prevent overloads and supports better load management. Metered PDUs do not connect to networks, so users must check the display in person. These units fit data centers or server rooms that need immediate power data but do not require remote access.

• Metered PDUs show:
  • Current (A)
  • Voltage (V)
  • Actual Power (W)
  • Apparent Power (kVA)
  • Kilowatt-hours (kWh)
  • Power Factor
  • Circuit Breaker Status
  • Line Current (for 3-phase units)

Metered PDUs help IT teams manage power loads and avoid downtime. They cost more than basic PDUs but offer more control over power usage.

Monitored Power Distribution Units

A monitored power distribution unit takes monitoring further by adding network connectivity. This PDU lets users track power data remotely using secure web interfaces or management software. It provides real-time and historical data, including voltage, current, frequency, and power factor. Monitored PDUs can send alerts if power usage crosses set limits. They also support integration with data center infrastructure management (DCIM) systems.

Monitored PDUs help IT teams respond quickly to power issues and improve energy efficiency. They cost more than basic or metered units but provide valuable data for managing complex IT environments.

Smart Power Distribution Units

Smart PDUs bring advanced technology to data centers and server rooms. These devices offer more than just basic power delivery. They combine real-time monitoring, remote control, and automation to help IT professionals manage equipment efficiently. A smart pdu tracks voltage, current, and energy use at both the input and outlet levels. This data helps teams spot problems early and balance loads across circuits.

Smart pdus also support environmental monitoring. Sensors track temperature and humidity inside racks, helping maintain safe conditions. Locking outlets and color-coded designs make cable management easier and safer. IP address aggregation lets several smart pdus share one network address, which lowers costs and simplifies setup. Out-of-band communication ensures control even if the main network goes down. These features make a smart pdu a powerful tool for modern IT environments.

Note: Smart pdus help IT teams reduce downtime, improve reliability, and keep equipment safe.

Managed Power Distribution Units: Key Differences

A managed power distribution unit stands out from other pdu types because it combines advanced monitoring, switching, and automation. Managed pdus provide detailed energy data at the outlet level. This allows IT teams to see exactly how much power each device uses. They can reboot equipment or change settings remotely, which saves time and prevents unnecessary site visits.

Key differences of a managed power distribution unit include:

• Granular outlet-level monitoring and control for precise power management.
• Remote switching and rebooting of devices to support fast troubleshooting.
• Advanced alerting to warn about overloads or unusual power events.
• Environmental sensors for temperature, humidity, and airflow to protect equipment.
• Hot-swappable monitoring modules for upgrades without downtime.
• Color-coded and locking outlets for better cable management and security.
• IP aggregation and out-of-band communication for flexible, reliable network integration.

Managed pdus support scalability and modularity. Data centers can add more units as needs grow. These pdus also integrate with DCIM software, giving IT teams a unified view of power and environmental data. By using a managed power distribution unit, organizations gain the most feature-rich and adaptable solution for modern data centers.

Key Features and Benefits of Managed Power Distribution Units for IT Environments

Improved Uptime and Remote Troubleshooting

Managed PDUs help IT teams keep systems running by providing reliable power distribution and advanced troubleshooting tools. These devices allow remote management of each outlet, so staff can control equipment without being onsite. Real-time monitoring tracks power usage and device status at every outlet. If a problem occurs, the PDU sends alerts to notify staff right away. Remote power cycling lets teams reboot devices quickly, reducing downtime. The table below shows key remote troubleshooting capabilities:

Managed PDUs also support proactive troubleshooting. They pinpoint faults fast and allow remote fixes, which means less time spent on site visits.

Enhanced Energy Efficiency and Cost Savings

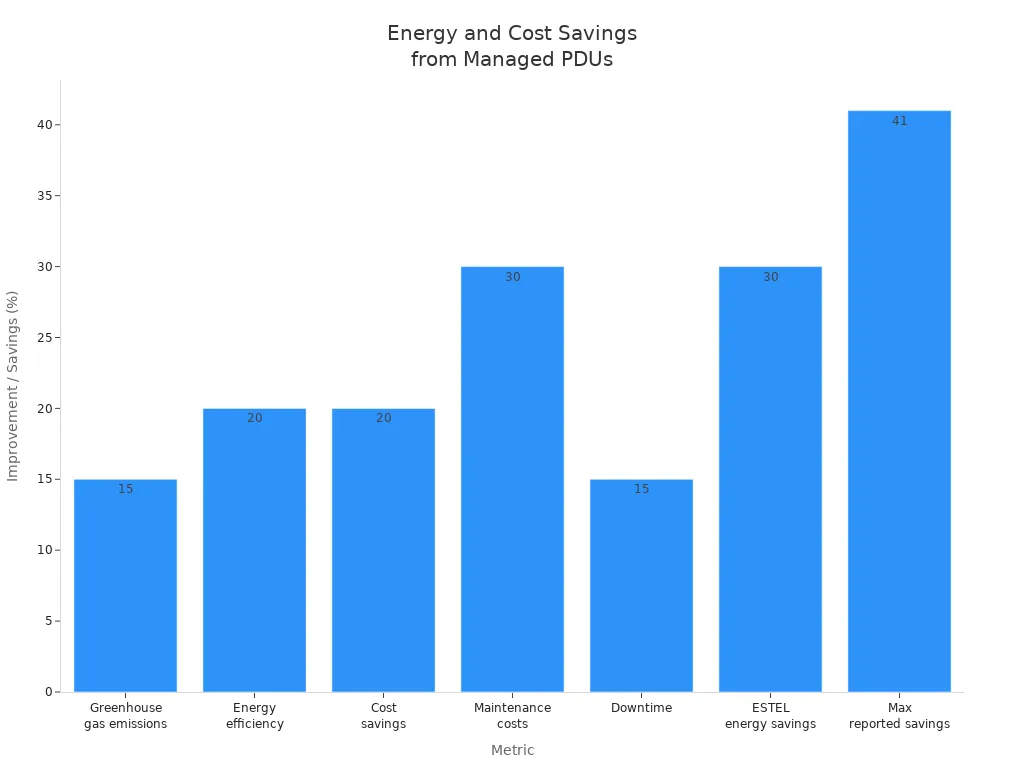

Managed PDUs help organizations save energy and reduce costs. Real-time power monitoring identifies inefficient hardware and wasted energy. By tracking energy use, IT teams can make data-driven decisions to improve energy efficiency. Many organizations report up to 20% less energy used after installing managed PDUs. Some data centers save as much as $50,000 per year. The chart below highlights these savings:

Managed PDUs also reduce maintenance costs by allowing remote troubleshooting and power management. This means fewer site visits and less downtime. Efficient rack installation and simplified administration lower infrastructure expenses. These benefits make managed PDUs a smart investment for data centers.

Capacity Planning and Load Balancing

Managed PDUs play a key role in capacity planning and load balancing. They provide real-time monitoring of power consumption at each outlet. This data helps IT managers balance loads and prevent circuit overloads. By distributing power evenly, managed PDUs reduce the risk of downtime and improve reliability. Integration with DCIM systems gives detailed power usage data for better forecasting and resource allocation. Intelligent PDUs can reduce power waste by up to 30% and decrease unplanned outages by 15%. These features support sustainability goals and help maintain reliable power distribution in modern data centers.

Environmental Monitoring Integration

Intelligent PDUs bring environmental monitoring into the heart of the data center. These devices do more than distribute power. They track temperature, humidity, and airflow to protect critical equipment. Intelligent rack PDUs use sensors to detect electrical overloads and physical risks. This helps IT teams spot problems before they cause downtime.

• Intelligent PDUs monitor environmental conditions and access points in real time.
• They alert staff if temperature or humidity moves outside safe ranges.
• These PDUs enhance cabinet security by tracking physical access.
• Integration with platforms like Cisco Nexus Dashboard allows the Panduit Data Collector to gather and send power and environmental data. This supports better energy monitoring and sustainability.
• Different PDU product families offer unique monitoring features:
  • Monitored Input: checks input power.
  • Monitored Switch: checks input power and allows outlet switching.
  • Monitored per Outlet: tracks power at both input and outlet levels.
  • Monitored & Switched per Outlet: combines input and outlet power monitoring with outlet switching.
• All intelligent PDUs include environmental monitoring as a core function.

Energy monitoring becomes easier with these features. IT teams can use the data to improve efficiency and prevent equipment failures. Intelligent power distribution units help create a safer and more reliable environment for servers and network devices.

Example Products: NBYOSUN and Industry Leaders

NBYOSUN’s managed PDUs, such as their smart PDU models, deliver advanced remote management, real-time monitoring, and customizable options. These products include safety features like overload protection and surge suppression. NBYOSUN emphasizes energy efficiency and reliability, matching or exceeding the capabilities of other leading manufacturers. Their intelligent PDUs support energy monitoring, remote outlet control, and modular scalability. This makes them a strong choice for modern data centers that need flexible and innovative power solutions.

Selecting and Deploying Managed Power Distribution Units

Compatibility with Existing IT Infrastructure

Selecting the right managed power distribution unit starts with checking compatibility. IT professionals look at several factors to ensure the PDU fits the current setup. They match connector types, such as C13 or C19, to the equipment plugs. This step prevents inefficiencies or damage. Voltage and amperage ratings must support the power needs of all devices. Teams calculate the total wattage and add a buffer for future growth. Outlet types and configurations matter, too. Enough outlets of the correct type help avoid power issues. Mounting options, like rack-mounted pdu or floor-mounted pdu, depend on available space and density. Redundancy features, such as dual power sources, keep systems running during failures. Monitoring and management capabilities allow remote control and energy tracking. Surge protection and power filtering protect sensitive equipment from spikes and noise.

Tip: Planning for future scalability helps avoid costly upgrades later.

Scalability and Future-Proofing

A scalable power management solution supports growing data centers. Modular PDUs allow teams to adjust configurations as power needs change. Intelligent PDUs provide real-time monitoring, which helps with capacity planning. Remote management lets operators track and respond to power usage from anywhere. Custom and modular managed PDUs adapt to new workloads and diverse power demands. These designs support safe load changes and maintenance without losing redundancy. Advanced features, such as flexible voltage delivery and harmonic filtering, ensure stable power distribution. Scalable architectures also include redundancy and failover mechanisms. This approach keeps systems running even during hardware failures. As data centers expand, scalable power solutions help maintain high reliability and minimize downtime.

Integration with Management and DCIM Software

Managed power distribution units work best when integrated with management and DCIM software. DCIM solutions monitor PDUs as part of the power chain, giving real-time visibility into power usage. This helps IT teams spot and fix power issues quickly. Integration with IT service management tools, like ServiceNow or JIRA, improves workflow and uptime. DCIM platforms can also connect with building management systems for a complete view of the facility. Configuration management databases within DCIM store detailed asset and power data. This supports change management and incident response. Some platforms, such as Nlyte Software, allow centralized control of PDUs from different manufacturers. This unified approach reduces complexity and operational costs. Seamless integration ensures efficient power management and supports the needs of modern data centers.

Security and Access Control Considerations

Security plays a vital role in managed power distribution units. IT professionals must protect both the physical and digital aspects of these devices. Physical security starts with locking cabinets and racks. Only authorized staff should access the power equipment. Many data centers use badge readers or biometric locks to control entry.

Digital security focuses on network access. Managed PDUs often connect to the network for remote monitoring and control. Strong passwords and regular password changes help prevent unauthorized access. Role-based access control lets managers assign different permissions to users. For example, some users can only view power data, while others can change settings or reboot devices.

Encryption protects data as it travels between the PDU and management systems. Secure protocols like HTTPS and SSH keep power management commands safe from cyber threats. Firewalls and network segmentation add another layer of defense. Regular firmware updates fix security flaws and improve device performance.

Audit logs track every action on the power system. These logs help IT teams spot unusual activity and respond quickly. Training staff on security policies ensures everyone understands how to keep the power infrastructure safe.

Note: A secure power management system protects both equipment and data from risks.

Best Practices for PDU Deployment

IT teams follow several best practices when deploying managed power distribution units in server rooms:

1. Implement redundancy with UPS systems, dual power inputs, and backup generators to keep power flowing during outages.
2. Use smart PDUs that offer monitoring, alerting, and remote management for better power control.
3. Balance power loads across all servers to prevent overheating and equipment damage.
4. Monitor environmental factors like temperature and humidity using sensors to maintain safe conditions.
5. Employ efficient HVAC systems and use hot/cold aisle containment to improve cooling and airflow.
6. Conduct regular inspections and testing of all power equipment and backup systems.
7. Automate alerting and energy management to improve response times and efficiency.
8. Adopt sustainable practices by using energy-efficient equipment and tracking Power Usage Effectiveness (PUE).
9. Train staff regularly on power management protocols and emergency procedures.

Effective cable management also improves airflow and reduces the risk of accidental power disconnections. Regular firmware updates keep the power system secure and functional. Compliance with standards such as NEC and IEC ensures safe operation. By following these steps, IT professionals create a reliable and efficient power environment for critical equipment.

Managed power distribution units give IT professionals powerful tools for remote power management and improved uptime. Organizations that use managed PDUs see benefits such as lower energy costs, better safety, and easier maintenance. NBYOSUN offers solutions that support compatibility and scalability for growing IT needs. Key advantages include:

• Enhanced operational reliability and reduced downtime
• Real-time monitoring for energy efficiency
• Flexible growth without major changes
• Remote troubleshooting and control

Investing in managed PDUs helps build a reliable and efficient IT infrastructure for the future.

FAQ

What is a managed power distribution unit (PDU)?

A managed PDU is a device that lets IT teams control and monitor power for each outlet in a server rack. It supports remote management, real-time monitoring, and helps keep equipment running safely.

How does a managed PDU improve uptime?

A managed PDU allows remote power cycling and monitoring. IT staff can quickly reboot devices or fix power issues without being onsite. This reduces downtime and keeps systems available.

Can managed PDUs help save energy?

Yes. Managed PDUs track energy use at each outlet. Teams can spot devices that waste power and make changes to save energy. This helps lower costs and supports green IT goals.

Are managed PDUs secure for network use?

Managed PDUs use strong security features. They support encrypted connections, role-based access, and regular firmware updates. These features protect power systems from unauthorized access and cyber threats.

What should IT teams consider when choosing a managed PDU?

Teams should check compatibility with existing equipment, power capacity, outlet types, and network features. They should also look for options that support future growth and easy integration with management software.
