A Vertical PDU C13 Story Finding Your Perfect Match

Power issues cause over half of all data center outages. You can avoid this risk by choosing the right equipment. Your perfect vertical pdu c13 is a unit that matches your rack’s power needs (Amps, Volts, Plug), offers enough C13 outlets for all your gear, and provides the right level of management.

Did You Know? The Data Center Rack PDU Market is projected to grow at a rate of 8.01% annually. This growth highlights the increasing demand for reliable power solutions.

This guide provides the essential steps to help you confidently select the right PDU.

POWER CAPACITY: AMPS, VOLTS, & PLUGS

Choosing the right power capacity is the most critical step in selecting your PDU. You must match the PDU to your facility’s power source. This prevents tripped breakers and protects your valuable equipment. Let’s break down the three key elements: amperage, voltage, and plug type.

SELECTING AMPERAGE: 15A, 20A, OR 30A

Think of amperage (Amps or A) as the amount of electricity flowing to your equipment, like the volume of water flowing through a pipe. Your PDU’s amperage rating must meet or exceed the total amperage your connected devices will draw. Common ratings for vertical PDUs are 15A, 20A, and 30A.

Connecting high-draw equipment to a lower-amperage PDU is a recipe for disaster. You risk serious issues that can lead to downtime and hardware failure.

⚠️ Warning: The Dangers of Underpowering Your Gear

• Overheating: A strained power supply can overheat. This damages both the PDU and your devices, creating a potential fire hazard.
• Erratic Performance: Your devices may shut down unexpectedly or run slowly. This can cause data loss during critical operations.
• Component Damage: Insufficient power can permanently harm sensitive internal parts like processors and memory chips.
• Reduced Lifespan: Constant power strain wears out components faster. You will face more frequent and costly replacements.

To prevent these problems, you must match your PDU’s amperage to the circuit breaker it plugs into. An Overcurrent Protection Device (OCPD), like a circuit breaker, is a safety feature. It trips the circuit when the current exceeds a safe limit. This reliable protection is crucial for preventing hardware damage and maintaining uptime. For example, a 20A PDU should be plugged into a 20A circuit. This ensures the OCPD can do its job and protect your rack.

So, how do you figure out your total need?

1. Use On-Device Meters: Many modern servers and PDUs have built-in meters that display their real-time power draw in amps. This is the most accurate method. Simply add up the amperage from all devices you plan to connect.
2. Use a Hardware List: If you don’t have meters, make a list of all your gear. Find the power specifications from the manufacturer for each device. You can usually find this on the equipment’s faceplate or in its manual. Add up the total wattage, then use the formula Amps = Watts / Volts to find the total amperage.

💡 Pro Tip: Always plan for growth. The National Electrical Code (NEC) recommends running a circuit at only 80% of its maximum rated capacity. For a 20A circuit, your continuous load should not exceed 16A. This safety margin prevents accidental overloads.

VOLTAGE & PLUGS: 120V VS. 208V

Voltage (V) is the electrical pressure in a circuit. In North America, you will typically encounter two primary voltages for rack equipment: 120V and 208V. While 120V is common for home labs and light office use, 208V is the standard for modern data centers.

Operating at 208V is significantly more efficient. A server running on 208V draws less current to produce the same amount of power. For example, a 400W server needs 3.33A on a 120V circuit but only 1.92A on a 208V circuit. This lower current draw has several key benefits:

• Improved Efficiency: You can see a 1% to 3% improvement in power supply efficiency. This can save you between $4 and $31 annually in electricity costs for every single server.
• Less Heat: Lower current generates less heat. This reduces the strain on your cooling systems and lowers your overall power consumption.
• More Power: A higher-voltage circuit can deliver much more usable power to the rack, allowing you to support more equipment with fewer PDUs.

The difference in power capacity is substantial.

As the table shows, a single 30A, 208V circuit provides over three times the usable power of a 15A, 120V circuit.

🌿 Go Green with 208V

Using 208V power is also more environmentally friendly. It requires fewer power cables, which improves airflow under raised floors in data centers. Better airflow helps your servers run cooler, extending their lifespan and further reducing cooling costs.

DECODING NEMA PLUG TYPES

You’ve chosen your amps and volts. Now you must match the plug. The PDU’s input plug must fit the wall receptacle provided by your facility. In North America, these plugs are standardized by the National Electrical Manufacturers Association (NEMA).

Each NEMA plug has a specific code that tells you its configuration. For example, a 5-15P is a standard 125V, 15A plug. An L in the name, like L5-15P, indicates that it is a locking plug, which twists to lock securely in place. Locking plugs are ideal for preventing accidental disconnection of critical equipment.

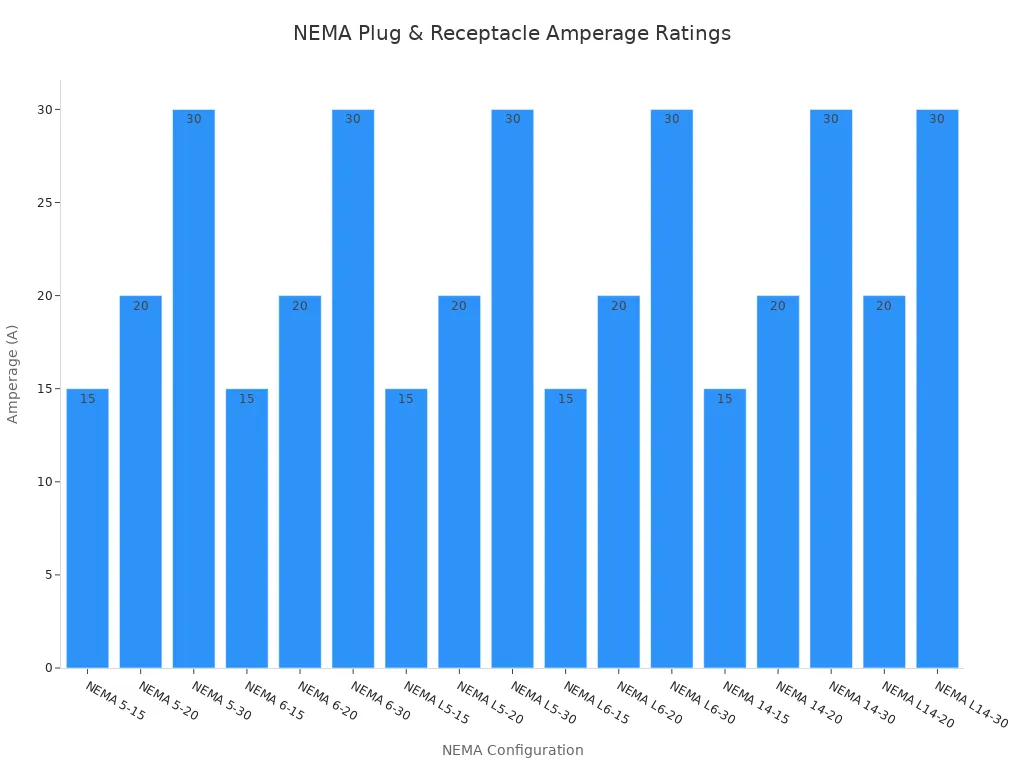

Here is a quick visual guide to some common NEMA configurations.

For a more detailed reference, the table below outlines common NEMA plugs you will encounter for 15A, 20A, and 30A circuits. Always double-check the receptacle at your facility before ordering your PDU.

OUTLET COUNT: C13S AND BEYOND

After matching the power capacity, your next step is to ensure you have the right number and type of outlets. A vertical PDU with a high outlet density helps you manage cables better and improves airflow. This prevents heat buildup and keeps your equipment running efficiently.

CALCULATING YOUR OUTLET NEEDS

You need enough outlets for every device in your rack, plus a buffer for the future. A simple calculation ensures you will not run out of space.

1. Count Your Devices: Make a list of every server, switch, and fan that needs power. This is your baseline number.
2. Add a Buffer: Plan for growth. Industry best practice is to add a safety margin of 20-30% more outlets than you currently need.
3. Include Extras: Remember to account for small items. You might need extra outlets for console monitors, work lights, or temporary test equipment.

Following this plan ensures your vertical pdu c13 can support new technologies and future rack upgrades without issue.

MIXED OUTLETS: C13 AND C19

Most server equipment uses the standard C13 outlet. However, some high-power devices require a different connection.

• IEC C13: This is the most common outlet, rated for up to 10A. It is perfect for standard servers and networking gear.
• IEC C19: This outlet is for your power-hungry devices. It handles up to 16A and is required for larger network switches, blade server chassis, and high-performance computers.

A PDU with a mix of C13 and C19 outlets gives you flexibility. It prepares your rack for any equipment you might add later, so you do not have to guess which outlets you will need.

THE BENEFIT OF LOCKING OUTLETS

Accidental disconnection is a major cause of downtime. Vibrations from equipment or a simple bump from a technician can knock a power cord loose. Locking outlets prevent this.

🔒 Secure Your Uptime

Locking outlets use a special mechanism that grips the power cord plug. This ensures a firm, reliable connection that cannot be accidentally pulled out or vibrated loose. This feature is crucial for maintaining an uninterrupted power supply to your most critical systems.

Many modern PDUs, including solutions from NBYOSUN, feature locking IEC outlets. This simple feature provides peace of mind and protects your valuable equipment from unexpected power loss.

HIGH-DENSITY POWER: A NBYOSUN EXAMPLE

As your server rack fills with more powerful equipment, its power needs grow. Racks consuming over 10 kilowatts (kW) are considered high-density. These demanding environments require a more robust power delivery strategy than standard single-phase circuits can offer.

3-PHASE POWER FOR DEMANDING RACKS

Three-phase power is the solution for high-density needs. It provides a more stable and efficient flow of electricity to your rack. A three-phase circuit delivers nearly 1.7 times more power than a single-phase one using the same current. This allows you to support more equipment from a single power source.

💡 Smarter and Cheaper Power

Using three-phase power offers significant advantages:

• Less Cabling: It delivers more power with less copper wiring. This reduces installation costs.
• Better Airflow: Fewer cables mean less clutter in the rack. This improves cooling and helps your equipment run efficiently.

This approach simplifies your power infrastructure while boosting capacity, making it ideal for modern data centers and growing server rooms.

NBYOSUN’S ROBUST PDU SOLUTIONS

For a real-world example, you can look at solutions from an experienced provider. NBYOSUN is a leading intelligent power solution provider with over 20 years of expertise. Trusted by major clients like China Mobile and Lenovo, the company holds key safety and quality certifications, including CE and UL.

The NBYOSUN 3 Phase 32A IEC C13 C19 0U PDU is a perfect fit for high-density racks.

• High Outlet Count: It features 24 total outlets (14x C13 and 10x C19). This gives you the flexibility to power a full rack of standard and high-draw equipment.
• Built-in Protection: A 3P 32A circuit breaker protects your valuable gear from overloads.
• Secure Connections: All outlets have a locking mechanism. This prevents accidental disconnections and protects your uptime.
• Durable Construction: Its heavy-duty aluminum housing ensures it can withstand the demands of a busy data center environment.

This type of powerful and reliable vertical pdu c13 is essential for keeping critical systems online in a high-density setting.

CHOOSING YOUR VERTICAL PDU C13 TYPE

You have matched your power capacity and planned your outlet count. The final step is choosing the right intelligence level for your vertical pdu c13. This choice depends on your need for monitoring and remote control. Your options fall into three main categories: Basic, Metered, and Switched.

BASIC PDUS: SIMPLE & RELIABLE

Think of a Basic PDU as an industrial-grade power strip for your rack. Its job is simple but critical. It reliably distributes power from a single source to multiple devices. You get a durable, no-frills unit that delivers electricity safely and efficiently.

These units are the go-to choice when your primary need is straightforward power distribution. They are perfect for environments where cost-efficiency is a priority and you do not need advanced monitoring features. As a leading provider, NBYOSUN’s Basic PDU Solutions are built with high-quality materials to ensure long-lasting performance in these exact scenarios.

Common applications for Basic PDUs include:

• IT and Server Rooms: They supply dependable power to multiple devices. This ensures organized power distribution and protects against failures in smaller-scale operations.
• Data Centers: In large deployments, they are ideal for distributing power to servers, networking equipment, and other critical infrastructure within individual racks.
• Network Closets: They are perfect for powering switches, routers, and other networking gear in a compact space.

Choose a Basic PDU when you need a simple, dependable, and cost-effective way to power your equipment.

METERED PDUS: FOR POWER MONITORING

A Metered PDU takes the reliability of a Basic PDU and adds a digital brain. These units feature a built-in display that shows you real-time power data, such as amperage, voltage, and wattage. This information is essential for managing your power capacity and improving efficiency.

With a Metered PDU, you can:

1. Prevent Overloads: You can see exactly how much power your rack is drawing. This helps you stay safely within the 80% load capacity recommended by the NEC and avoid tripped breakers.
2. Plan for Growth: By tracking power trends over time, you know precisely when you are nearing your rack’s power limit. This allows you to plan for future hardware upgrades with confidence.
3. Identify Inefficiencies: The data helps you spot “ghost servers” or other underutilized equipment that waste electricity. You can then decommission these devices to lower your energy bills.

📊 Power Data for Smarter Billing

Metered PDUs with billing-grade accuracy provide precise kilowatt-hour (kWh) data. This information is crucial for implementing chargeback models. You can accurately bill different departments or clients based on their actual energy consumption. This practice promotes accountability and encourages everyone to use power more efficiently.

A Metered PDU is the right choice when you need to monitor power usage for capacity planning, cost allocation, or improving your data center’s overall efficiency.

SWITCHED PDUS: FOR REMOTE CONTROL

A Switched PDU offers the ultimate level of power management. It includes all the features of a Metered PDU and adds one game-changing capability: remote outlet control. You can turn individual outlets on, off, or reboot them from anywhere with a network connection. This level of control is invaluable for managing critical systems, especially in remote locations.

Key benefits of a Switched PDU include:

• Remote Reboots: You can instantly reboot a frozen server or network switch without sending a technician to the site. This dramatically reduces downtime and lowers operational costs.
• Granular Power Management: You can power on new equipment sequentially to avoid inrush current overloads. This granular control also helps reduce electricity waste.
• Enhanced Security: You can disable unused outlets to prevent unauthorized devices from being plugged into your rack. This adds a powerful layer of physical security.

While a Switched PDU has a higher initial cost, its return on investment is often rapid. The ability to prevent a single outage or avoid one trip to a remote site can pay for the unit many times over.

🔒 Secure Remote Access

Worried about unauthorized access? Modern Switched PDUs are built with robust security features. They support advanced protocols like SNMPv3 and SSH for encrypted communication. They also integrate with authentication services like LDAP and TACACS+. This ensures only authorized users can manage your critical power infrastructure.

A Switched vertical pdu c13 is the perfect match for managing unmanned edge sites, co-located equipment, or any environment where maximum control and uptime are non-negotiable.

Finding the right power solution is simple when you follow a clear plan. Use this checklist to guide your decision and ensure you select the perfect vertical pdu c13 for your needs.

Your Perfect PDU Match Checklist

• Confirm your facility’s Amperage and Voltage.
• Verify the required input Plug Type.
• Count your C13/C19 outlets and plan for growth.
• Select your PDU type: Basic, Metered, or Switched.

Following this guide helps you choose a high-quality, reliable vertical pdu c13. You can trust NBYOSUN’s certified and customizable product range to provide a dependable power solution for your critical equipment.
