A Practical Guide to Choosing Your Next 0U PDU

Power problems cause over 43% of major data center outages, making your choice of power distribution unit critical for uptime. The global PDU market is also growing rapidly, showing its increasing importance. You select the right 0U PDU—whether a standard 0U vertical PDU or other zero U PDU options—by evaluating four key areas: your power needs, outlet types, intelligence level, and physical features.

This guide gives you a clear framework, allowing you to confidently choose the perfect PDU to protect your IT equipment.YOSUN is your reliable PDU manufacture partner.

Key Takeaways

• Choose your PDU by checking four things: power needs, outlet types, smart features, and physical design.
• Always match the PDU to your building’s power. Calculate your equipment’s total power use. Do not use more than 80% of the PDU’s power limit.
• Pick the right outlets for your devices. Plan for more outlets than you need now. This helps with future growth.
• Decide how smart your PDU needs to be. Basic PDUs just give power. Smart PDUs let you watch and control power from far away.
• Look at the PDU’s size and how hot it can get. Make sure it has clips to hold power cords. Use color-coded PDUs to avoid mistakes.

Step 1: Determine Your Power Requirements

The first step in selecting a PDU is understanding the power flowing into your rack. This ensures your new hardware is compatible and safe from day one. You need to match the PDU to your source, calculate your equipment’s total load, and decide between single-phase and 3-phase power.

Match the PDU to Your Facility’s Power Source

You must first match your PDU to your facility’s power. Power sources differ globally, so checking your available voltage and amperage is critical. The pdu input and output must align with your building’s electrical system.

• North America: Power is typically delivered at 120V or 208V. The AC current changes 60 times per second (60 Hz).
• Europe: The standard voltage is usually 240V (or 220V). The AC current changes 50 times per second (50 Hz).

Calculate Total Power Consumption

Next, calculate the total power your IT equipment will draw. You can find this by adding up the power consumption of every device in the rack. A simple formula helps you find the power in watts:

Amps × Volts = Watts

For example, a server pulling 8 amps on a 208-volt circuit uses 1,664 watts. Sum the wattage for all devices to get your total.

Pro Tip: For safe operations, your total power draw should not exceed 80% of the PDU or circuit capacity. This 20% buffer protects against power spikes and prevents overloads.

Single-Phase vs. 3-Phase Power Explained

Single-phase power is a great choice for smaller applications. It works well in low-power environments like small offices or for temporary setups. “Single-phase PDUs are the go-to choice for scenarios where simplicity, portability, and cost-effectiveness matter most.”

For high-density data centers, 3-phase power is superior. A 3-phase pdu offers several key advantages:

• Greater Power Capacity: It delivers about 1.7 times more power than a single-phase supply.
• Higher Efficiency: It reduces energy loss, which can lower electricity costs.
• Reduced Cabling: It uses smaller, less expensive wiring, simplifying installation.
• Improved Reliability: It provides a more stable and balanced power flow, protecting your equipment.

Choosing a 3-phase pdu is essential for modern data centers that need to support powerful computing systems efficiently.

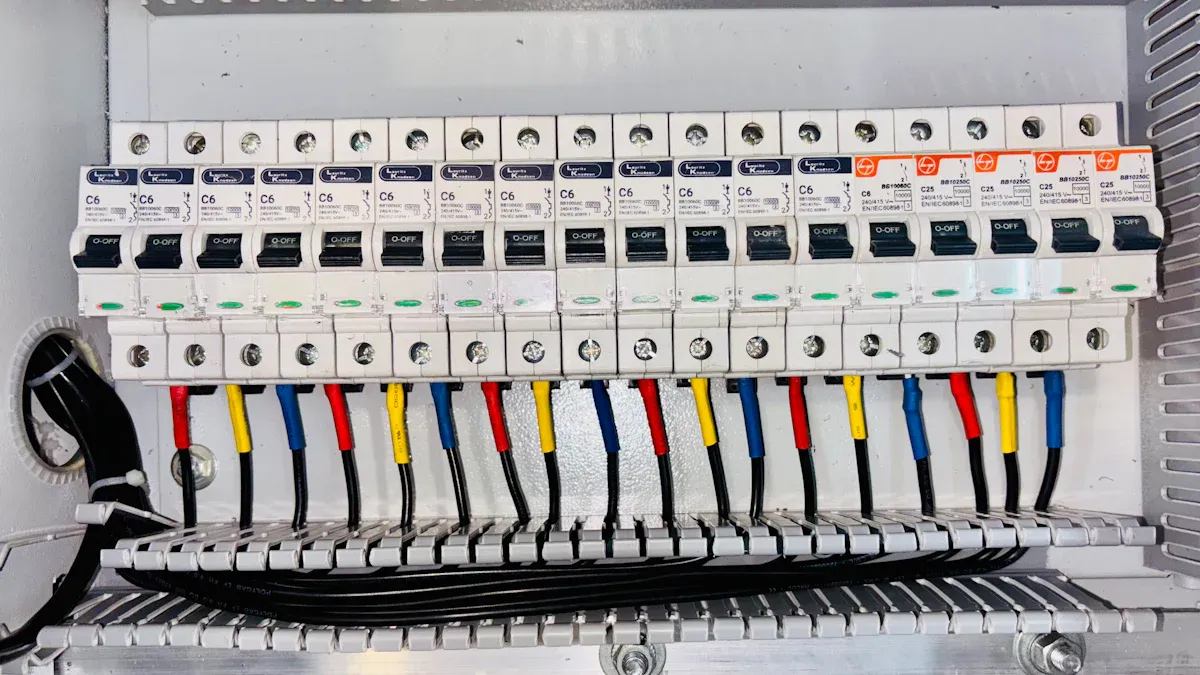

Step 2: Select the Right Outlet Configuration for Your 0U PDU

After defining your power needs, you must choose the right outlets for your equipment. The correct outlet configuration ensures every device can connect to the pdu. This involves counting your outlets, identifying plug types, and planning for the future.

Count the Number of Required Outlets

First, make a list of every device you will install in the server rack. Count the number of power cords to determine the minimum number of outlets you need. However, best practices go beyond a simple one-to-one count.

• Plan for Redundancy: Many setups use two PDUs for A/B power feeds. This ensures equipment with dual power supplies stays online if one pdu or power source fails.
• Consider Power vs. Space: A server rack often reaches its power capacity before it runs out of physical space. Your power plan is more critical than just counting physical slots.

Identify Your Equipment’s Plug and Receptacle Types

Next, you need to match your equipment’s plugs to the PDU’s receptacles (outlets). A mismatch will prevent you from powering your devices. High-density equipment like blade servers may not need many outlets, but they require high-power receptacles like the IEC C19 to handle the load.

Check the plug type for each device. Here are some common types you will encounter:

Plan for Future Rack Expansion

Your infrastructure needs will grow over time. A 0u pdu is a long-term investment, so you should plan for expansion from the start. A good rule is to choose a pdu with more outlets than you currently need.

Growth Tip: Select a PDU with 10-20% more outlets than your immediate requirement. This gives you the flexibility to add new hardware without needing to replace your power infrastructure. This simple step saves you time and money in the future.

Step 3: Choose the Right Type of Power Distribution Unit

You have defined your power and outlet needs. Now you must select the intelligence level of your PDU. The right choice depends on your need for remote access and data. PDUs range from simple power strips to intelligent devices that provide deep insights into your power environment.

Basic PDUs for Reliable Power Delivery

A Basic PDU is the simplest and most cost-effective option. It reliably delivers power from a single source to multiple devices. This type of PDU is an excellent choice for small server rooms, office setups, and network closets where you do not need advanced monitoring.

Key features often include:

• Durable Construction: Built to withstand the data center environment.
• Circuit Protection: Includes breakers to prevent overloads and protect equipment.
• Switch-free Design: Prevents accidental shutdowns of critical devices.

A Basic PDU prioritizes simplicity and affordability. It functions purely as a power distribution device and lacks monitoring capabilities, so you must manage it on-site.

Metered PDUs for On-Site Load Management

A Metered PDU gives you more visibility into your power consumption. It features a local display that shows real-time electrical data. This helps you manage power directly at the rack. You can view important metrics like:

• Current (Amps)
• Voltage
• Power (Watts)

This information is critical for preventing overloads. When you install new equipment, you can instantly see the impact on the circuit’s load. This allows you to balance power distribution and avoid tripping a breaker. A Metered PDU is a great tool for technicians working inside the data center.

Monitored PDUs for Remote Power Monitoring

A Monitored power distribution unit takes visibility to the next level. It connects to your network, so you can view power data from anywhere. This PDU uses common network protocols like SNMP and HTTPS to securely transmit information.

Remote monitoring helps you improve your data center’s Power Usage Effectiveness (PUE). You can:

• Identify “ghost servers” that waste energy.
• Track power trends for better capacity planning.
• Receive alerts before a circuit reaches its limit.

This remote insight allows you to make smarter energy decisions, reduce costs, and prevent outages without needing to be on-site.

Switched PDUs for Complete Remote Outlet Control

A Switched PDU gives you the highest level of control over your rack equipment. This intelligent power distribution unit lets you turn individual outlets on, turn them off, or reboot them from any location with network access. This capability is essential for managing equipment in large data centers or unmanned sites.

You can use a Switched PDU for several critical tasks.

• Remote Reboots: You can perform a hard reboot on a locked-up server or router without traveling to the site. This quickly restores services and saves valuable time.
• Power Sequencing: You can program the pdu to power on devices in a specific order. This prevents a sudden inrush of current that could overload a circuit during startup.
• Energy Management: You can shut down non-essential equipment during off-hours to reduce energy costs.

This level of control introduces a significant operational risk if not secured properly. Unauthorized access to a switched pdu could allow a malicious actor to shut down your most critical applications, leading to costly downtime.

You must prioritize security when deploying a Switched PDU. Look for a pdu with robust security features to protect your infrastructure. Key mitigation strategies include using strong encryption protocols like HTTPS and SNMPv3, implementing role-based access control to limit user permissions, and regularly updating the pdu firmware to patch vulnerabilities. A secure power distribution unit ensures that only authorized personnel can manage your power.

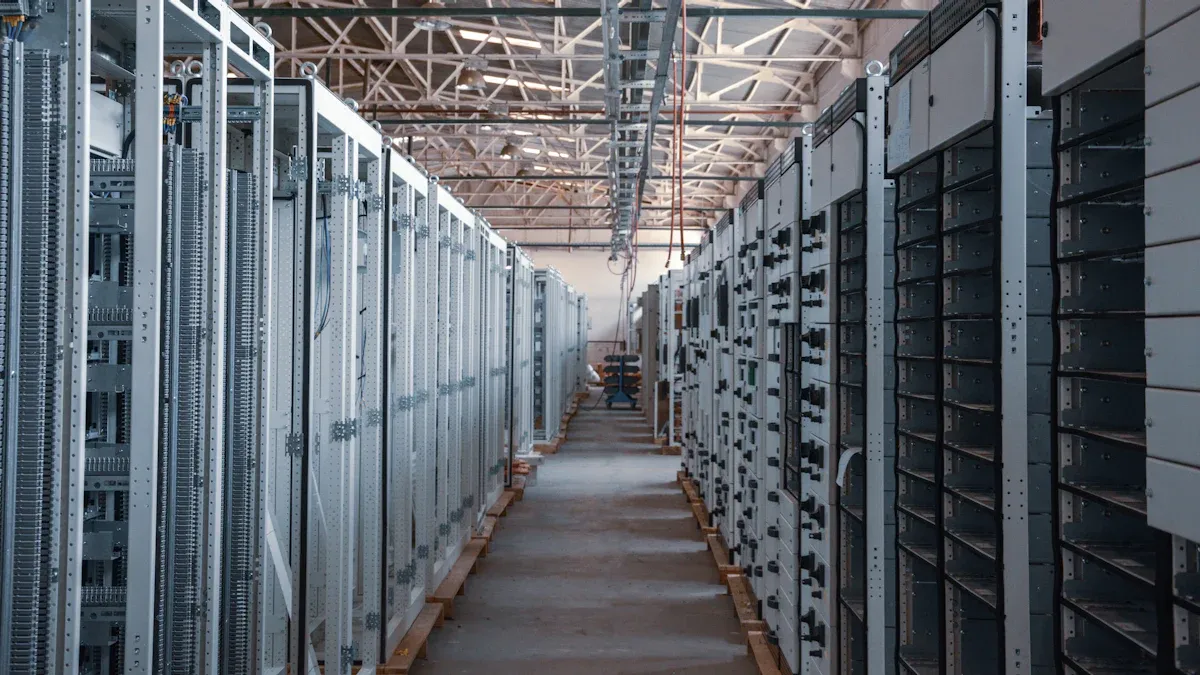

Step 4: Evaluate Key Physical and Environmental Features

Your PDU’s physical design and environmental resilience are just as important as its power specifications. These features ensure the pdu fits correctly in your server rack and operates reliably under demanding conditions. You should assess the unit’s size, temperature tolerance, and cord security.

Consider the PDU’s Physical Footprint

A 0U PDU mounts vertically, so it does not consume valuable horizontal rack space. However, you must still check its dimensions. The length of the pdu needs to match the height of your server rack. You also need to ensure its depth does not interfere with equipment or block airflow.

A well-chosen PDU fits perfectly without obstructing access to your servers or network gear. Always measure your available space before making a purchase to guarantee a smooth installation.

Check for High-Temperature Operating Ratings

Data centers are getting hotter as operators raise temperatures to save on cooling costs. Your PDU must be able to handle this heat. Standard PDUs typically operate in ambient temperatures up to 60°C (140°F). For environments that run warmer, you need a high-temperature grade pdu.

Choosing a unit rated for high temperatures prevents failures caused by overheating. A PDU failure can take down an entire rack of critical equipment, leading to costly downtime. Selecting a high-temperature pdu is a smart investment in reliability.

Look for Cord Retention Mechanisms

Accidental unplugging is a common cause of outages. A slight bump or vibration can disconnect a power cord. Cord retention mechanisms lock plugs securely into the PDU outlets, preventing this problem.

You can find several effective solutions:

• Cable Retention Clips: These simple metal clips slide into place around the plug, holding it firmly against the outlet.
• Mechanical Locking Outlets: These outlets feature a built-in mechanism that grips the plug body. You can release the plug with a simple one-handed squeeze-and-pull action.

These features provide peace of mind by ensuring your power connections remain stable and secure.

Utilize Color-Coding for Circuit Identification

In a high-density rack, you often have two or more power feeds for redundancy. This A/B power design is critical for uptime. However, it also creates a risk. A technician might accidentally unplug a server from both power sources during maintenance. This simple mistake can cause an immediate outage. Color-coding your power infrastructure helps prevent this human error.

Many manufacturers offer a pdu in various colors. You can assign a specific color to each power feed in your rack. For example, you might use blue for the primary ‘A’ circuit and red for the secondary ‘B’ circuit. This visual system makes it easy for anyone to identify the power path at a glance. You can immediately see which pdu connects to which power source.

This simple visual strategy dramatically reduces the risk of accidental downtime. It allows your team to perform maintenance with greater speed and confidence, knowing they are working on the correct circuit.

Using colored PDUs provides several key advantages for your data center operations:

• Error Prevention: It minimizes the chance of unplugging the wrong cord.
• Faster Troubleshooting: You can trace power paths quickly when diagnosing an issue.
• Improved Organization: It creates a clean and easily understandable rack environment.
• Enhanced Safety: It helps technicians work more safely by clearly differentiating circuits.

Some vendors even offer colored power cords to match the pdu. This extends the visual identification from the power strip all the way to the server. Choosing a color-coded pdu is a simple but highly effective way to improve the reliability and manageability of your IT infrastructure. It is a small feature that delivers significant operational benefits.

Exploring PDU Solutions for Your Needs

After learning the four key steps, you can explore specific products that match your requirements. Understanding a manufacturer’s offerings and knowing how to compare models are the final steps to making a confident choice.

An Overview of NBYOSUN PDU Offerings

NBYOSUN provides a wide range of power solutions to meet diverse client needs. With over two decades of experience, the company has developed a comprehensive portfolio of PDU products. You can find a pdu designed for nearly any application, from small server rooms to large data centers.

Their main product lines help you find the right level of intelligence and control:

• Basic PDU: Delivers reliable power distribution for locations that do not require remote management.
• Metered PDU: Provides on-site monitoring of electrical loads to help you prevent overloads.
• Smart PDU: Offers advanced remote monitoring and outlet-level control for complete power management.

NBYOSUN also offers specialized solutions, including high-power PDUs for demanding equipment and vertical PDUs for high-density racks. This variety ensures you can find a power distribution unit tailored to your specific environment.

How to Compare PDU Models and Specifications

When you compare different PDU models, you need to look closely at their technical details. This helps you ensure the pdu is a perfect fit for your rack.

Focus on these key specifications to make a clear comparison:

• Input Voltage and Plug Type: Must match your facility’s power source.
• Outlet Quantity and Type: Must support all your current and future equipment.
• Maximum Load (Amps): Must handle your total power draw with a safety buffer.
• Physical Dimensions: Must fit within your available rack space without blocking airflow.
• Warranty Period: A longer warranty often indicates higher manufacturer confidence.

Creating a simple comparison table can make your decision easier. It helps you see the differences between models at a glance.

By carefully comparing these details, you can select the best pdu for your needs.

You now have a clear framework for choosing your next 0U PDU. You make the right choice by analyzing your needs across four areas: power, outlets, intelligence, and features. This guide equips you to make an informed purchasing decision for your server rack. Confidently select the right 0U PDU to ensure stable power for your critical IT infrastructure. A well-chosen PDU can reduce downtime by up to 33%, protecting your server rack and improving operational efficiency. This makes your 0U PDU a critical investment.

FAQ

What is the difference between a basic and a smart PDU?

A basic PDU reliably delivers power to your equipment. A smart PDU connects to your network. You can use it to monitor power usage and control individual outlets from a remote location. This gives you much greater control over your IT environment.

Why is the 80% power rule important?

You should only load a PDU to 80% of its maximum capacity. This safety buffer prevents circuit overloads from unexpected power spikes. Following this rule protects your equipment and helps you avoid costly downtime. It is a key best practice for data center safety.

Can I use a 208V PDU with a 120V power source?

No, you cannot. You must always match the PDU’s input voltage to your facility’s power source. A mismatch can permanently damage your PDU and any connected equipment. Always verify your power source before purchasing a PDU.

What does 0U mean for a PDU?

The term 0U means the PDU does not use any horizontal rack unit space. You mount it vertically in the back or side of the server rack. This smart design saves valuable space for your servers, switches, and other critical IT hardware.
