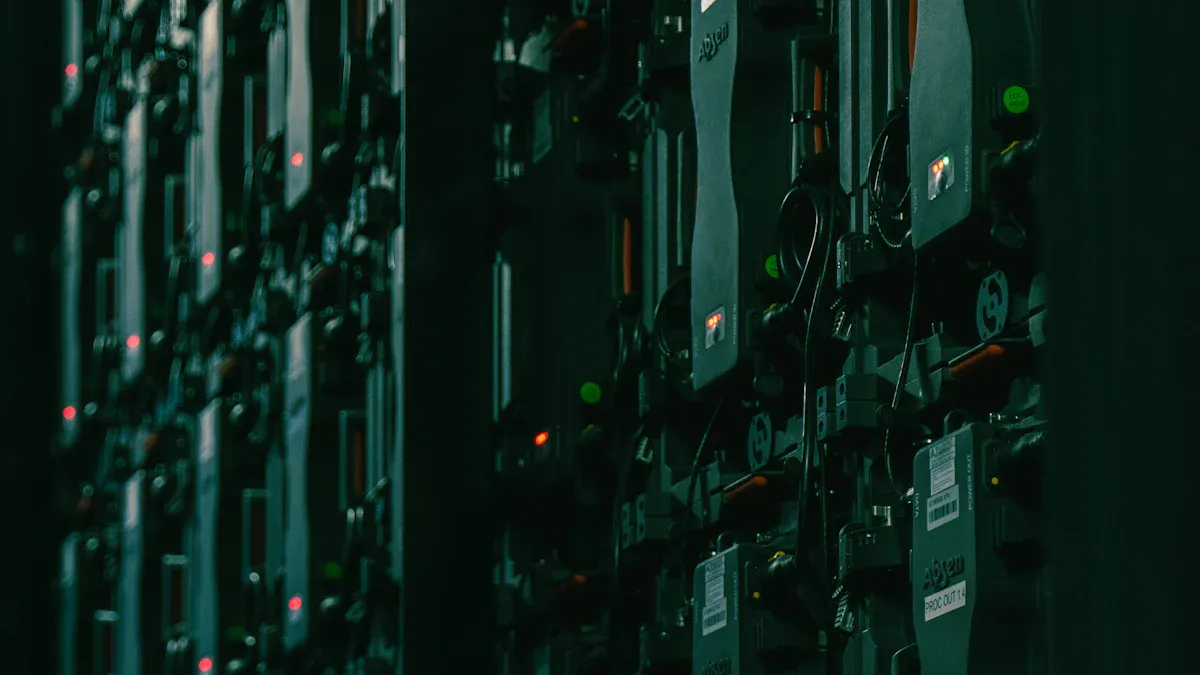

How to Pick the Best Rack PDU for Your Data Center

Have you ever had a sudden outage in your data center and thought better power management might have stopped it? More than half of big data center outages happen because of power distribution problems. This makes having good PDUs very important. When you pick a rack PDU, you need to match your power, equipment, and management needs with the right features and size. Good, smart PDUs with real-time monitoring help keep your servers working and your business online. A pdu calculator helps you plan the load and stop expensive downtime.

Key Takeaways

• Pick a rack PDU that fits your power needs now and later. This helps stop overloads and keeps things running. – Choose PDUs with enough outlets for all your devices. Make sure the outlets fit your equipment and let you add more later. – Use smart PDUs that let you watch power use from far away. Sensors help you find problems early and fix them fast. – Plan for backup by using more than one power source. Backup systems help your data center keep working if something fails. – Think about using vertical PDUs to save space in the rack. Vertical PDUs also help air move better, which is good for crowded racks.

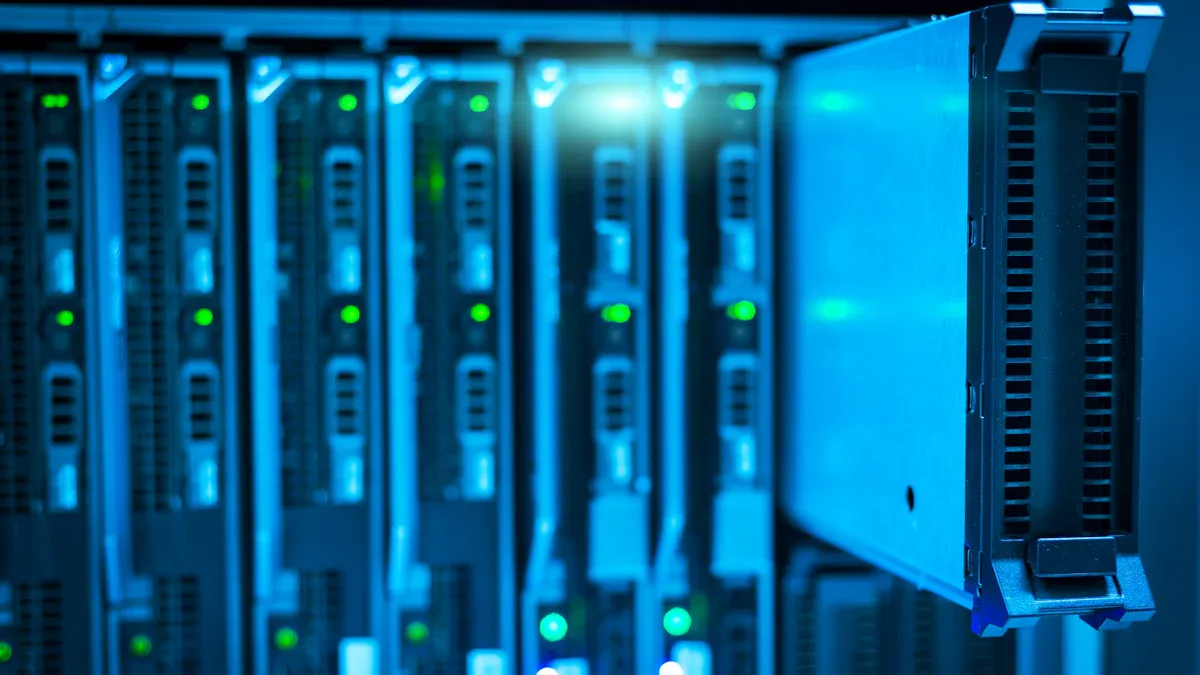

What Is a Rack PDU?

Basic Functions

A rack pdu connects your building’s power to your IT equipment. You put the power distribution unit inside your server rack. It sends electricity to each device in the rack. This makes sure every server, switch, or storage device gets power to work well.

• A power distribution unit gives steady power. This stops sudden shutdowns and keeps your systems working.

• Many PDUs protect against surges. They keep your equipment safe from voltage spikes and electrical problems.

• Intelligent PDUs do even more. You can watch power use live and control outlets from far away. You can also check energy use and find issues before they cause downtime.

Tip: Pick a PDU with enough outlets and features for now and later. This saves you money on upgrades in the future.

Importance in Data Centers

You need a good power distribution unit to keep your data center safe and working well. A rack pdu does not make power. It sends electricity from UPS systems or generators to all your rack devices.

• Balancing the load across PDUs stops overloads and protects your equipment.

• Remote monitoring and DCIM systems help you manage power and the environment from anywhere.

• Sensors in intelligent PDUs find heat or moisture early. This lowers the risk of equipment breaking.

• Checking PDUs often and keeping cables neat helps stop electrical problems or fires.

A modern power distribution unit works in high-density places. You can service it without turning off your equipment. This helps you keep things running and meet service agreements.

Key Considerations

Power Needs

You must know how much power your rack uses before picking a power distribution unit. Most racks in data centers use between 5 and 20 kW now. Some racks for AI or high-performance computing need much more power. These can use over 100 kW for each rack. By 2025, many racks will use 15 to 20 kW as normal. Big data centers already have racks that use 20 to 200 kW. This is because of new things like AI, data analytics, and the Internet of Things.

Tip: Always think about what you might need later. New hardware like GPUs can make your power needs go up fast.

To stop overloads, add up the wattage or volt-amps for every device in your rack. Make sure your rack pdu can handle this total, plus a little extra for new gear. If you use high-density workloads, pick PDUs that can handle more amps and have better monitoring.

Equipment Compatibility

It is important to match your PDU to your equipment for a safe setup. Different IT devices need different outlets and power levels. For example, servers, switches, and storage units may use IEC C13, C19, or other plugs. You should check what plug and power each device needs.

• Pick a PDU with enough outlets for all your devices and some extra for upgrades.

• Locking outlets help stop plugs from coming out by accident.

• Vertical PDUs save space and give you more outlets. Horizontal PDUs are good if you have less space or need better airflow.

• Intelligent PDUs with remote monitoring and sensors are best for AI or high-density racks.

Note: The best PDU type—basic, metered, monitored, or switched—depends on what your equipment and management need.

When you match your power distribution unit to your equipment, your data center stays safe and can grow when needed.

PDU Calculator for Power Planning

Calculating Load

You have to know how much power your rack needs before picking a PDU. A pdu calculator helps you add up the wattage or volt-amps for every device in your rack. This tool lets you type in your voltage, current, and load needs. You can see how much power you use and avoid using too much.

• Trusted 3-phase pdu calculators, like YOSUN’s, are easy to use.

• You can enter voltage, current, and load needs for each device.

• The calculator shows how power is split between phases, so you can balance it.

• Good calculators think about derating and let you plan for more devices later.

• Smart PDUs with live monitoring work with these calculators for better balance.

Tip: Always use a pdu calculator before you add new equipment. This step helps you stop downtime and keeps your data center safe.

If you want the best results, talk to an electrical engineer or a data center expert. They can help you make your power plan better and check if your equipment fits your needs. YOSUN’s smart PDU solutions also give you advanced monitoring, which helps you plan and work better.

Voltage and Amperage

You need to match your PDU’s voltage and amperage to what your data center needs. Most big data centers use 208V or 240V output. Many new places now use 400V input for more power. Common amperage ratings for PDUs start at 30A or higher.

• The National Electrical Code says you need a 20A breaker for PDUs rated at 30A or more.

• Most data centers use 3-phase power, so you must pick single-phase or 3-phase PDUs.

• Regular PDUs lower commercial voltages, like 480V, to levels IT gear can use.

• Custom PDUs can give 208V, 400V, 415V, or even 480V outputs.

• The industry now uses higher voltage to support up to 50 kW per cabinet.

Note: Flexible voltage solutions, like triple-output transformers, let you use 208V, 400V, or 415V from one unit. This makes it easier to meet changing power needs.

A pdu calculator helps you pick the right voltage and amperage for your setup. You can plan for now and for the future, making your data center stronger and able to grow.

How to Choose the Right PDU

Outlet Count

Picking the right number of outlets is very important. You need a spot for every device to plug in. You should also think about adding more devices later. If you get new servers, you do not want to run out of outlets.

Here is a table to help you think about the main things:

You should make a list of all the devices you want to use. Count how many outlets you need now and add a few more for new gear. If you have high-density racks, vertical PDUs give you more outlets and save space. Always check the PDU’s power limit so you do not overload it.

Tip: Use locking outlets or clips to keep plugs in place and stop them from coming out by mistake.

Outlet Types

Outlet type is just as important as how many outlets you have. Different places and devices use different plugs and voltages. For example, the US uses 120V or 208/240V, but Europe and Asia use 230V. You must match the PDU outlets to your device plugs so everything works together.

Some PDUs have combo outlets, like C13/C19, that fit both C14 and C20 plugs. This gives you more choices and makes it easy to add new gear without changing your PDU. Universal PDUs are good if you use equipment from many countries.

Note: Always pick a PDU with more outlets and a mix of outlet types than you need now. This helps you add new devices later without problems.

Ensuring Redundancy for Maximum Uptime and Power Reliability

Redundancy is very important for keeping your data center running. If one power source stops working, your equipment should keep going. You can do this by using two power feeds, automatic switches, and backup systems in the PDU.

Here is a quick table of good redundancy features:

You should also look for PDUs with sensors. These sensors warn you about heat, wetness, or airflow problems before they cause trouble. Remote management and live monitoring help you fix power problems fast and keep your data center safe.

Pro Tip: Put about 40% of the load on each of two PDUs. If one fails, the other can take over without trouble.

When you plan for redundancy, you protect your business from sudden outages. This keeps your important systems working and is a big part of picking the right pdu for your data center.

Form Factor Options

Vertical vs. Horizontal

Picking between vertical and horizontal PDUs changes how you use rack space. Each type has its own good points. You should choose the PDU that fits your data center’s setup and power needs.

Here is a simple table to help you compare:

A horizontal PDU is good if your rack is small or you change equipment a lot. You can reach the outlets easily. It works well if you do not have much room up and down. But it takes up space that could hold servers.

A vertical PDU goes on the side or back of the rack. It does not use any rack units, so you keep all your space for equipment. These PDUs fit more outlets and help air move. They are best for racks with lots of devices.

Tip: Most new data centers use vertical PDUs. They give you more choices and help you add more gear later.

Rack Space

The PDU form you pick changes how much rack space you have. Horizontal PDUs use 1U or 2U of space. This means you lose room for servers or switches. If your rack is small, this can be a problem.

Vertical PDUs, called ZeroU PDUs, go on the side or back. They do not use any rack units. This lets you put more equipment in the rack. You also get more outlets, which is good for racks with lots of devices.

Here is a table to show the differences:

If you want to fit more gear and keep things cool, vertical PDUs are usually better. They stop crowding and keep cables tidy. This makes it easier to fix things and helps you grow later.

Note: Always check your rack’s size and shape before picking a PDU. The right type helps you get the most from your data center.

Smart Features

Metering

Smart PDUs with metering show you how much power you use right now. You can see the energy each rack or device uses. This helps you find problems early and stop overloads. Metering lets you watch for patterns and plan for more equipment later.

Many new data centers pick smart PDUs with metering. Here is a table that shows how many use them:

You can use this information to help explain why smart PDUs are a good idea. Metering helps you waste less energy and save money over time.

Remote Monitoring

Remote monitoring lets you control your data center from anywhere. You can check power use, control outlets, and get alerts right away. This makes your work easier and keeps your systems running well.

• You can see how much power is used at each rack and outlet. This helps you save up to 20% on energy.

• You can restart devices or turn outlets on and off from far away. This makes fixing problems 40% faster.

• You get alerts if there is too much power use, heat, or power loss. You can fix problems before they cause downtime.

• DCIM software works with remote monitoring to show you all your power systems.

Remote monitoring means you do not need as many people on-site. This saves money and gives you more options.

Environmental Sensors

Environmental sensors in smart PDUs help keep your data center safe and working well. These sensors watch temperature, humidity, airflow, and more. You can find risks early and change cooling to save energy.

With these sensors, you can keep the best conditions, lower cooling costs by up to 15%, and keep your systems running. Smart PDUs with sensors give you the control you need for a strong and ready data center.

YOSUN Solutions

Comprehensive Overview of YOSUN’s Full Product Range and Capabilities

You want a PDU partner you can trust. YOSUN has made PDUs for over 25 years. Big companies like China Mobile and Lenovo use their products. YOSUN offers many types of rack PDUs for all data centers.

You can pick Basic PDUs for simple jobs. Metered PDUs help you check power use. Smart PDUs let you control things from far away. Heavy Duty PDUs are for tough places. YOSUN supports many outlet types, like IEC C13/C19, Schuko, American, and French.

Comprehensive Certifications and Global Compliance Standards

You want to know your PDUs are safe and high quality. YOSUN gives you this with many global certifications.

YOSUN PDUs match IEC rules for plugs and voltage. This makes it easy to use them anywhere. You get products that pass tough tests, so you can trust your data center’s power.

Tailored Customization Options to Meet Unique Data Center Requirements

Every data center is different. YOSUN lets you build the PDU that fits your needs.

• Pick the power size, how you want to mount it, and the voltage you need.

• Add sensors and screens to watch things in real time.

• Choose EMI filters, surge protection, and breakers for more safety.

• Connect with DCIM platforms to manage everything easily.

• Use remote monitoring and control with SNMP, Modbus, HTTP/HTTPS, and RS485.

• Pick rackmount, floor, or cabinet PDUs, with options to add more later.

• Choose outlet types and power ratings that fit your gear.

• Use cascading to link PDUs and make your network simple.

• Count on strong brand support and a warranty for peace of mind.

With YOSUN, your PDU can grow with your data center. It meets global rules and works well every day.

Reliability and Support

Checking the Build Quality and Durability of Your Rack PDU

You want your rack PDU to last a long time. Start by looking at what it is made of. The best brands use strong aluminum alloy for the outside shell. This metal does not break easily and can handle heat and bumps. Inside, there are stranded copper wires with insulation that does not melt from heat. These wires can carry a lot of power and keep your devices safe.

You should also check for these things:

• Good grounding stops electrical dangers.

• Surge protection and fire-resistant parts add more safety.

• Mounting hardware that does not rust lasts longer in hard places.

• The PDU should be built using strict rules like UL and CE.

Before the PDU leaves the factory, it gets tested for safety. They check if electricity flows right, if the voltage is safe, and if the insulation works. These tests make sure your PDU will work well from the start. If you check your PDU often, you can find problems early and stop surprise outages.

Tip: Always ask the seller how they check quality and what materials they use. A strong PDU keeps your data center safe and protects your money.

Warranty Coverage and Support Services

Good support is just as important as strong hardware. Top brands give clear warranty rules and fast help. Here is what you might get:

Some brands give up to five years of coverage for rack PDUs. How fast you get help depends on how big your problem is. You can get help for big outages or small questions. Many companies let you talk to experts or use online forums to get answers quickly.

• Get expert help for setting up, fixing, or using your PDU.

• You can send in support requests and see how fast they reply.

• Some brands give upgrades and watch your product for problems if you need more help.

Note: A good warranty and fast support help you worry less. You can focus on your work because your power system is safe.

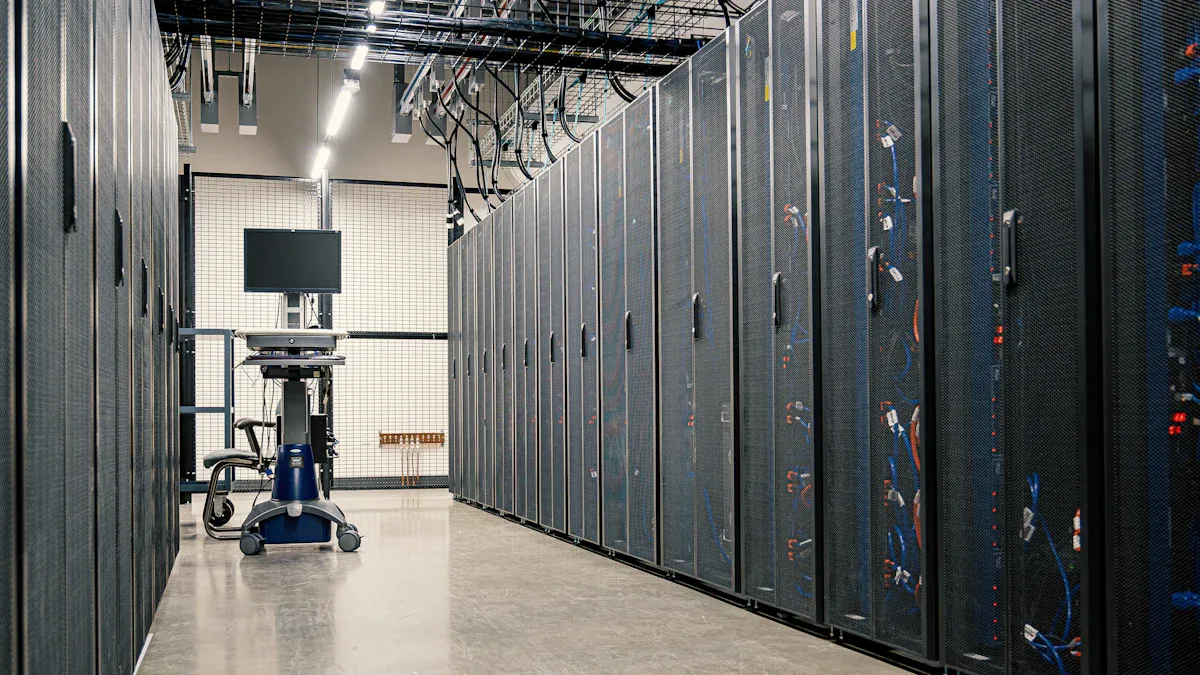

Planning for Future Growth and Expansion in Your Data Center

Planning for Scalability

You want your data center to get bigger without power issues. Start by looking at what you need now and what you might need later. Many data centers use more power because of AI and high-density work. If you pick scalable solutions early, you can save money and avoid big upgrades.

1. Check what kind of PDU you need. Pick rack-mounted, floor, or cabinet PDUs for your setup.

2. Find out your power source and how much power you need. Make sure your PDU can handle more power in the future.

3. Get a PDU with extra outlets. This lets you add more devices later.

4. Pick outlet types that match your equipment. This stops you from needing adapters.

5. Look at smart features. Smart PDUs with monitoring and remote access help you manage growth and use power better.

Tip: Modular racks and intelligent PDUs help you grow fast. You can add new hardware or more power without big changes.

Redundancy helps keep your data center working if something fails. Use two power feeds and backup systems to protect uptime. Modular data centers and scalable servers let you add more space quickly.

Strategies for Seamless Integration of New PDUs with Existing Data Center Infrastructure

Adding new PDUs should not stop your data center from working. You can make this easy by following some simple steps:

• Make sure your new PDUs work with your current hardware and software.

• Check if they support important communication protocols like SNMP, Redfish®, and HTTP.

• Follow the setup instructions from the manufacturer for easy installation.

• Use remote monitoring and alerts to find power problems before they cause downtime.

• Connect PDUs to your building management and DCIM systems using universal APIs.

• Do regular maintenance and use vendor support to keep things running well.

• Set up remote management so you can control power from anywhere.

• Make sure your network settings and security are set up to protect your data center.

Smart PDUs that work with your management tools let you watch power at each outlet. You can fix problems fast and keep your data center running as it grows.

Picking the best rack PDU means you need to think about your power, equipment, and how much you want to grow. Make a checklist to help you look at outlet types, power ratings, monitoring, and certifications.

Check your setup often, see how it works, and fix simple things like balancing the load.
Talk to trusted vendors like YOSUN to get solutions that fit you. Look at your equipment and plan for upgrades that save energy and can grow with you. If you choose smart and strong PDUs, your data center will be ready for the future and help your business as it gets bigger.

FAQ

What is the difference between a basic PDU and a smart PDU?

A basic PDU delivers power to your equipment. A smart PDU lets you monitor power use, control outlets remotely, and get alerts. Smart PDUs help you manage your data center more efficiently.

How do I know which outlet type my rack PDU needs?

Check the plug types on your servers and network devices. Match these with the PDU’s outlet options, such as IEC C13, C19, or NEMA. You can use a table to compare device plugs and PDU outlets for a perfect fit.

Can I add more PDUs to my data center as it grows?

Yes, you can add more PDUs as your data center expands. Choose modular or scalable PDUs. Make sure new units match your existing power setup and support remote monitoring for easy management.

Why is redundancy important in rack PDUs?

Redundancy keeps your equipment running if one power source fails. You use two PDUs per rack, each connected to separate circuits. This setup protects your data center from unexpected outages and maximizes uptime.

How often should I check or maintain my rack PDU?

You should inspect your rack PDU every three to six months. Look for loose connections, dust, or signs of wear. Regular checks help prevent downtime and keep your power distribution reliable.
