Smarter Power Control A Guide to Switching PDUs

Imagine a 3 a.m. alert. A critical server is down, and you must drive to the data center to reboot it. That trip costs you sleep. It also costs your company dearly. For many businesses, a single hour of downtime now costs over $300,000.

What if you could securely power cycle any device in your rack from anywhere in the world?

You can. A switching pdu, an advanced type of power distribution unit, gives you this remote control. This switched pdu is a cornerstone of modern power management.

UNDERSTANDING THE SWITCHING PDU

A switching PDU is more than just a power strip for your server rack. It is an intelligent device that gives you complete command over your power infrastructure. You can use it to build a more resilient and efficient IT environment.

DEFINING THE SWITCHING PDU

A switched PDU is a type of power distribution unit that provides advanced command and control functions. Think of it as a smart power manager for your critical equipment. Its primary job is to give you precise control over power delivery.

• You can remotely switch individual outlets on or off.
• You can monitor power consumption to optimize energy use.
• You can integrate it with data center tools for real-time data.
• You can control each outlet through simple network commands.

This level of control makes the switched rack PDU essential for modern data centers and large-scale IT operations.

BEYOND A BASIC POWER DISTRIBUTION UNIT

Not all PDUs are created equal. A basic PDU simply delivers power. A switched rack PDU offers much more. The key differences lie in monitoring and control capabilities. You can see how each PDU type builds upon the last.

This table shows the clear evolution. A metered PDU lets you see power usage, but a switching PDU gives you the power to act on that information.

CORE FUNCTION: REMOTE OUTLET CONTROL

The most powerful feature is remote power control. This function allows you to reboot unresponsive equipment without being physically present. This capability comes from advanced internal components, like energy-efficient latching relays. These relays receive network commands to cycle power. This gives you individual outlet control from any location. You can turn outlets on, turn them off, or schedule a power cycle, all through a secure network interface. This function is the key to minimizing downtime and managing your infrastructure efficiently.

STRATEGIC ADVANTAGES OF REMOTE POWER MANAGEMENT

A switching pdu offers more than convenience. It provides strategic benefits that strengthen your entire IT operation. You can transform your infrastructure by adopting smarter power management.

MINIMIZING DOWNTIME WITH INSTANT REBOOTS

Downtime is expensive. A manual reboot requires a technician to travel to the site, which can take hours. A remote reboot with a switched pdu happens instantly. You send a command, and the device power cycles immediately. This rapid response eliminates travel delays and gets your critical systems back online faster. This capability is a simple yet powerful way to improve your service availability.

REDUCING OPERATIONAL COSTS

Remote management directly lowers your operational expenses. You can reduce the need for on-site visits, saving on labor costs. Studies show that remote power management can cut operational expenses by 20% to 30%. These savings come from automation and proactive monitoring. In some cases, the investment in a switched rack pdu can pay for itself in as little as one year.

ENHANCING DATA CENTER SECURITY

Security extends to your power infrastructure. A key security risk is unauthorized hardware. You can use a switched PDU to electronically lock any unused outlets. This action prevents anyone from plugging in unapproved devices.

Modern PDUs also secure your network. They use strong encryption protocols like TLS 1.2 and SNMPv3. This protects all commands and data from being intercepted, ensuring only authorized users can control your power.

IMPROVING ENERGY EFFICIENCY

Idle servers waste a significant amount of money. A typical server consumes 30 to 40 percent of its peak power even when doing nothing. You can use a PDU to schedule shutdowns for idle equipment, instantly cutting energy waste.

Advanced monitoring and efficiency features give you even more control.

• You can track power usage at the individual outlet level.
• This granular data, known as PUE Level 3 monitoring, helps you identify specific devices that are wasting energy.
• You can then make informed decisions to optimize power consumption and improve your data center’s overall efficiency.

SELECTING THE RIGHT SWITCHED PDU

Choosing the right switched PDU is a critical decision for your IT infrastructure. The correct unit ensures reliable power, simplifies management, and scales with your needs. You must evaluate several key factors to make an informed choice that protects your investment.

ASSESSING POWER NEEDS

Your first step is to calculate the total power your rack equipment requires. An accurate assessment prevents overloads and ensures you purchase a PDU with adequate capacity. You can follow a standard method to determine your power load.

1. Identify All Equipment: Make a complete list of every device in the rack. Include servers, switches, storage arrays, and even the PDUs themselves.
2. Find Nameplate Power: Check the manufacturer’s documentation for the power rating of each device and add these numbers together.
3. Estimate Actual Use: Nameplate ratings show the maximum draw, not typical use. A good rule of thumb is to estimate actual consumption at 50-70% of the nameplate value.
4. Account for Efficiency: Divide your estimated usage by the power supply’s efficiency rating (e.g., 0.92 for a 92% efficient supply) to find the true power drawn from the source.
5. Plan for Growth: Add a buffer for future expansion. A 20% growth factor is a safe margin for most environments.

Safety Tip: Implement the 80% Rule To prevent dangerous overloads, you should never load a circuit to its maximum capacity. In North America, the industry standard is to load a circuit to only 80% of its rating. For example, a 20-amp circuit should not carry more than 16 amps of continuous load. Applying this derating standard is essential for safe operation.

DETERMINING FORM FACTOR AND OUTLET DENSITY

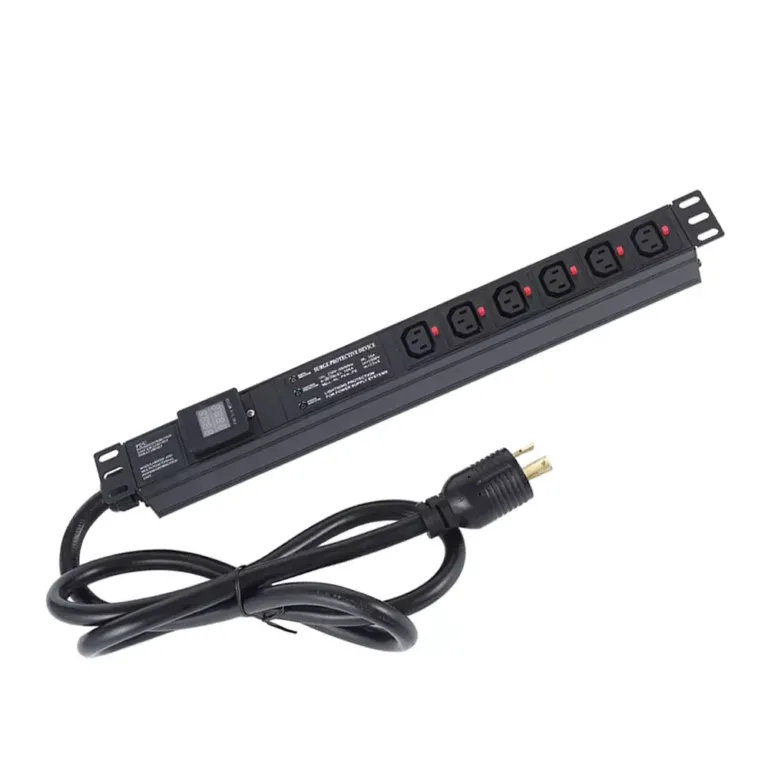

PDUs come in different shapes and sizes, known as form factors. The form factor you choose affects rack space, cable management, and airflow. The two main types are horizontal and vertical.

A vertical switched rack pdu, or 0U PDU, is often the best choice for high-density environments. It mounts in the back or side of the rack, so it does not consume any valuable equipment space. This design offers superior cable management and improves airflow.

You also need to consider the number and type of outlets. High-density PDUs often feature a mix of IEC C13 and C19 receptacles to support various devices. Some advanced units even offer hybrid outlets, like the HDOT Cx, which can accept both C13 and C19 plugs, giving you maximum flexibility.

EVALUATING CRITICAL NBYOSUN FEATURES

When you select a switched PDU, you are choosing a long-term partner for your power infrastructure. You need a brand known for quality, reliability, and innovation. NBYOSUN has over 20 years of experience and is a core supplier for major telecommunications companies like China Mobile and China Telecom. This trust is built on a foundation of quality, proven by extensive international certifications including ISO9001, UL, and CE.

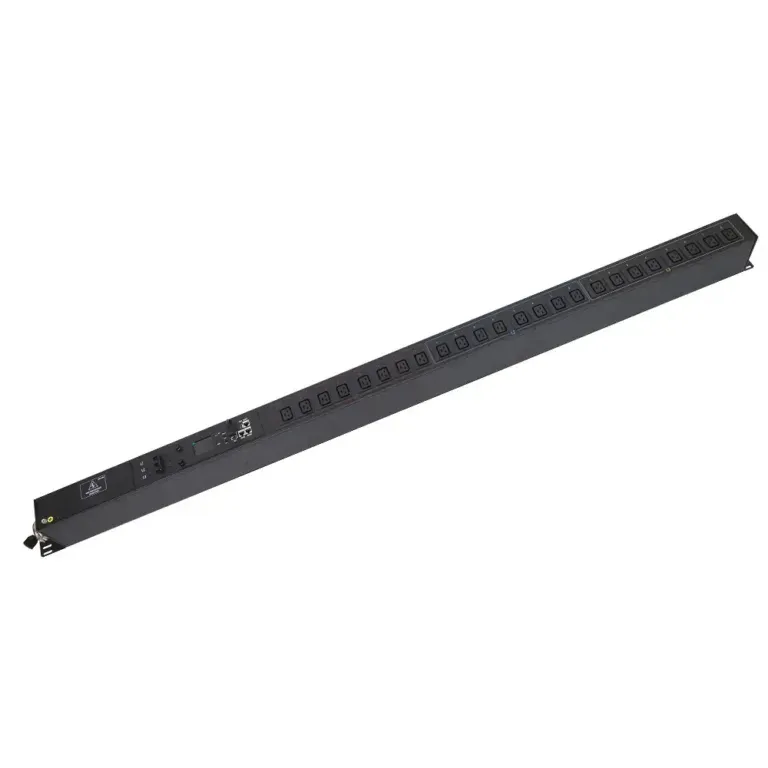

The NBYOSUN Smart PDU Solution provides the advanced features modern data centers demand. A prime example is the “3phase 125A 415V 24 C19 outlets IP switched pdu“. This professional-grade power distribution unit is designed for high-density, high-power applications.

This unit offers more than just power. It gives you complete control.

• Comprehensive Monitoring: Track input voltage, total load current, power factor, and energy consumption (KWH) for the entire unit and for each individual outlet.
• Granular Control: Set boot time delays, configure on/off schedules, and apply current limits for each outlet to prevent overloads.
• Advanced Safety: The PDU includes overload protection that automatically powers off an outlet if it exceeds its current limit.

These features demonstrate how a high-quality switched pdu from NBYOSUN can become a strategic asset for managing your infrastructure.

CONSIDERING NETWORK PROTOCOLS

A network-connected switched rack pdu must be secure. Cybercriminals can target any networked device, including your power infrastructure. You should choose a PDU that supports modern, secure network protocols.

SNMPv3 is essential for secure management. Unlike older versions, SNMPv3 provides robust security through:

• Authentication: It verifies that management requests come from an authorized user before allowing access.
• Encryption: It encrypts all communication between your management station and the PDU, protecting sensitive data from being intercepted.

For large-scale deployments, centralized authentication is crucial. Look for PDUs that support protocols like LDAP and RADIUS. This integration allows you to manage user access across all your PDUs from a central server. It simplifies administration and ensures that when an employee leaves, their access can be revoked instantly across the entire system.

CHOOSING PLUG AND RECEPTACLE TYPES

Finally, you must match the PDU’s plugs and receptacles to your facility’s power and your equipment’s needs. Using the wrong connectors can lead to improper power delivery or even safety hazards.

The most common receptacles in data centers are the IEC C13 and C19. They have different ratings to support different types of equipment.

You will typically use C13 outlets for standard servers and network switches. You will use C19 outlets for more powerful devices like blade server chassis or high-performance network routers.

The PDU’s input plug is just as important. It connects the entire unit to your facility’s power source. A C14 inlet is rated for up to 15 amps, while a C20 inlet supports up to 20 amps for higher-power applications. Always verify that the PDU’s plug matches the wall receptacle provided by your electrician.

BEST PRACTICES FOR DEPLOYMENT AND USE

Proper deployment transforms your PDU from a simple device into a strategic tool. You can maximize its value by following a few key best practices for installation, security, and automation.

PROPER INSTALLATION AND CABLING

A clean installation is the foundation for reliable operation. Before you begin, plan your cable routes carefully. You should always keep power and data cables separate to prevent electrical interference.

Pro Tip: Manage Your Airflow You can improve cooling and equipment lifespan with simple steps. Use blanking panels to cover any open U-spaces in your rack. This crucial step prevents hot exhaust air from mixing with the cool intake air at the front of the cabinet.

SECURING YOUR PDU NETWORK ACCESS

Your switched rack pdu is a powerful, networked device, so you must secure it like any other critical asset. You can start by creating access control lists (ACLs) on your network. These lists act as a filter, controlling which computers are allowed to communicate with the PDU. You should also disable any network services on the PDU that you do not use. For maximum security, always use modern, encrypted protocols. NBYOSUN PDUs support standards like SSH and SNMPv3, which protect your commands and data from being intercepted.

CONFIGURING POWER-ON SEQUENCING

When power returns after an outage, a sudden inrush of current can trip breakers if all your equipment starts at once. You can prevent this by configuring a power-on sequence. The correct order is essential for system stability:

1. Network Switches: Power these on first and allow them to initialize.
2. Storage Arrays: Start these next, as servers will need access to them.
3. Application Servers: Power these on last, once their network and storage are ready.

A NBYOSUN switched pdu allows you to set these boot time delays for each outlet, ensuring a smooth and safe recovery.

UTILIZING AUTOMATION AND SCHEDULING

You can use automation to make your power management more efficient. Many PDUs, including those from NBYOSUN, offer a command-line interface (CLI) or an API. You can use these tools to write simple scripts that react to events. For example, you could create a script that automatically power cycles a frozen server when your monitoring system sends an alert. You can also schedule non-essential equipment to power down during off-hours, which reduces energy costs.

AVOIDING COMMON DEPLOYMENT MISTAKES

To get the most from your PDU, avoid these common pitfalls. Do not neglect the physical setup; messy cabling obstructs airflow and makes maintenance difficult. Never use default passwords or leave security features disabled. Finally, do not treat your smart PDU like a basic power strip. Take the time to configure alerts, sequencing, and automation to build a more resilient and efficient IT environment.

A switching pdu is more than a convenience; it is a strategic asset for your IT environment. You gain greater control, reduce downtime, and lower operational costs. The industry is moving toward AI-driven analytics and deeper system integration. A modern switched pdu prepares you for this future. Evaluate your current infrastructure. Upgrade your power management with a smarter solution from NBYOSUN to take full control of your operations.

FAQ

What is the main difference between a switched PDU and a metered PDU?

A metered PDU shows you how much power your equipment uses. A switched PDU does that too, but it also lets you remotely turn each outlet on or off. You gain full control over your power, not just visibility.

Can I use a switched PDU in a small server closet?

Yes, you absolutely can. Switched PDUs are not just for large data centers. Using one in a smaller setup gives you powerful remote reboot capabilities. This feature saves you from making unnecessary trips to your office for simple power issues.

How does a switched PDU improve security?

You can improve security in two key ways. First, you can electronically lock unused outlets to stop unauthorized devices from being plugged in. Second, you can use secure protocols like SSH and SNMPv3 to encrypt all remote commands, protecting your power infrastructure from network attacks.

Do I need an electrician to install a switched PDU?

You may need an electrician for high-power models. For a standard PDU, you can often plug it into an existing high-amperage wall outlet. Always check that the PDU’s plug type matches your facility’s receptacle to ensure a safe and correct connection.
