How to Evaluate Server Power Distribution Unit Options for Maximum Efficiency

You need reliable power distribution in your data center to avoid costly outages. Recent industry reports show that 54% of impactful outages come from power distribution failures, with power supply problems causing most recent incidents. Choosing an efficient server power distribution unit boosts reliability and energy savings. The right PDU supports future growth and offers monitoring tools for better power management. High-efficiency units reduce energy losses and help you track your consumption. The table below shows how an advanced power distribution unit can improve your operations:

Key Takeaways

• Understanding your total server load is crucial. Use tools like Metered Rack PDUs to measure power consumption accurately and avoid overloads.
• Choose a PDU with a capacity that matches your equipment needs. Always include a 20% safety margin to handle unexpected surges.
• Implement redundancy in your PDUs to ensure backup power during failures. Dual-corded equipment and PDUs with dual input feeds enhance reliability.
• Select the right PDU mounting option. Vertical PDUs save rack space and improve airflow, while horizontal PDUs may suit specific configurations.
• Plan for future growth by choosing modular PDUs. This flexibility allows you to expand power distribution as your data center needs evolve.

Assessing Server Power Distribution Unit Requirements

Calculate Total Server Load

You need to know how much power your servers use before you choose a server power distribution unit. Start by estimating the total load in your data center. Two standard methods help you calculate this:

You can use several tools and software to measure server power consumption accurately:

• LOM modules that report power usage
• Kill-A-Watt device
• Metered Rack PDUs from APC with monitoring software
• Scaphandre project for measuring server power consumption
• Intel RAPL for energy profiling
• CodeCarbon Python library
• PowerAPI middleware toolkit

If you want a step-by-step approach, follow these actions:

1. Use PDUs that provide metering capabilities, such as Metered Rack PDUs from APC.
2. Monitor power consumption trends over time using APC’s software.
3. Consider CDU/PDU systems that report per-tower or per-infeed.

Knowing your total load helps you avoid overloads and ensures safe power distribution in high-density data centers.

Match PDU Capacity to Equipment Needs

After you calculate your total server load, match the PDU capacity to your equipment needs. Always include a safety margin to buffer unexpected surges and extra loads. Industry guidelines recommend a 20% safety margin:

High-density applications, such as 1U servers and blade servers, require higher powered racks. Three-phase high-density rack PDUs can provide energy savings and capacity, with ratings above 10kW and options up to 55kW. A 400V three-phase PDU delivering 55kW per rack allows for higher voltages at lower currents, which means smaller cables and reduced weight.

Current rack PDUs and circuit breakers at 400V can handle a maximum power combination of 33kW to 35kW per rack. Higher rack densities may need multiple PDUs and circuit breakers per rack to ensure adequate power distribution. A 63A rack PDU must be double-wide to support the necessary outlet density.

Energy efficiency becomes critical as power demand increases in high-density data centers. High-capacity rack PDUs prevent circuit overloads and protect IT equipment. Intelligent monitoring of energy use and environmental factors helps you maintain uptime.

Consider Redundancy and Scalability

Redundancy keeps your data center running during failures. You should implement redundancy in PDUs to ensure backup power. Best practices include:

• Deploy dual-corded equipment, connecting each cord to separate PDUs.
• Use PDUs with built-in redundancy features like dual input power feeds.

Scalability in PDU design helps you future-proof your server infrastructure. The table below shows how scalability features benefit your data center:

When you plan for redundancy and scalability, you protect your data centers from outages and support future growth. You ensure your power distribution unit can handle new servers and higher rack densities as your needs change.

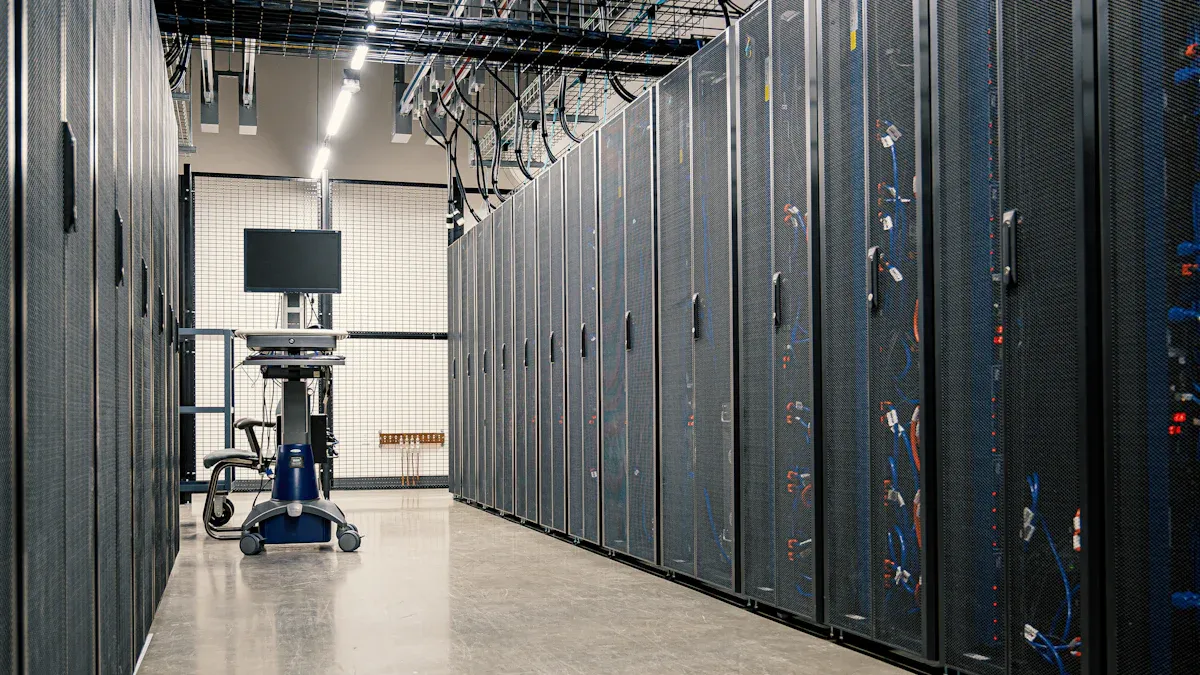

Choosing the Right Rack PDU Mounting and Form Factor

Vertical vs. Horizontal Rack PDU Options

You need to decide between vertical and horizontal rack PDU installation options when setting up your server environment. Vertical PDUs mount along the side of the rack and do not take up valuable rack space. Horizontal PDUs fit across the rack and use 1U or 2U of space. The table below shows the main differences:

Vertical PDUs work best in modern data centers with high outlet needs. Horizontal PDUs suit racks with lower power loads or special configurations.

Impact on Airflow and Accessibility

You must consider airflow and accessibility when choosing a rack power distribution unit. Vertical PDUs improve airflow and reduce clutter because they mount along the rack’s sides. This setup helps in high-density environments. Horizontal PDUs can cause cable congestion and may block airflow if not managed well.

The orientation of your PDU affects cooling efficiency. When you align the PDU with airflow patterns, cool air moves from the cold aisle to your equipment. Hot air returns to the hot aisle. This process keeps devices from overheating.

Proper placement of the PDU is important for maintenance and troubleshooting. You should place the unit where airflow is unrestricted and access is easy. Avoid blocking ventilation paths or other components. Make sure you can reach the PDU for inspections or adjustments.

Tip: Always check your rack layout before installing a rack PDU. Good planning prevents overheating and makes maintenance easier.

Space Constraints and Rack Compatibility

You need to think about space constraints when installing a rack PDU. Vertical PDUs use a zero-U design and mount on the rack’s edges, saving horizontal space. Horizontal PDUs occupy 1U or 2U of rack space.

Different rack sizes and designs affect compatibility with various PDU form factors. The dimensions of your rack determine which PDU fits best. You must choose a PDU that matches both the physical space and the power needs of your equipment. Always review rack PDU installation options to ensure a smooth fit and reliable operation.

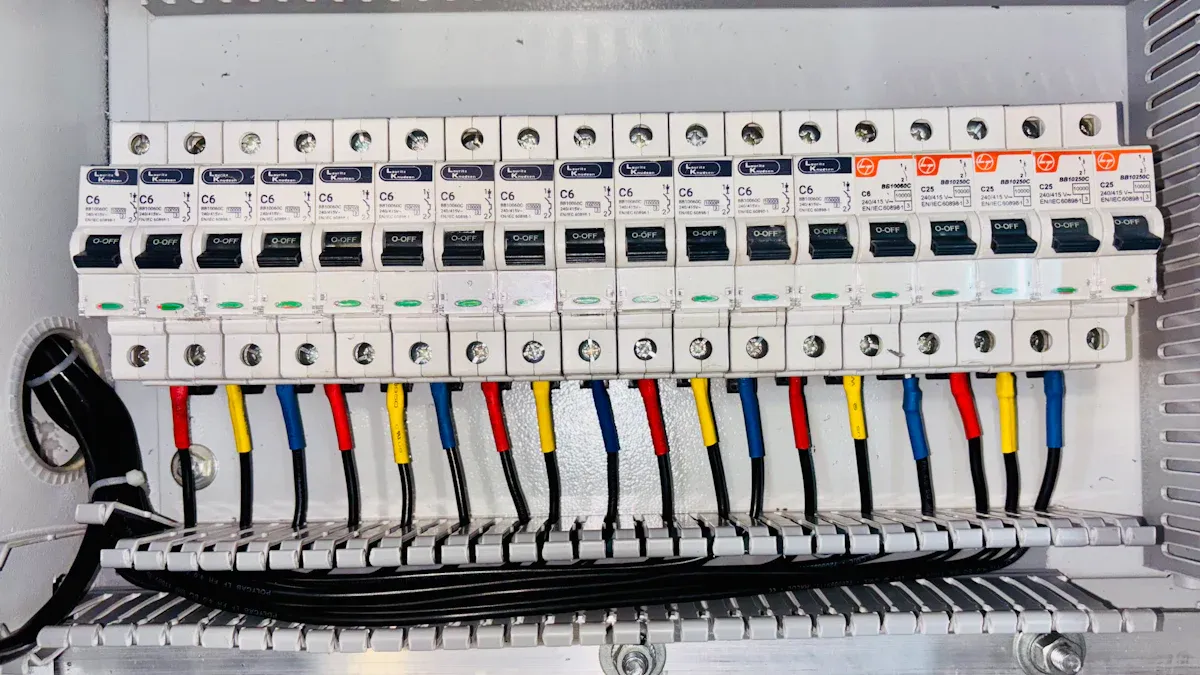

Selecting Outlets, Plugs, and Cords for Your PDU

Voltage and Amperage Ratings

You need to match the voltage and amperage ratings of your PDU to your server equipment. Different regions and devices use different power levels. The table below shows common ratings for enterprise environments:

In North America, you often see 110V, 208V, or 220V with current ratings from 20A to 63A. Other regions use 220V to 240V. Always check the compatibility of your power distribution unit with your equipment before installation.

Outlet Types and Quantities

You should choose outlet types that match your devices. The most common outlets in server PDUs include NEMA and IEC types. Each type has its own advantages:

Pick the right quantity of outlets based on your rack PDU capacity and future expansion plans. More outlets give you flexibility as your server room grows.

Cord Length and Management

You need to select the right cord length for safe and efficient power distribution. Most PDUs come with a standard 10-foot cord. Some installations may need custom lengths up to 40 feet. UL regulations limit cords to 15 feet unless a qualified electrician installs longer cords.

Effective cord management keeps your server racks safe and cool. A tidy cable setup improves airflow, helps cooling, and makes maintenance easier. It also reduces trip hazards and the risk of accidental disconnection.

• A well-organized cable setup enhances airflow.
• It improves cooling effectiveness.
• It ensures easier access for maintenance.
• It enhances safety by reducing trip hazards.

Tip: Plan your cable layout before installation. Good cord management supports both safety and efficient power distribution.

Planning for Expansion

When you plan your server room, you should always think about future growth. Your power needs may increase as you add more servers or devices. Planning for expansion helps you avoid costly upgrades and downtime later.

Here are some smart strategies you can use to prepare your power distribution unit (PDU) setup for future needs:

• Load Balancing: Spread your equipment across different outlets. This prevents any single outlet from becoming overloaded and keeps your system safe.
• Efficient Cable Management: Organize and label your cables. This makes it easier to add new devices and helps you find problems quickly.
• Future-Proofing: Choose PDUs that can handle more power than you need right now. Modular PDUs are a great choice because you can add more capacity as your needs grow.
• Zoning: Group your equipment by power needs. This helps you manage loads better and makes it easier to plan for new devices.
• Real-Time Monitoring: Use PDUs with monitoring features. These tools let you watch your power use and spot issues before they become problems.
• Scalability: Design your rack layout so you can add more PDUs or outlets without starting over.

Modular PDUs make expansion much easier. You can add or replace parts without shutting down your servers. This plug-and-play design lets you adjust capacity as needed. You avoid wasting money on too much equipment, and you do not risk running out of power.

Tip: Modular PDUs also support isolated maintenance. You can fix or upgrade one part while the rest keeps working. This is very helpful if your business grows quickly or your needs change often.

When you plan for expansion, you make your data center more flexible. You can scale up your power distribution as your business grows. This approach supports your long-term goals and helps you manage your IT setup with confidence.

Evaluating Advanced PDU Features for Maximum Efficiency

Surge Protection and Safety

You need strong surge protection to keep your server power distribution unit safe. Modern PDUs use advanced technologies to protect your equipment from dangerous power events. These units can handle many devices at once and offer power filtering to reduce electrical noise. You get protection against surges, which helps your devices last longer.

PDUs in data centers use several safety features:

• Industrial-grade resettable fuses and magnetic circuit breakers stop overloads.
• Thermally protected components prevent overheating.
• Multistage defense mechanisms work well in high-demand centers.

Surge protection devices in rack PDUs often have a peak surge capacity between 400,000 and 600,000 AMPs. Each unit needs dedicated surge protection to keep your data safe. You will find technologies like Metal Oxide Varistors (MOVs) that absorb and clamp voltage spikes. Transient Voltage Suppressors (TVS) respond quickly and protect sensitive parts from sudden surges. Thermal fuses and circuit breakers disconnect power during overloads, adding another layer of protection. This multi-layered approach keeps your equipment safe from power fluctuations.

Tip: Always check that your PDU includes surge protection features before installing it in your data center. This step helps you avoid costly damage and downtime.

Monitoring and Metering Capabilities

You need monitoring and metering capabilities to manage your power distribution efficiently. Intelligent PDUs collect data on power metrics and let you monitor and control them remotely. Metering features track voltage, current, and energy use. This helps you prevent circuit overloads and understand how much power each device uses.

Intelligent PDUs offer several benefits:

• They measure and manage energy use in real time.
• You get precise metering for better control of energy consumption.
• Data center managers can use these insights to justify technology upgrades.

You can schedule power cycling for unused equipment to reduce energy waste. Real-time measurement and reporting help you optimize consumption. Right-sizing your power infrastructure saves money by eliminating unnecessary costs.

Note: Monitoring features in your PDU help you spot problems early and keep your data center running smoothly.

Remote Management Options

Remote management options make your server environment more efficient. You can control power distribution from anywhere, which improves response times by up to 40% in data centers with remote monitoring. Switched PDUs let you manage specific outlets, so you can turn off development systems during off-hours and save energy.

IT administrators can reboot servers or cycle power remotely. This reduces downtime and supports sustainability goals. You get granular control over your rack PDU, which helps you lower energy costs and keep production systems running.

• Remote management lets you control power distribution units from any location.
• You can reboot servers or cycle power without being on-site.
• Targeted power management saves energy and supports your business goals.

Callout: Remote management features in your PDU give you flexibility and control, making your data center more reliable and cost-effective.

Energy-Saving and Environmental Controls

You can make your data center more efficient by using smart energy-saving and environmental controls. These controls help you lower power consumption and keep your equipment safe. When you choose the right pdu, you support both your business and the environment.

Here are some of the most effective ways to save energy in your data center:

• You can consolidate lightly-used servers. This step reduces the number of machines running and cuts down on wasted energy.
• You can use built-in server power management features. These features let you set sleep modes or lower power states when servers are not busy.
• You can improve your power infrastructure. Efficient pdus and uninterruptible power supplies help you minimize energy losses.
• You can manage airflow in your server room. Hot aisle and cold aisle layouts, along with containment systems, keep cool air where it is needed and move hot air away from equipment.
• You can optimize your HVAC systems. Water-side economizers and in-rack cooling systems help you control temperature and humidity without using extra energy.

Tip: Good airflow management keeps your servers cool and helps you avoid overheating. This step also protects your equipment from surge events.

When you combine these strategies, you create a safer and more efficient data center. You use less energy, save money, and protect your valuable data.

Example: NBYOSUN Intelligent PDUs

You can choose NBYOSUN intelligent pdus to get advanced features and reliable performance. These units offer strong monitoring tools and flexible designs for many types of server environments. The table below shows how NBYOSUN compares to other leading brands:

NBYOSUN intelligent pdus give you real-time monitoring and remote management. You can track energy use and environmental conditions. You can also choose the number of sockets, current capacity, and cable specifications to fit your needs. The strong metal shell protects your equipment in busy data centers.

Note: When you select a pdu with advanced monitoring, you make your data center safer and more efficient. You also prepare for future growth and changes in technology.

Making the Final PDU Decision for Your Environment

Weighing All Factors for Your Server Power Distribution Unit

You need to look at every detail before you choose a server power distribution unit for your data center. Start by checking the power output capacity. Make sure your pdu can handle the electrical load without risk of overload. Look at connector types to match your devices and avoid downtime. Think about mounting options, like vertical or horizontal, to fit your rack pdu and save space.

Here is a table to help you compare important criteria:

You should also:

• Evaluate power needs for your IT equipment.
• Check available rack space for your pdu design.
• Decide how many outlets you need.
• Look for extra features that support your power goals.

If you work with AI or high-density servers, choose a pdu designed for larger loads and intelligent metering. Added redundancy and outlet-level monitoring help balance loads. Remote monitoring lets you control power usage and temperature from anywhere.

Tip: Always match your pdu choice to your current and future needs. This step keeps your data center safe and efficient.

Balancing Cost, Efficiency, and Future-Proofing

You want to get the most value from your power distribution investment. First, assess your needs now and in the future. Pick a pdu that can grow with your business. Intelligent pdus with modular designs make it easy to add more capacity when you need it.

Follow these steps to balance cost, efficiency, and future-proofing:

1. Assess your current and future needs so your pdu can handle growth.
2. Choose a rack pdu that allows for scalability and flexibility.
3. Make sure your power distribution is efficient to avoid energy waste and overloads.
4. Look for advanced features like remote monitoring and energy analysis to boost operational efficiency.

Efficient power distribution saves money and protects your equipment. Advanced features help you track energy use and spot problems early. When you plan for growth, you avoid costly upgrades and downtime.

Note: Smart planning and the right pdu keep your data center reliable, efficient, and ready for the future.

You should review your server power distribution unit requirements before you choose a pdu for your data centers. Check mounting options, outlet needs, and surge protection features. Use this checklist to help you:

• Confirm pdu capacity matches your servers.
• Verify mounting fits your centers.
• Ensure surge protection for data reliability.
• Select outlets for future growth.

The right pdu, such as NBYOSUN, improves reliability, protection, and energy management in your data centers.

FAQ

What is a server power distribution unit?

A server power distribution unit sends electricity to all your servers and IT equipment. You use it to keep your data center running safely and efficiently.

How do you choose the right PDU for your rack?

You check your equipment’s power needs. You look at the number of outlets, the type of mounting, and any extra features like monitoring or surge protection.

Why is surge protection important in a data center?

Surge protection keeps your equipment safe from sudden spikes in electricity. It helps prevent damage and keeps your servers working without interruption.

Can you monitor your PDU remotely?

Yes, many PDUs let you track power use and control outlets from another location. This feature helps you save energy and fix problems faster.
