Understanding the essential specifications of 19 inch rack PDUs

Table of Contents
Understanding the essential specifications of 19 inch rack PDUs

You need to focus on the essential specifications when choosing a 19 inch rack pdu for your 19-inch rack. These features affect the performance and reliability of your data centers. Strong power distribution and advanced safety systems help you keep uptime high. The table below shows how redundancy levels can change expected uptime and downtime for your operations.

Data Center TierRedundancy LevelExpected Uptime (%)Maximum Downtime per Year
Tier INo redundancy99.671Up to 28.8 hours
Tier IIPartial power and cooling99.741Up to 22 hours
Tier IIIN+1 redundancy, multiple power and cooling paths99.982Up to 1.6 hours
Tier IV2N or 2N+1, fully fault tolerant, no single points of failure99.995Up to 26.3 minutes

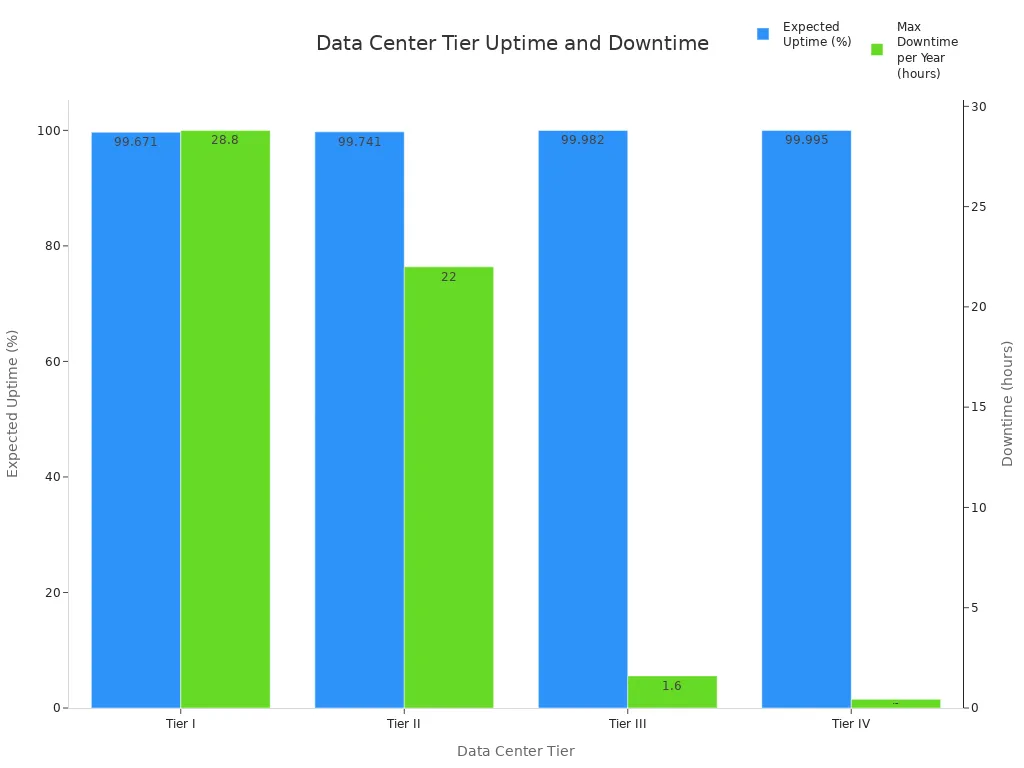

Bar chart comparing expected uptime and maximum downtime per year across data center tiers

Key Takeaways

  • Choose a PDU with the right outlet configurations to ensure compatibility and safety for your devices.
  • Look for PDUs with multi-phase support to evenly distribute power and prevent overloads, enhancing reliability.
  • Select PDUs with load balancing features to reduce outages and improve performance, ensuring your equipment runs smoothly.
  • Consider PDUs with real-time monitoring and remote access for proactive maintenance and quick problem resolution.
  • Check for safety features like overload protection and surge suppression to protect your equipment from damage.

Power Distribution Features in 19 inch rack pdu

Outlet Configurations for 19-inch rack

When you select a 19 inch rack pdu, you need to pay close attention to the outlet configurations. The right choice ensures your rack-mounted equipment receives safe and efficient power. Different devices require different outlets, so matching the outlet type to your equipment is essential for both compatibility and safety.

Here is a table showing the most common high-density outlet configurations you will find in the market:

Outlet TypeDescriptionCurrent Rating
IEC320 C13Socket for up to 10A10A
IEC320 C19Socket for up to 16A16A
French PlugSpecific to French equipmentN/A
Schuko PlugCommon in EuropeN/A

You often see high-density outlet configurations in modern power distribution units. These allow you to connect more devices in a single 19-inch rack, which is important for data centers with lots of rack-mounted equipment. High-density outlets help you save space and improve efficiency.

Tip: Always check if your pdu offers grounded outlets. Grounded outlets protect your devices and reduce the risk of electrical shock. They also help prevent equipment damage, which keeps your operations running smoothly.

Choosing the right high-density outlet configurations affects more than just compatibility. It also impacts power distribution efficiency and safety. Grounded outlets are crucial for modern devices. GFCI outlets add another layer of protection, especially in environments where safety is a top priority. If you use ungrounded outlets, you may face higher risks and less compatibility with new equipment. Always match the outlet’s power rating to your device’s needs to avoid overloads and ensure reliable performance.

Multi-Phase Support in pdu

Multi-phase support is a key feature in many 19 inch rack pdu models. When you use a pdu with multi-phase support, you can distribute power more evenly across your rack-mounted equipment. This helps you avoid overloads and keeps your data centers running efficiently.

FeatureContribution to Load Balancing and Redundancy
Dynamic Load DistributionEnsures even power distribution across devices, preventing overloads.
Dual Power InputsProvides N+1 redundancy, ensuring continuous power availability.
Failover CapabilitiesReduces downtime risk, maintaining critical system operations.

Multi-phase support gives you dynamic load distribution. This means your pdu can balance the load across all connected devices, which prevents any single outlet from becoming overloaded. Dual power inputs let you switch between power sources without interruption. This N+1 redundancy ensures that if one source fails, the other keeps your equipment powered. Failover capabilities further improve reliability by reducing the risk of downtime and keeping your critical systems online.

You benefit from seamless power source switching and improved redundancy. This is especially important in data centers where uptime and reliability are top priorities.

Load Balancing Capabilities

Load balancing features are essential for any 19 inch rack pdu. These features help you distribute the electrical load evenly across all outlets. When you use load balancing, you reduce the risk of unintentional outages and improve the overall performance of your rack-mounted equipment.

BenefitImprovement Percentage
Reduction in unintentional outages15%
Improvement in operational performance25%
Speed of repairs31%

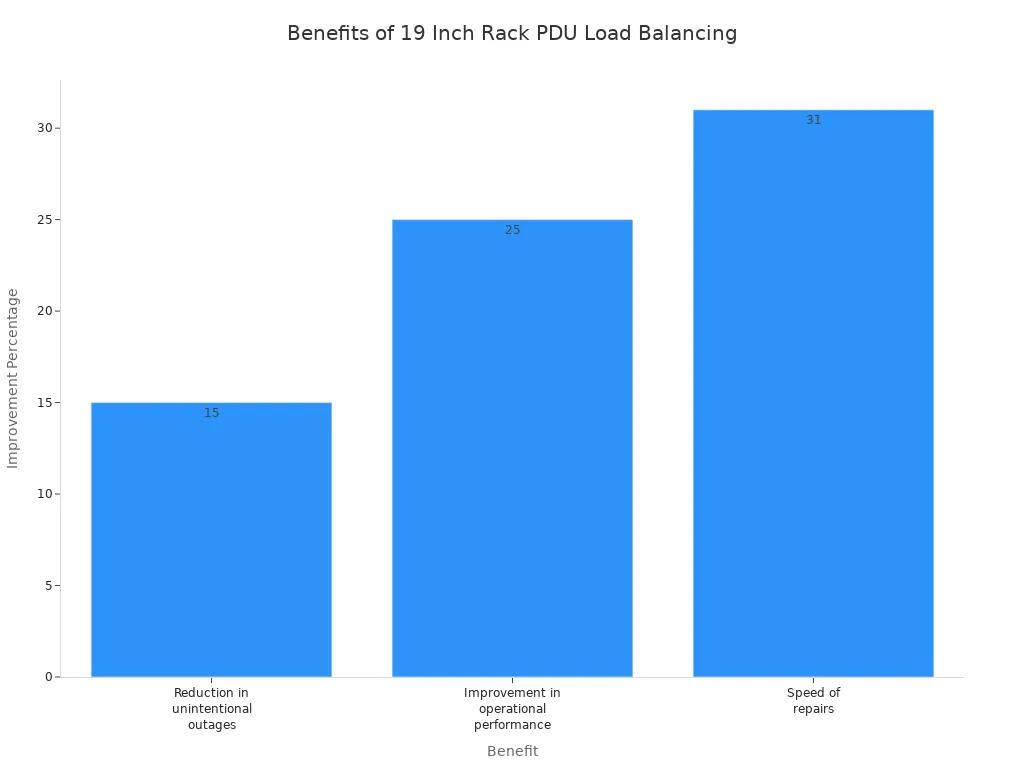

Bar chart showing improvement percentages for PDU load balancing benefits

Load balancing features in your pdu offer several measurable benefits:

  • Enhanced user experience: Consistent response times, even during peak usage.
  • High availability: Distributing the load minimizes downtime, which is vital for 24/7 operations in data centers.
  • Scalability on demand: You can handle increasing user demands by dynamically allocating resources.
  • Cost optimization: Efficient use of resources reduces infrastructure costs while maintaining performance.
  • Disaster recovery: Geographic distribution of resources ensures your operations continue, even if one data center faces issues.

When you use load balancing features, you improve reliability and performance. You also make your power distribution units more efficient and future-proof. This is why load balancing is a must-have for any modern 19 inch rack pdu.

NBYOSUN Product Options

When you look for a reliable pdu for your 19-inch rack, you want options that match your needs. NBYOSUN offers a wide range of 19 inch rack pdu models. These products stand out because of their unique features and thoughtful design.

Here is a table that shows how NBYOSUN compares to other leading brands:

FeatureNBYOSUN 19 inch Rack PDUOther Leading Brands
Housing MaterialAluminum alloyVaries
Switchless DesignYesNo
Built-in Circuit BreakerYesVaries
Anti-surge FeaturesYesVaries
Customizable Cable LengthYesNo
UL RecognitionYesVaries

You get a strong aluminum alloy housing. This material protects your pdu from damage and keeps it working longer. The switchless design helps prevent accidental shutdowns. Built-in circuit breakers and anti-surge features add extra safety. You can choose the cable length that fits your rack setup. UL recognition means you get a product that meets strict safety standards.

NBYOSUN designs pdus for high-density IT environments. You need more power and better protection when you run many devices in one rack. The table below shows how NBYOSUN meets these needs:

FeatureDescription
Higher wattage per outletSupports power-hungry devices without overloading the circuit.
Robust redundancy featuresIncludes high-capacity circuit breakers to reduce the risk of circuit overloads.
Environmental monitoringOffers capabilities like temperature and humidity sensors for comprehensive oversight.

You can connect devices that use a lot of power. The pdu will not overload because it has high-capacity circuit breakers. Environmental monitoring lets you track temperature and humidity. This helps you keep your equipment safe and running smoothly.

NBYOSUN offers a high power 63A pdu. You can use this model for demanding applications. It supports three-phase power distribution and handles currents up to 63A. This makes it a good choice for data centers with heavy workloads. Smart pdus from NBYOSUN give you advanced power management. You can monitor power in real time and control the pdu remotely. These features help you save energy and keep your high-density setup efficient.

Tip: Choose a pdu with environmental sensors if you want to monitor your rack conditions. This helps you spot problems early and protect your equipment.

NBYOSUN gives you options for every need. You can pick basic models for simple setups or smart models for advanced control. Each pdu is designed to keep your 19-inch rack safe, efficient, and ready for future growth.

Intelligent Monitoring and Management for 19 inch rack pdu

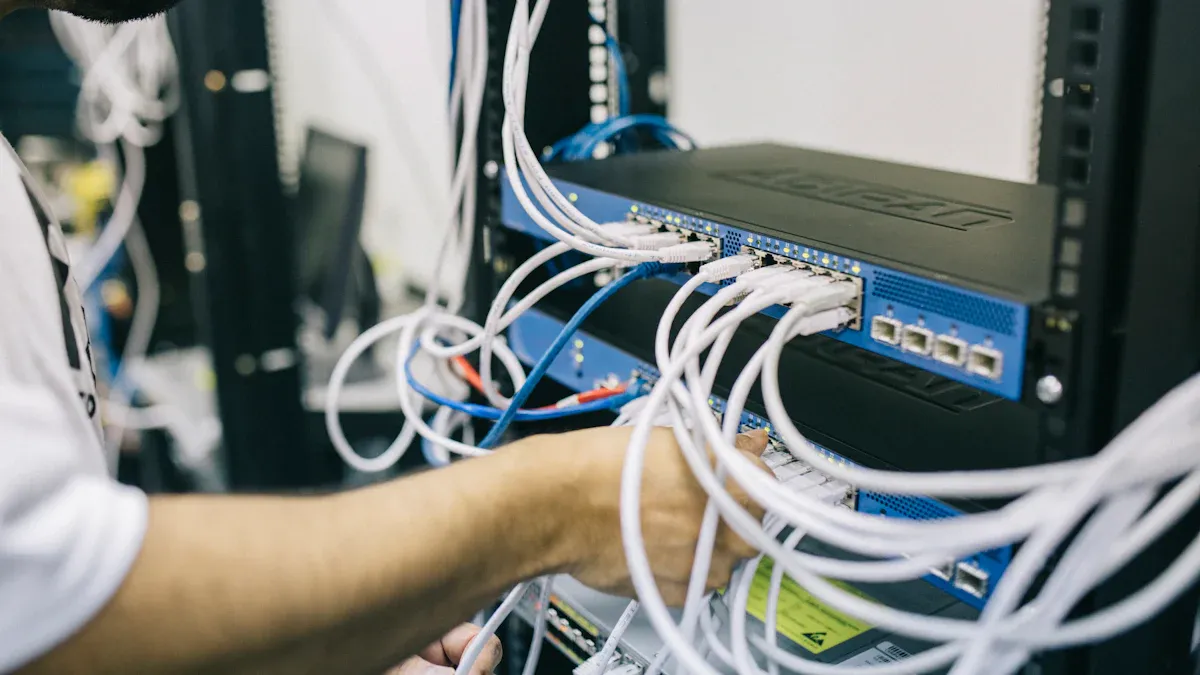

Intelligent Monitoring and Management for 19 inch rack pdu

Real-Time Power Monitoring

You need intelligent monitoring to keep your data center safe and efficient. Real-time power monitoring helps you track energy use and spot problems before they grow. In 2025, more than 45% of new 19 inch rack pdu installations include real-time power monitoring capabilities. This feature gives you continuous monitoring and analysis of electrical power characteristics. You can identify, diagnose, and fix power quality issues quickly. Real-time monitoring prevents system performance problems and protects your equipment from damage.

  • Real-time monitoring enables proactive maintenance. You can detect potential issues before they escalate.
  • You avoid costly repairs and downtime by planning maintenance activities based on real-time data.
  • Real-time power quality monitoring is crucial for power management systems. You get better control and reliability.

Tip: Set up real-time alerts to receive notifications about unusual power consumption or faults. These alerts help you respond faster and keep your systems running smoothly.

Remote Access and Control

Remote access lets you manage your pdu from anywhere. You do not need to be physically present to monitor or control your equipment. Most 19 inch rack pdus support common remote access protocols. Here is a table showing the most popular options:

ProtocolDescription
RS485A standard for serial communication that allows for long-distance data transmission.
SNMPSimple Network Management Protocol, used for network management and monitoring.
HTTPHypertext Transfer Protocol, used for transmitting data over the web.

Remote monitoring and control improve security and response times. You get flexibility and quick action during critical situations. Strong authentication and secure protocols ensure only authorized users can access your systems. Intelligent monitoring through remote access allows you to spot issues like unusual power consumption or circuit faults. You minimize downtime and boost operational efficiency.

  • Remote monitoring enables proactive identification of problems.
  • You can respond to alerts and manage your pdu without delay.
  • Intelligent monitoring and remote access work together to keep your data center safe.

DCIM Integration

DCIM integration brings centralized management to your pdu setup. You gain real-time visibility and granular telemetry for every device. The table below shows the strengths of DCIM integration with pdus:

Strengths of DCIM Integration with PDUsDescription
Real-time visibilityProvides device-level insights into energy consumption across infrastructure.
Granular telemetryEnables detailed monitoring and analysis of energy usage.
Historical trend analysisAllows for the identification of inefficiencies over time, aiding in optimization efforts.
Correlation of energy use with demandHelps in aligning energy consumption with operational needs, reducing waste.

Intelligent monitoring through DCIM helps you optimize energy use and improve management. You can analyze historical trends and adjust your operations for better efficiency. Real-time alerts from DCIM systems notify you about changes in power demand or potential faults. You make smarter decisions and keep your data center running at peak performance.

Note: Use DCIM integration to centralize your management tasks. You save time and reduce errors by monitoring all your pdus from one dashboard.

Safety and Protection in 19 inch rack pdu

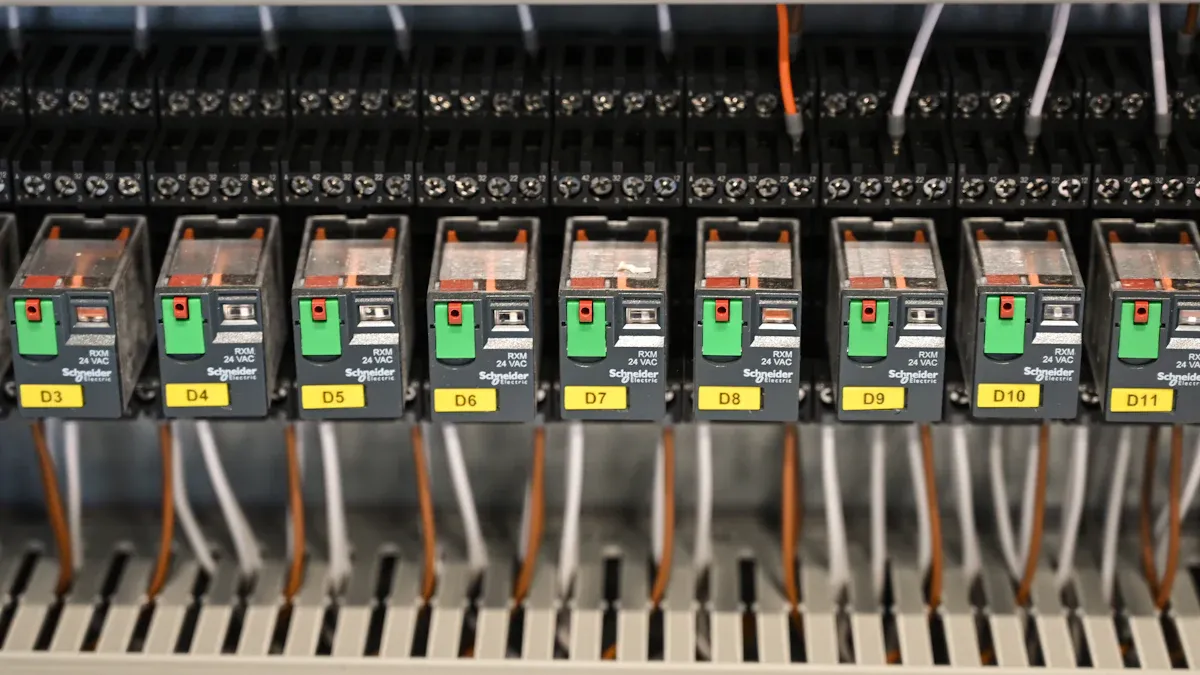

Safety and Protection in 19 inch rack pdu

Overload Protection

You need strong overload protection in your pdu to keep your equipment safe. Overload protection helps prevent damage and fire hazards. When you use a pdu with advanced safety features, you get several mechanisms that work together. These include automatic power cut, circuit breakers, voltage spike protection, and compliance with safety standards.

Overload Protection MechanismDescription
Automatic Power CutCuts power during over-current or over-temperature events to prevent damage.
Circuit BreakersDisconnects power when current exceeds safe limits, protecting devices from faults.
Voltage Spike ProtectionGuards against voltage spikes and over-voltage, ensuring stable operation.
Minimizes DowntimeEnsures reliable operation of IT equipment by preventing failures.
Safety Standards ComplianceMeets international safety standards for effective protection.

You can find miniature circuit breakers, thermal relays, electronic overload modules, and fuses in many pdus. These devices monitor current and temperature, trip the circuit, and disconnect power if needed. This keeps your rack safe and helps you avoid costly repairs.

Surge Protection and Suppression

Surge protection is vital for every 19 inch rack pdu. You face risks from electrical surges, spikes, and transient voltages. Surge suppression features shield your devices from harm. Your pdu should fit standard 19-inch rack cabinets and offer built-in circuit breakers for overload protection.

FeatureDescription
TypeSurge-protected
Surge suppressionYes
Overload protectionYes
Rack compatibilityFits standard 19″ rack cabinets
Additional featuresProtects connected equipment from harmful transient surges; built-in circuit breaker for overload protection.
  • Surge suppression is essential for managing power in strict environments.
  • Surge protection provides uniform power distribution to servers and routers.
  • Surge suppression prevents circuit overload and keeps your operation stable.
  • Surge protection offers centralized power management for remote monitoring.
  • Surge suppression and load balancing protect your equipment from damage.

You need surge suppression to keep your data center safe. Surge protection helps you avoid downtime and equipment loss.

Environmental Sensors

Environmental sensors in your pdu help you maintain optimal conditions in your server rack. These sensors monitor temperature, humidity, water leaks, and airflow. You get real-time alerts when something changes. This lets you act fast and prevent overheating or humidity problems.

  • Environmental sensors give you instant updates on temperature and humidity.
  • Sensors alert you to risks, so you can manage your server rack proactively.
  • Water leak detection and airflow monitoring keep your environment stable and secure.

You protect your equipment and improve reliability with these sensors. Environmental sensors are a smart addition to any pdu with advanced safety features.

Energy Efficiency and Certifications for 19 inch rack pdu

Metering Accuracy

You want your pdu to measure energy use with high accuracy. Metering accuracy helps you track energy consumption and manage costs. Most modern 19 inch rack pdus offer certified ±1% accuracy at every metering point. This level of precision means you can trust the data for billing and monitoring. You get real-time power monitoring for each outlet, which helps you spot energy spikes and adjust your usage.

| Metering Accuracy | Certified ±1% accuracy at all metering points; billing-grade energy meter chips per outlet; precise real-time power monitoring. |

Accurate metering lets you compare energy use across devices. You can identify which equipment uses the most energy and find ways to improve efficiency. When you know exactly how much energy each device uses, you can make smarter decisions about upgrades or replacements. This helps you create energy-efficient solutions for your data center.

Tip: Use a pdu with precise metering to avoid overpaying for energy and to catch problems early.

Standby Power Consumption

Standby power consumption affects your overall energy efficiency. When your pdu is not actively powering devices, it still uses some energy. You should look for pdus that minimize standby energy use. Lower standby consumption means less wasted energy and better efficiency for your rack.

Many pdus now feature energy-saving designs. These models use advanced components that reduce energy loss when the pdu is idle. You save money and help the environment by choosing energy-efficient solutions. You also keep your data center running smoothly without unnecessary energy drain.

  • Lower standby power consumption leads to higher efficiency.
  • You reduce your carbon footprint by using less energy.
  • Energy-efficient pdus support your sustainability goals.

Efficiency Certifications

Efficiency certifications show that your pdu meets strict standards for safety, performance, and energy use. You should check for certifications like UL, CE, and RoHS when selecting a pdu. These marks guarantee that your pdu has passed rigorous tests for insulation, grounding, and overload protection. They also confirm that your pdu does not contain hazardous materials, making it safer for you and the environment.

CertificationDescriptionRequirements
UL CertificationEnsures safety and performance standards for PDUs.Rigorous testing for insulation quality, grounding, and overload protection.
CE MarkingIndicates compliance with EU regulations for health and safety.Thorough testing for safety and performance within specified voltage and frequency ranges.
RoHS ComplianceEnsures products are free from hazardous materials.Elimination of substances like lead, mercury, and cadmium from products.

Certifications help you choose pdus that deliver reliable energy performance and high efficiency. You get peace of mind knowing your equipment meets global standards. Certified pdus support your energy management strategy and help you reach your efficiency targets.

Note: Always check for certifications when you buy a pdu. Certified models offer better energy efficiency and safety.

Scalability and Security in 19 inch rack pdu

Modular Design and Hot-Swappable Components

You want your data center to grow easily. Modular design in a pdu lets you add or remove parts without stopping your system. You can swap out components while your rack stays powered. This feature helps you upgrade or repair your setup quickly. You save time and avoid downtime. Hot-swappable modules mean you do not need to turn off your equipment. You keep your network running smoothly. Many modern pdus offer tool-less installation. You can change modules with simple steps. This design supports future growth and makes maintenance easier.

Tip: Choose a pdu with modular features if you plan to expand your rack or need fast repairs.

Authentication and Encryption

Security matters when you manage power in your rack. Intelligent pdus use strong authentication and encryption to protect your data and control access. You see these security features in most advanced models:

You control who can access your pdu. You keep your data private and safe from threats. Encryption protects all information sent or received. These security measures help you meet industry standards and keep your rack secure.

Industry Certifications

Industry certifications show that your pdu meets strict safety and security standards. You should look for certifications like UL, CE, and RoHS. These marks prove your pdu passed tests for safety, reliability, and environmental protection. Certified pdus use safe materials and strong insulation. You get peace of mind knowing your equipment follows global rules. Certifications also help you meet compliance needs for your business.

Note: Always check for certifications before you buy a pdu. Certified models offer better protection and reliability.


When you choose a 19 inch rack pdu for your 19-inch rack, you gain more than just power distribution. You improve performance, boost safety, and increase efficiency. NBYOSUN pdu models offer real-time monitoring, easy expansion, and integrated sensors. These features help you future-proof your setup and keep your equipment running smoothly.

FeatureDirect Benefit
Real-time monitoringFaster problem detection
ScalabilitySupports growing power needs
Energy efficiencyReduces operating costs
Environmental sensingPrevents equipment risks

You can lower energy costs by up to 15% and improve uptime by 20% with advanced pdu features. Remote management also speeds up maintenance response times by 40%. Prioritize these specifications to maximize performance and reliability in your data center.

FAQ

What is a 19 inch rack PDU?

A 19 inch rack PDU is a power distribution unit designed to fit standard 19-inch server racks. You use it to supply power to multiple devices in your rack. It helps you organize and manage power connections safely.

How do you choose the right outlet type for your equipment?

You should check your equipment’s plug type and power needs. Match the PDU outlet type, such as IEC C13 or C19, to your device. This ensures safe and reliable connections.

Why is real-time monitoring important in a PDU?

Real-time monitoring lets you track power use and spot problems early. You can prevent overloads and downtime. This feature helps you keep your data center running smoothly.

Can you expand your PDU setup as your needs grow?

Yes, you can. Many PDUs offer modular designs. You add or swap components without shutting down your system. This makes upgrades and repairs easy.
