No, not every automotive power distribution unit works the same way. Imagine your car refusing to start on a cold morning or lights flickering after an upgrade. You might not realize it, but the automotive power distribution unit inside your vehicle can make a huge difference. Each unit uses a different design and technology. These differences can affect how your car manages power, stays safe, and handles repairs. Knowing what sets each automotive power distribution unit apart helps you make smart choices for your vehicle’s needs.
When you look at how vehicles manage electricity, you find several types of power distribution units (PDUs). Each type has its own design, technology, and benefits. You need to know these differences to choose the right system for your car or truck.
You often see hard-wired PDUs in older vehicles or in cars that need a custom solution. These units use fixed wiring and bus-bars to connect fuses, relays, and other protection devices. Hard-wired PDUs work well for complex vehicle networks. They give you reliable current flow and can be tailored to fit special needs. You find them built into the wiring harness, which helps control power across many circuits.
Modular PDUs use connector-based designs. You can plug and play different modules, which makes installation much faster than with hard-wired units. Here are some key advantages of modular PDUs:
Tip: If you want to upgrade or repair your vehicle quickly, modular PDUs make the job much easier.
You can choose between centralized and distributed power distribution systems. Centralized systems use a single control point, like a main fuse box, to manage all the power in your vehicle. This design keeps things simple and uses less wiring. However, if the main unit fails, your whole system can stop working.
Distributed systems place smaller PDUs in different zones of your vehicle. Each zone has its own control point. This setup gives you better fault isolation and reliability. If one unit fails, the rest of the system keeps working. Distributed systems also let you add or change loads more easily.
Here is a table to help you compare the two:
| Aspect | Centralized Power Distribution | Distributed Power Distribution |
|---|---|---|
| Control Architecture | Single control point managing power delivery | Multiple control points distributed throughout the vehicle |
| Complexity | Simpler design, less wiring | More complex design, additional components increase weight |
| Reliability | Fewer failure points but vulnerable to single-point failures | Enhanced fault isolation and improved reliability |
| Flexibility | Less adaptable to changing load demands | Scalable and flexible to varying load requirements |
| Example | Central fuse box supplying all electrical components | Zone-based power distribution with separate power units per zone |
| Switching Technology | Traditional relays and fuses | Semiconductor switches enabling faster, precise power management |
You see distributed systems more often in electric vehicles and advanced cars. They use semiconductor switches and intelligent controls to manage power quickly and safely.
Modern vehicles need smarter ways to control power. Intelligent PDUs use microcontrollers, smart relays, and network connections to manage electricity. These units can talk to other systems in your car, like the engine or battery management system. You get real-time diagnostics, automatic fault detection, and even remote updates.
Some benefits of intelligent and programmable PDUs include:
Note: Intelligent PDUs are especially important for electric and hybrid vehicles. They help manage high-voltage systems and keep your battery running longer.
You want your power distribution unit to be efficient, durable, and reliable. Here is a table that shows how advanced PDUs improve these areas:
| Metric | Improvement/Statistic | Impact |
|---|---|---|
| Reduction in equipment failure risk | Up to 30% | Fewer repairs and replacements |
| Operational performance improvement | 25% increase | Enhances system efficiency |
| Energy efficiency improvement | Up to 20% | Reduces energy waste and costs |
| Reduction in downtime | 20-33% reduction | Minimizes operational interruptions |
| Preventable outages | 80% | Indicates potential for outage reduction |
Advanced PDUs meet strict industry standards like IEC 60071 and ISO 6469. They use weatherproof connectors (IP68/IP69), resist vibration, and include fail-safe features such as the High Voltage Interlock Loop (HVIL). Newer units use semiconductor switches and smart controls, which help you find and fix problems before they cause a breakdown.
Today’s vehicles use more than just basic fuse boxes. You see high-voltage PDUs, battery-mounted units, and programmable outputs. These new designs help you manage more power and more complex systems. Companies like YOSUN lead the way by offering advanced and intelligent automotive power distribution unit solutions. YOSUN’s products support electric, hybrid, and traditional vehicles, giving you reliable and flexible options for any application.
When you look inside modern power distribution modules, you find a smart mix of fuse, relay, and circuit breaker technology. These components work together to give your vehicle strong circuit protection. Fuses break the circuit if too much current flows, stopping damage before it spreads. Relays let you control high-power circuits with a small switch, making your system safer and more efficient. Circuit breakers add another layer of safety by resetting after a fault, so you do not need to replace them like fuses.
You see this integration in many PDU designs. For example, the Eaton Bussmann Power Relay Module handles 70 amps at 12 volts DC and uses a thermal fuse for extra protection. Littelfuse offers waterproof DC power distribution boxes that combine circuit breakers and thermal fuses, supporting up to 250 amps and 58 volts. These modules often include a fuse holder for easy replacement and maintenance.

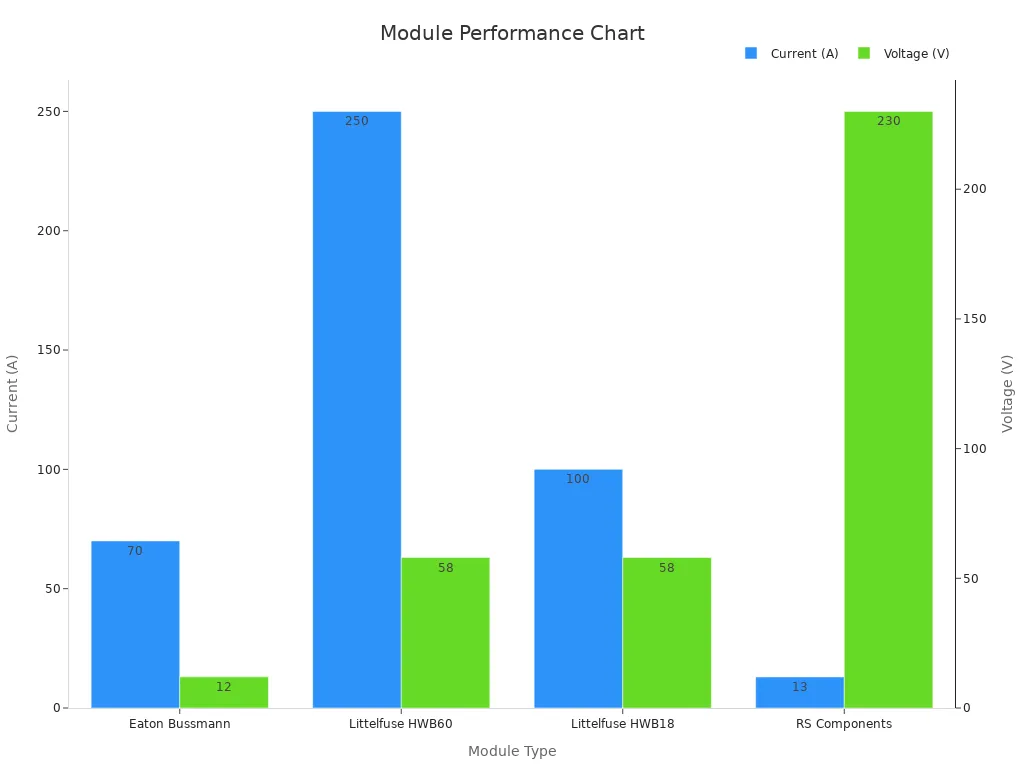

| Module Type | Current Rating | Voltage Rating | Additional Info |
|---|---|---|---|
| Eaton Bussmann Power Relay Module | 70 A | 12 V DC | 2 fuse positions, thermal fuse protection |
| Littelfuse Waterproof DC Power Distribution Box (HWB60 series) | 250 A | 58 V | Circuit breaker and thermal fuse protection |
| Littelfuse Waterproof DC Power Distribution Box (HWB18 series) | 100 A | 58 V | Circuit breaker and thermal fuse protection |
| RS Components Power Distribution Unit | 13 A | 230 V AC | 4 outlets, thermal fuse protection |
Relays and contactors in these modules can switch large currents, sometimes thousands of amps, while semiconductor switches act even faster. Sensors inside the PDU monitor voltage, current, and temperature. If something goes wrong, the system triggers an alarm or isolates the faulty circuit. This pdm buildout supports scalability and flexibility for different vehicles.
Today’s intelligent power distribution modules use microcontrollers to manage every circuit in real time. You get more than just basic circuit protection. These smart PDUs use sensors, wireless modules, and predictive software to watch over your vehicle’s electrical system. If a fuse blows or a relay fails, the system sends a warning right away. This helps you fix problems before they cause bigger issues.
You benefit from features like remote monitoring, self-diagnostics, and easy updates. Intelligent PDUs connect with other vehicle systems, such as infotainment or advanced driver assistance. This networked approach improves reliability and makes your car safer. Manufacturers use lightweight, durable materials and automated assembly to boost quality and lifespan. Specialized designs for electric and hybrid vehicles handle extra heat, vibration, and stress.
You see continuous innovation in this field. Industry standards and new materials keep raising the bar for safety and performance. With these advances, your vehicle’s power distribution modules deliver the protection and control you need for modern driving.
You want your vehicle to deliver steady power, no matter how many devices you use. Advanced automotive power distribution units help you manage electrical loads by balancing energy between systems. These units keep your power supply reliable across a wide voltage range, usually from 9V to 18V in 12V systems. They handle large load currents, sometimes reaching hundreds of amperes, and make sure your car runs smoothly during engine-off or peak demand times.
Modern designs use smart wiring layouts and combine fuses, relays, and circuit protection features. This setup lets you shift electrical loads when needed, which helps save fuel and reduce emissions. For electric vehicles, advanced control strategies can boost your annual return on investment up to 106%, especially when you use battery health management. You also see a fast payback period—sometimes just one year—when you use bi-directional charging and flexible load management. These systems can shift demand for up to four hours and provide flexible capacity up to 11 GW per million electric vehicles.
You rely on fuses and relays to keep your vehicle safe. These components work together to stop short circuits, overcurrent, and voltage spikes. When a fuse blows, it breaks the circuit and prevents damage. Relays let you control high-power devices with low-power signals, which keeps your wiring safe and reduces the risk of overheating.
Advanced power distribution units use multiple layers of protection. They combine fuses, relays, and circuit protection devices in one module. This design gives you fast response to faults and helps you meet strict safety standards. You also get better protection against environmental factors like heat, vibration, and moisture. Smart systems can even detect problems early and alert you before a failure happens.
Tip: Always check your fuses and relays during regular maintenance. Early detection of faults can prevent bigger issues.
You save time and money when your vehicle’s power distribution unit makes maintenance easy. Modern units use real-time monitoring to spot problems fast. If a fuse or relay fails, the system sends a warning so you can fix it right away. Remote management features let you troubleshoot and reboot devices from anywhere, which speeds up repairs.
A recent case study showed that using predictive maintenance with advanced power distribution units cut unplanned downtime by 83%. Weekly downtime dropped from 4.7 hours to just 0.8 hours. Maintenance costs fell by 47%, and product quality improved by 23%. Machine learning tools now help you predict failures with up to 99.54% accuracy, making troubleshooting much faster and more reliable.
You need to match the power distribution unit to your vehicle’s needs. Start by looking at the type of vehicle you have. Electric vehicles, hybrids, commercial trucks, and passenger cars all require different features. For example, high-voltage PDUs work with electric and hybrid vehicles, handling voltages from 60 VDC to 1000 VDC. You should check if the unit supports real-time monitoring of current, voltage, and temperature. This helps you keep your vehicle safe and efficient.
Key performance criteria include:
You also want to make sure the unit can handle the electrical loads in your vehicle. For example, starter motors may need up to 150 amps, while power windows and seats can draw 20 to 30 amps per motor. The table below shows typical current ranges for common components:
| Power Source / Load Component | Typical Current Range (A) | Description / Role |
|---|---|---|
| Starter Motor | 50 to 150 | High current load during engine start |
| Power Windows, Seats | 20 to 30 per motor | Motor loads needing reliable power |
| Exterior Lighting | 10 to 30 | Variable current demand |
| Air Conditioning (HVAC) | 10 to 20 | Significant electrical load |
You should also consider future upgrades and compatibility with your vehicle’s electrical system.
Many people choose the wrong power distribution unit because they overlook important details. You might pick a unit that cannot handle the highest current loads in your vehicle. Some forget to check if the unit meets protection standards like IP68 or IP69, which guard against water and dust. Others ignore the need for real-time monitoring and diagnostic tools. This can lead to missed faults and costly repairs.
Tip: Always check the wiring harness design, insulation, and connector ratings. Make sure the unit can scale with your vehicle’s needs and supports communication with other systems.
YOSUN offers advanced solutions for every type of vehicle. Their automotive power distribution unit products use smart relays, fuses, and busbars to deliver safe and efficient power. YOSUN’s PDUs support real-time monitoring of power flow, temperature, and humidity. This helps you spot problems early and avoid unplanned downtime.
YOSUN’s technology brings real results:
YOSUN’s PDUs use modern relays with vacuum switching and smart control logic. This allows remote switching and boosts supply reliability. Their products meet strict safety standards and support predictive maintenance. You get a reliable, flexible, and future-ready solution for your vehicle.
Not all automotive power distribution units work the same. You need to know the differences in design, technology, and application. This knowledge helps you choose the right unit for your vehicle.
Remember: The right power distribution unit improves safety, reliability, and performance. Take time to make an informed choice.
You use a power distribution unit to send electricity from your car’s battery to different parts. It protects your car by stopping too much current. It also helps your car run safely and keeps all systems working.
Intelligent PDUs use microcontrollers and sensors. You get real-time data about voltage, current, and temperature. These units can warn you about problems before they cause damage. You can fix issues faster and keep your car running longer.
You can upgrade some modular PDUs if you follow the instructions. Always check your car’s manual first. If you see complex wiring or high-voltage parts, ask a professional for help. Safety comes first.
Electric vehicles use high-voltage batteries. Special PDUs manage this power safely. They protect against short circuits and overheating. You get better battery life and safer driving.
