Many believe all 19 inch rack PDUs are the same, but this idea often leads to serious problems. Imagine a rack in a data center where a low-quality PDU, lacking overload protection and proper certifications, causes frequent failures and even fire hazards. Choosing the wrong PDU can result in equipment damage, installation challenges, and higher costs. Certified rack PDUs, like those from NBYOSUN, ensure safety, durability, and seamless integration. NBYOSUN delivers trusted power distribution solutions, backed by ISO9001, CE, UL, and other global certifications.
Selecting the right 19 inch rack pdu starts with understanding the main types available. Each type of power distribution unit serves a unique purpose in a 19-inch rack environment. The table below outlines the core types and their defining characteristics:
| PDU Type | Defining Characteristics |
|---|---|
| Basic rPDUs | Provide reliable power similar to a power strip; cost-effective; may have locking outlets; no remote management or monitoring; suitable for small server rooms with on-site IT staff. |
| Metered rPDUs | Include local LED display showing real-time power usage metrics (current, voltage, power factor); help with capacity planning and load balancing; suitable for secure data centers with on-site staff; stepping stone to remote monitoring. |
| Monitored rPDUs | Intelligent PDUs with remote monitoring over network; provide real-time power consumption data down to outlet level; can send alerts; often include environmental monitoring; useful in high-density and colocation data centers. |
| Switched rPDUs | Most advanced; include all monitored features plus remote outlet-level control (on/off/reboot); can limit outlet power to prevent overloads; ideal for large or remote data centers needing maximum control and availability. |
Note: Heavy duty PDUs are also available for environments that demand higher current ratings and robust construction, such as industrial or telecom racks.
Basic rack mount pdu models deliver straightforward power distribution for servers and network equipment. These units work well in small server rooms or office racks where IT staff can monitor equipment directly. NBYOSUN’s 19 inch 8way French socket switch overload rack PDU is a strong example. This power distribution unit features eight French-style outlets, a sturdy aluminum alloy casing, and overload protection. The design supports a wide range of environments, from offices to workshops, and ensures reliable distribution for multiple devices.
Metered pdu models add a layer of intelligence. They display real-time power metrics such as current, voltage, and power factor. This helps IT teams balance loads and plan capacity for their racks. Metered pdu units are essential for data centers that want to avoid overloading circuits and ensure stable operation for all servers. NBYOSUN’s metered pdu options meet these needs with clear displays and robust construction, making them ideal for both new and existing 19-inch rack installations.
Switched rack mount pdu models take control a step further. These units allow remote switching of individual outlets, enabling IT staff to reboot servers or cut power to specific devices without physical access to the rack. This feature is vital for large or remote data centers where uptime and rapid response matter most.
Smart pdu solutions, like those offered by NBYOSUN, combine advanced monitoring with remote management. These power distribution units provide real-time data on energy consumption at the outlet and unit level. They also support environmental sensors for temperature and humidity, helping data centers maintain optimal conditions for servers. NBYOSUN’s Smart PDU Solution integrates seamlessly with modern data center infrastructure, supporting Ethernet connectivity and customizable outlet configurations. This ensures precise distribution and monitoring for every rack.
Tip: Smart pdu models help data centers reduce energy waste and improve operational efficiency by providing detailed insights into power usage and environmental conditions.

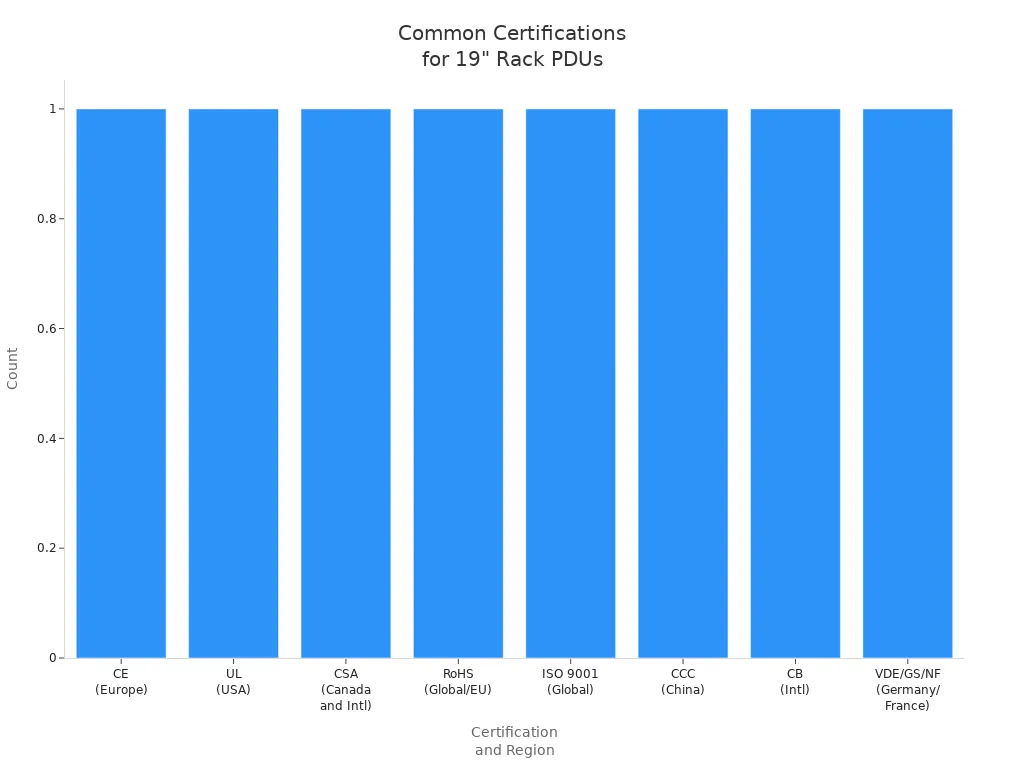

Every 19 inch rack pdu must meet strict international standards to ensure safety and reliability. NBYOSUN’s power distribution unit lineup carries certifications such as CE, UL, RoHS, ISO 9001, and CCC. These certifications guarantee compliance with electrical safety, fire resistance, and environmental regulations across different regions. The table below summarizes key certifications and their focus:
| Certification | Region/Market | Purpose/Focus |
|---|---|---|
| CE | Europe | Health, safety, and environmental compliance |
| UL | North America | Electrical safety and fire resistance |
| CSA | Canada | Electrical safety and environmental performance |
| RoHS | Global | Restriction of hazardous substances |
| ISO 9001 | Global | Quality management system |
| CCC | China | Product safety and quality compliance |
| CB | International | Mutual recognition of safety standards |
| VDE, GS, NF | Europe | Electrical safety, quality, and fire resistance |
NBYOSUN’s 19 inch rack pdu models support a wide range of plug and outlet standards, including IEC C13/C19, Schuko, American, and French types. This compatibility ensures that every rack receives the right power distribution unit for its servers and equipment, regardless of regional requirements.
Choosing a certified and compatible pdu protects servers, supports uptime, and meets the demands of modern 19-inch rack environments.
The number of outlets and the load capacity are two of the most important features that set each pdu apart. A 19 inch rack pdu can offer a wide range of outlet counts, often from the mid-20s up to 30 outlets per unit. This flexibility allows IT teams to connect multiple servers, switches, and network devices within a single rack. For example, a basic rack model like the CB-26VE provides 26 total outlets, including 24 IEC C13 and 2 IEC C19, supporting a variety of equipment. Higher-end models, such as the PRO2 STV-4502, deliver up to 30 outlets, making them suitable for dense rack environments.
Power rating is another critical factor in power distribution unit selection. Most North American rack pdus are designed for circuit ratings of 15A, 20A, or 30A. However, best practices recommend derating the load to 80% of the maximum current. For instance, a 20A circuit should not exceed 16A in continuous use. This approach results in power ratings that typically range from 3.3 kW to 8.6 kW, depending on voltage and phase configuration. A single-phase pdu at 230V with a 32A input can support up to about 7.3 kW, while three-phase pdus with 16A to 20A inputs can reach 8.6 kW. These specifications ensure effective power distribution and reliable operation for all devices in the rack.
| Model | Total Outlets | IEC C13 Outlets | IEC C19 Outlets | Input Power Capacity (kW) | Input Current (A) | Input Voltage (V) | Input Phase |
|---|---|---|---|---|---|---|---|
| Basic CB-26VE | 26 | 24 | 2 | 3.3 – 7.3 | 32 | 230 | Single-phase |
| PRO2 STV-4502 | 30 | 24 | 6 | 5.7 – 8.6 | 16 – 20 | 208 | Three-phase |
NBYOSUN’s 19 inch 8way French socket switch overload rack pdu demonstrates how thoughtful design supports both outlet flexibility and load capacity. The robust aluminum alloy casing ensures durability, making the pdu suitable for demanding environments. The casing also allows for both horizontal and vertical mounting, optimizing rack space and supporting different installation needs. This versatility is essential for modern data centers and server rooms that require adaptable power distribution solutions.
Protection and monitoring are essential features that distinguish advanced rack pdus from basic models. Overload protection plays a vital role in reducing the risk of equipment failure. When a pdu detects an over-current or over-temperature event, it automatically cuts power to prevent damage. Circuit breakers disconnect power when current exceeds safe limits, protecting connected devices from electrical faults. Built-in protection also guards against voltage spikes and over-voltage, ensuring stable operation for all equipment in the rack.
NBYOSUN’s power distribution unit lineup includes advanced overload protection, robust aluminum alloy casing, and flexible mounting options. These features ensure that each pdu delivers reliable and safe power management in any rack environment. The aluminum alloy casing not only enhances durability but also supports slim, compact designs that maximize rack space. This construction allows for both vertical and horizontal mounting, providing adaptability for various rack configurations.
Monitoring capabilities further set modern pdus apart. Real-time power monitoring enables IT teams to track energy consumption at both the unit and outlet level. This data supports proactive power management, helping to identify potential overloads and optimize energy use. Environmental sensors for temperature and humidity add another layer of protection, alerting staff to conditions that could threaten equipment. NBYOSUN’s smart pdus integrate these monitoring features, supporting remote management and detailed reporting for effective power distribution.
Certifications such as CE, RoHS, and UL play a crucial role in ensuring the safety and reliability of every power distribution unit. These certifications confirm that each pdu meets strict international standards for electrical safety, fire resistance, and environmental compliance. NBYOSUN’s commitment to quality is reflected in its comprehensive certification portfolio, giving customers confidence in every rack installation.
Tip: Always verify that your rack pdu carries recognized certifications and includes robust protection and monitoring features. This ensures safe, reliable, and effective power distribution for all connected devices.
Modern 19 inch rack PDUs deliver more than basic power distribution. Smart features like remote monitoring transform how data centers manage energy and power management. Operators can track real-time energy consumption, temperature, and humidity from any location. This capability allows for quick decisions that improve efficiency and reduce operational costs. Remote monitoring also enables identification of underutilized equipment, helping teams allocate resources and avoid unnecessary energy waste.
With remote control, staff can power cycle outlets or shut down unused devices without visiting the rack. This function supports uptime and prevents overloads in high-density environments. Alerts and notifications warn operators about overloads or environmental issues, allowing for preemptive maintenance. These features help maintain continuous operations and support sustainable practices. NBYOSUN’s Smart PDU Solution integrates these advanced functions, providing detailed power monitoring and remote management through Ethernet connectivity. This integration ensures that every rack operates at peak efficiency and reliability.
Tip: Remote monitoring and control in PDUs help data centers meet strict energy efficiency standards and support green operations.
Environmental sensors have become a standard feature in intelligent 19 inch rack PDUs. These sensors monitor temperature and humidity inside the rack, providing critical data for power management and energy efficiency. By tracking these conditions, operators can optimize cooling systems and prevent equipment failures. Studies show that using environmental sensors can save 10-15% on cooling costs, making them essential for modern data centers.
PDUs with environmental sensors send real-time alerts when temperature or humidity exceeds safe thresholds. This proactive approach reduces the risk of downtime and extends equipment life. Integration with data center infrastructure management tools allows for centralized monitoring and reporting. NBYOSUN’s Smart PDU Solution includes robust environmental monitoring, supporting both operational reliability and energy savings. These features make the PDU a vital part of any high-density or enterprise data center.
Note: Environmental sensors in PDUs are widely adopted and play a key role in maintaining uptime and optimizing energy use.
Not every pdu fits every 19-inch rack. The choice between horizontal and vertical mounting impacts both installation and scalability. Many rack cabinets support horizontal pdu installation in 1U or 2U rack units. A 1U rack mount pdu occupies 1.75 inches of vertical rack space, while a 2U model uses 3.5 inches. These horizontal pdus often provide 8 to 16 outlets, making them suitable for standard rack-mounted equipment. However, using multiple horizontal pdus can quickly consume valuable rack unit space, limiting the number of devices that fit in the rack.
Vertical rack pdu models, also known as 0U pdus, mount along the side or rear of the rack cabinet. These vertical options do not consume traditional rack unit space, allowing more room for rack-mountable equipment. A vertical rack pdu can offer up to 60 outlets, supporting high-density environments and greater scalability. Many data centers prefer vertical pdus for their ability to maximize available rack space and support more devices.
NBYOSUN provides flexible mounting options for both horizontal and vertical installations. Adjustable mounting brackets, tool-less installation, and defined cable access routes help reduce installation time and simplify maintenance. These features also improve airflow and cooling, which extends the lifespan of rack-mounted equipment.
Tip: Always measure the rack cabinet’s height, width, and depth before selecting a pdu. Proper cable management and ventilation prevent overheating and ensure reliable operation.
The form factor of a pdu determines how it fits within a 19-inch rack. The table below compares the most common form factors:
| Form Factor | Installation Orientation | Vertical Rack Space Usage | Outlet Capacity | Scalability Impact |
|---|---|---|---|---|
| 1U | Horizontal | Occupies 1 rack unit (1.75″) | Typically 8 to 16 outlets | Limited by vertical space; requires rack unit allocation |
| 2U | Horizontal | Occupies 2 rack units (3.5″) | Typically 8 to 16 outlets | More vertical space used; moderate scalability |
| 0U | Vertical (side mounting) | Does not consume traditional rack units | Up to 60 outlets | Saves rack unit space; allows higher outlet density and greater scalability |
Selecting the right form factor ensures compatibility with rack-mountable equipment and supports future expansion. Vertical rack pdu models save rack unit space, making them ideal for dense server environments. Horizontal pdu models provide reliable power distribution within allocated rack units but may limit scalability if rack space is at a premium.
NBYOSUN’s rack mount pdu lineup includes both horizontal and vertical options, with custom solutions for unique rack environments. Adjustable vertical rails and modular components allow for easy reconfiguration and support for various rack-mountable equipment. These features help data centers adapt to changing needs and maintain efficient, organized rack cabinets.
Note: Proper planning for pdu form factor and mounting options ensures optimal use of rack space, reliable power distribution, and easier maintenance.
Uptime remains a top priority in any data center or server room. A reliable pdu ensures that every rack receives consistent power distribution, even during unexpected events. Redundant power paths allow critical equipment to keep running if one source fails. Many modern pdu models support dual power feeds, so if one circuit goes down, the other continues to supply power. This redundancy reduces the risk of downtime and protects valuable data.
Surge protection features in a pdu play a vital role in maintaining uptime. These mechanisms defend against electrical surges and spikes that can damage sensitive rack equipment. Circuit breakers and surge protection components inside the pdu quickly respond to faults, cutting off or regulating power flow. This action prevents equipment failure and minimizes unplanned outages. Load balancing and energy monitoring further optimize power distribution, ensuring that each rack operates efficiently and safely.
Tip: Redundant pdus and surge protection work together to keep mission-critical systems online, even when electrical issues occur.
Compliance with industry standards guarantees that a pdu will perform reliably in mission-critical environments. The most important standards for 19 inch rack pdus include:
Additional certifications such as UL, CE, MIL-STD, and IEC confirm that a pdu meets strict safety and reliability requirements. These certifications support features like surge protection, remote monitoring, and emergency shutdown, all essential for safe power distribution in a rack. NBYOSUN’s products carry these certifications, reflecting a commitment to quality and safety. Their pdus deliver dependable power distribution, making them a trusted choice for data centers and telecom facilities worldwide.
Note: Always select a pdu with recognized certifications to ensure safe, compliant, and reliable rack power distribution.
Selecting the right 19 inch rack pdu requires careful evaluation of the environment and equipment. Each rack may house a mix of servers, switches, and storage devices. The total power draw must be calculated by adding the wattage of all connected devices and including a margin for future expansion. Outlet types and configurations, such as IEC C13 or C19, should match the plugs on the servers and other equipment. Locking mechanisms on outlets help prevent accidental disconnections, which is important in busy data centers.
A pdu with advanced monitoring and alert capabilities allows teams to track power consumption and avoid overloads. Remote management features enable staff to control power distribution and reboot servers without visiting the rack. For high-density environments, three-phase power and vertical mounting options provide balanced loads and save valuable rack space. Customizable pdus let users select outlet types, cable lengths, and extra features to fit unique needs.
Tip: Always confirm rack size compatibility, input voltage, and plug type before installation. Plan for backup power and safe cutoff options to protect servers and maintain uptime.
Energy-efficient pdus lower operational costs by reducing electricity use and heat output. Advanced models with real-time monitoring, load balancing, and redundancy support improve reliability and minimize downtime. The table below shows how higher data center tiers require more robust power and cooling, which impacts cost:
| Data Center Tier | Power and Cooling Distribution | Availability | Estimated Cost per kW (USD) |
|---|---|---|---|
| Tier I | Single path, no redundancy | 99.671% | $11,500 |
| Tier II | Redundant components | 99.741% | $12,500 |
| Tier III | Multiple active paths | 99.982% | $23,000 |
| Tier IV | Fault tolerant, redundant | 99.995% | $25,000 |
NBYOSUN provides comprehensive support for every rack and pdu project. Their team conducts detailed demand analysis to understand the specific needs of each data center or server room. Customers can choose from a wide range of customization options, including outlet types, plug configurations, overload protection, and intelligent monitoring features. NBYOSUN develops prototypes based on customer feedback, ensuring the final product fits the environment perfectly.
The company follows strict quality assurance protocols, performing rigorous testing on every pdu before delivery. After installation, NBYOSUN offers ongoing technical support and guidance. Real-time alerts and outlet-level monitoring help prevent overloads and downtime. A leading data center in Asia reduced energy consumption by 15% using NBYOSUN’s customized solutions, showing the real-world impact of their expertise.
For more information on NBYOSUN’s products and services, visit NBYOSUN’s official website or explore their 19 inch 8way French socket switch overload rack PDU and Smart PDU Solution.
Many believe every rack PDU works the same, but real-world data shows otherwise. Certified rack PDUs, such as those with CE and UL marks, use flame-retardant materials and overload protection to prevent electrical faults. Durable aluminum alloy casings protect each PDU from fire and rust, making them ideal for vertical or horizontal rack installations. NBYOSUN’s vertical rack PDU options offer tailored solutions, advanced monitoring, and proven energy savings. Their team helps clients match PDU types to rack needs, ensuring vertical mounting, outlet compatibility, and long-term reliability. Review your current rack setup, check for certified vertical PDU models, and contact NBYOSUN for expert support.
A 19 inch rack pdu is a power distribution unit designed to fit standard 19-inch server racks. It distributes electrical power to multiple devices, such as servers and switches, within data centers or IT rooms. This pdu ensures organized and safe power management.
A pdu improves safety by providing overload protection, surge suppression, and certified components. These features help prevent electrical faults, equipment damage, and fire hazards. NBYOSUN’s pdu models meet international safety standards, including CE and UL certifications, for reliable operation in critical environments.
Yes, many pdu models offer real-time monitoring of power usage. Smart pdu solutions from NBYOSUN provide detailed data on energy consumption, current, and voltage. This information helps IT teams optimize energy use, prevent overloads, and maintain efficient operations in server racks.
A pdu can be mounted horizontally (1U or 2U) or vertically (0U) in a rack. Vertical mounting saves rack space and supports high-density environments. NBYOSUN offers flexible mounting options, allowing users to choose the best configuration for their rack setup.
A certified pdu ensures compliance with international safety and quality standards. Certifications like CE, UL, and RoHS confirm that the pdu meets strict requirements for electrical safety, fire resistance, and environmental protection. Certified pdus reduce risks and support reliable power distribution.
