Essential Considerations When Selecting Three Phase Power Distribution Units

Selecting the right three phase power distribution unit is crucial for data center power reliability and efficiency. Data centers face rising electricity costs, with global rates increasing by a median of 16% and some markets seeing up to 50% annual growth. Power outages cause one-third of downtime, and advanced PDUs prevent up to 80% of these incidents. NBYOSUN, known for international certifications, delivers trusted PDU solutions. Both basic and smart PDU options help data centers manage high power density, real-time data monitoring, and operational safety.

Three Phase Power in Data Centers

Why Three-Phase Power Matters

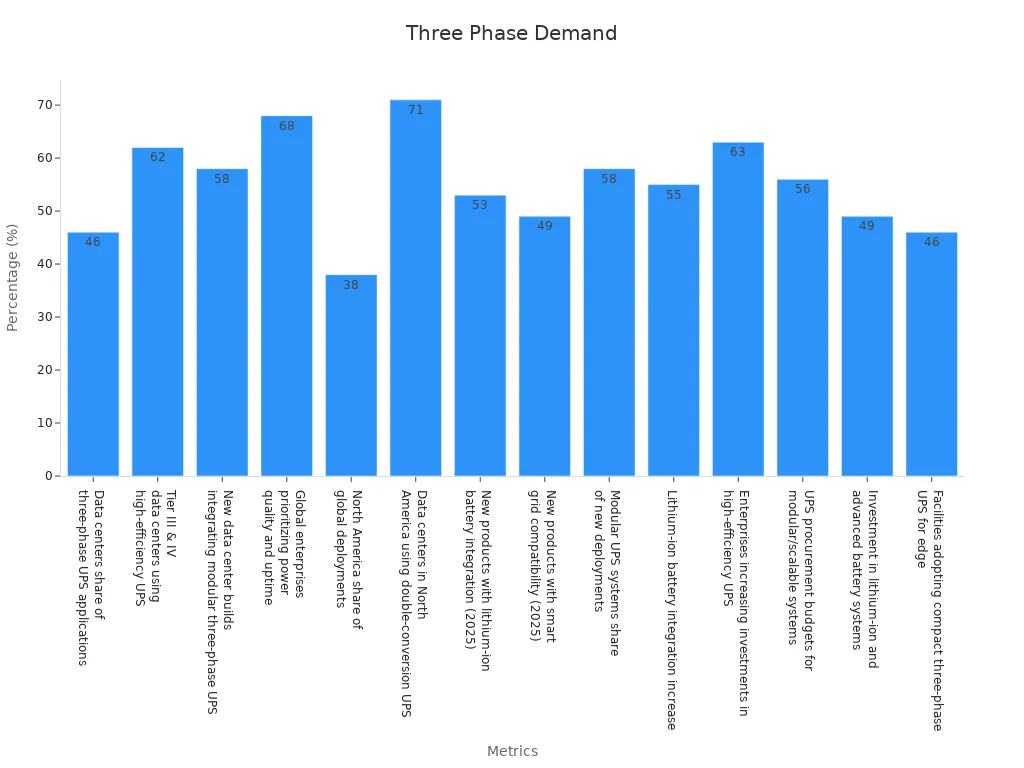

Three-phase power plays a vital role in modern data center power management. As data centers expand, the demand for efficient and reliable power grows. The global market for three-phase power solutions reached USD 6,618.8 million in 2024 and is projected to rise to USD 7,635.2 million by 2033. Nearly 46% of three-phase UPS applications serve data centers, and over 62% of Tier III and IV centers use high-efficiency UPS systems. These numbers highlight the shift toward advanced power infrastructure.

Three-phase power distribution units deliver continuous and balanced power. This reduces the risk of outages and supports redundant power systems. The following table compares single-phase and three-phase systems:

Efficiency and Reliability Benefits

Three-phase power systems provide several advantages for data center power. Balanced load distribution increases operational performance by 25%. These systems support power densities above 22 kW per rack, which is essential for high-density centers. Electricity bills drop by 3-5% due to improved power factor and reduced resistance. Energy efficiency rates exceed 90%, and reduced heat generation extends equipment lifespan.

Redundancy remains a key benefit. If one phase fails, at least two phases continue to supply power, minimizing downtime. This feature helps prevent outages and ensures stable operations. Three-phase power distribution units also support advanced cooling systems, such as liquid cooling and precision air conditioning, which are critical for modern data centers. Scalability allows centers to expand without major rewiring, supporting future growth and uninterrupted service.

Note: Three-phase power uses three wires offset by 120 degrees, creating a constant flow of power. This design reduces voltage drops and equipment stress, supporting reliable and efficient data center power.

Types of Power Distribution Units

Basic, Metered, and Smart PDUs

Data centers rely on different types of PDUs to meet their unique power needs. Each type offers distinct features and benefits. The choice depends on the complexity of the environment and the level of control required.

Basic PDUs deliver straightforward three phase power distribution. They suit small or low-density setups where manual control is enough. Metered PDUs add real-time monitoring and remote management. These units help data centers track power consumption and balance loads. Smart PDUs offer the highest level of control. They feature IP aggregation, advanced sensors, and out-of-band communication. Smart PDUs support high-density racks and future-proof the data center. They also integrate with management tools for centralized reporting.

Smart PDUs help prevent overloads and equipment damage by sending alerts and enabling remote rebooting. Environmental sensors monitor temperature and humidity, protecting sensitive equipment.

NBYOSUN High Power 63A PDU Overview

NBYOSUN’s High Power 63A three phase power distribution unit stands out in demanding environments. This rack power distribution unit supports up to 63A, making it ideal for network closets, server rooms, and mining farms. The aluminum housing ensures durability and flexible mounting options. The unit features a built-in power switch and a 63A circuit breaker for overload and short circuit protection.

NBYOSUN’s PDU supports a wide range of plug types, including IEC C13 and C19, and meets international standards. The UL certification guarantees safety and reliability. Users benefit from efficient three phase power delivery, reducing the risk of downtime. The robust design and advanced safety features make this PDU a cost-effective solution for high-demand applications. NBYOSUN’s commitment to quality and innovation ensures that their power distribution units meet the evolving needs of modern data centers.

Key Selection Criteria for Three Phase Power Distribution Units

Assessing Data Center Power Needs

Selecting the right three phase power distribution unit starts with a clear understanding of data center power requirements. Operators must evaluate the total load, voltage, amperage, and plug types needed for their environment. As data centers transition from traditional CPUs to advanced AI GPUs, power consumption and current demands increase sharply. Impedance levels drop, making the power distribution network more complex. Operators must measure frequency, RMS voltage and current, impedance, crest factor, power factor, and phase to ensure reliable power delivery.

• Power rail probes and current probes help detect voltage noise and current at high frequencies.
• Automated measurement tools identify ripple, noise, and transient behaviors over time and temperature changes.
• Frequency Response Analysis using Bode plots assesses control loop speed and stability, which is vital for voltage regulation.

These steps ensure that the rack power distribution unit can handle high current loads and maintain power integrity, especially in AI-driven environments. Proper assessment supports redundancy and backup strategies, reducing the risk of outages and supporting data center redundancy models.

Compatibility and International Standards

Compatibility with global standards is essential for power distribution units in modern data centers. Operators must ensure that PDUs support a wide range of voltages and plug types, such as IEC C13, C19, Schuko, and regional standards. International certifications like UL, CE, VDE, and RoHS confirm that the PDU meets safety and performance benchmarks. NBYOSUN’s products, for example, comply with ISO9001 and other global standards, ensuring reliable power distribution across different regions.

A compatible PDU allows seamless integration with existing systems and supports future upgrades. This flexibility is crucial for multinational organizations that operate data centers in various countries. It also ensures that redundant power systems and backup solutions work effectively, minimizing the risk of outages.

Outlet Types and Rack Integration

The choice of outlet types and integration with racks directly impacts the efficiency of power distribution. Data centers often require a mix of IEC C13, C19, and country-specific outlets to support diverse equipment. The PDU must offer enough outlets to match the power requirements of all devices in the rack. Modular designs allow operators to customize outlet configurations, supporting both current and future needs.

Proper rack integration ensures that the PDU fits securely and allows for efficient cable management. Vertical and horizontal mounting options provide flexibility for different rack layouts. This approach supports redundancy by allowing multiple PDUs in a single rack, enhancing backup and protection for critical systems.

Tip: Choose PDUs with clear labeling and color-coded outlets to simplify maintenance and reduce the risk of accidental outages.

Safety and Certification (UL, ISO9001, etc.)

Safety and certification stand at the core of reliable power distribution units. Certifications such as UL, ISO9001, GS, CE, VDE, BS, CB, RoHS, and CCC demonstrate that the PDU meets strict safety and quality standards. NBYOSUN’s PDUs, for instance, undergo rigorous testing to ensure compliance with these certifications.

Key safety features include:

• Built-in circuit breakers for overload and short circuit protection.
• Surge protection modules to guard against voltage spikes.
• Flame-retardant materials for housing and outlets.
• Power switches for manual control and emergency shutdown.

These features protect both equipment and personnel, reducing the risk of outages and ensuring continuous operation. Certified PDUs also support data center redundancy models by providing reliable backup and surge protection for critical systems.

Advanced Features: Monitoring and Remote Management

Modern data centers benefit from advanced monitoring and remote management features in smart PDUs. These units provide real-time data on current, voltage, power factor, crest factor, harmonic distortion, and accumulated energy. Operators can monitor individual outlets, detect idle servers, and identify power anomalies early.

Smart PDUs enable remote rebooting of servers and shutdown of unused equipment, reducing the need for on-site intervention. Integration with Data Center Infrastructure Management (DCIM) systems offers a holistic view of power and environmental conditions. Automated alarms and alerts notify operators of potential issues, supporting proactive management and reducing downtime.

These features improve uptime, enhance energy efficiency, and support financial management through accurate billing. NBYOSUN’s smart PDUs deliver these capabilities, helping data centers achieve reliable power distribution and effective protection.

Scalability and Future-Proofing

Scalability ensures that power distribution units can adapt to growing data center power needs. The global market for PDUs is projected to grow from USD 1.99 billion in 2024 to USD 4.20 billion by 2032, reflecting the increasing complexity and scale of data centers. Power demand per cabinet may reach up to 50 kW, driven by AI and high-performance computing workloads.

Scalable PDUs support rapid deployment, flexible configurations, and evolving requirements. Modular designs and customizable options allow operators to add outlets, upgrade surge protection, and integrate new monitoring features as needed. This adaptability supports redundancy levels and backup strategies, ensuring that data centers remain resilient against outages and changing power requirements.

Note: Investing in scalable and future-proof PDUs helps data centers maintain reliable power distribution, meet sustainability goals, and support automation as industry needs evolve.

NBYOSUN Solutions for Data Center Power

Brand Strengths and Certifications

NBYOSUN stands as a leader in the PDU industry with over 20 years of experience. The company serves major clients such as China Mobile, China Telecom, and Lenovo. NBYOSUN’s commitment to quality shows in its extensive certifications, including ISO9001, UL, CE, RoHS, and VDE. These certifications confirm that each PDU meets strict safety and environmental standards. The company’s products support international requirements, including IEC C13 and C19 outlets, making them suitable for global deployment. NBYOSUN’s reputation for reliability and innovation has earned the trust of data centers and critical infrastructure providers worldwide.

Customization and Support

NBYOSUN offers a wide range of customizable PDU solutions. Customers can select outlet types, plug configurations, cable lengths, and advanced features like remote monitoring and environmental sensors. This flexibility allows each PDU to match unique operational needs. The company’s support services deliver fast maintenance response and technical help, improving uptime and customer satisfaction.

NBYOSUN’s strong after-sales network ensures customers receive reliable service and spare parts. Many clients report higher satisfaction and long-term loyalty due to these support services.

Smart PDU Solution for Modern Data Centers

NBYOSUN’s smart PDU solutions help data centers achieve higher efficiency and reliability. These PDUs provide real-time monitoring, remote control, and intelligent load balancing. Operators can track power usage, receive proactive alerts, and manage equipment remotely. Smart PDUs reduce energy consumption by up to 20% and help prevent overloads by distributing power evenly. Real-time data and analytics allow early detection of power anomalies, reducing downtime and protecting equipment. Advanced security features guard against unauthorized access, supporting operational safety.

Smart PDUs from NBYOSUN help data centers save money, improve uptime, and extend equipment lifespan through stable power delivery.

NBYOSUN’s combination of experience, customization, and advanced technology makes it a trusted partner for reliable power distribution in modern centers.

Selecting the right three phase power distribution unit ensures redundancy and backup for critical systems. Certified and scalable PDUs provide protection against power interruptions and equipment failure. Operators benefit from:

• Lower temperature rise in transformers, which improves energy efficiency.
• Optimized voltage distribution, reducing heat loss and enhancing protection.
• Modular designs that support phased upgrades, increasing redundancy and backup options.

NBYOSUN offers reliable solutions. Data center teams should consult experts or explore product options to maximize protection and operational efficiency.

FAQ

What certifications do NBYOSUN three phase PDUs have?

NBYOSUN PDUs hold certifications such as UL, ISO9001, CE, VDE, RoHS, and GS. These certifications confirm compliance with international safety and quality standards. Data centers can trust these units for reliable and secure power distribution.

Can NBYOSUN PDUs support different plug and outlet types?

Yes. NBYOSUN PDUs support IEC C13, C19, Schuko, American, French, and other regional outlets. This flexibility allows seamless integration in global data centers and supports diverse equipment requirements.

How do smart PDUs improve data center efficiency?

Smart PDUs provide real-time monitoring, remote management, and outlet-level control. Operators can track energy use, receive alerts, and optimize power allocation. These features help reduce energy waste and prevent equipment overloads.

What safety features do NBYOSUN PDUs offer?

NBYOSUN PDUs include built-in circuit breakers, flame-retardant materials, and surge protection modules. These features protect equipment from overloads, short circuits, and voltage spikes, ensuring safe and stable operation.

Are NBYOSUN PDUs customizable for specific data center needs?

Yes. NBYOSUN offers customization for outlet types, plug configurations, cable lengths, and advanced monitoring features. This ensures each PDU matches the unique requirements of any data center environment.
