Finding the Best Power Distribution Unit for Your Rack Setup

Choosing the best pdu for rack setups means matching your equipment’s power needs, management features, and future plans. When you select a rack power distribution unit that fits your rack pdu requirements, you help prevent outages—onsite power distribution issues cause up to 52% of data center failures. Reliable power distribution and advanced rack pdu features, like remote monitoring, keep your systems safe and efficient. NBYOSUN brings over 20 years of expertise and international certifications, offering a pdu for rack that meets strict quality standards. Use this pdu buying guide to confidently select a power distribution unit that supports your growing setup.

Assessing Rack Power Needs

Calculating Power Requirements

You need to start by understanding how much power your server rack will use. This step helps you avoid overloads and keeps your equipment safe. The standard method for estimating total power requirements is simple. Follow these steps:

1. Count the number of devices you plan to install in your server rack.
2. Find the average power consumption for each device, usually listed in kilowatts (kW) or watts (W).
3. Multiply the number of devices by the average power each one uses. For example, if you have 20 servers and each uses 0.5 kW, your total is 20 × 0.5 kW = 10 kW.
4. For more accuracy, check the power ratings for each device. Look at peak load power usage, not just the average.
5. Add extra power for cooling systems. Cooling can use a lot of energy, especially in high-density racks.

Tip: Always add a safety margin of 20 to 30% above your total power requirement. This margin protects your rack from unexpected power spikes and helps prevent overload. For example, if your total is 800W, choose a power distribution unit rated for at least 1000W.

By following these steps, you ensure your rack power distribution unit can handle your current and future needs.

Voltage and Phase Considerations

Selecting the right voltage and phase for your rack PDU is critical for equipment compatibility and efficiency. Different regions use different voltage and phase setups. Here is a table showing the most common configurations:

Single-phase power works well for smaller setups and less power-hungry devices. Three-phase power is best for high-density racks and large data centers. It delivers more power efficiently and helps balance the load across circuits.

Data centers often use 400V three-phase power. This power goes directly to the rack PDU, which then converts it to 230V single-phase for your IT equipment. This method reduces energy loss and keeps your system running smoothly. Each rack PDU usually has three input lines and three circuits, each protected by a 20A breaker. This setup ensures balanced and efficient power delivery.

Choosing the correct voltage and phase affects more than just compatibility. It impacts the total power capacity, cable size, and even cooling needs. Higher voltages allow you to use smaller cables, which saves space and money. Three-phase power increases your power capacity and reduces cable clutter. It also helps with load balancing and energy savings, making your server rack more efficient.

Planning for Growth

When you plan your rack PDU selection, think about future expansion. Your power distribution needs may grow as you add more equipment. Here are some best practices to help you plan for growth:

• Use advanced PDUs with per-outlet power monitoring. This feature lets you track power usage for each device.
• Design your server rack for power density and load balancing. Technologies like Alternating Phase Technology can help reduce cooling costs.
• Start by measuring the power needs of each piece of equipment. This approach gives you a clear picture of your rack-level capacity.
• Choose PDUs that support high amperage and voltage. Look for branch circuit protection and current monitoring alerts.
• Pick flexible PDU configurations. This flexibility lets you add or remove devices easily.
• Make capacity planning a key part of your design. Good planning ensures efficient power distribution across your racks and the whole data center.
• Optimize rack space to prevent overcrowding and overheating. This step supports better scalability.
• Conduct regular audits of rack space and power usage. Audits help you spot underused or crowded areas.
• Use DCIM (Data Center Infrastructure Management) tools. These tools let you monitor power in real time and plan for future equipment.
• Align your planning with business goals and IT strategy. Use both top-down and bottom-up approaches for a complete view.
• Set up clear governance processes. Define roles, thresholds, and review policies regularly.
• Use predictive analytics to forecast future needs. Adjust your plans as demands change.

Note: Planning for growth helps you avoid costly upgrades and downtime. A well-chosen power distribution unit supports both your current and future data center power needs.

Rack PDU Selection Types

When you choose a rack pdu, you need to understand the different types available. Each type offers unique features and benefits for your rack setup. NBYOSUN provides a full range of power distribution units, including Basic, Metered, Smart, and Heavy Duty PDUs. All NBYOSUN rack pdu models meet strict international standards, such as ISO9001, CE, UL, and RoHS. These certifications ensure safety, quality, and reliability for critical infrastructure like data centers and telecom facilities.

Basic and Metered Options

Basic rack pdu models give you simple, reliable power distribution. You can use them in small server rooms, offices, or retail spaces where you do not need advanced monitoring. These units act like high-quality power strips with multiple outlets. They do not collect power usage data or connect to a network.

Metered rack pdu models add a local display that shows you real-time power consumption. You can see how much current your equipment uses right on the device. This feature helps you avoid overloads and manage your rack’s power more safely. Metered options work well in secure or air-gapped environments where you do not want network connectivity.

Here is a table to help you compare the main features:

Tip: If you want a dependable, cost-effective solution for basic power needs, start with a basic or metered rack pdu. These models offer strong performance for smaller setups.

NBYOSUN’s 19 inch 8way French socket switch overload rack PDU stands out as a robust example. This model features eight French-style outlets, a sturdy aluminum alloy case, and overload protection. You can use it in offices, workshops, or even harsh environments. The device meets CE and NF certifications and includes a 12-month warranty. Its flexible mounting options and heavy-duty cord make it easy to install in many rack setups.

Monitored and Switched PDUs

As your rack setup grows, you may need more control and insight. Monitored rack pdu models let you track power usage remotely. You can view real-time and historical data for voltage, power, frequency, and load through a network connection. These units often include alarms to alert you if something goes wrong, such as a sudden spike in power use. This feature helps you prevent failures and improve energy efficiency.

Switched rack pdu models take things further. You can monitor power remotely and also control each outlet. This means you can turn devices on or off, or even reboot them, without being onsite. Switched rack pdu units help you avoid overloads by limiting outlet power. They also make remote troubleshooting much easier.

Here is a table that shows the key differences:

You can use a monitored rack pdu or switched rack pdu to improve uptime and reduce the risk of outages. These models work best in larger server rooms and data centers where you need to manage many devices.

Smart PDU Solutions

Smart rack pdu solutions give you the highest level of control and reliability. You can monitor power at the unit and outlet level, track energy trends, and receive alerts for any issues. Smart PDUs also support environmental sensors for temperature and humidity. This helps you keep your equipment safe from overheating or moisture.

NBYOSUN’s Smart PDU solution is designed for demanding environments like data centers. You can manage power remotely, analyze usage patterns, and set alarms for critical thresholds. The system supports Ethernet communication, outlet-level monitoring, and even remote power cycling. These features help you optimize energy use and reduce operational costs.

Smart rack pdu models use advanced safety features, such as overload and surge protection. NBYOSUN builds these units with antiflaming PC materials and strong aluminum alloy housing. The company’s products support Tier 3 and Tier 4 data center reliability, which means you get low downtime and high availability.

Smart rack pdu solutions help you spot problems before they cause failures. You can act quickly to prevent downtime, making your rack setup more reliable and efficient.

NBYOSUN’s wide range of rack pdu options lets you choose the best pdu for rack setups of any size. You can select from basic, metered, monitored, switched, or smart models, all backed by international certifications. The company also offers extensive customization, so you can match your exact needs.

Mounting and Form Factor

Vertical vs. Horizontal Installation

When you set up a server rack, you need to decide how to install your power distribution unit. The two main options are vertical and horizontal installation. Each method has its own strengths and fits different needs.

Vertical PDUs, also called Zero-U PDUs, mount along the side of your server rack. This design saves valuable rack space because it does not take up any rack units. You can fit more equipment in your rack and enjoy higher outlet density—some vertical PDUs offer up to 60 outlets. This makes them a great choice for high-density data centers. Vertical PDUs also help with airflow and cable management, which keeps your equipment cool and organized. However, you need enough vertical clearance for installation, and accessing outlets in tight spaces can be tricky.

Horizontal PDUs fit into the standard 1U or 2U slots in your server rack. They work well in smaller setups or where vertical space is limited. You get easy access to front-facing outlets, which makes connecting and disconnecting devices simple. Horizontal PDUs usually provide fewer outlets, so they suit smaller environments. They can also support features like real-time power monitoring.

Here is a quick comparison:

Tip: Choose vertical PDUs for high-density environments and horizontal PDUs for easy access in smaller server racks.

Maximizing Rack Space

You want to make the most of your server rack space. The form factor of your PDU plays a big role in this. Vertical PDUs mount along the rack’s side, freeing up horizontal space for more servers or network devices. This pdu mounting style lets you install more equipment and manage higher power loads. It also improves cable management by allowing shorter cable runs and better airflow, which helps prevent overheating.

Horizontal PDUs, while easy to access, take up valuable rack units. This reduces the number of devices you can install. In high-density setups, vertical PDUs maximize both space and efficiency. They also make installation and maintenance easier with tool-less mounting and hot-swappable parts.

Good planning and the right PDU form factor help you keep your server rack organized, cool, and ready for future growth.

Power Distribution Unit Compatibility

Input and Output Plug Types

You need to match the input and output plug types of your power distribution unit to your region and equipment. Different regions use different standards. North America and Europe have their own common plug types and voltages. The table below shows the most typical configurations:

Most devices in North America use NEMA plugs and outlets. Higher power equipment uses locking plugs like L5-20P or L5-30P. In Europe, you often see IEC320 C13 and C19 outlets, which support up to 250V. Many modern devices have power supplies that work with both 120V and 230V, but you must still match the plug shape and amperage to your power distribution unit.

Outlet Quantity and Types

The number and type of outlets on your power distribution units affect how many devices you can connect and how flexible your setup is. If you choose a unit with only one type of outlet, you may limit the kinds of equipment you can use. For example, a unit with only C13 outlets works well for standard servers, but it cannot power devices that need C19 plugs. Some advanced power distribution units combine C13 and C19 outlets in one device. This design lets you connect both C14 and C20 plugs, making your setup more flexible for future changes.

A higher outlet count supports high-density environments. You can connect more devices without adding extra units. Features like locking outlets and color-coded circuits help prevent accidental unplugging and make deployment easier. When you plan your server rack, think about both the number and type of outlets you need now and in the future.

Load Balancing

Proper load balancing keeps your power distribution safe and reliable. You want to spread the electrical load evenly across all outlets and circuits. This practice prevents overloads and reduces the risk of equipment failure. Follow these best practices for load balancing:

1. Distribute your devices across multiple power distribution units if you have redundant power sources.
2. Use power monitoring tools to track usage and spot any imbalances early.
3. Label cables and document your setup to make maintenance easier.
4. Regularly check your power distribution unit for signs of overload or frequent tripping.
5. Train your team on safe power management and schedule routine maintenance.

Color-coded PDUs help you organize different power feeds, making it easier to balance loads and avoid mistakes. Intelligent power distribution units with monitoring features can alert you if one circuit gets overloaded. By following these steps, you keep your server rack running smoothly and reduce downtime.

Advanced Features in Rack PDUs

Remote Monitoring and Control

You can improve your rack pdu setup by choosing models with remote monitoring and control. This feature lets you check power usage and control outlets from anywhere. You get real-time data on current, voltage, and load. If a problem happens, you receive alerts right away. NBYOSUN’s Smart PDU offers remote monitoring at both the unit and outlet level. You can turn devices on or off without being in the server room. This helps you fix issues quickly and avoid downtime. In data centers, remote monitoring makes it easy to manage many racks at once. You save time and keep your equipment safe.

Overload and Surge Protection

Overload and surge protection are key features in any rack pdu. Overload protection stops the flow of electricity if your equipment draws too much power. This prevents overheating and damage. Surge protection shields your devices from sudden voltage spikes. These spikes can come from lightning or power grid changes. If you use a rack pdu with strong surge protection, you lower the risk of fire and equipment failure. NBYOSUN’s 19 inch 8way French socket switch overload rack PDU includes both overload and surge protection. The unit uses a resettable circuit breaker and a sturdy aluminum case. You get peace of mind knowing your devices are safe from electrical faults. Surge protection also helps you avoid costly downtime in data centers.

• Surge protection prevents voltage spikes from damaging your equipment.
• Overload protection shuts off power during faults, reducing fire hazards.
• High-quality rack pdu models with certifications like CE and UL offer reliable defense against power problems.

Environmental Sensors

Environmental sensors in smart rack pdu models help you keep your equipment healthy. These sensors track temperature, humidity, airflow, and even water leaks. If the temperature rises too high or humidity gets out of range, you get an alert right away. This lets you act before your equipment fails. Basic rack pdu models do not have these sensors, so you must use extra tools that may not respond fast enough. NBYOSUN’s Smart PDU includes built-in environmental sensors for real-time monitoring. You can spot hot spots, prevent thermal leaks, and avoid downtime. In data centers, these sensors help you maintain the right environment for your servers.

• Environmental sensors monitor temperature, humidity, airflow, and more.
• Real-time alerts let you fix problems before they cause equipment failure.
• Smart rack pdu models with sensors help you reduce downtime and extend equipment life.

Tip: Choose a rack pdu with advanced features like remote monitoring, surge protection, and environmental sensors to keep your rack setup safe and efficient.

Reliability and Support

Certifications and Quality

When you choose a rack PDU, certifications matter. They show that the product meets strict safety and quality standards. You should look for these key certifications:

• UL (Underwriters Laboratories): This certification means the PDU passed tough tests for electrical safety and fire resistance. UL standards like UL 60950-1 help protect your equipment from electrical hazards.
• CE (Conformité Européenne): This mark shows the PDU meets health, safety, and environmental rules in the European Union.
• RoHS (Restriction of Hazardous Substances): This ensures the PDU does not contain dangerous materials like lead or mercury.
• CSA (Canadian Standards Association): This certification focuses on electrical safety and environmental performance, especially for Canadian and international markets.

NBYOSUN holds ISO9001, CE, UL, and RoHS certifications. These prove that NBYOSUN’s rack PDUs meet global standards for safety, quality, and environmental care. You can trust these products in critical environments like data centers and telecom rooms.

Brand Reputation

Brand reputation in the rack PDU industry depends on several factors. You want a company that leads in technology and offers reliable products. NBYOSUN stands out as a trusted supplier to major telecom companies and tech brands. Here are some reasons why:

• Innovation and advanced features, such as real-time monitoring and energy optimization.
• A wide range of customizable PDUs for different needs.
• Strong customer feedback and proven reliability.
• Global reach with support for many regions and industries.
• Focus on sustainability and energy efficiency.

NBYOSUN’s reputation comes from years of serving clients like China Mobile, Lenovo, and Schneider. The company’s commitment to quality and innovation helps you keep your systems running smoothly.

Customer Support

Good customer support gives you peace of mind. NBYOSUN offers a 12-month warranty on many rack PDU models, including the 19 inch 8way French socket switch overload rack PDU. This warranty covers defects and ensures you get help if something goes wrong. Here is how NBYOSUN’s warranty compares to other brands:

You also get technical support and guidance from NBYOSUN’s team. Fast response times and expert help mean you can solve problems quickly and keep your rack setup reliable.

Future-Proofing Your Rack PDU

Scalability

You want your rack PDU to support your IT environment as it grows. Scalability means your power distribution can handle more devices and higher demands without major changes. Look for these features in a scalable PDU:

• High power quality for smooth expansion and easy integration of new equipment.
• Intelligent PDUs with outlet-level control, environmental monitoring, and remote management.
• Real-time alerts that help you spot issues before they cause downtime.
• Integration with Data Center Infrastructure Management (DCIM) systems for better monitoring and automation.
• Compact, rack-mounted designs that save space and support high-density deployments.
• Multiple outlets and versatile connectivity for growing device counts.

These features let you add servers or network devices without worrying about power limits. You can manage your setup from anywhere, balance loads, and keep your data center running efficiently.

Customization Options

Every IT environment is different. Customization helps you match your PDU to your exact needs. You can choose from many options:

• Special enclosures with extra or custom-sized port openings.
• Metal or non-metal mounting plates for different applications.
• Pre-installed equipment for quick setup.
• Adjustable thermostat settings and insulation for harsh conditions.
• Digital labeling and OEM branding for easy identification.
• Accessories like mounting kits, filters, and vents to update existing racks.
• High Density Outlet Technology (HDOT) for more outlets in less space.
• Hybrid outlets that fit different cable types.
• Locking features to prevent accidental unplugging.
• Custom voltage settings and transformers for unique power needs.

These options make your PDU more reliable and flexible. You can upgrade equipment or change layouts without replacing your whole power system.

Budget and Value

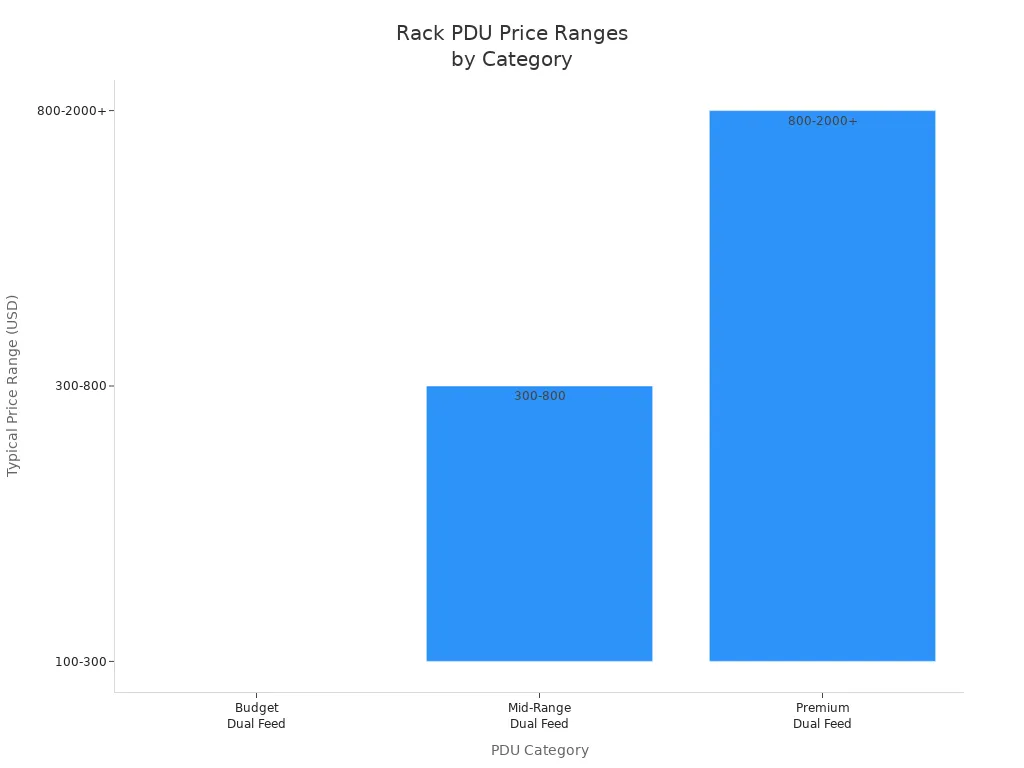

You need to balance cost with long-term value. Rack PDUs come in different price ranges, each with its own benefits:

Intelligent PDUs cost more at first, but they help you plan power use, control devices remotely, and spot problems early. These features save money over time by reducing downtime and energy waste. When you invest in advanced PDUs, you prepare your rack for future growth and changing business needs.

Choosing the right rack pdu involves several important steps:

1. Assess your total power needs, including future growth, to avoid overloads.
2. Match your rack pdu to your equipment layout and select the right mounting style and outlet types.
3. Prioritize advanced features like remote monitoring, overload protection, and environmental sensors.
4. Select certified brands with strong support and proven reliability.

Explore NBYOSUN’s rack pdu solutions for certified, customizable options. Visit their website or contact their team for expert advice and a complete pdu buying guide.

FAQ

What is a rack PDU and why do you need one?

A rack PDU distributes power to multiple devices in your server rack. You need a rack PDU to keep your equipment powered safely and efficiently. It helps prevent overloads and supports organized cable management.

How do you choose the right PDU for your rack?

You should check your equipment’s total power needs. Pick a PDU with enough outlets and the right plug types. Look for features like overload protection, remote monitoring, and certifications such as CE or UL.

What is the difference between basic and smart PDUs?

A basic PDU only supplies power. A smart PDU lets you monitor power use, control outlets remotely, and track environmental data. Smart PDUs help you manage energy and prevent downtime.

Can you install a rack PDU yourself?

Yes, you can install most rack PDUs yourself. Always follow the manufacturer’s instructions. Make sure you turn off the power before installation. Use the correct mounting hardware for your rack.

Why do certifications like CE and UL matter for PDUs?

Certifications like CE and UL show that your PDU meets strict safety and quality standards. These marks mean the PDU passed tests for electrical safety, fire resistance, and environmental care. You get peace of mind and better protection for your equipment.
