Finding the Perfect Basic PDU for Your Data Center Setup

Choosing the right basic pdu for your data center is important. It can stop expensive downtime. It helps your equipment work well. Power distribution problems cause more than half of outages. You can see this in the table below:

You should use simple steps when reading a pdu buying guide. The right basic pdu helps your equipment work all the time. It lets your data center grow in the future. It also keeps your money safe. Always think about safety, if your equipment fits, and what you will need later.

Key Takeaways

• Pick a basic PDU that fits your equipment’s voltage and power needs. This helps your data center work well.

• Think about the future. Choose a PDU with enough outlets and extra power. This stops you from needing expensive upgrades later.

• Use vertical mounting to save rack space and add more outlets. Use horizontal mounting if you want easy access in small setups.

• Get a PDU with surge and overload protection. This keeps your equipment safe from power spikes and stops downtime.

• Check your PDU often and keep cables tidy. This helps keep your data center safe and working well.

What Is a Basic PDU

Definition

A basic PDU is a simple tool for sharing electricity. It sends power to many devices in your data center. You can think of it like a strong power strip. It takes power from one place and gives it to several outlets. Basic PDUs do not have monitoring or remote control. They only give safe and steady power to your equipment.

• Basic PDUs are good if you want to save money.

• They are great for small businesses or easy setups.

• You get regular outlets for your devices.

• Basic PDUs do not have surge protection or smart features.

• Their main job is to give power to many devices in a rack.

If you want remote control, you should pick intelligent PDUs. For most simple setups, a basic PDU is enough and not hard to use.

Importance in Data Centers

You need a basic PDU to keep your data center working well. It makes sure your servers and other devices get the power they need. People who run data centers use basic PDUs to stop downtime and problems.

• Basic PDUs give steady and nonstop power.

• They help balance power and protect against surges.

• The right PDU helps you keep your equipment running.

• As your data center grows, basic PDUs help you manage power better.

Tip: Picking a basic PDU makes your setup safer and more reliable. It also helps you keep cables neat and your equipment tidy.

A basic PDU is important for any data center that wants to avoid sudden shutdowns. It helps you feel calm and lets you focus on your main work.

Power Requirements

Voltage and Compatibility

You need to match your PDU’s voltage to your equipment and local standards. Most modern IT devices work with voltages from 100V to 250V. This range covers common standards like 120V and 208V in North America, 230V in Europe, and 400V in some large data centers. Many data centers now use 240V because it improves efficiency and reduces wiring costs. Using 240V instead of 120V can make each server 2–3.5% more efficient. This small gain adds up when you have many servers. Always check your equipment’s input and output power requirements before choosing a PDU.

Tip: Higher voltages like 240V or 400V can help you save space and money on wiring.

Load Calculation

You must know how much power your rack will use. Start by listing every device you plan to connect, such as servers, switches, and storage units. Find the power rating for each device, usually on the label or in the manual. Add up all the ratings to get the total. Most devices do not use their full rated power, so you can estimate real power consumption at about 50–70% of the total. Divide this number by your power supply’s efficiency (for example, 92% for an 80 Plus Gold supply). Add extra room for future growth—about 20% is a good rule. This method helps you meet data center requirements and avoid overloads.

1. List all equipment in the rack.

2. Add up the power ratings.

3. Estimate actual power consumption (50–70% of total).

4. Adjust for power supply efficiency.

5. Add a growth factor for future needs.

Redundancy

Redundancy keeps your data center running if something fails. You can use models like N+1, N+2, or 2N. N+1 means you have one extra backup for every main power source. 2N means you double everything, so if one side fails, the other takes over. You should use two PDUs in each rack, each on a different power path. This setup lets your equipment keep working even if one PDU or circuit fails. Uninterruptible power supplies (UPS) and backup generators also help protect against outages.

• Use multiple power paths for each rack.

• Choose redundant PDUs and circuit breakers.

• Test your backup systems often.

Note: Redundancy is key for uptime and safety in any data center.

Mounting Options

Vertical vs Horizontal

When you choose a rack pdu, you need to decide how to mount it. You can pick vertical or horizontal mounting. Each style has its own benefits. Vertical PDUs, also called Zero-U PDUs, mount along the side or rear of your rack. They do not take up any rack units, so you keep more space for servers and switches. Vertical rack pdu models can support up to 60 outlets, which works well for high-density data centers. They help with cable management and keep cables neat. You also get better airflow, which helps your equipment stay cool.

Horizontal rack pdu units mount across the width of your rack. They use 1U or 2U of rack space. These PDUs usually offer 6 to 16 outlets. You can reach the outlets easily because they face the front. This makes them a good choice for smaller setups or when you need quick access. However, horizontal rack pdu options take up valuable rack space, so you have less room for IT equipment.

Here is a quick comparison:

Tip: If you want to maximize space and outlet count, choose a vertical rack pdu. For simple setups, a horizontal rack pdu may be easier to install.

Rack Space

Rack space is valuable in any data center. You want to use every inch wisely. Vertical rack pdu units save horizontal rack units, so you can install more servers and switches. This design also helps with cable management. You can sort and tag cables before you install your rack pdu, which keeps everything organized. Good cable management improves airflow and helps your equipment run cooler.

Horizontal rack pdu units take up 1U or 2U of rack space. This means you have less room for other devices. You should only use horizontal mounting if you have extra space or do not need many outlets. Always check your rack size before you install a rack pdu. Make sure the PDU does not block airflow or make it hard to reach other equipment.

• Vertical rack pdu: Saves rack units, supports more outlets, helps with cable management.

• Horizontal rack pdu: Easy to access, but uses up rack units, best for small setups.

Note: Always plan your rack pdu installation to avoid blocking air vents or making maintenance harder. Good planning keeps your data center safe and efficient.

Outlet Configuration

Number of Outlets

Think about how many outlets you need now and later. The right number helps you add new devices easily. Count all your servers, switches, and other equipment in the rack. Add a few extra outlets for future growth. This way, you will not need to change your rack pdu when you get more devices.

The way you mount your rack pdu changes how many outlets you get. A vertical rack pdu can fit more outlets than a horizontal one. This saves rack space and works well for setups with lots of devices. You should also look at how much power your devices use. Pick a rack pdu that can handle the load and has at least 20% extra capacity. This keeps your equipment safe from getting too much power.

Here is a table to help you choose:

Tip: Always plan for more outlets than you need. It is better to have extra than not enough.

Outlet Types

Rack pdus have different outlet types. The most common ones are IEC320 C13 and C19 outlets. C13 outlets power servers, storage devices, and network switches. C19 outlets work for bigger equipment like large servers or special switches. Most basic rack pdu models have 21 to 36 C13 outlets and 6 to 12 C19 outlets.

Here is a table showing outlet types and what they power:

This setup lets you use different devices. Always check your equipment’s plugs before you pick a rack pdu. Matching the right outlet types makes sure every device gets power.

Note: Picking the right outlet setup makes your rack pdu work better and last longer. You can use many kinds of equipment without changing your rack pdu.

Power Distribution Unit Features

Surge and Overload Protection

You want your data center to be safe and work well. Surge and overload protection in a power distribution unit helps with this. Surge protection uses special parts like MOVs and TVS. These parts act fast when voltage spikes happen. MOVs change from blocking to letting electricity flow, sending extra voltage to the ground. TVS diodes stop high voltage very quickly, keeping equipment safe. Some MOVs have fuses that break if they get too hot, which lowers fire risks.

Overload protection uses circuit breakers and thermal fuses. These parts cut power if too much current flows or if things get too hot. This keeps your equipment safe and helps stop fires. Multistage protection gives your data center steady power and less downtime. Many power distribution units have safety certifications like ISO9001, CE, and UL. You can trust these units to keep your data center working well.

• Surge protection stops dangerous voltage spikes.

• Overload protection cuts power if things get unsafe.

• Multistage systems keep your equipment safe and running.

Tip: Always pick a power distribution unit with surge and overload protection for important setups.

Build Quality

A good power distribution unit needs to be strong. Look for units made from tough materials like metal. Metal units last longer and do not break easily, even in busy places. Good units have safety features like surge protection, overload prevention, and leakage protection. Lights or screens show you the voltage and current, so you can check power easily.

Certifications like ISO9001, UL, CE, and RoHS mean the unit is safe and follows rules. Companies like YOSUN use good machines and strict checks to make sure each unit works well and lasts.

Note: Strong build quality means fewer problems and better performance.

Scalability

Your data center will get bigger over time. You need a power distribution unit that can grow with it. Modular rack-mountable units let you add more parts without stopping work. You can connect up to 64 units with one IP address. Hot-swappable parts let you upgrade or fix things without turning off power.

Flexible designs let you change voltage and outlets after you install them. Small modular units save rack space, which is good for crowded racks. Connecting with DCIM platforms helps you plan and grow easily.

• Modular designs make it easy to add more units.

• Hot-swappable parts let you upgrade without stopping.

• Daisy-chaining helps you manage more power.

• Flexible setups fit new needs.

Tip: Choose a scalable power distribution unit to help your data center grow and stay reliable.

Choosing a Basic PDU

Step-by-Step Checklist

You need a good plan for your data center’s power. The right choice starts with careful steps. This checklist helps you make smart choices and avoid mistakes. This pdu buying guide shows what is most important.

1. Check Your Voltage
   Find out the voltage in your area and rack. Make sure your basic pdu matches your equipment and local rules.

2. Calculate Power Needs
   Add up the power use of all your devices. Think about adding more devices later. This helps stop overloads and keeps things working.

3. Select Input Plug Type
   Look at your circuits, phase, and amperage. Pick the right input plug for your rack.

4. Count Devices and Outlets
   Write down every device you will connect. Choose outlet types and numbers that fit your needs. Add extra outlets for new gear.

5. Decide on Features
   Ask yourself what features you need when picking a pdu. Some setups only need basic power. Others may need monitoring or switching.

6. Choose Mounting Style
   Pick horizontal, vertical, or both mounting styles. Think about rack space, cord length, and how outlets hold plugs.

7. Review Advanced Options
   Think about things like environmental monitoring or color coding. These features help with safety and make management easier.

Tip: Avoid mistakes like messy cables or picking the wrong size. Use two PDUs with dual bus architecture for better safety.

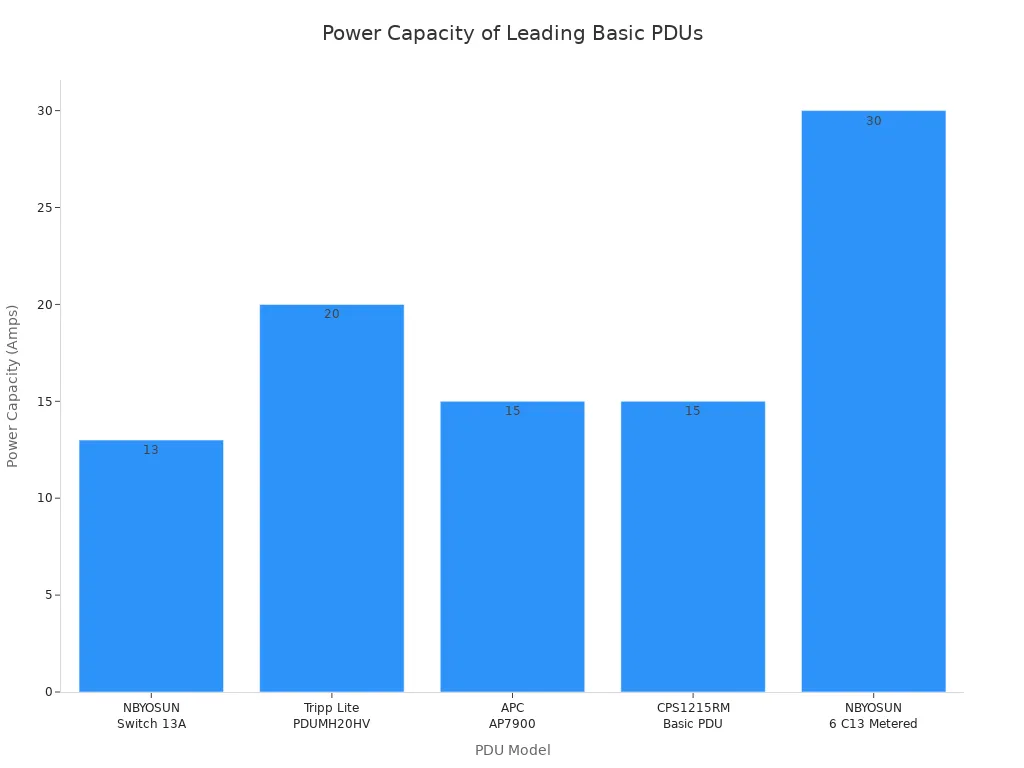

Comparison Table

You should compare different models before buying. Look at features, safety, and price. This table shows how top brands compare. You can see which ones are most reliable.

Entry-level PDUs are good for small setups. They give simple power and cost less money. Premium basic PDUs have more features, like monitoring and remote control. These are best for big data centers and important places. Always pick what fits your needs, not just the lowest price.

Note: Keep your PDU working well with regular checks and good planning. Train your team and look at your system often.

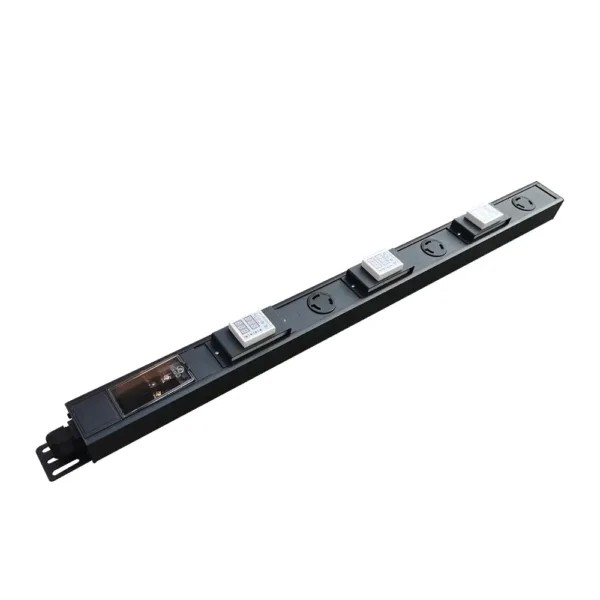

YOSUN Basic PDU Solutions Overview

If you want a rack pdu that is simple and works well, YOSUN is a good choice. It gives steady power without making things hard to use. YOSUN basic pdus are like strong power strips with many outlets for your gear. You do not need to worry about checking or controlling them from far away. This makes it easier for people running data centers and helps stop mistakes.

Some things you get with a YOSUN rack pdu:

• You can pick different outlet setups, like C13 and C19, for many devices.

• There are different voltage and current choices to fit what you need.

• Surge and overload protection is built in to keep things safe.

• They use good materials, like copper alloy wires and covers that do not burn easily.

• The design lets you add or change parts without trouble.

• Certifications like ISO9001, CE, and UL help you feel safe.

YOSUN rack pdu units follow tough safety and quality rules. These certifications help your data center follow the law and lower risks.

YOSUN has been making these for over 20 years. You can use their rack pdu in places like IT, hospitals, factories, and mines. Many people say they save up to 20% on energy and have less downtime. You also get good safety, like circuit breakers and overload stops, to protect your stuff.

You can put a YOSUN rack pdu up and down or sideways in your rack. This helps you save space and keep things neat in your data center. The price is good for both small and big setups. When you pick YOSUN, you get safety, good use of power, and steady power for your important systems.

Picking the right basic PDU helps your data center stay safe and ready to grow. You should:

1. Find out how much power you need and what outlets you use.

2. Choose a PDU with good safety parts and trusted certifications.

3. Think about the future and pick one that can grow with you.

4. Keep cables neat and check things often to stop problems.

5. Talk to experts like YOSUN if you have special needs.

Good planning and help from experts can stop downtime. This keeps your equipment working well. Make smart choices so your data center is always reliable.

FAQ

What is the main job of a basic PDU in a data center?

A basic PDU gives power to many devices in your rack. It helps you keep your servers, switches, and storage running. You use it to make sure each device gets the right amount of electricity.

How do you choose the right outlet types for your equipment?

Check the plugs on your servers and network gear. Most use C13 or C19 outlets. Make a list of your devices. Pick a PDU with matching outlets. This step helps you avoid power problems.

Why is surge protection important for your data center?

Surge protection keeps your equipment safe from sudden voltage spikes. These spikes can damage servers and cause downtime. A PDU with surge protection helps you avoid costly repairs and keeps your data safe.

Can you install a basic PDU both vertically and horizontally?

Yes, you can. Vertical mounting saves rack space and fits more outlets. Horizontal mounting gives you easy access to outlets. Choose the style that fits your rack and your needs best.

How often should you check your PDU for problems?

You should check your PDU every month. Look for loose cables, hot spots, or signs of wear. Regular checks help you catch issues early and keep your data center running smoothly.
