How to Choose the Right PDU for Your Server Cabinet

Reliable power distribution is the backbone of any server cabinet. Choosing the right server cabinet PDU ensures your equipment operates efficiently and avoids costly downtime. However, IT professionals often face challenges like determining power requirements, selecting the right outlet configuration, and deciding whether monitoring capabilities are essential. For example, basic PDUs provide simple power distribution, while managed PDUs offer advanced features like real-time monitoring, adding complexity to the decision-making process.

Your specific needs, such as the number of outlets or environmental conditions, play a critical role in this selection. NBYOSUN, with over 20 years of expertise, delivers high-quality solutions tailored to meet these demands. Their PDUs combine durability, safety, and innovation, ensuring your server cabinet operates seamlessly.

Understanding Power Requirements for Your Rack PDU

Single-Phase vs. Three-Phase Power Distribution Units

When selecting a power distribution unit, understanding the difference between single-phase and three-phase systems is crucial. Single-phase systems operate at 230V and require more wiring, making them suitable for smaller setups with lower power needs. In contrast, three-phase systems deliver 415V, offering higher efficiency and power transfer capabilities. This makes them ideal for high-density server racks.

While three-phase systems may have a higher initial cost, their efficiency leads to long-term savings. They also reduce the need for additional wiring, which is essential for modern server cabinets with growing power demands.

Calculating Power Consumption for Server Cabinets

Accurately calculating your server cabinet’s power consumption ensures you select a rack PDU that meets your equipment’s needs. Start by checking the nameplate ratings on your devices, which provide the connected load figure. You can also use online calculators to estimate power consumption based on your server configurations. For real-time accuracy, consider using intelligent power distribution units with monitoring capabilities.

Typical power consumption varies by cabinet size. Small cabinets consume 3.5 to 5 kW, medium ones range from 7.5 to 10 kW, and large cabinets can reach up to 20 kW or more for high-performance setups.

Matching PDU Capacity to Your Equipment Needs

Matching the PDU’s capacity to your equipment’s power needs is essential for reliable operation. First, determine whether your setup requires single-phase or three-phase power. Then, calculate the total power consumption of all connected devices to ensure it stays below the PDU’s maximum output capacity. Finally, verify that the rack power distribution unit has enough outlets to accommodate your current and future equipment.

By carefully assessing these factors, you can select a server cabinet PDU that ensures efficient power distribution and supports your data-driven operations.

Choosing the Right Outlet Types and Configurations

Common Outlet Types (e.g., IEC C13, C19) in Rack Power Distribution Units

Understanding outlet types is essential when selecting a power distribution unit. The most common outlet types in rack PDUs include IEC C13 and C19 connectors. These outlets differ in power capacity and usage scenarios, making it important to match them with your equipment’s requirements.

C13 connectors are ideal for low-power devices like laptops, desktops, and monitors. On the other hand, C19 connectors are designed for high-power applications, such as servers and data centers. By choosing the right outlet type, you ensure efficient power delivery and avoid compatibility issues.

Plug Compatibility with Your Equipment

Ensuring plug compatibility between your rack PDU and equipment is critical for reliable operations. Follow these steps to verify compatibility:

1. Recognize Power Demands: Assess the power requirements of all connected devices.
2. Check Adaptability: Confirm that your devices match the voltage and current ratings of the PDU outlets.
3. Load Limit: Ensure the total load on any outlet does not exceed its amperage rating.
4. Proper Connections: Verify that each plug fits securely into the appropriate outlet type, such as C19 or NEMA 5-15R.
5. Safety Measures: Confirm that all connections comply with electrical codes and standards.

By addressing these considerations, you minimize the risk of overloading and ensure a stable power supply for your server rack.

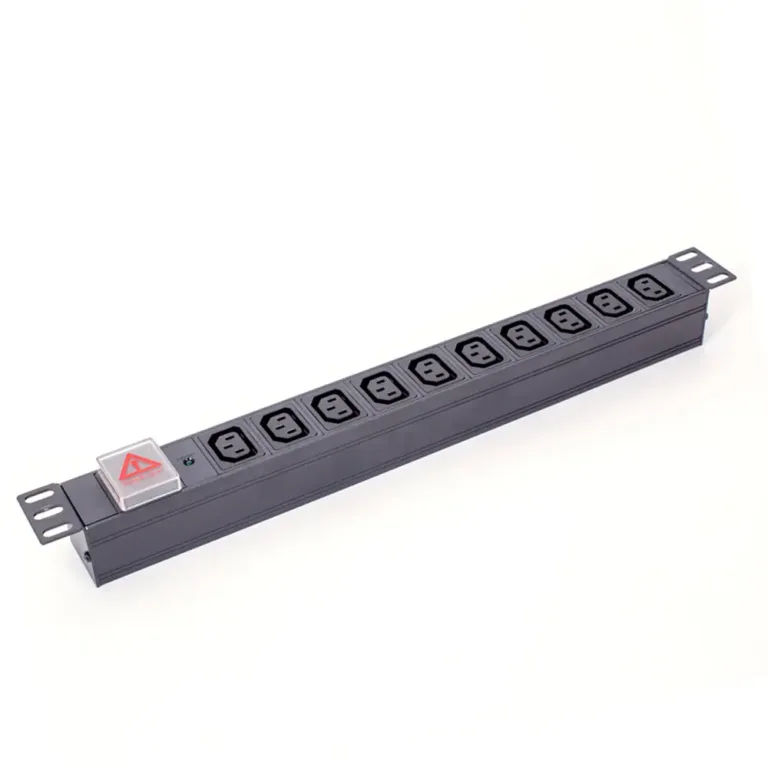

Planning for Scalability with NBYOSUN’s IEC c14 c13 16a Server Rack PDU

Planning for scalability is vital when selecting a server cabinet PDU. NBYOSUN’s IEC C14 C13 16A Server Rack PDU offers a future-proof solution for growing IT infrastructures. Its ten widely spaced C13 outlets accommodate multiple devices, while its robust aluminum alloy construction ensures durability.

Scalability provides several benefits:

• It allows the PDU to handle increased power demands as your IT infrastructure expands.
• It eliminates frequent replacements, saving time and money.
• It supports future technologies, maintaining efficiency and reliability.

NBYOSUN’s PDU ensures uninterrupted power distribution, even in high-density server environments. Its customizable features, such as cable specifications and shell colors, make it adaptable to your specific needs. By choosing a scalable PDU, you prepare your server rack for future growth without compromising performance.

Exploring Mounting Options for Server Cabinet PDUs

Horizontal Mounting for Compact Server Cabinets

Horizontal mounting is a practical choice for compact server cabinets with limited vertical space. These rack PDUs are installed across the width of the cabinet, typically occupying 1U or 2U of rack space. This configuration allows you to maintain easy access to power outlets while keeping the cabinet organized.

Horizontal PDUs work well in environments where equipment density is low, and power requirements are moderate. They are ideal for smaller setups, such as branch offices or small server rooms, where space constraints make vertical mounting less feasible. Additionally, their placement ensures that cables remain neatly managed, reducing the risk of tangling or accidental disconnections.

When selecting a horizontally mounted PDU, ensure it provides sufficient outlets to meet your current and future needs. NBYOSUN’s customizable options allow you to tailor the PDU to your specific requirements, ensuring efficient power distribution in compact setups.

Vertical Mounting for High-Density Racks

Vertical mounting is the preferred option for high-density server racks in data centers and enterprise environments. These PDUs are installed along the side or rear of the cabinet, maximizing the available rack space for equipment.

Vertical PDUs offer several advantages:

• They provide more outlets, accommodating a larger number of devices.
• Their design handles greater heat loads, ensuring reliable performance in demanding conditions.
• They save space, making them ideal for modern data centers with limited room.
• VerticalStack PDUs triple the power capacity in a compact 72-inch format, enhancing power density.
• They improve accessibility, allowing you to easily manage cables and access racked equipment.

This configuration supports the growing power demands of high-performance servers and networking equipment. By choosing a vertical PDU, you can optimize power distribution while maintaining a clean and efficient rack layout.

Selecting the Best Mounting Option for Your Rack Size

The size of your server cabinet plays a critical role in determining the best mounting option. For smaller cabinets, horizontal mounting offers a straightforward solution that balances accessibility and organization. In contrast, vertical mounting is better suited for larger racks with high-density equipment.

Consider the following factors when making your decision:

1. Rack Dimensions: Measure the available space to ensure the PDU fits without obstructing other components.
2. Power Requirements: Evaluate the number of devices and their power needs to select a PDU with adequate capacity.
3. Future Growth: Plan for scalability by choosing a PDU that can support additional equipment as your infrastructure expands.

NBYOSUN’s server cabinet PDU solutions cater to various mounting preferences, offering flexibility and reliability for any setup. Whether you need a horizontal or vertical configuration, their products ensure seamless power distribution tailored to your needs.

Evaluating Advanced Features in Rack Power Distribution Units

Benefits of Metering and Monitoring Capabilities

Modern rack PDUs with metering and monitoring capabilities offer significant advantages for managing power distribution. These features allow you to track power consumption in real time, enabling better energy management and operational efficiency.

Key Benefits:

1. Identify Underutilized Resources: Monitoring tools help pinpoint devices consuming less power than expected, allowing you to optimize resource allocation.
2. Reduce Energy Waste: By analyzing power usage patterns, you can eliminate inefficiencies and lower energy costs.
3. Allocate Power Effectively: Real-time data ensures that power is distributed where it is needed most, preventing overloads.

Additional benefits include load balancing, threshold alerts, and insights into energy efficiency. These features enhance reliability by proactively addressing potential issues. Intelligent PDUs also support sustainability goals by reducing your carbon footprint and cutting energy bills.

Remote Management Features in Smart PDUs

Smart PDUs equipped with remote management capabilities revolutionize how you handle power distribution. These features allow you to monitor and control power usage without being physically present, saving time and resources.

Advantages of Remote Management:

• Quick Response to Issues: Address power-related problems immediately, minimizing downtime.
• Real-Time Monitoring: Gain insights into power usage trends, helping you optimize resource allocation.
• Precise Control: Manage power cycles remotely, ensuring efficient operations and reducing manual intervention.

These capabilities are particularly valuable in large-scale server rack environments, where physical access to equipment may be limited. By leveraging remote management, you can maintain operational efficiency and ensure uninterrupted power distribution.

Why Intelligent PDUs Are Essential for Modern Data Centers

Intelligent PDUs have become indispensable in today’s data-driven environments. They provide advanced features that go beyond basic power distribution, ensuring optimal performance and reliability in modern data centers.

Key Reasons to Choose Intelligent PDUs:

• Enhance power management by offering real-time monitoring and advanced reporting.
• Improve energy efficiency, reducing operational costs and supporting sustainability initiatives.
• Minimize downtime through proactive maintenance and early issue detection.
• Enable capacity planning, ensuring resources are utilized effectively and future growth is supported.
• Monitor environmental factors like temperature and humidity, preventing overheating and equipment failure.

These PDUs also adapt to the dynamic needs of data centers, accommodating rapid changes in infrastructure. Their ability to provide insights into IT power consumption and maintain high availability makes them a critical component of any modern server rack setup.

By investing in intelligent PDUs, you gain long-term benefits such as enhanced reliability, reduced downtime, and improved energy efficiency. These features ensure your data center operates at peak performance while meeting evolving industry demands.

Step-by-Step Guide to Select the Right Rack PDU

Assess Your Power Requirements

Understanding your power needs is the first step in selecting the right rack PDU. Begin by evaluating the total power consumption of all devices in your server cabinet. Check the nameplate ratings on each device to determine their voltage and current requirements. For a more precise calculation, consider using tools like online power calculators or intelligent PDUs with real-time monitoring capabilities.

Next, decide whether your setup requires single-phase or three-phase power. Single-phase systems are ideal for smaller setups, while three-phase systems handle higher power loads efficiently, making them suitable for high-density environments. Ensure the PDU’s capacity exceeds your total power consumption to prevent overloading and allow for future expansion.

Identify the Necessary Outlet Types

Matching the outlet types of your rack PDU to your equipment is critical for seamless power distribution. Most server cabinets use IEC C13 and C19 outlets, which cater to different power demands. C13 outlets are suitable for low-power devices like monitors and desktops, while C19 outlets support high-power equipment such as servers and networking devices.

To ensure compatibility, verify that your devices’ plugs match the PDU’s outlets. Consider the number of outlets required to accommodate all your equipment, including any future additions. For example, NBYOSUN’s IEC C14 C13 16A Server Rack PDU offers ten widely spaced C13 outlets, providing flexibility for various setups. This ensures your PDU meets both current and future needs without requiring frequent replacements.

Choose the Appropriate Mounting Option

Selecting the right mounting option depends on your server cabinet’s size and layout. Horizontal mounting works best for compact cabinets with limited vertical space. These PDUs typically occupy 1U or 2U of rack space and provide easy access to outlets, making them ideal for smaller setups.

For high-density racks, vertical mounting is the preferred choice. Vertical PDUs maximize rack space by running along the side or rear of the cabinet. They offer more outlets, handle higher power loads, and improve cable management. This configuration is perfect for data centers and enterprise environments where space and efficiency are priorities.

When choosing a mounting option, consider the following:

• Where will you install the PDU?
• What type of power supply does your equipment require?
• How many outlets do you need?
• What kind of receptacles match your devices?
• Do you need additional features like monitoring or remote management?

By addressing these questions, you can select a PDU that aligns with your power needs and enhances the efficiency of your server cabinet.

Decide on Advanced Features Like Monitoring and Remote Management

When selecting a rack PDU, advanced features like monitoring and remote management can significantly enhance your server cabinet’s efficiency and reliability. These features provide valuable insights into power usage and allow you to manage operations proactively.

Modern PDUs offer several advanced capabilities that you should prioritize:

• Metered PDUs display power consumption metrics locally, helping you track current flow and identify inefficiencies.
• Monitored PDUs connect to networks, enabling remote monitoring and sending alerts for potential issues.
• Switched PDUs allow you to control individual outlets remotely, providing the ability to power cycle devices without physical access.

Real-time energy usage monitoring is another critical feature. It helps you analyze data trends, optimize resource allocation, and reduce energy waste. Remote power control capabilities further streamline operations by allowing you to address power-related issues instantly, minimizing downtime. These features collectively improve operational efficiency and ensure uninterrupted power distribution.

For high-density environments, intelligent PDUs with advanced monitoring tools are indispensable. They provide detailed power monitoring at both the unit and outlet levels, offering granular data to support capacity planning. By integrating these features, you can enhance your server cabinet’s performance and prepare for future growth.

Verify Compatibility with Your Server Cabinet and Equipment

Ensuring compatibility between your rack PDU and server cabinet is essential for seamless integration. Begin by evaluating the physical dimensions of your cabinet. Verify that the PDU fits within the available space, whether you choose a horizontal or vertical mounting option. For example, vertical PDUs work well in high-density racks, while horizontal PDUs suit compact setups.

Next, confirm that the PDU’s outlets match your equipment’s plug types. Most server cabinets require IEC C13 and C19 outlets, which accommodate a wide range of devices. Check the voltage and current ratings of your equipment to ensure they align with the PDU’s specifications. Overloading an outlet can lead to equipment failure, so always verify that the total load remains within safe limits.

Additionally, consider the PDU’s scalability. A scalable PDU, like NBYOSUN’s IEC C14 C13 16A Server Rack PDU, supports future expansion by offering ample outlets and robust construction. This ensures your power distribution system remains reliable as your IT infrastructure grows.

By addressing these compatibility factors, you can select the right rack PDU that meets your current needs while accommodating future demands.

Selecting the right rack PDU is essential for ensuring reliable power distribution in your server cabinet. Key factors to consider include:

• Evaluating power requirements to match your equipment’s consumption.
• Choosing outlet types like IEC C13 or C19 based on device compatibility.
• Deciding between horizontal or vertical mounting options to optimize rack space.
• Prioritizing advanced features like real-time monitoring and remote management for operational efficiency.

Reliable power distribution also depends on practices like using redundant power feeds, maintaining effective grounding systems, and conducting regular inspections to prevent downtime.

NBYOSUN stands out by offering customizable solutions tailored to your needs. Their PDUs combine real-time monitoring, remote management, and environmental sensors to protect your equipment.

Start by assessing your equipment needs and exploring NBYOSUN’s product range. Their solutions ensure your server cabinet operates efficiently, meeting both current and future demands.

FAQ

What is the difference between a basic PDU and a smart PDU?

A basic PDU distributes power without additional features. A smart PDU offers advanced capabilities like real-time monitoring, remote management, and environmental sensors. These features help you optimize energy usage, prevent overloads, and enhance operational efficiency in high-density server environments.

How do I calculate the total power consumption for my server cabinet?

Add the power ratings (in watts) of all connected devices. Use the formula: Power (W) = Voltage (V) × Current (A). For precise data, consider using intelligent PDUs with real-time monitoring to track actual consumption.

Can I use a single-phase PDU in a three-phase power setup?

No, single-phase PDUs are incompatible with three-phase setups. Three-phase systems require PDUs designed to handle higher voltages and currents. Always match the PDU type to your power distribution system to ensure safety and efficiency.

How do I ensure my PDU is compatible with my equipment?

Check the outlet types (e.g., IEC C13, C19) and their current/voltage ratings. Verify that your equipment’s plugs match the PDU’s outlets. Ensure the total load does not exceed the PDU’s capacity to avoid overloading.

Why should I choose NBYOSUN’s PDUs for my server cabinet?

NBYOSUN’s PDUs combine durability, scalability, and advanced features like real-time monitoring and remote management. Their customizable options ensure compatibility with your specific needs, making them a reliable choice for modern server cabinets.
