How to Choose the Perfect 1U PDU for Your Server Rack

A PDU 1U plays a vital role in managing power distribution within your server rack. Choosing the right power distribution unit requires careful consideration of several factors. You need to assess power demands for all connected devices and ensure the PDU supports total consumption without exceeding outlet limits. Matching outlet types to your equipment and verifying stable connections are equally important. Additionally, spare outlets for future expansion and safety measures that meet electrical codes can enhance your setup’s reliability. By addressing these challenges, you can optimize your server rack’s performance and ensure a stable power supply.

Understanding Power Requirements for Your PDU 1U

Single-Phase vs. Three-Phase Power

Key Differences Between Single-Phase and Three-Phase Power

When selecting a power distribution unit, understanding the differences between single-phase and three-phase power is essential. Single-phase power typically supplies up to 230 volts and is suitable for smaller setups. However, it is less efficient and more prone to interruptions. In contrast, three-phase power can handle up to 415 volts and delivers nearly twice the power of single-phase systems without requiring additional conductors. This makes it ideal for high-density environments. Additionally, three-phase systems reduce resistive loss, improving energy efficiency. They also support smoother operation for heavy machinery, which is crucial in demanding server rack setups.

Choosing the Right Phase for Your Server Rack

Your choice between single-phase and three-phase power depends on your server rack’s requirements. Single-phase power works well for smaller setups with low to moderate loads. On the other hand, three-phase power is better suited for high-density computing environments, such as those with GPU-intensive workloads. If your data center uses three-phase power, ensure your PDU 1U is compatible to prevent overloads and maintain reliability.

Calculating Power Consumption

Determining Total Power Draw of Your Equipment

Accurately calculating your equipment’s power consumption ensures your power distribution unit can handle the load. Start by identifying the base power consumption of each device in watts. Include the power usage of CPUs, RAM, and storage devices. Consider the average CPU utilization during normal operations. Tools like watt-hour meters or online power calculators can help you measure or estimate these values. Adding up these figures gives you the total power draw of your server rack.

Importance of Overhead Capacity for Future Growth

Planning for future growth is critical when choosing a PDU. Always leave overhead capacity to accommodate additional equipment or upgrades. For example, if your current setup requires 8 kW, consider a PDU that supports at least 10 kW. This approach ensures your system remains scalable and avoids the risk of overloading.

Voltage and Amperage Considerations

Matching Voltage to Your Equipment

Server rack equipment typically operates at standard voltages of 120 or 208 volts. Ensure your PDU matches the voltage requirements of your devices. For example, a server pulling 8 amps at 208 volts would require a PDU capable of supporting this load. Using the correct voltage prevents equipment damage and ensures stable operation.

Selecting the Right Amperage for Your PDU

Amperage is another critical factor. Most server racks require PDUs with amperage ratings that align with their power needs. For instance, a rack with an average density of 8.4 kW might need a PDU rated for 20 amps. Choosing the right amperage ensures your PDU can handle peak loads without tripping breakers or causing downtime.

Choosing the Right Mounting Orientation for Your Rack Power Distribution Unit

Horizontal vs. Vertical Mounting

Benefits of Horizontal Mounting in 1U Spaces

Horizontal mounting offers several advantages for 1U PDUs in server racks. It makes efficient use of limited space, especially in smaller installations. This orientation ensures easy access to outlets, simplifying the connection and disconnection of devices. Horizontal PDUs also improve cable management by keeping cords organized and reducing clutter. Additionally, this setup enhances airflow within the rack, which helps maintain optimal operating temperatures. Many horizontal PDUs, such as those designed for 1U spaces, support advanced features like remote monitoring and outlet-level control, making them a practical choice for compact server environments.

When to Opt for Vertical Mounting in Larger Racks

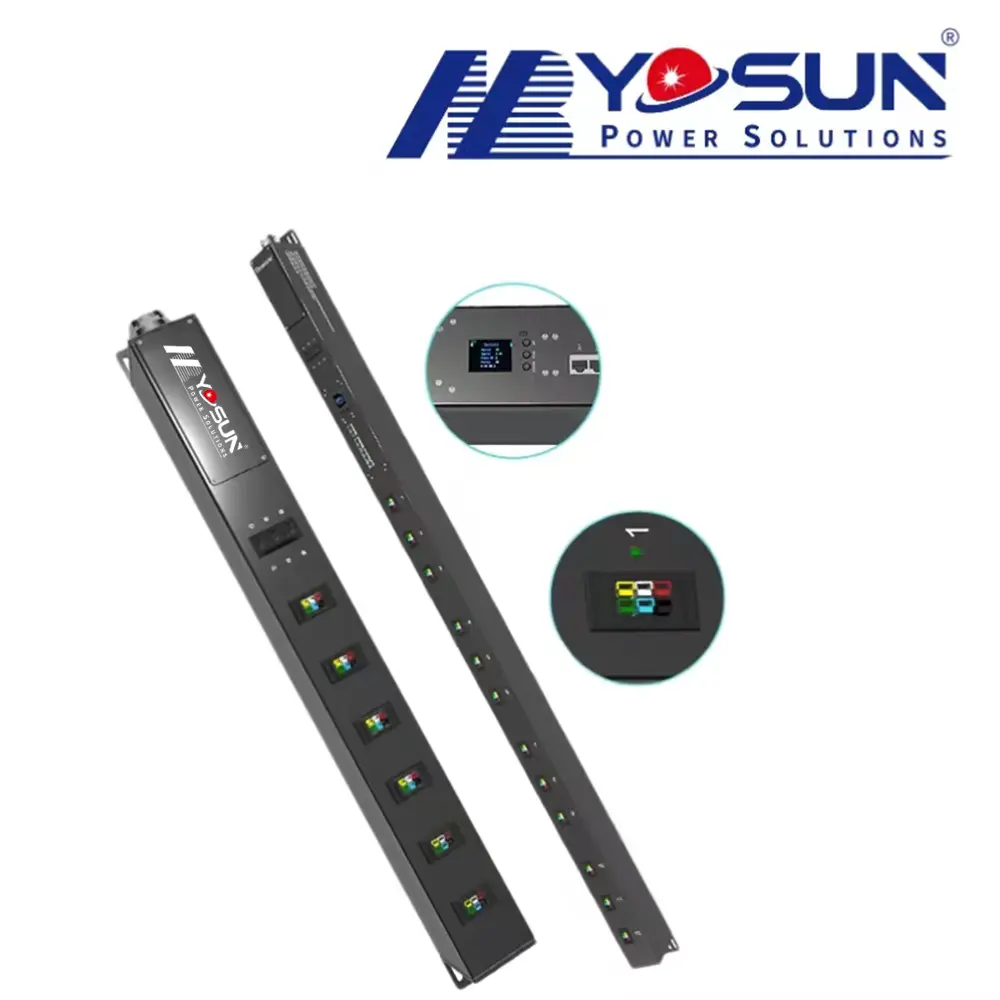

Vertical mounting becomes a better option when dealing with larger server racks or high-density setups. This orientation allows you to maximize the use of vertical space, leaving more room for equipment within the rack. Vertical PDUs often feature a higher number of outlets, which is ideal for racks housing multiple devices. They also provide flexibility in cable routing, helping you maintain a clean and organized setup. If your server rack has sufficient height and requires a higher outlet capacity, vertical mounting can be an efficient solution.

Rack Compatibility

Ensuring the PDU Fits Your Rack’s Dimensions

Before purchasing a rack power distribution unit, verify that its dimensions align with your server rack. Incompatibility issues often arise due to mismatched sizes, which can lead to improper installation or reduced functionality. Consider the physical dimensions of both the PDU and the rack to ensure a seamless fit. Additionally, evaluate the power and cooling requirements of your equipment to avoid performance issues.

Adjusting Mounting Brackets for Flexibility

Many PDUs come with adjustable mounting brackets, allowing you to customize their placement within the rack. This feature provides flexibility, enabling you to position the PDU in a way that best suits your setup. Adjustable brackets also help accommodate racks with non-standard dimensions, ensuring a secure and stable installation. By leveraging this adaptability, you can optimize the layout of your server rack for better accessibility and performance.

Tip: Always check for environmental factors like vibration and floor load when installing your PDU. These elements can impact the reliability of your setup over time.

Selecting the Right Type of PDU Plug and Outlet Configuration

Plug Compatibility

Common Plug Types for Rack Power Distribution Units

When choosing a rack power distribution unit, understanding plug compatibility is essential. In North America, NEMA-style plugs are the most common. These plugs often feature a locking mechanism to ensure secure electrical connections, which is critical in environments with high vibration or movement. IEC-style plugs are also widely used due to their versatility and international compatibility. For specialized applications, such as 50A circuits in data centers, California-style plugs may be necessary. Identifying the plug type that matches your power source ensures a stable and reliable connection for your server rack.

Ensuring Compatibility with Your Power Source

To ensure compatibility, match the PDU’s plug type with your facility’s power infrastructure. Check the voltage and amperage ratings of your power source and verify that the PDU supports these specifications. For example, if your power source uses a 208V circuit, select a PDU with a plug designed for this voltage. This step prevents mismatched connections and ensures uninterrupted power delivery.

Outlet Types and Configurations

Standard Outlet Types (e.g., C13, C19)

PDUs typically feature standard outlet types like C13 and C19, each suited for specific applications. The table below highlights their differences:

C13 outlets are ideal for smaller devices, while C19 outlets handle higher power loads, making them suitable for data centers and high-density server racks.

Choosing the Right Number and Type of Outlets

Selecting the correct number and type of outlets improves efficiency and scalability. Consider these key points:

• Outlet Configuration: A well-planned configuration supports better power management and load balancing.
• Future Needs: Adding 20% more outlets than currently required allows for future expansion.
• Efficiency: High-density outlet technology maximizes rack space and enhances performance.

For example, IEC C13 outlets are versatile and support a wide range of devices, making them a popular choice for server racks.

Future-Proofing Your Setup

Planning for Additional Equipment

Future-proofing your PDU setup ensures long-term reliability. Start by assessing your current IT infrastructure and estimating future growth. Choose a PDU with a higher power capacity than your current requirements to accommodate additional equipment. Including spare outlets also prepares your setup for upgrades without requiring a new PDU.

Selecting a PDU with Versatile Outlet Options, such as NBYOSUN’s IEC c14 c13 16a server rack pdu

A versatile PDU, like NBYOSUN‘s IEC c14 c13 16a server rack PDU, offers flexibility and scalability. With ten widely spaced C13 outlets, it supports various devices and prevents overcrowding. Its robust aluminum alloy construction ensures durability, while compliance with international safety standards guarantees reliable operation. This PDU’s customizable features, such as cable specifications, make it an excellent choice for adapting to evolving needs.

Tip: Surge protectors and circuit breakers in PDUs safeguard your equipment from voltage spikes, enhancing durability and operational performance.

Evaluating Additional Features in a Power Distribution Unit

Metering and Monitoring Capabilities

Benefits of Real-Time Power Monitoring

Real-time power monitoring offers several advantages for managing your server rack’s energy usage. It ensures improved uptime by providing instant alerts and notifications about power issues. You can allocate resources more efficiently by identifying underutilized equipment. Continuous monitoring enhances operational reliability by ensuring a stable power supply. Additionally, tracking energy consumption at the equipment level helps you save on energy costs.

Tip: Use real-time monitoring to proactively address power issues before they escalate, ensuring uninterrupted operations.

Using Metered PDUs to Optimize Power Usage

A metered PDU provides valuable insights into your server rack’s power consumption. It helps prevent overloads by displaying real-time data, allowing you to distribute power evenly across devices. You can also identify power-hungry equipment and manage energy more effectively. Metered outlet PDUs take this a step further by offering device-level monitoring, which aids in cost allocation and capacity planning. These features make metered PDUs an essential tool for optimizing power usage and improving energy efficiency.

Remote Management and Switching

Advantages of Remote Access for IT Teams

Remote management capabilities in modern PDUs simplify power management for IT teams. You can monitor power usage at the PDU level and receive alerts about potential issues. Remote power cycling allows you to reboot servers quickly, minimizing downtime and enhancing productivity. This feature also enables precise control over energy usage, helping you eliminate waste and reduce costs. By integrating remote access, you can ensure critical systems remain operational even during power outages.

Switching Features for Enhanced Control

Switching features in smart PDUs provide enhanced control over your server rack’s power distribution. Outlet-level switching lets you turn individual outlets on or off remotely, improving resource utilization. This capability supports informed capacity planning by identifying available power resources. With these features, you can streamline power management and maintain a reliable setup.

Surge Protection and Safety Features

Protecting Equipment from Power Surges

Surge protection is vital for safeguarding sensitive server equipment. Built-in surge protectors absorb excess voltage, preventing damage during power spikes. High joule ratings, such as 2000 joules, offer robust defense against surges. Thermal fuses add an extra layer of safety by disconnecting power during extreme surges. These features ensure your equipment remains protected in high-risk environments.

Built-In Circuit Breakers for Added Safety

Circuit breakers in PDUs enhance safety by cutting off power when the current exceeds safe limits. This prevents overloads, reducing the risk of fire and equipment damage. By incorporating circuit breakers, you can maintain a secure and reliable power distribution system for your server rack.

Note: Always choose a PDU with integrated safety features to protect your equipment and ensure compliance with electrical standards.

Installation and Maintenance Tips for Your PDU 1U

Positioning the PDU in Your Rack

Best Practices for Horizontal and Vertical Placement

Proper placement of your PDU 1U ensures efficient power management and accessibility. Follow these best practices:

1. Position the PDU where it is easily accessible without obstructing other devices.
2. Use cable mounts to organize wires and minimize clutter.
3. Avoid blocking airflow to maintain optimal cooling.
4. Place the PDU within reach for maintenance and monitoring.
5. Distribute power evenly across multiple PDUs to prevent overloads.

Horizontal PDUs work well in compact setups, offering easy access to outlets and cables. For larger racks, vertical PDUs save space and provide higher outlet capacity. Choose the orientation that best suits your server rack’s layout and equipment needs.

Ensuring Easy Access to Outlets and Cables

Strategic PDU placement simplifies device connections and cable management.

• Vertical PDUs fit along side rails, saving space and improving airflow.
• Horizontal PDUs can be positioned at the top or middle of the rack for convenience.
• Ensure the PDU location allows for proper airflow and prevents overheating.

By optimizing placement, you can maintain efficiency and reduce maintenance challenges.

Cable Management

Organizing Cables to Prevent Clutter

Effective cable management enhances system performance and energy efficiency. Start by planning your cable layout. Route cables along the sides of the rack to avoid interference with airflow. Use separate vertical cable managers for fiber and copper cables if both are present. Document your cable organization to simplify future maintenance.

Using Cable Ties and Labels for Efficiency

Cable ties and labels improve organization and accessibility.

• Group cables with Velcro straps or ties to keep them secure.
• Label both ends of each cable for quick identification.
• Use color-coded cables to differentiate between functions.

These strategies streamline maintenance workflows and improve cooling by reducing clutter.

Regular Maintenance and Safety Checks

Inspecting the PDU for Wear and Tear

Regular inspections ensure your PDU operates reliably. Check for signs of wear, such as frayed cables or loose connections. Replace damaged components immediately to prevent power disruptions. Monitor the PDU’s performance using tools like a metered PDU to identify potential issues early.

Ensuring Proper Ventilation and Cooling

Maintaining proper ventilation prevents overheating and extends the lifespan of your PDU. Keep the area around the PDU free from obstructions. Ensure the rack’s cooling system functions effectively. A smart PDU with environmental monitoring features can help track temperature and humidity levels, ensuring optimal conditions.

Tip: Schedule routine maintenance checks to address minor issues before they escalate, ensuring uninterrupted power management.

Choosing the right power distribution unit for your server rack ensures efficient and reliable power management. Start by understanding your power needs and selecting a PDU 1U that matches your equipment’s requirements. Consider mounting preferences and outlet configurations to optimize your setup. Always plan for future growth to avoid unnecessary upgrades. NBYOSUN’s IEC c14 c13 16a server rack PDU offers a durable and customizable solution. Its versatile design and compliance with safety standards make it a dependable choice for modern server environments.

FAQ

1. What is the difference between a basic PDU and a smart PDU?

A basic PDU distributes power without additional features. A smart PDU offers advanced capabilities like real-time monitoring, remote management, and environmental sensors. These features help you optimize energy usage, prevent overloads, and maintain a stable server environment.

2. How do I calculate the power capacity needed for my PDU?

Add the wattage of all connected devices. Multiply the total by 1.2 to account for overhead capacity. For example, if your equipment uses 2,000 watts, choose a PDU with at least 2,400 watts to ensure scalability and reliability.

3. Can I use a 1U PDU in a vertical orientation?

Yes, but horizontal mounting is more common for 1U PDUs. Vertical mounting works better for larger racks or when you need more outlets. Ensure the PDU fits your rack’s dimensions and supports your equipment’s power requirements.

4. Why are IEC C13 and C19 outlets commonly used in server racks?

IEC C13 and C19 outlets are standard in IT environments due to their compatibility with most server equipment. C13 supports devices with lower power needs, while C19 handles higher loads, making them versatile for various applications.

5. How does NBYOSUN’s IEC c14 c13 16a server rack PDU enhance power management?

This PDU offers ten widely spaced C13 outlets, durable aluminum construction, and compliance with international safety standards. Its customizable features, like cable specifications, make it adaptable to your setup. It ensures reliable power distribution for modern server environments.

Tip: Always choose a PDU that matches your current and future power needs to avoid unnecessary upgrades.
