How to Find the Perfect 6 Way Power Distribution Unit for Your Rack

To find the perfect 6 way power distribution unit, you need to match your server rack’s power needs, equipment compatibility, and desired features. A 6 way power distribution unit lets you safely supply power to multiple devices in your server rack, making it essential for organized and efficient setups. Safety, reliability, and future-proofing matter because:

• Certified equipment like UL or CE reduces risks and ensures compliance.
• Regular monitoring and modular designs help you adapt to growing power demands.
• Reliable power distribution unit choices minimize downtime and protect your equipment.

Choosing the right solution helps you keep your server rack ready for future needs and supports lasting performance.

What Is a 6 Way Power Distribution Unit

A 6 way power distribution unit is a device that lets you supply power to six different pieces of equipment from one source. You often use this unit in server racks, data centers, or network cabinets. It helps you organize your power connections and keeps your setup safe and efficient.

Key Functions

A 6 way power distribution unit does more than just provide outlets. Here are the main functions you should know:

1. Power Capacity and Outlets: You can connect up to six devices at once. The unit handles the total power load, so you do not overload your equipment.
2. Mounting Options and Form Factor: You can mount the unit horizontally in a 19-inch rack. This saves space and keeps your rack tidy.
3. Remote Monitoring and Management: Some units let you check power use and control outlets from a distance. This helps you spot problems early and avoid downtime.
4. Surge Protection and Power Filtering: The unit protects your devices from voltage spikes and electrical noise. Your equipment stays safe and works smoothly.
5. Redundancy and Failover: Some models offer dual power inputs. If one power source fails, the other keeps your devices running.

Tip: Always check the safety features and certifications before you choose a 6 way power distribution unit. Look for units with overload protection and international certifications like CE or RoHS.

Common Applications

You will find a 6 way power distribution unit in many places where organized power management is important. Here is a table that shows typical features and uses:

You can use a 6 way power distribution unit in data centers, server rooms, network closets, and even in audio/video setups. It helps you power servers, switches, routers, and other critical devices. The unit keeps your equipment safe and your rack organized.

Power Needs

Calculating Load

You need to know how much power your rack will use before you choose a power distribution unit. Start by checking the power draw for each device you plan to connect. You can find this information on the equipment label or in the manufacturer’s manual. Use the formula:

Amps × Volts = Watts

Add up the wattage for all devices you want to plug into the rack. This total helps you understand your power requirements. Many racks today use more power than in the past. Some racks need between 10.5kW and 17kVA. You should also think about future needs. If you plan to add more equipment, include that in your calculations.

You can use built-in power meters or smart PDUs to get real-time data. These tools help you spot problems early and avoid overloads. Always check that your power distribution unit can handle the total load. This step keeps your equipment safe and prevents downtime.

Tip: Always leave some extra capacity. Do not run your PDU at full load all the time. This practice helps with safety and future growth.

Voltage and Amperage

You must match the voltage and amperage of your PDU to your equipment and local standards. Most server racks use single-phase or three-phase power. Common voltages include 115 VAC, 208 VAC, and 230 VAC. North America often uses 60 Hz, while Europe uses 50 Hz.

Here is a table with typical industry standards:

Check the current rating for your PDU. Make sure it matches your total load. If you use too many outlets or draw too much current, you risk tripping breakers or damaging equipment. Always follow local codes and safety standards when setting up your rack.

Rack Power Distribution Unit Compatibility

Choosing the right rack power distribution unit for your server rack means checking both mounting options and space requirements. You want a solution that fits your setup and supports your equipment without wasting valuable rack space.

Mounting Options

You can install rack PDUs in several ways. Each method offers unique benefits for your server rack. Here are the most common mounting options:

• Horizontal Mounting: This style places the rack PDU across the width of your rack. It usually takes up 1U or 2U of space. Horizontal mounting works well in smaller racks or when you need easy access to outlets.
• Vertical Mounting: Vertical rack PDUs run along the side or back of your rack. This method saves space because it does not use any rack units (0U). You can fit more equipment in your server rack and keep cables organized.
• Rack-Mount: Rackmount power distribution units attach directly to the rack frame. They reduce cable clutter and make it easier to reach outlets. This setup is popular in dense server environments.
• Wall-Mount: Some rackmount power distribution units can be installed outside the rack on a wall. This option frees up rack space and works well in smaller or custom setups.

Tip: Vertical mounting helps you maximize space in high-density racks. Horizontal mounting gives you quick access to outlets, which is helpful for frequent changes.

Space and Fit

You need to make sure your rack PDU fits your server rack and supports your equipment. Most rack PDUs are designed for standard 19-inch racks. Compact designs help you save space for more critical devices. Proper fit also makes cable management easier and supports high-density setups.

• Vertical rack PDUs mount on the rack rails and do not take up any rack units. This leaves more room for servers and network gear.
• Horizontal rack PDUs use 1U or 2U of space. You might choose this style if you use in-rack UPS systems or need outlets in a specific location.
• The right fit prevents stress on cables and plugs. This reduces the risk of accidental unplugging or damage.
• Think about future growth. Choose a rack power distribution unit that supports the types of plugs you use now and may need later.

Here is a table to help you review key compatibility considerations:

When you select a rack power distribution unit, always check the mounting style, space usage, and fit. This ensures your server rack stays organized, safe, and ready for future upgrades.

Input and Output Types

Plug and Socket Choices

You need to pay close attention to plug and socket choices when selecting a power distribution unit for your rack. Different regions use different plug types, and each type has unique safety features and compatibility requirements. For example, Type A plugs are common in North America, Mexico, and Japan. These plugs come in both polarized and non-polarized versions, each with specific pin shapes and safety designs. Type B plugs add a grounding pin for extra protection and are also widely used in North America and Japan.

Across Europe, you will find the CEE 7 standard, which includes Types C, E, and F. Type C, known as the Europlug, is ungrounded and works well for low-power devices. Type F, or Schuko, provides grounding and is used for higher-power equipment. Many power distribution units offer universal compatibility, allowing you to connect devices with different plug types to the same set of outlets. Some advanced PDUs even feature interchangeable plug heads, making it easy to adapt to new regions or equipment.

Note: Universal adapters and flexible rack PDUs show the real-world need for multiple plug and socket types. These products help you connect your equipment safely and efficiently, no matter where you are.

International Standards

International standards play a big role in how plugs, sockets, and power distribution units are designed. These standards make sure your equipment stays safe and works well in different countries. Here is a table showing some important standards and what they cover:

You will also see standards like BS 4573 and IEC/TR 60083, which set rules for safety and compatibility in domestic and special applications. Power distribution units that follow these standards often include features like surge protection, overload protection, and high-quality outlets. This ensures your equipment meets global safety and environmental requirements.

Technical research shows that power distribution systems can have many input and output types. For example, some systems use unipolar input for cost savings and bipolar output for better reliability. Advanced designs use special circuits to balance loads and improve voltage stability. These innovations help you get stable power from your outlets, even when your rack setup changes or grows.

Essential PDU Features

Surge and Overload Protection

You need to protect your equipment from unexpected electrical problems. Surge and overload protection are two of the most important features in any pdu. Surge protection keeps your devices safe from voltage spikes. Overload protection stops too much current from damaging your equipment or causing fires.

Industry reports show that the demand for surge protection in power distribution units keeps growing. The market reached USD 1.45 billion in 2023 and is expected to grow at over 6.2% each year until 2032. This growth comes from more electronics in use, unstable power grids, and more frequent weather disruptions. Surge protection helps your equipment last longer and work more reliably. You also see new technology trends, such as smart grid integration and bundled power management solutions, making surge protection even more important.

Overload protection is just as critical. The market for overload protection sockets was valued at USD 2.01 billion in 2024 and could reach USD 3.8 billion by 2035. More homes and businesses use electrical devices, so the risk of overloads increases. Overload protection in a pdu reduces the risk of fires and equipment damage. It also meets strict safety standards set by groups like the IEC.

Here is a table that summarizes key industry findings:

Tip: Always choose a pdu with both surge protection and overload protection. These features keep your rack safe and your equipment running smoothly.

You should also look for surge protection and power filtering. These features help block electrical noise and keep your devices working at their best. Many intelligent rack pdu models include advanced surge protection and power filtering, giving you peace of mind in busy data centers or server rooms.

Metering and Monitoring

You need to know how much power your equipment uses. Metered pdus give you this information. Power monitoring helps you track energy use, avoid overloads, and plan for future growth. You can see real-time data on the pdu itself or through a secure network.

Metered inlet rack pdus measure power at the entry point. This helps you understand total rack power usage and available circuit capacity. Metered outlet rack pdus go further. They show you power use for each device. This level of detail supports cost allocation and helps you compare efficiency between devices.

Here is a table that explains the main types of metered and monitored pdus:

You benefit from real-time monitoring because you can spot problems before they cause downtime. Power monitoring lets you see trends and make smart decisions about energy use. Metered pdus help you improve energy efficiency and reduce costs. Many intelligent rack pdu models offer individual outlet control, so you can turn devices on or off as needed.

Switched pdus add another layer of control. You can use remote management with switched pdus to reboot devices or shut down unused equipment. This feature supports energy efficiency and helps you recover quickly from outages. Individual outlet control also prevents unauthorized devices from using power, keeping your rack secure.

Note: Real-time monitoring and individual outlet control are essential for modern data centers. These features help you manage power, save energy, and keep your equipment safe.

You should always look for a pdu that supports advanced power monitoring, metered features, and remote management with switched pdus. These capabilities give you the tools you need for effective monitoring and management of your rack environment.

Selecting the Right PDU

Choosing the best PDU for your rack setup means understanding the differences between basic and advanced models, as well as the value of customization. You want a solution that matches your current needs and supports future growth, especially in high-density environments.

Basic vs. Advanced Models

When you select the right rack pdu, you need to decide between basic and advanced models. Each type serves different needs and environments. Here is a table to help you compare:

Basic PDUs focus on delivering reliable power distribution without extra features. You often find these in small offices or temporary setups. They are affordable and easy to install. Metered PDUs add power monitoring, so you can track how much energy your equipment uses. This helps you avoid overloads and plan for future upgrades.

Advanced PDUs, such as monitored and switched models, offer more control and visibility. You can monitor power use in real time, manage outlets remotely, and even reboot devices from anywhere. These features are essential for high-density racks in data centers or critical environments. Advanced PDUs also support energy efficiency by helping you optimize power use and reduce downtime.

Note: Advanced PDUs cost more upfront, but they save money over time by improving uptime and reducing energy waste. You may need some training to use all the features, but the benefits are clear for high-density models.

Here are some key points to consider when you select the right rack pdu:

• Basic PDUs work well for simple, budget-friendly setups.
• Metered and monitored PDUs help you track and manage power use.
• Switched PDUs give you remote control and improve troubleshooting.
• Advanced PDUs offer modular designs for easy expansion and better scalability.
• High-density racks benefit most from advanced features and real-time monitoring.

Customization Options

Customization plays a big role in selecting the right pdu for your rack. You want a solution that fits your unique needs, supports your equipment, and adapts as your setup changes.

NBYOSUN stands out by offering a wide range of customizable PDUs, including the 6way schuko Italian socket power distribution unit for server rack. This unit supports Schuko Type F, Italian Type I, and EU Type C plugs, making it ideal for international and high-density applications. You can choose horizontal or vertical mounting, select different cable lengths, and even customize the shell color to match your environment.

Custom features like energy-saving relays have been shown to reduce energy consumption by over 130 kWh per year for each PDU. This not only lowers your electricity bills but also reduces your carbon footprint. Intelligent PDUs from NBYOSUN offer outlet-level metering, environmental sensors, and user-defined alerts. These features help you prevent overheating, avoid overloads, and keep your rack pdu running smoothly.

NBYOSUN’s PDUs meet strict international standards, including ISO9001, CE, VDE, UL, and RoHS. You can trust their products for safety and reliability in data centers, server rooms, and telecom environments. The company’s experience with high-profile clients like China Mobile and Lenovo shows their commitment to quality and customer satisfaction.

Tip: When you select the right rack pdu, look for models that offer both safety and flexibility. Customization ensures your PDU will support your needs today and as your setup grows.

You can enhance your rack’s performance by choosing a PDU with the right features, such as:

• Surge and overload protection for safety
• Metered and monitored outlets for power monitoring
• Switched control for remote management
• Modular designs for easy upgrades
• Compatibility with high-density models and international plug types

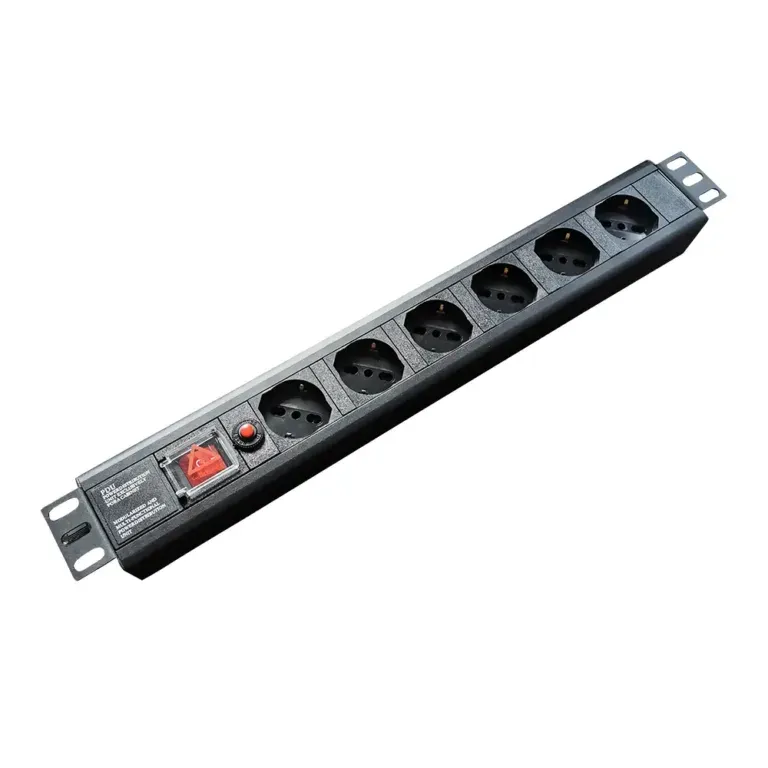

NBYOSUN’s 6way schuko Italian socket power distribution unit combines all these advantages. It provides robust construction, advanced safety features, and flexible installation options. This makes it a smart choice for anyone looking to improve rack power distribution in high-density environments.

Brands & Models

NBYOSUN Solutions

When you look for the best options in rack pdu solutions, NBYOSUN stands out as a leader. You benefit from over 20 years of experience in pdu manufacturing. NBYOSUN holds top certifications like ISO9001, CE, UL, and RoHS. These certifications show that you get products that meet strict safety and quality standards. Many large companies, such as China Mobile, China Telecom, and Lenovo, trust NBYOSUN for their data centers and high-density server rooms.

You can choose from a wide range of rack pdu models. The 6way schuko Italian socket power distribution unit for server rack is a recommended choice. This unit supports Schuko Type F, Italian Type I, and EU Type C plugs. You get overload protection, a durable aluminum shell, and flexible mounting options. NBYOSUN’s smart pdus offer outlet-level monitoring, environmental sensors, and remote management. These features help you reduce energy use by up to 20% and improve equipment uptime by 15%. Many data centers report a 30% drop in downtime and large annual energy savings after switching to NBYOSUN.

NBYOSUN’s customer-centric approach means you can customize your rack pdu for high-density needs. You get solutions that fit your exact requirements, whether you run a telecom room or a large data center.

Other Options

You have several other brands to consider for rack pdu solutions. Each brand offers unique strengths for high-density environments. Here is a table to help you compare:

You see that NBYOSUN matches or exceeds other brands in customization and energy savings. Vertiv and Eaton focus on modular designs and real-time monitoring. Raritan offers advanced diagnostics for high-density racks. All these brands provide reliable rack pdu solutions, but NBYOSUN’s flexibility and proven results make it a top choice for many data centers.

Installation Tips for Rack Power Distribution Units

Safety Checks

You need to follow strict safety checks when installing a rack power distribution unit. These steps help you maintain a reliable power supply and protect your equipment from hazards. Start by inspecting the PDU housing and mounting brackets for any signs of damage or overheating. Make sure all labels are clear and easy to read. Check that power cords and plugs are intact, with no exposed wiring. Test circuit breakers and verify that grounding is secure.

Here is a table that outlines essential safety checks:

You should also schedule regular maintenance. Monthly checks include visual inspections and temperature monitoring. Quarterly, you need to remove dust and test breakers. Annual tasks involve firmware updates and grounding verification. These steps keep your rack safe and help in ensuring continual reliable power supply.

Integration with UPS

You can improve uptime by integrating your rack PDU with an uninterruptible power supply (UPS). This setup gives you a reliable power supply during outages and protects sensitive equipment. Always match the total power load to the capacity of both the UPS and the PDU. Check that voltage and current ratings align to prevent overloads.

Follow these steps for proper integration:

1. Connect the UPS to the main power source first.
2. Plug the PDU into the UPS output. This ensures that all devices connected to the PDU receive backup power if the main supply fails.
3. Use cascading configurations for mission-critical environments. Multiple PDUs and UPS units can work together to provide redundancy and layered protection.
4. Choose PDUs with remote monitoring features. These allow you to track power status and receive alerts if issues arise.

Many leading brands now offer PDUs with built-in lithium-ion backup and advanced monitoring. These features help you in ensuring continual reliable power supply, even in high-density racks. Always review manufacturer guidelines for compatibility and best practices.

Tip: Careful planning and regular testing of your UPS and PDU setup will help you avoid downtime and keep your systems running smoothly.

Planning for Growth

Scalability

You need to plan for growth when you set up your rack power system. Data centers and server rooms keep getting bigger and more complex. Research shows that the global market for data center power management will grow from $23.04 billion in 2025 to $45.32 billion by 2035. This growth comes from cloud computing, big data, IoT, and AI. You see more devices and higher rack densities every year.

The U.S. Department of Energy’s COOLERCHIPS initiative invests $40 million to improve cooling and power efficiency in data centers. This project aims to make cooling ten times more efficient and develop smart software for power decisions. These efforts show that you must choose scalable solutions to keep up with rising energy needs.

A reliable power distribution unit helps you handle more equipment without risking outages. You can add more units or upgrade your system as your needs change. Many companies use AI-driven analytics and IoT controls to manage power better. These tools help you avoid overloads and keep your system running smoothly.

Here is a table that highlights key growth drivers:

Tip: Always pick a reliable power distribution unit that supports easy upgrades and expansion. This helps you stay ready for future growth.

Reliability

You must focus on reliability when planning for long-term performance. Devices in your rack face heat, high voltage, and changing loads. Industry-standard tests like HTRB push devices to their limits for over 1,000 hours. These tests check for leaks and weak spots, making sure your equipment can handle stress.

Studies on performance loss rates show that reliability depends on many factors, such as system design and climate. Some systems lose performance faster if you do not use reliable equipment. Filtering out poor data shows a median loss rate of about 0.80% per year. This means you need to choose products that pass strict reliability tests.

A reliable power distribution unit gives you a reliable power supply, even as your rack setup changes. You avoid downtime and protect your investment. You also reduce the risk of sudden failures by using units with proven reliability.

Note: Focus on failure modes and root causes when you select your power equipment. This approach helps you improve reliability and keep your systems running for years.

Choosing the right 6 way power distribution unit starts with knowing your rack’s power needs, checking compatibility, and picking the best features for your setup. You should always look for certified brands like NBYOSUN. Reliable PDUs show high uptime and pass strict stress tests. Many customers report better safety and fewer outages with certified units. Experts recommend solutions that offer strong warranties and clear support. Review your rack, talk with professionals, and explore NBYOSUN’s options to ensure long-term performance and satisfaction.

FAQ

What is the main benefit of using a 6 way power distribution unit in a server rack?

You can power multiple devices safely from one unit. This setup keeps your rack organized and reduces cable clutter. You also lower the risk of overloads by using a certified PDU.

How do I know if a PDU is compatible with my equipment?

Check the plug and socket types. Match the voltage and current ratings to your devices. Review the mounting options to ensure the PDU fits your rack. NBYOSUN offers models for many international standards.

Why should I choose a PDU with surge and overload protection?

Surge and overload protection keep your equipment safe from power spikes and excess current. You prevent damage and downtime. Certified PDUs, like those from NBYOSUN, meet strict safety standards.

Can I customize my PDU for special requirements?

Yes! You can select outlet types, cable lengths, and mounting styles. NBYOSUN provides custom solutions for data centers, telecom, and more. Customization helps you meet unique power needs and future growth.
