Cabinet Mounted PDUs vs Other PDUs Key Differences Explained

Choosing the right PDU can feel overwhelming. You must consider several factors, especially for cabinet PDUs. Where will you install it? How much power does your equipment need? What type of receptacles match your devices? Cabinet mounted PDUs integrate seamlessly into server racks, offering space efficiency and high-density power distribution. They often mount vertically or horizontally, saving valuable space. In contrast, other PDUs, like standalone models, require dedicated floor or wall space. Understanding your equipment’s power needs and installation environment ensures you select a PDU that enhances performance and safety.

Design and Structure

Cabinet Mounted PDUs

Compact and space-saving designs for server racks

Cabinet PDUs are designed to maximize space efficiency in server environments. These units integrate seamlessly into server racks, offering a compact solution for high-density power distribution. Vertical PDUs, also known as 0U PDUs, mount along the side of the rack, leaving valuable rack space free for other equipment. Horizontal PDUs, often referred to as 1U or 2U PDUs, fit directly into the rack’s slots, providing easy access to power outlets. With these configurations, cabinet mounted PDUs ensure you can optimize your rack’s layout while maintaining an organized and professional appearance.

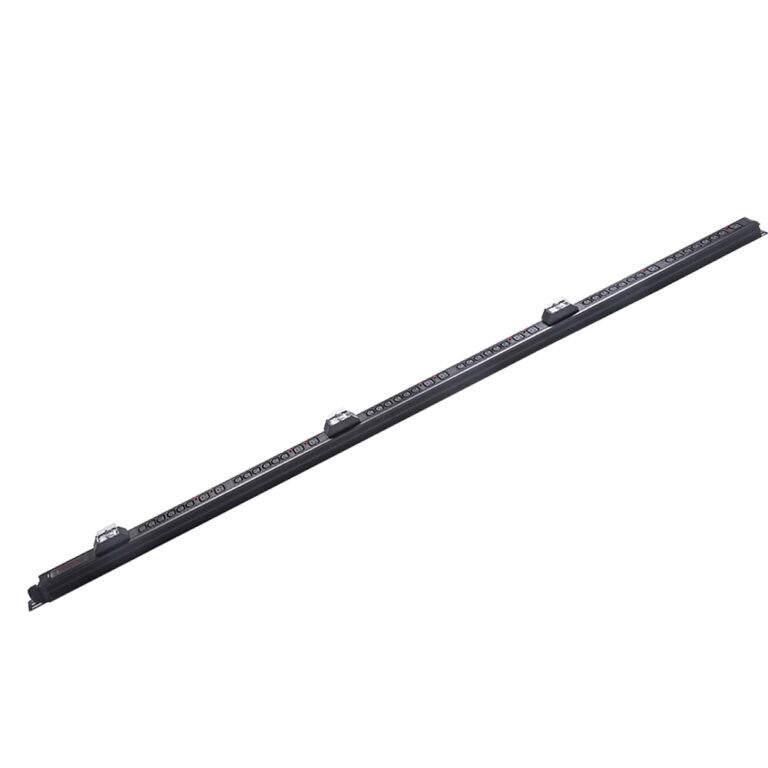

Vertical (0U) and horizontal (1U/2U) mounting options

Vertical PDUs are ideal for high-density setups, offering up to 60 outlets in a single unit. These units distribute power efficiently across multiple devices, making them perfect for data centers. Horizontal PDUs, on the other hand, typically provide 8 to 16 outlets and are better suited for smaller setups or specific rack sections. Both options include features like circuit breakers and power monitoring panels, ensuring safety and reliability. By choosing the right mounting option, you can tailor your cabinet PDUs to meet your specific power needs.

Other PDUs

Standalone, floor-mounted, or wall-mounted configurations

Other PDUs cater to environments where racks are not the primary focus. Standalone PDUs often sit on the floor, while wall-mounted units provide power distribution in areas like workshops or garages. These designs accommodate a variety of power needs, from industrial machinery to non-IT equipment. Their larger footprints make them less suitable for compact spaces but ideal for environments requiring robust power solutions.

Larger footprints for industrial or non-IT setups

Industrial PDUs feature advanced designs to handle demanding conditions. They include surge suppression, EMI filters, and isolation transformers to manage noisy power signals. These units also support multiple power forms from a single source, simplifying installation. Built to withstand harsh environments, they resist dust and moisture, ensuring durability. If you need a PDU for industrial applications, these designs offer the flexibility and resilience required.

Key Design Considerations

Space efficiency of cabinet PDUs vs flexibility of other PDUs

Cabinet PDUs excel in space efficiency. Their vertical and horizontal configurations allow you to maximize rack space while maintaining a clean and organized setup. In contrast, other PDUs prioritize flexibility. They adapt to various environments, offering features like advanced circuit designs and compatibility with diverse cable connectors. Your choice depends on whether you value space-saving designs or versatile placement options.

Aesthetic and organizational benefits of cabinet-mounted PDUs

Cabinet PDUs enhance the visual appeal of your setup. Their enclosed housing keeps cables tidy, reducing clutter and improving airflow. This organization not only looks professional but also simplifies maintenance. By integrating seamlessly into your rack, cabinet PDUs help you create a streamlined and efficient workspace.

Installation and Placement

Cabinet Mounted PDUs

Easy integration within server cabinets

Cabinet PDUs simplify installation by fitting directly into server racks. You can mount vertical PDUs along the side of the rack, leaving the central space free for equipment. Horizontal PDUs, on the other hand, slot neatly into the rack’s designated spaces. This design ensures seamless integration without disrupting your setup. When installing cabinet mounted PDUs, you should consider factors like weight distribution and rack hole types. For example, heavier equipment should go at the bottom to prevent toppling, and you may need cage nuts for square holes. Proper cable management accessories also help you avoid clutter and protect wires from damage. These steps ensure a smooth installation process and enhance the reliability of your setup.

Minimal additional space requirements

Cabinet PDUs excel in environments where space is limited. Their compact design eliminates the need for extra floor or wall space. Vertical PDUs maximize the use of vertical rack space, while horizontal PDUs fit snugly within the rack’s layout. This efficient use of space allows you to prioritize equipment placement without compromising on power distribution. By planning your power source and ensuring sufficient outlets, you can future-proof your setup for additional devices. Reliable cabinet PDUs, like those from NBYOSUN, offer compatibility with various power specifications, ensuring they meet your current and future needs.

Other PDUs

Requires dedicated floor or wall space

Unlike cabinet PDUs, other PDUs often need separate floor or wall space for installation. Standalone units typically sit on the floor, while wall-mounted options attach to surfaces in workshops or garages. These designs work well in environments where racks are not the primary focus. However, they require careful planning to ensure they do not obstruct movement or workspace functionality. Their larger footprints make them less suitable for compact setups but ideal for industrial applications.

May involve more complex installation processes

Installing other PDUs can be more challenging compared to rackmount PDUs. You may need to allocate time for securing them to walls or positioning them on floors. Additionally, these units often require precise cable management to avoid tangling or damage. Unlike rackmount PDUs, which integrate easily into racks, standalone or wall-mounted PDUs demand more effort to ensure proper placement and functionality. Despite these challenges, their flexibility makes them a valuable choice for non-IT environments.

Installation Insights from NBYOSUN

Versatile mounting options in the 19 inch 8way French socket switch overload rack PDU

NBYOSUN’s 19 inch 8way French socket switch overload rack PDU offers flexible mounting options. You can install it on walls or attach it to furniture, making it suitable for diverse environments. Its robust aluminum alloy casing ensures durability, even in challenging conditions like workshops. This versatility allows you to adapt the PDU to your specific needs, whether in a data center or a garage.

Compatibility with diverse environments, from data centers to workshops

The 19 inch 8way French socket switch overload rack PDU stands out for its adaptability. It fits seamlessly into server racks, providing reliable power distribution for high-density setups. At the same time, its design makes it equally effective in non-IT environments like offices or garages. With features like overload protection and a two-pole switch, this PDU ensures safety and convenience across various applications.

Power Capacity and Scalability

Cabinet Mounted PDUs

High-density power distribution for IT environments

Cabinet PDUs are designed to handle the demanding power requirements of high-density environments. These units efficiently distribute power across multiple devices, ensuring reliable performance in IT setups. Many cabinet-mounted PDUs support three-phase power distribution, which is essential for enterprise-level applications. They also offer higher wattage per outlet, making them suitable for power-hungry devices like servers and storage systems.

To better understand the industry standards, consider the following table showcasing typical power capacities:

This capacity ensures cabinet PDUs meet the needs of IT environments while maintaining efficiency and reliability.

Scalable solutions for growing data centers

Cabinet PDUs excel in scalability, making them ideal for expanding data centers. You can configure these units to supply power to multiple racks and cabinets, ensuring seamless integration as your infrastructure grows. Features like robust redundancy and real-time monitoring enhance their reliability for intensive workloads. Vertical PDUs and horizontal PDUs also allow you to optimize rack space, ensuring efficient power distribution without compromising on scalability.

Other PDUs

Suitable for lower-density or standalone setups

Other PDUs, such as standalone or wall-mounted units, are better suited for environments with lower power demands. These units work well in workshops, garages, or smaller IT setups. While they lack the high-density capabilities of cabinet PDUs, they provide reliable power distribution for standalone equipment. Their simpler configurations make them a practical choice for non-IT applications.

Limited scalability in some configurations

Standalone and wall-mounted PDUs often have limited scalability. They are not designed to handle the high power demands of growing IT environments. Unlike rackmount PDUs, these units may struggle to support multiple devices or adapt to larger-scale deployments. This limitation makes them less suitable for data centers or enterprise-level applications.

NBYOSUN’s Power Solutions

Advanced features in the 19 inch 8way French socket switch overload rack PDU

NBYOSUN’s 19 inch 8way French socket switch overload rack PDU offers advanced features for diverse environments. Its overload protection system ensures safety by automatically shutting off during over-current conditions. The aluminum alloy casing provides durability, making it ideal for challenging setups like workshops. With its flexible mounting options, this PDU adapts to both IT and non-IT environments, offering reliable power distribution for various applications.

Smart PDU solutions for real-time monitoring and control

NBYOSUN’s Smart PDUs take power management to the next level. These units provide real-time monitoring, allowing you to track power usage at both the unit and outlet levels. Features like environmental sensors and alarm systems help you maintain optimal conditions in high-density environments. Remote monitoring capabilities enable you to manage power cycles and address issues proactively. These solutions enhance energy efficiency and ensure reliable operations, making them indispensable for modern data centers.

Use Cases and Applications

Cabinet Mounted PDUs

Ideal for data centers and high-density server environments

Cabinet PDUs are essential in data centers where space and power efficiency are critical. You can install these units vertically or horizontally, depending on your rack’s layout. Vertical PDUs, or 0U units, mount along the side of the rack, leaving the central space free for IT equipment. These units can provide up to 60 outlets, making them perfect for high-density environments. Horizontal PDUs, or 1U/2U units, fit directly into the rack slots, offering easy access to outlets. These configurations ensure efficient power distribution and help you maintain an organized setup. Additionally, cabinet-mounted PDUs include features like circuit breakers and power-monitoring panels, which enhance safety and operational efficiency.

Suitable for businesses prioritizing space efficiency

If your business values space optimization, cabinet PDUs are an excellent choice. Their compact designs integrate seamlessly into server racks, eliminating the need for additional floor or wall space. By using rackmount PDUs, you can maximize your equipment layout while maintaining a clean and professional appearance. These units also simplify cable management, reducing clutter and improving airflow. This makes them ideal for businesses aiming to create efficient and visually appealing workspaces.

Other PDUs

Best for standalone equipment or non-rack-mounted setups

Other PDUs work well in environments where racks are not the primary focus. Standalone units sit on the floor, while wall-mounted options provide power distribution in areas like workshops or garages. These designs are suitable for powering standalone equipment, such as industrial machinery or laboratory devices. They handle various power forms, including three-phase AC and DC power, and often include transformers and power converters for simplified installation. Their flexibility makes them a practical choice for non-rack-mounted setups.

Common in industrial or non-IT environments

Industrial PDUs are built to withstand harsh conditions, such as dust, moisture, and temperature extremes. These units often feature advanced circuit designs and specialized controls, ensuring reliable performance in demanding environments. You can use them in manufacturing facilities, laboratories, or construction sites where robust power solutions are necessary. Their ability to manage multiple power forms and their durable construction make them indispensable in industrial settings.

Matching PDUs to Needs

Scenarios for cabinet-mounted PDUs, including NBYOSUN’s Smart PDU solutions

Cabinet-mounted PDUs excel in high-density environments like data centers. For example, NBYOSUN’s Smart PDUs offer advanced features such as remote monitoring and outlet-level power tracking. These capabilities allow you to optimize energy usage and maintain reliable operations. If you manage a growing data center, these PDUs provide scalable solutions that adapt to your expanding infrastructure. Their environmental sensors and alarm systems also help you maintain optimal conditions, ensuring the safety of your equipment.

Examples of applications for the 19 inch 8way French socket switch overload rack PDU

NBYOSUN’s 19 inch 8way French socket switch overload rack PDU is versatile enough for both IT and non-IT environments. In server rooms, you can mount it horizontally within racks to provide reliable power distribution for multiple devices. Its overload protection system ensures safety by automatically shutting off during over-current conditions. In workshops or garages, its durable aluminum alloy casing withstands challenging conditions, such as impacts and rust. This PDU’s flexible mounting options and robust design make it a valuable addition to various setups.

Cabinet-mounted PDUs, like those from NBYOSUN, deliver unmatched efficiency for high-density IT setups. Their compact designs save space while offering advanced features for seamless power management. The table below highlights their key advantages:

When selecting a PDU, you should evaluate your space, power needs, and scalability. Consider the number of outlets required, the types of plugs your devices use, and whether remote monitoring is essential. For data centers or server-heavy setups, cabinet-mounted PDUs often outperform other options. NBYOSUN’s innovative solutions, including Smart PDUs, ensure reliability, safety, and efficiency, making them a top choice for modern power distribution needs.

FAQ

1. What is the main advantage of cabinet-mounted PDUs over other PDUs?

Cabinet-mounted PDUs save space by integrating directly into server racks. They offer high-density power distribution, making them ideal for IT environments. Other PDUs, like standalone units, provide flexibility for non-rack setups but require more space and may lack the scalability of cabinet-mounted options.

2. Can cabinet-mounted PDUs handle high power demands?

Yes, cabinet-mounted PDUs are designed for high-density environments. They support three-phase power distribution and higher wattage per outlet, making them suitable for power-intensive devices like servers. Their scalability ensures they meet the growing demands of data centers and enterprise setups.

3. Are NBYOSUN’s PDUs compatible with different environments?

NBYOSUN’s PDUs, including the 19-inch 8way French socket switch overload rack PDU, adapt to various environments. You can use them in server rooms, workshops, or garages. Their durable aluminum alloy casing and overload protection ensure reliable performance in both IT and non-IT setups.

4. What features make NBYOSUN’s Smart PDUs unique?

NBYOSUN’s Smart PDUs offer real-time monitoring, remote management, and outlet-level power tracking. They include environmental sensors for temperature and humidity, ensuring optimal conditions. These features enhance energy efficiency and reliability, making them indispensable for modern data centers.

5. How do I choose the right PDU for my setup?

Evaluate your power needs, space availability, and scalability requirements. For high-density IT setups, cabinet-mounted PDUs like NBYOSUN’s Smart PDUs provide advanced features and space efficiency. For standalone equipment or industrial environments, consider standalone or wall-mounted PDUs with robust designs.
