How 3 Phase Rack PDUs Improve Energy Efficiency and Reliability

You can transform your data center’s operations with a 3 phase rack pdu. This advanced solution delivers higher power density and supports greater equipment loads, meeting the strict power requirements of modern technology. You benefit from better load balancing, less cabling, and improved airflow, which help lower cooling costs and boost reliability. NBYOSUN’s 3 phase rack pdu stands out because it meets global standards for safety, quality, and environmental responsibility.

These certifications prove that NBYOSUN delivers trusted solutions for your data center.

3 Phase Rack PDU Overview

What Is a 3 Phase Rack PDU

A 3 phase rack pdu is a type of power distribution unit designed for high-demand environments like data centers. You use this device to deliver electricity to many servers and network devices in a rack. It works by using three separate electrical currents, each out of phase by 120 degrees. This setup keeps the power flow steady and balanced.

• A 3 phase rack pdu gives you higher power capacity than single-phase units. You can support more equipment in each rack.
• The power distribution unit spreads the electrical load across three phases. This helps prevent overloads and keeps your equipment safe.
• Many modern three-phase pdu models include features like remote monitoring, real-time energy tracking, and environmental sensors. These features help you manage your data center more efficiently.
• Built-in safety features, such as circuit breakers and overload protection, protect your devices from electrical problems.
• The horizontal design of some units saves space and improves airflow, which helps keep your equipment cool.

NBYOSUN’s power distribution units meet strict international standards. The company holds certifications like ISO9001, UL, CE, RoHS, and VDE. These certifications show that you can trust their products for safety, quality, and environmental responsibility.

Single vs. 3 Phase Power

You might wonder how single-phase and three-phase power compare. Here are the main differences:

• Single-phase power uses two wires and delivers up to 208 volts. The power flow drops to zero at certain points, which can cause interruptions.
• Three-phase power uses three wires, each carrying current at a different phase. This setup delivers a constant flow of electricity, so your equipment gets steady power.
• Three-phase systems provide about 1.7 times more power than single-phase systems at the same voltage. This means you can run more devices without needing thicker, more expensive cables.
• Three-phase power is more efficient and better for high-density racks. It reduces wiring costs and helps balance the load, which improves energy efficiency and uptime.
• Data centers use three-phase power to meet growing power requirements and to support mission-critical equipment.

Tip: Choosing a three-phase pdu helps you meet the power requirements of modern data centers while keeping your equipment safe and your operations efficient.

Energy Efficiency

Power Density Benefits

You can achieve much higher power density in your racks when you use a three phase pdu. This means you can power more servers and devices in each rack without worrying about performance drops. Higher power density helps you make the most of your physical space. You do not need to add more racks or expand your data center just to meet growing power needs.

• You can scale up your operations quickly because three phase pdu units support more equipment per rack.
• You save money on infrastructure since you do not need to install extra circuits or racks.
• You reduce heat generation because power delivery is more efficient, which lowers your cooling needs.
• You simplify cable management, making installation and maintenance easier.
• You protect your equipment with built-in safety features, which helps prevent costly downtime.

When you use a power distribution unit like the NBYOSUN 3 Phase 32A IEC C13 C19 0U pdu distribution unit, you get 24 outlets in a single device. This model supports up to 32A and 24KW, so you can connect many high-power devices at once. The heavy-duty aluminum shell and locking outlets keep your connections secure and reliable, even in demanding environments.

Cabling and Airflow

Three phase pdu units help you cut down on cabling bulk. Instead of running several single-phase cables, you can use one three-phase cable to deliver the same or even more power. This change makes your racks neater and your installation process much simpler.

With fewer cables, you improve airflow inside your racks. Better airflow means your cooling systems do not have to work as hard. This leads to lower cooling costs and less energy use. When you mount a zero-U power distribution unit like the NBYOSUN 3 Phase 32A IEC C13 C19 0U pdu distribution unit on the side of your rack, you keep cables short and out of the way. This setup prevents airflow blockages and helps maintain a steady temperature for your equipment.

Many real-world data centers have seen cooling energy reductions of up to 70% to 90% by combining advanced cooling and power distribution strategies. Improved airflow also means less heat builds up, so your equipment lasts longer and runs more efficiently.

Note: Using three phase pdu units with alternating phase outlets allows you to use shorter cords and better cable management, which further boosts airflow and cooling efficiency.

Load Balancing

Load balancing is a key advantage of three phase pdu units. You can divide the electrical load evenly across three separate branches, each with its own circuit breaker. This setup gives you more control and helps prevent any single branch from becoming overloaded.

• If you have a power distribution unit with 48 outlets, a three phase pdu splits them into three circuits of 16 outlets each. If a breaker trips, you only lose power to a smaller group of devices.
• Three phase pdu units provide about 1.7 times more power capacity than single-phase units of the same size. This means you can run more equipment with fewer PDUs and racks.
• Even load distribution reduces the risk of overheating and circuit stress. This helps you avoid unexpected shutdowns and keeps your data center running smoothly.

Better load balancing also improves energy efficiency. When you spread the power consumption evenly, you lower electrical resistance and improve your power factor. This can save you about 3-5% on your electricity bills. Advanced three phase pdu models offer real-time monitoring, so you can spot underused equipment and optimize your energy use. This approach supports sustainable operations and extends the life of your equipment.

The NBYOSUN 3 Phase 32A IEC C13 C19 0U pdu distribution unit includes a 3-pole 32A circuit breaker and overload protection. These features help you manage load balancing safely and efficiently, giving you peace of mind as you scale your operations.

Reliability Advantages

Overload Protection

You need strong protection for your data center equipment. A three phase pdu gives you several built-in safety features that keep your systems safe from electrical problems. These features work together to prevent damage and reduce downtime.

• Circuit breakers protect against over-current, over-voltage, and short-circuiting. They cut off power quickly if something goes wrong.
• Surge protection shields your devices from voltage spikes that can happen during storms or power surges.
• Overload protection stops the flow of electricity if the power load gets too high. This prevents overheating and fire risks.
• Many models, like the NBYOSUN 3 Phase 32A PDU, include multiple circuit breakers for advanced safety. For example, this unit uses six 1P 16A circuit breakers to protect each branch.

When you use a three phase pdu with these features, you lower the risk of equipment failure. The system detects problems fast and cuts off power before damage can spread. This quick response is critical for keeping your servers and network devices running smoothly. You also get branch circuit protection, which means each outlet has its own safety system. If one outlet has a problem, the others keep working. Automatic recovery features restore power after the issue is fixed, so you do not need to reset everything by hand.

Tip: Overload protection in a three phase pdu helps you avoid costly repairs and keeps your data center safe.

Redundancy and Uptime

You want your data center to stay online, even if something fails. A three phase pdu supports redundancy, which means you have backup systems ready to take over if the main power source stops working. This setup is essential for mission-critical environments where downtime is not an option.

Redundant power supplies in cabinet PDUs provide backup power. If one power source fails, another takes over instantly. This design minimizes downtime and keeps your equipment running. In large data centers, you often see three phase pdu units paired with UPS systems and redundant power modules. These combinations ensure uninterrupted power and smooth operation during maintenance or unexpected outages.

Here are some ways a three phase pdu helps you achieve high uptime:

NBYOSUN three phase pdu units offer stable and continuous power delivery. Intelligent features like real-time monitoring, remote management, and environmental sensors help you spot problems before they cause downtime. You can manage power usage from anywhere, which lets you act fast if something goes wrong. Predictive maintenance tools track the health of your assets, so you can fix issues early and avoid disruptions.

Certifications like UL, CE, and ISO9001 prove that these PDUs meet strict reliability standards. You can trust that your equipment will stay powered and protected, even in demanding environments.

Fault Isolation

You need to find and fix problems quickly in a busy data center. Fault isolation is a key feature of a three phase pdu. This technology helps you detect and contain electrical faults before they affect your whole system.

• Intelligent monitoring at the outlet level lets you see exactly where power problems start.
• The system detects abnormal conditions, such as power surges or breaker trips, and sends alerts right away.
• Early warnings help you take action before a small issue becomes a big outage.
• Circuit breaker trip forensics identify which outlet or device caused the problem.
• Waveform capture tools record current and voltage at the affected outlet, making it easier to find the root cause.

When you use a three phase pdu with these features, you can isolate faults quickly. This means you only lose power to a small group of devices, not the entire rack. Fast fault diagnosis and recovery keep your data center reliable and efficient. You spend less time troubleshooting and more time focusing on your core operations.

Note: Advanced fault isolation features in a three phase pdu help you maintain high reliability and protect your critical equipment.

Real-World Applications

Data Center Use Cases

You see 3 phase rack pdu technology in action at some of the world’s largest data centers. For example, eBay’s Topaz data center uses 400V three-phase power delivered directly to each rack. Each cabinet receives two intelligent rack PDUs, which convert the power for servers and provide precise energy monitoring. This setup reduces energy costs by about 2-3% compared to older systems and improves power efficiency. You can track energy use at each server, helping you manage costs and spot problems early. Temperature sensors in every rack help you keep equipment cool and reliable.

In your own data center or server room, a 3 phase rack pdu helps you solve common power challenges. You can balance electrical loads, which lowers heat and cooling costs. You avoid unbalanced loads that can drive up your power bills. Even power distribution across phases reduces the risk of breaker trips and power loss. You also get better airflow and less cable clutter, making it easier to add or move equipment. Intelligent PDUs give you real-time data on power quality, helping you prevent downtime and spot issues like stranded capacity or zombie servers.

Note: Reduced wiring and alternating phase designs make your racks neater and your cooling more effective, which is critical in high-density environments.

NBYOSUN Product Example

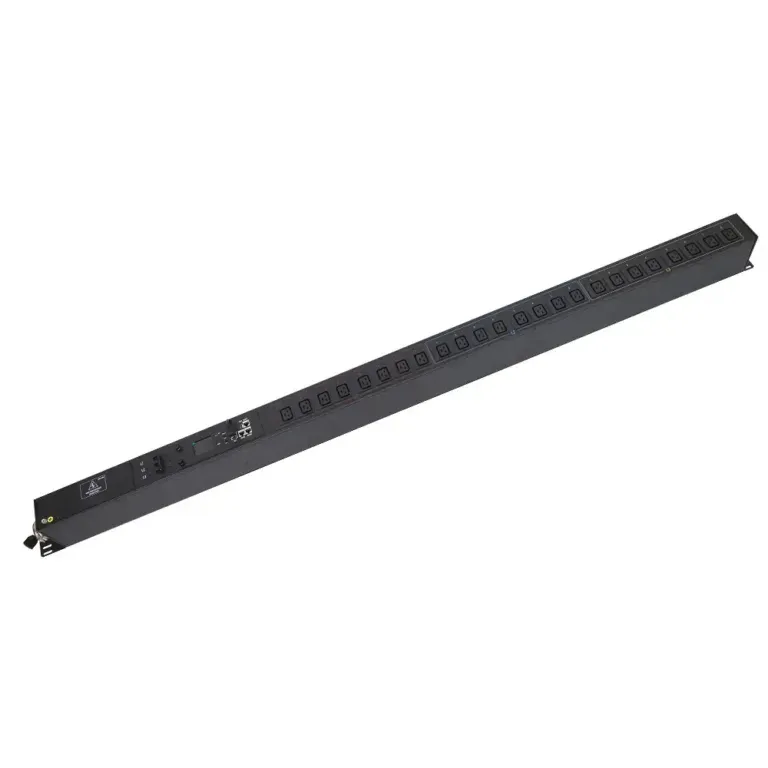

You can rely on the NBYOSUN 3 Phase 32A IEC C13 C19 0U power distribution unit for demanding environments. This unit features a heavy-duty aluminum shell that resists impact and wear. It offers 24 grounded AC outlets, including 14 locking C13 and 10 locking C19 sockets. These locking outlets prevent accidental unplugging, which keeps your connections secure. The built-in overload protection trips automatically if there is over-voltage, over-current, or a short circuit, protecting your valuable equipment.

You get flexible installation with detachable and reversible mounting ears. The three-phase design supports high-density setups and reduces cabling complexity. You can connect many devices at once, making this power distribution unit ideal for data centers, industrial sites, and commercial buildings. Customers in telecommunications, manufacturing, healthcare, and renewable energy have adopted NBYOSUN solutions. For example, a mid-sized data center reported saving $50,000 per year on energy and saw a 30% drop in downtime. Companies like China Mobile, Lenovo, and Schneider praise NBYOSUN for innovation and reliability.

Tip: NBYOSUN’s power distribution units meet strict certifications like ISO9001, UL, and CE, giving you peace of mind for safety and quality.

You gain higher energy efficiency and reliability when you choose a 3 phase rack PDU. NBYOSUN stands out with over 20 years of experience, international certifications like ISO9001 and UL, and advanced features such as remote monitoring and overload protection. To upgrade your power system, start by measuring your current power demand, check for load imbalances, and plan for future growth. Explore NBYOSUN’s customizable solutions and expert support to ensure your data center stays safe, efficient, and ready for tomorrow.

FAQ

What is the main benefit of using a 3 phase rack PDU in your data center?

You get higher power density and better load balancing. This means you can power more devices per rack and reduce the risk of overloads. You also save space and improve airflow, which lowers cooling costs.

How does a 3 phase rack PDU improve energy efficiency?

A 3 phase rack PDU reduces cabling bulk and improves airflow. You use fewer cables, which means less heat and lower cooling costs. You also balance loads across three phases, which can save you up to 5% on electricity bills.

Why should you choose a PDU with international certifications?

Certified PDUs meet strict safety and quality standards.
For example, NBYOSUN’s products carry ISO9001, UL, and CE certifications.
You protect your equipment and ensure compliance with global regulations.

Can you use a 3 phase rack PDU for different industries?

Yes! You can use these PDUs in data centers, telecom rooms, factories, and hospitals. NBYOSUN’s 3 phase PDUs support high-demand environments and offer flexible installation for many industries.
