Explaining the role of 3 phase rack PDUs in efficient power distribution

You need a 3 phase rack pdu to keep your data center running efficiently. Today, data center electricity use is rising fast. In 2023, data centers used about 4.4% of all U.S. electricity, and this number could reach nearly 12% by 2030. AI and cloud services make each center more complex. You must choose rack PDUs with trusted certifications like UL, CE, and IEC CB to ensure safety in every data center. NBYOSUN offers these reliable solutions for your center’s power needs.

Rack PDU Basics

What Is a 3 Phase Rack PDU

You use a 3 phase rack pdu to deliver reliable power to your data center equipment. This device connects to a three-phase power source and distributes electricity to many outlets inside a server rack. The three-phase pdu stands out because it can handle about 1.7 times more power than a single-phase unit. You can power more servers and devices from the same source, which helps you save space and reduce costs in your center.

• A three-phase rack pdu splits the incoming power into three separate circuits. Each circuit is offset by 120 degrees, so your equipment gets a steady flow of electricity.
• You get more circuit breakers in a three-phase pdu, which means if one trips, fewer outlets lose power.
• The design supports both 120V and 208V devices, giving you flexibility for different types of IT equipment in your center.
• You also use thicker cables and larger plugs with these units, which helps them handle higher power loads.

Many people think a pdu is just a fancy power strip, but it does much more. Power distribution units offer advanced features like load balancing, circuit protection, and sometimes remote monitoring. These features make them essential for high-density data centers, workshops, and even mining farms.

Why Power Distribution Matters in Data Centers

Power distribution is the backbone of every data center. You need efficient power distribution to keep your IT equipment running without interruption. If you do not manage power well, your center can face downtime, which can cost thousands of dollars per minute.

1. Efficient power distribution ensures your servers and network devices always have the electricity they need.
2. Power distribution units help you balance loads across racks, so no single area gets overloaded.
3. You can monitor and optimize power use, which lowers your operating costs and supports your center’s sustainability goals.
4. Good power management helps you plan for future growth and prevents bottlenecks in your center.

Note: Reliable power distribution protects your center from outages and keeps your services available to customers. Even a short power loss can damage your reputation and lead to lost revenue.

3 Phase Power Advantages

Higher Capacity for Data Centers

You need a 3 phase rack pdu to meet the high power demands in your data center. This device gives you a high power capacity that single-phase units cannot match. When you use a three phase pdu, you connect to three separate power lines. Each line is offset by 120 degrees. This setup lets you deliver more power to your equipment without adding more cables or outlets.

Take a look at the difference in power delivery:

You can see that a three-phase 208V, 20A circuit gives you about three times the power of a single-phase circuit. This means you need fewer PDUs to power your racks. You also reduce cable clutter, which helps with airflow and cooling in your center.

A three-phase horizontal PDU can handle up to 24 kW of power. This supports high-density server racks and lets your center grow without major changes. You can add more devices as your needs increase. You do not need to overhaul your infrastructure. This flexibility is critical for centers that want to scale up quickly.

Tip: Using three-phase power in your center lets you support more servers and critical equipment with less effort. You save space, reduce installation time, and keep your power distribution simple.

Load Balancing and Efficiency

You want your data center to run efficiently and avoid downtime. Three-phase power helps you balance electrical loads across all your equipment. When you use a three phase pdu, you spread the power evenly. This prevents any one circuit from getting overloaded.

Here are some key benefits you get from balanced power distribution:

• Superior load balancing reduces circuit stress and prevents overloads.
• Improved energy efficiency through better power factor and reduced losses lowers utility costs.
• Enhanced thermal performance due to balanced loads.
• Real-time monitoring enables you to spot power consumption patterns and load imbalances.
• Increased reliability and scalability support your growing center.

Unbalanced loads can cause higher current flows between transformer legs. This creates waste heat and lowers transformer efficiency. By keeping your loads balanced, you reduce waste heat. Your cooling system works less, which saves energy and money. You should keep phase loads within 10% of each other to get the best results.

Intelligent three-phase PDUs give you real-time monitoring and alerts. You can see if one phase is carrying too much load. You can fix problems before they become critical. This proactive management keeps your center running smoothly.

You also get a quick return on investment. Many centers report seeing benefits like lower Power Usage Effectiveness (PUE), balanced loads, and automated reporting. Some centers achieve ROI in as little as six months after upgrading to three-phase rack PDUs.

Note: Three-phase rack PDUs work like a three-lane highway for electricity. You move more power with less congestion. This makes your power distribution more efficient and cost-effective.

When you use three-phase PDUs, you support critical power needs in your center. You keep your equipment safe, reduce operational costs, and prepare your center for future growth. This approach is critical for any modern data center that wants to stay competitive.

3 Phase Rack PDU vs Single-Phase

Key Differences

When you compare a 3 phase rack pdu to a single-phase unit, you see clear differences in how each one supports your data center. You want to choose the right system for your center’s needs, so it helps to look at the main features side by side.

• Wiring and Installation:
  You use smaller gauge wiring with three-phase systems. Each conductor carries less current, so you need less bulky cables. This makes installation easier and faster. For example, you might use AWG 11 wire for three-phase, while single-phase setups often need AWG 4 wire. Thicker wires in single-phase systems make installation more expensive and harder to manage.

• Cabling Costs and Labor:
  Three-phase power lowers your cabling costs. You spend less on materials and electrician labor. You also save time during installation, which helps you get your center up and running quickly.

• Voltage and Flexibility:
  Three-phase systems let you run devices at both 120 VAC and 208 VAC. You can upgrade your equipment by swapping PDUs without shutting down your center. Single-phase power does not offer this flexibility, so you face more downtime during upgrades.

• Support for High-Density Racks:
  You find that single-phase power works for small setups, but it struggles with high-density racks. Three-phase power supports high-density environments much better. You can power more equipment with fewer cables, which is important as your center grows.

• Energy Efficiency and Losses:
  Three-phase PDUs deliver higher power capacity with fewer cables. This reduces energy losses in your center. You get better load balancing, which means your power distribution is more efficient. Single-phase PDUs are simpler and cheaper at first, but they waste more energy in high-demand centers.

Here is a table that shows how single-phase and three-phase PDUs compare:

Tip: If you want to reduce downtime and support future growth, three-phase PDUs give you more options and better performance.

Practical Benefits for Data Center Operations

You want your data center to run smoothly, save money, and stay reliable. When you switch from single-phase to three-phase PDUs, you see real improvements in your center’s daily operations.

• Reduced Cabling Complexity:
  You use fewer cables with three-phase PDUs. This makes your racks neater and improves airflow, which helps your cooling systems work better.

• Consistent Power Delivery:
  Three-phase systems provide more reliable and steady power. Your equipment runs smoothly, and you avoid sudden shutdowns that can hurt your center’s reputation.

• Long-Term Value:
  Even though three-phase PDUs cost more at first, you save money in the long run. You spend less on energy and maintenance, and your center stays ready for future growth.

Note: Many data centers have seen fewer outages and better performance after upgrading to three-phase PDUs. You can trust this solution to keep your center efficient and reliable.

NBYOSUN 3 Phase Rack PDU Solutions

Product Features and Safety

When you choose a PDU for your data center, you want safety and reliability. NBYOSUN 3 phase rack PDUs meet strict international standards. You can trust these units because they hold certifications like ISO9001, CE, and RoHS. These certifications show that each PDU passes tough tests for quality and safety.

You get strong protection for your center’s equipment. Each PDU includes a 3P 32A circuit breaker. This breaker guards against over-voltage, short circuits, and overloads. If a problem happens, the breaker trips and keeps your devices safe.

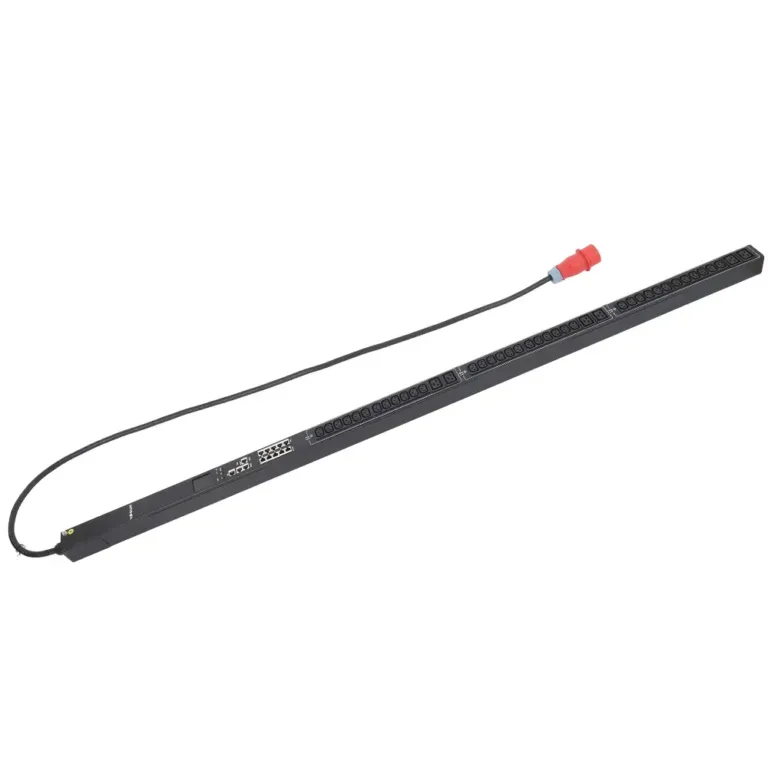

Here are some features you will find in the NBYOSUN 3 Phase 32A IEC C13 C19 0U PDU distribution unit:

• Heavy-duty aluminum shell for impact resistance and long life.
• 24 outlets: 14 locking IEC60320 C13 and 10 locking IEC60320 C19 sockets.
• Locking outlets prevent accidental unplugging, which is important in a busy center.
• Overload protector switch trips automatically for safety.
• Detachable and reversible mounting ears for easy installation in any rack.
• 3-meter heavy-duty power cord for flexible placement.

NBYOSUN builds each PDU to last. You get a product that stands up to the demands of your data center. The company invests in research and development to make sure your center gets the best in power distribution and safety.

Smart PDU for Data Center Management

You need more than just basic power in your center. NBYOSUN smart PDUs give you advanced monitoring and control. These smart units help you manage your data center with real-time information.

You can use these smart PDUs to track power monitoring, spot problems early, and keep your center running smoothly. Real-time monitoring helps you see how much power each device uses. You can also watch for changes in temperature or humidity. If something goes wrong, you get an alert right away.

Smart PDUs help you save energy and meet new rules for data center efficiency. Large centers use these features to lower costs and avoid downtime. You can scale your monitoring as your center grows, making it easy to manage even the busiest environments.

Tip: Smart PDUs from NBYOSUN help you keep your data center safe, efficient, and ready for the future.

Overcoming Data Center Power Challenges

Preventing Phase Imbalance

You face many challenges when you manage a data center. One of the most common problems is phase imbalance in your power distribution. If you do not balance the load across all three phases, you risk overheating, breaker trips, and even stranded capacity. This can threaten your center’s critical power supply.

To prevent phase imbalance, you should:

• Plan your load distribution before you install equipment. This helps you avoid unbalanced power draw and possible failures.
• Connect each power supply unit to a different phase on your rack PDU. This spreads the load evenly.
• Use intelligent PDUs with real-time monitoring. These units show you the power draw for each phase and alert you if one phase carries too much load.
• Monitor loads at three levels: the main circuit, groups of outlets, and each outlet. This gives you a clear view of your center’s power use.
• Set alert thresholds based on safety guidelines. For example, you can set alerts at 70% of capacity to prevent overloads.

You can also use visual feedback tools to check phase balance quickly. Keeping the difference between phases small helps your data center run smoothly and keeps your critical power stable.

Tip: Regular monitoring and smart planning help you avoid phase imbalance and protect your center from costly outages.

Ensuring Reliable Operations

Your center depends on reliable operations to deliver services without interruption. Power disruptions remain a leading cause of expensive outages in the data center industry. You must address several risks to keep your critical power systems running.

Common power challenges include:

• Power grid issues from storms or natural disasters
• Overvoltage spikes that damage equipment
• PDU faults or improper load balancing, which cause over half of all outages
• Circuit overloading from poor power distribution
• Cooling problems due to high heat from dense equipment
• Human error during maintenance

You can see these causes in the table below:

You can reduce these risks by using intelligent 3 phase rack PDUs. These units support high power density and provide advanced monitoring. They help you detect overloads, prevent downtime, and keep your center’s critical power stable. Features like locking outlets and multiple plug types improve connection reliability. Smart PDUs also help you manage cooling by balancing loads and reducing heat.

Note: Reliable power distribution and continuous monitoring are essential for your data center’s success. You protect your center’s reputation and avoid costly downtime by investing in robust power management.

You play a critical role in keeping your data center efficient. 3 phase rack PDUs deliver critical power density and flexibility, letting you support more servers per rack as your needs grow. Certified, high-quality PDUs from NBYOSUN help you avoid critical downtime and lower long-term costs through energy-efficient designs and advanced monitoring. Explore NBYOSUN’s smart PDU solutions to address critical power challenges. For the next steps, use intelligent monitoring, keep loads balanced, and perform regular maintenance to ensure your critical infrastructure stays reliable.

FAQ

What is the main benefit of using a 3 phase rack PDU in a data center?

You get higher power capacity and better load balancing. This lets you power more equipment safely. You also reduce cable clutter and improve energy efficiency in your data center.

How does a smart PDU help you manage your data center?

A smart PDU gives you real-time monitoring. You can track power use, temperature, and humidity. You get alerts if something goes wrong. This helps you prevent downtime and save energy.

Can you use a 3 phase rack PDU with both C13 and C19 outlets?

Yes, you can. For example, the NBYOSUN 3 Phase 32A IEC C13 C19 0U PDU has 14 C13 and 10 C19 locking outlets. You can connect different types of equipment easily.

How do you prevent phase imbalance in your data center?

You should plan your equipment layout. Connect devices evenly across all three phases. Use intelligent PDUs with monitoring features. Set alerts for load imbalances. This keeps your power stable and your equipment safe.

What certifications should you look for in a rack PDU?

Look for certifications like ISO9001, CE, RoHS, and UL. These show the PDU meets strict safety and quality standards. Certified PDUs protect your equipment and help you meet industry requirements.
