You install a 1U PDU with surge protection into a single (1.75-inch) slot in your standard 19-inch equipment rack. This specialized unit distributes power to multiple outlets. It also contains integrated circuitry that shields your sensitive servers and networking gear from damaging voltage spikes. Power quality issues present a significant financial risk.
The United States Department of Energy indicates that power disturbances, like surges, result in billions of dollars in annual costs for businesses due to equipment failure and productivity losses. Protecting your gear is essential.

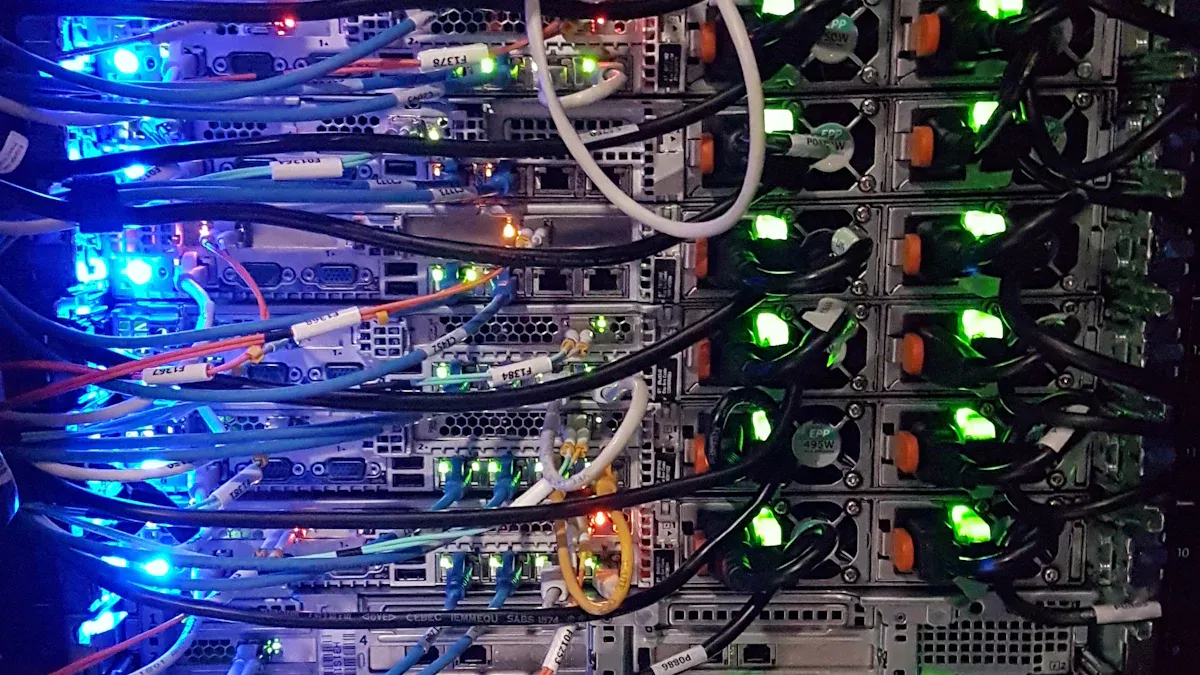

You might think a standard power strip is enough for your server rack. However, a rack-mounted PDU offers critical advantages in protection, reliability, and organization that a basic strip simply cannot match. Your expensive equipment deserves more than desktop-grade protection.
Power surges are a constant threat to your electronics. Many people only consider external events like lightning, but most surges actually originate from inside your own building. These electrical spikes can degrade and destroy sensitive components over time.
Common sources of power surges include:
A power surge can do more than just damage hardware. A sudden power fluctuation can corrupt the data you are writing to a hard drive or SSD. This can lead to lost files or even a corrupted operating system, causing significant downtime. In the professional world, reliability is measured by uptime.
The industry gold standard for availability is “five-nines,” or 99.999% uptime. This translates to less than six minutes of unplanned downtime per year. Unprotected power makes achieving this goal nearly impossible.
A server rack is a dense environment where space is precious. A consumer power strip takes up valuable shelf space and often leads to a tangled mess of wires. A 1U PDU, on the other hand, mounts directly into the rack frame. This design immediately cleans up your setup. It provides a structured anchor point for all your power cords, which helps you:
Properly routing your power cables is a foundational step for a professional and serviceable rack installation.
You might see a surge-protected PDU as just another expense. However, you should view it as a critical insurance policy for your business operations. The cost of a single unplanned outage almost always exceeds the price of the equipment that could have prevented it. When your systems go down, the financial impact grows with every passing minute.
The numbers associated with downtime are staggering and depend on the size of your operation. Consider what an outage could cost your business:
These figures account for more than just lost sales. They include lost employee productivity, potential data recovery fees, and damage to your company’s reputation. A single power surge could trigger these massive expenses.
Think about it this way: a quality 1U PDU is a small, one-time purchase. Downtime is an ongoing financial drain that can strike at any moment.
When you compare the modest cost of a reliable PDU to the enormous potential cost of an outage, the choice becomes clear. You are not just buying a power strip. You are investing in stability, protecting your hardware, and safeguarding your revenue stream from the very real threat of electrical damage.
Choosing the right PDU involves more than just counting outlets. You need to look at the technical specifications to understand the level of protection you are actually getting. These numbers tell you how your PDU will perform when a power surge strikes. Making sense of these specs ensures you invest in a unit that truly safeguards your valuable equipment.
Think of a joule rating as the size of your PDU’s protective shield. It measures the total amount of energy the surge protection circuit can absorb before it fails. A higher joule rating means the PDU can handle either a single, massive surge or many smaller surges over its lifetime. For valuable gear, a bigger shield is always better.
What’s a good joule rating? The right number depends on the equipment you need to protect. More sensitive and expensive electronics require a higher rating.
- A rating of 2000 joules provides robust protection for most server equipment.
- For high-end workstations, enterprise-level servers, and critical networking gear, you should look for a rating in the 3,000 to 6,000 joule range.
It is important to know that this protection wears out over time. The internal components, called Metal Oxide Varistors (MOVs), degrade with every power event they suppress. Each surge uses up a portion of the total joule rating permanently.
Clamping voltage tells you the specific voltage level that will trigger the surge protector to act. When the incoming voltage exceeds this number, the PDU diverts the excess energy away from your connected devices. For this specification, a lower number is better. A lower clamping voltage means the PDU activates faster, allowing less harmful voltage to reach your sensitive electronics.
Choosing a 1u pdu with surge protection that has a low clamping voltage is crucial for safeguarding delicate components. A swift response minimizes the potential for damage during a power surge.
| Clamping Voltage (Volts) | Level of Protection | Suitable Equipment/Application |
|---|---|---|
| 330V | Superior | Sensitive electronic equipment, critical servers, and devices |
| 400V | Mid-range | A wide range of office and home office electronic devices |
| 500V | Adequate | Less sensitive equipment, lighting, basic office machines |
The amperage (amp) rating indicates the maximum electrical current the PDU can safely handle. You must match the PDU’s amperage rating to the rating of the circuit you plug it into. Using a 20-amp PDU on a 15-amp circuit, for example, could lead to you constantly tripping the circuit breaker if you draw too much power.
Your location’s electrical setup determines the available amperage. Home labs and commercial data centers have very different power capacities.
| Setting | Circuit Type | Amperage Rating |
|---|---|---|
| Residential Home Labs | Individual Breakers (Plugs) | 15 or 20 amps (modern homes often have 20A) |
| Commercial Data Centers | Power Circuits | 30 amps or higher (e.g., 208V/30A) |
Check Your Breaker! 💡 Before you buy, walk over to your electrical panel. The number printed on the switch for the outlet you plan to use is its amp rating. Match your PDU to that number to ensure safe and reliable operation.
Surge protection defends your gear from voltage spikes, but what happens if you simply plug in too many devices? This is where overload protection comes in. An overload occurs when your equipment tries to draw more electrical current (amps) than the PDU or your wall circuit can safely provide. This can overheat wires and create a serious fire hazard.
A circuit breaker is the safety switch that prevents this. It constantly monitors the current flowing through the PDU. If the current exceeds a safe limit for too long, the breaker “trips,” cutting off power to all the outlets. This protects your equipment, the PDU, and your building’s wiring.
A quality 1u pdu with surge protection must have a built-in, resettable circuit breaker. This feature is non-negotiable for any rack environment. It stops you from accidentally demanding too much power and causing a dangerous situation.
Most PDUs use one of two main types of circuit breakers: thermal or magnetic. Each one works differently and is suited for different situations. You can see how they compare in the table below.
| Feature | Thermal Circuit Breaker | Magnetic Circuit Breaker |
|---|---|---|
| Operating Mechanism | Uses a heat-responsive bimetal strip that bends and trips the switch. | Uses an electromagnet (solenoid) that trips when the current is too high. |
| Trip Speed | Slower to react. This helps it ignore short, harmless power spikes from equipment starting up. | Trips almost instantly once the current threshold is reached. |
| Temperature Sensitivity | Can be affected by the ambient temperature in your rack. | Not affected by ambient temperature, providing more consistent performance. |
| Ideal Use Case | Good for general-purpose applications where minor inrush currents are common. | Better for sensitive installations that require very fast shutoff. |
| Reset Capability | You can typically reset it with a simple push of a button after it cools down. | Can often be used as a manual on/off switch for the PDU. |
Understanding the type of breaker in your PDU helps you know how it will behave. A thermal breaker is more forgiving of the initial power-on surges from servers, while a magnetic breaker offers faster protection against sustained overloads.
Beyond the core protection specs, you need to consider the physical design of a PDU. The right features ensure the unit fits your workflow and rack setup perfectly. Paying attention to these details will make your installation cleaner and more efficient.
First, you should count the number of devices you need to power. Always choose a PDU with more outlets than you currently need to allow for future expansion. Next, you must check the outlet type. Most PDUs use NEMA (National Electrical Manufacturers Association) receptacles.
All NEMA 5 devices use a three-wire system for hot, neutral, and ground connections. The grounding pin is slightly longer than the power blades. This smart design grounds your device before it receives power, adding a layer of safety. You will most often see two types on a 1U PDU:
| Feature | NEMA 5-15R | NEMA 5-20R |
|---|---|---|
| Electrical Rating | 125VAC, 15 Amps | 125VAC, 20 Amps |
| Physical Design | Standard household style | T-Slot receptacle |
| Plug Compatibility | Accepts NEMA 5-15P plugs | Accepts NEMA 5-15P and 5-20P plugs |
You can buy PDUs with outlets on the front, the rear, or a combination of both. Your choice affects cable management and accessibility.
Front-facing outlets are useful for equipment you need to plug and unplug often, like diagnostic tools or a laptop.
The PDU itself needs to plug into a wall outlet. You must ensure its power cord is long enough to reach the receptacle without being stretched or strained. A cord that is too short can create a safety hazard.
The plug on the end of the cord is just as important. For most home and small business applications, the PDU will have a standard NEMA 5-15P plug. This is the three-prong plug that fits into any standard wall outlet.
Measure Before You Buy! 📏 Before choosing a PDU, measure the distance from your rack to the nearest power outlet. Choose a PDU with a cord length that gives you some extra slack.
Good PDUs have lights that tell you what is happening. These small lights, or LEDs, give you important information about your power quality at a glance. You should always check them after installing your PDU. The two most important indicators are “Protected” and “Grounded.”
The Protected light confirms that the surge protection circuitry is active and ready to defend your gear. If this light goes out, it means the PDU has absorbed too many surges and its protective components are worn out. The unit will still pass power, but it no longer offers surge protection.
The Grounded light is even more critical. This light must be on for the surge protection to work at all. If the ground light is off, it signals a serious problem with the wall outlet’s wiring.
Warning: No Ground, No Protection! ⚠️ A surge protector cannot protect your equipment without a proper ground connection. It needs this path to safely divert excess voltage. An unlit ground light can mean:
- Bad Ground: The ground connection is weak or improperly installed, which violates electrical codes.
- Open Ground: The outlet is missing a ground wire completely. This is common in older buildings.
- Reversed Wiring: The hot and neutral wires in the outlet are swapped, creating a dangerous situation.
Using a PDU with the ground light off will void its warranty and leave your equipment completely vulnerable.
You should always look for a safety certification mark on any PDU you consider buying. These marks show that an independent laboratory has tested the product to ensure it is safe to use. In North America, the two most recognized marks come from Underwriters Laboratories (UL) and Intertek (ETL).
Both UL and ETL test products against the same set of safety standards. For PDUs and similar devices, the key standard is UL 1363, which covers “Relocatable Power Taps.” This certification means the PDU has passed rigorous tests for electrical safety, construction quality, and fire resistance. In Canada, the equivalent standard is CSA-C22.2 No. 308.
When you see a UL or ETL logo, you know the product is not just a collection of parts. It is a complete system that has been verified by a trusted third party to operate safely. This certification is a non-negotiable mark of quality and your assurance of a safe installation.
Choosing the right PDU is a straightforward process. You can find the perfect unit for your needs by following a few simple steps. This ensures you get the right balance of power capacity, protection, and physical fit for your specific setup.
First, you need to know how much power your equipment uses. You can find this information on the power supply label of each device, listed in either watts (W) or amps (A). Add up the total amps for all your gear. If a device only lists watts, you can calculate the amps easily.
Amps = Watts / Volts (Use 120V for standard US power)
Once you have your total, apply the “80% rule” for safety. You should never load an electrical circuit beyond 80% of its maximum capacity. For a 15-amp circuit, your total power draw should not exceed 12 amps. This safety margin prevents the circuit breaker from tripping and reduces fire risk.
Next, think about the cost of the gear you are protecting. The level of surge protection you need should match the value of your electronics. More expensive and critical equipment deserves a stronger defense.
A higher joule rating acts as a bigger shield, giving you better protection against powerful surges and extending the PDU’s lifespan.
Finally, look at the physical layout of your rack. Consider where your wall outlet is located. You must choose a PDU with a power cord long enough to reach the outlet without being stretched. Also, decide on the best outlet orientation for your workflow. Rear-facing outlets are ideal for keeping cables tidy behind your equipment. Front-facing outlets give you easy access for devices you plug in temporarily.
After you determine your technical needs, you can start comparing specific products. The market has many options, but you should focus on brands with a proven history of quality and safety. Choosing an established manufacturer gives you confidence that the product meets its advertised specifications and adheres to important safety standards.
When you research, you will see several names appear frequently. Tech professionals and industry publications often recommend these brands for their reliability.
Established brands like these build products designed for performance and safety. For example, NBYOSUN has become a core supplier for major companies like China Mobile, Lenovo, and Philips. This background shows a deep expertise in creating reliable power solutions for demanding applications.
As an integrated PDU manufacturer, NBYOSUN offers a wide range of products to meet global market needs. The company provides custom power solutions for data centers, server rooms, and edge computing. When you compare models, look at the spec sheets from these top brands. Check that the joule rating, amperage, and outlet configuration match the requirements you identified in the previous steps. This final check ensures you buy the perfect PDU for your gear.
Different environments have unique power needs. The right PDU for a home lab is not the same as one for a large data center. You can find the perfect model by matching its features to your specific application. This guide breaks down recommendations for three common setups.
Your home lab is a place for learning and experimentation. You need reliable power protection for your server, switch, and other gear without spending an enterprise-level budget. Your focus should be on safety, adequate protection, and smart value.
Home Lab Tip 🏡 You should always choose a PDU with UL or ETL safety certifications. These marks confirm the product has been tested for fire and electrical safety. This is a critical consideration for any equipment running 24/7 in your home.
Your business relies on its servers and network for daily operations. Downtime directly impacts your revenue and productivity. You need a power solution that prioritizes reliability, simplicity, and cost-effectiveness.
For most small business racks with 5 to 10 devices, a Basic PDU is an ideal starting point. It offers straightforward power distribution with a focus on reliability. These units are easy to install and require minimal maintenance. This makes them perfect for small offices or network closets where budgets are a key consideration. You must ensure you have enough outlets for your current devices plus extra for future growth.
A Metered PDU is an excellent upgrade. It adds a local display that gives you real-time data on power consumption. This visibility helps you:
The right 1u pdu with surge protection for your business will match your specific needs. The table below highlights the priorities for a typical small business IT setup.
| Feature Priority | Small Business Server Racks |
|---|---|
| Power Phase | Single-phase |
| Design | Compact, easy to install |
| Monitoring | Basic energy tracking |
| Usability | Simplicity |
| Cost Consideration | Affordability |
| Security and Reliability | Basic reliability |
| Application Environment | Small IT setups |
Edge and data center environments are mission-critical. These facilities demand the highest levels of power reliability and capacity. The equipment is often high-density and power-hungry, requiring more robust solutions than a standard office PDU.
In these critical settings, a PDU is more than a power strip. It is a key part of your infrastructure management strategy. It provides the data and control you need to maintain uptime and manage resources efficiently.
When you look for a PDU, you want a brand with a deep history in power management. NBYOSUN is a professional manufacturer that specializes in Power Distribution Units for data centers. The company started as an extension socket factory and has grown over 25 years into a leading provider of intelligent power solutions. This long history shows a strong expertise in the PDU industry.
NBYOSUN is a core supplier for major technology and industrial companies. These include China Mobile, CHINA TELECOM, Lenovo, Philips, and Schneider. This partnership demonstrates a consistent record of delivering high-quality, reliable products for demanding environments.
The company invests heavily in research and development. This commitment allows them to design and manufacture a wide range of PDUs. You can find solutions for data centers, server rooms, edge computing, and even digital cryptocurrency mining. Their product line includes Basic, Metered, and Smart PDUs to meet different global market needs.
Let’s look at an example of their engineering. A typical NBYOSUN 1U PDU with surge protection offers a powerful set of features designed for professional use.
NBYOSUN focuses on practical design choices that improve reliability and durability. The table below highlights how specific features benefit your setup.
| Feature | Your Benefit |
|---|---|
| Switchless Design | This prevents you or your team from accidentally turning off power to critical equipment. |
| Aluminum Alloy Housing | You get a lightweight yet extremely durable PDU that helps dissipate heat within the rack. |
| Antiflaming PC Module | The outlet material is fire-resistant, adding an important layer of safety to your installation. |
Choosing a brand like NBYOSUN means you are investing in a product built on decades of industry experience. You get a power solution designed for safety, durability, and performance in critical applications.
You should view a quality 1u pdu with surge protection as a necessary investment for your rack. It is not just an accessory. It is a cost-effective insurance policy for your valuable equipment. This single device prevents expensive hardware replacement, protects against data loss, and stops critical downtime before it happens.
Take the time to assess your power requirements. Your effort will help you choose a PDU that provides the perfect level of protection for your important gear. 🛡️
You install a PDU directly into your equipment rack. It is built with higher-quality materials for professional use. A standard power strip is designed for lighter, desktop use. PDUs offer better durability and organization for a server environment.
You should replace your PDU after a major power event like a lightning strike. Also, replace it if the “Protected” light goes out. The internal components wear out over time as they absorb surges, so their lifespan varies based on your power quality.
No, you should never plug one surge protector into another. This practice, called “daisy-chaining,” can overload the circuit and create a serious fire hazard. It also voids the warranty on your PDU and can damage your equipment.
If the “Protected” light goes out, your PDU no longer offers surge protection. It will still provide power to your devices, but they are now vulnerable to damage from voltage spikes. You must replace the unit immediately to keep your gear safe.
